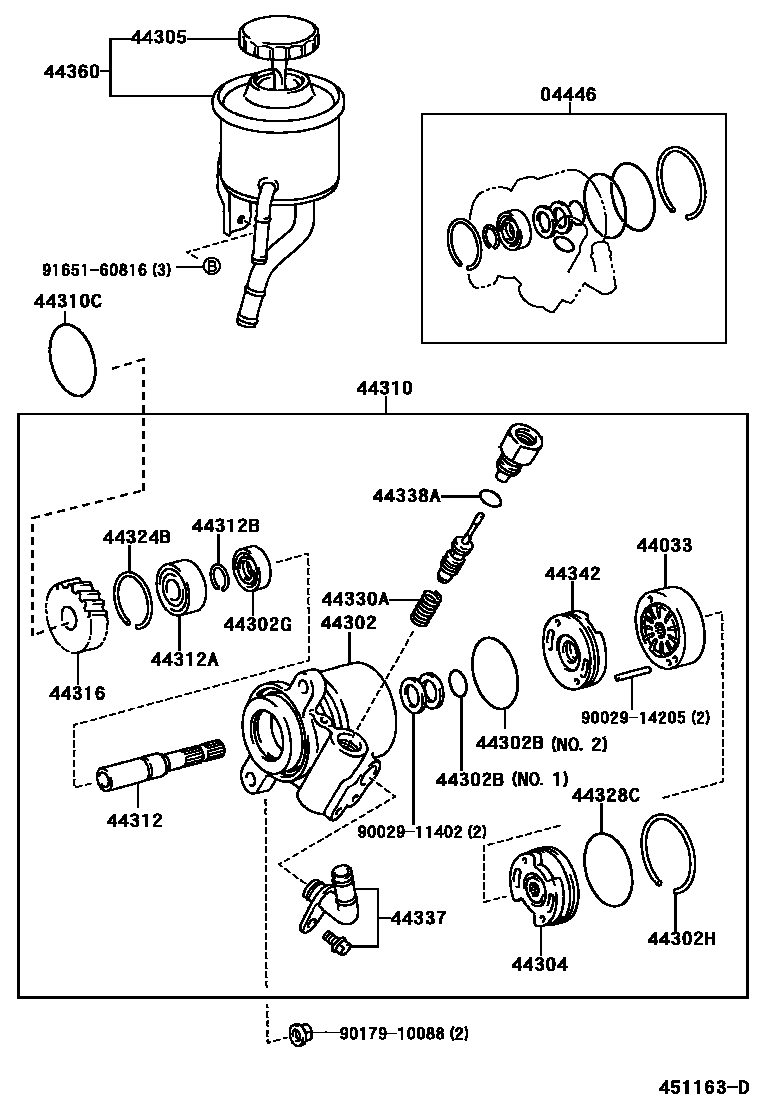

VANE PUMP & RESERVOIR (POWER STEERING)

0001 1 0002 1 0003 1RUSSIA SPEC OR SOUTH AMERICA 0004 1 0005 1TYPE A 0006 1TYPE B

04446GASKET KIT, POWER STEERING PUMP

main04446-24011iUZJ100..LHD¥2,620199907-200101

RUSSIA SPEC OR SOUTH AMERICA SPEC OR CHINA SPEC

sub04446-24012¥2,620

main04446-24012iUZJ100..LHD¥2,620200101-200208

RUSSIA SPEC OR SOUTH AMERICA SPEC OR CHINA SPEC

main04446-34010iUZJ100¥2,320199801-200208

sub04446-53030¥1,360

main04446-60100iHDJ100¥3,570199801-200208

sub04446-37040¥3,570

main04446-60120iUZJ100¥1,550200208-200510

sub04446-60200¥1,550

main04446-60130iHDJ100¥1,280200208-200505

main04446-60200iUZJ100¥1,550200510

44033ROTOR SUB-ASSY, W/CAM & VANE

main44033-60010iHDJ100¥7,100199801-200208

sub44033-EV010¥4,900

44302HOUSING SUB-ASSY, VANE PUMP, FRONT

main44302-24021iUZJ100..LHD¥15,500199907-200208

RUSSIA SPEC OR SOUTH AMERICA SPEC OR CHINA SPEC

main44302-60070iUZJ100¥19,900199801-200208

main44302-60080iHDJ100¥24,400199801-200208

44302BRING, O, NO.1(FOR VANE PUMP HOUSING)

main90029-20056iHDJ100¥200199801-200208

NO.1

main90029-20057iHDJ100¥200199801-200208

NO.2

44302GSEAL, OIL, NO.2(FOR VANE PUMP HOUSING)

main90029-21018iHDJ100¥240199801-200208

main90311-17004iUZJ100..LHD¥190199907-200208

RUSSIA SPEC OR SOUTH AMERICA SPEC OR CHINA SPEC

main90311-18015iUZJ100¥210199801-200208

44302HRING, SNAP, NO.1(FOR VANE PUMP HOUSING)

main90029-52010iHDJ100¥200199801-200208

main90521-51003iUZJ100..LHD¥230199907-200208

RUSSIA SPEC OR SOUTH AMERICA SPEC OR CHINA SPEC

44304HOUSING SUB-ASSY, VANE PUMP, REAR

main44304-60040iHDJ100¥5,200199801-200208

44305CAP SUB-ASSY, VANE PUMP OIL RESERVOIR

main44305-32020iUZJ100¥1,470199801-200708

sub44305-32040¥1,010

main44305-35010iHDJ100¥2,000199801-200708

sub44305-35030¥1,990

44310PUMP ASSY, VANE

main44310-60320iHDJ100..4FC;HDJ100..LHD..5F¥81,600199801-200208

main44310-60380iHDJ100..VX¥81,600200108-200208

W(EGR COOLER):REFER TO FIG 25-01

main44310-60390iUZJ100¥94,600200208-200505

TYPE A:REFER TO ILLUSTRATION

main44310-60400iUZJ100¥94,600200208-200505

TYPE B:REFER TO ILLUSTRATION

main44310-60410iHDJ100¥81,700200208-200505

main44310-60420iHDJ100..VX¥81,700200208-200505

W(EGR COOLER):REFER TO FIG 25-01

44310CRING, O(FOR VANE PUMP)

main90301-60002iHDJ100¥530199801-200505

44312SHAFT, VANE PUMP

main44312-32020iUZJ100¥1,300199801-200208

main44312-50010iUZJ100..LHD¥3,150199907-200208

RUSSIA SPEC OR SOUTH AMERICA SPEC OR CHINA SPEC

main44312-60030iHDJ100¥770199801-200208

44312ABEARING(FOR VANE PUMP SHAFT)

main90029-36003iHDJ100¥1,490199801-200208

main90363-17011iUZJ100..LHD¥820199907-200208

RUSSIA SPEC OR SOUTH AMERICA SPEC OR CHINA SPEC

sub90363-17017¥820

44312BRING, SNAP, NO.1(FOR VANE PUMP SHAFT)

main90029-52402iHDJ100¥190199801-200208

main90520-10003iUZJ100¥140199801-200208

main90520-15005iUZJ100..LHD¥80199907-200208

RUSSIA SPEC OR SOUTH AMERICA SPEC OR CHINA SPEC

44316GEAR, VANE PUMP

main44316-60040iHDJ100¥9,000199801-200208

main44316-60050iHDJ100..VX¥10,100200108-200208

W(EGR COOLER):REFER TO FIG 25-01

main44316-60060iHDJ100¥1,060200208-200505

main44316-60070iHDJ100..VX¥1,690200208-200505

W(EGR COOLER):REFER TO FIG 25-01

44324BRING, HOLE SNAP(FOR PUMP HOUSING REAR)

main90029-52011iHDJ100¥320199801-200208

44328CRING, O(FOR PUMP HOUSING END)

main90029-20058iHDJ100¥200199801-200208

44330VALVE ASSY, FLOW CONTROL

main44330-26071iUZJ100¥8,500199801-200208

MARK A

main44330-26081iUZJ100¥8,500199801-200208

MARK B

main44330-26091iUZJ100¥8,500199801-200208

MARK C

main44330-26101iUZJ100¥8,500199801-200208

MARK D

main44330-26111iUZJ100¥8,500199801-200208

MARK E

main44330-26121iUZJ100¥8,500199801-200208

MARK F

main44330-30280iUZJ100..LHD¥8,500199907-200208

MARK A,RUSSIA SPEC OR SOUTH AMERICA SPEC OR CHINA SPEC

main44330-30290iUZJ100..LHD¥8,500199907-200208

MARK B,RUSSIA SPEC OR SOUTH AMERICA SPEC OR CHINA SPEC

main44330-30300iUZJ100..LHD¥8,500199907-200208

MARK C,RUSSIA SPEC OR SOUTH AMERICA SPEC OR CHINA SPEC

main44330-30310iUZJ100..LHD¥8,500199907-200208

MARK D,RUSSIA SPEC OR SOUTH AMERICA SPEC OR CHINA SPEC

main44330-30320iUZJ100..LHD¥8,500199907-200208

MARK E,RUSSIA SPEC OR SOUTH AMERICA SPEC OR CHINA SPEC

main44330-30330iUZJ100..LHD¥8,500199907-200208

MARK F,RUSSIA SPEC OR SOUTH AMERICA SPEC OR CHINA SPEC

44330ASPRING, COMPRESSION(FOR FLOW CONTROL VALVE)

main90029-60013iHDJ100¥110199801-200208

main90501-12103iUZJ100..LHD¥160199907-200208

RUSSIA SPEC OR SOUTH AMERICA SPEC OR CHINA SPEC

main90501-13034iUZJ100¥160199801-200208

44337UNION, POWER STEERING SUCTION PORT

main44337-30050iUZJ100¥1,680199801-200208

main44337-60090iHDJ100¥1,880199801-200208

main44337-60110iUZJ100..LHD¥2,080199907-200208

RUSSIA SPEC OR SOUTH AMERICA SPEC OR CHINA SPEC

main44337-60140iUZJ100¥1,870200208-200505

TYPE A:REFER TO ILLUSTRATION

main44337-60150iUZJ100¥2,470200208-200505

TYPE B:REFER TO ILLUSTRATION

main44337-60160iHDJ100¥1,870200208-200505

44338ARING, O(FOR PRESSURE PORT UNION)

main90301-19013iUZJ100¥260199801-200208

ID=19.2,OD=22.3

sub90301-19018¥240

main90301-19018iUZJ100..LHD¥240200101-200208

ID=19.2,OD=22.3

main96711-19016iHDJ100¥300199801-200208

OD=19.6,ID=15.8

44342PLATE, VANE PUMP SIDE, REAR

main44342-20010iUZJ100..LHD¥4,160199907-200208

RUSSIA SPEC OR SOUTH AMERICA SPEC OR CHINA SPEC

main44342-60040iUZJ100¥1,240199801-200208

main44342-60050iHDJ100¥6,400199801-200208

44360RESERVOIR ASSY, VANE PUMP OIL

main44360-60210iUZJ100¥10,300199801-200505

TYPE A:REFER TO ILLUSTRATION

main44360-60220iHDJ100¥10,300199801-200505

main44360-60230iUZJ100¥10,300200208-200505

TYPE B:REFER TO ILLUSTRATION

main44360-60230iUZJ100..LHD¥10,300199907-200208

RUSSIA SPEC OR SOUTH AMERICA SPEC OR CHINA SPEC

9002911402

main90029-11402¥240

9002914205

main90029-14205¥70

9017910088

main90179-10088¥100

9165160816

main91651-60816¥100

26 parts on this diagram · 6 diagrams in section
