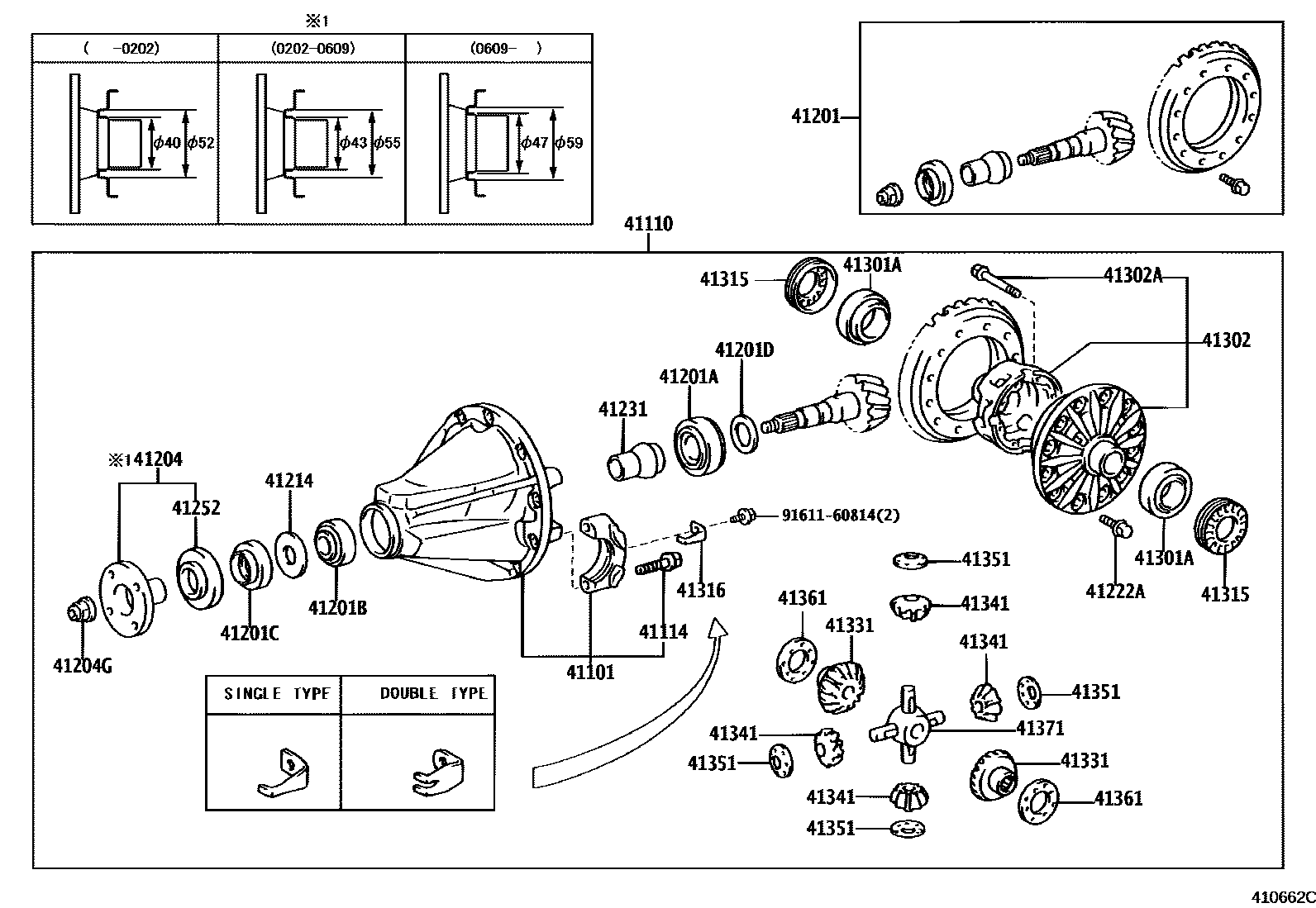

REAR AXLE HOUSING & DIFFERENTIAL
41101CARRIER SUB-ASSY, DIFFERENTIAL, REAR
W(REAR DIFFERENTIAL LOCK)
41110CARRIER ASSY, DIFFERENTIAL, REAR
*FGR=41:10=4.100,W(REAR DIFFERENTIAL LOCK)
sub41110-60A81
41114BOLT, REAR DIFFERENTIAL BEARING CAP
W(REAR DIFFERENTIAL LOCK)
41201FINAL GEAR KIT, DIFFERENTIAL, REAR
*FGR=41:10=4.100
*FGR=43:11=3.909
41201ABEARING (FOR REAR DRIVE PINION REAR)
41201BBEARING (FOR REAR DRIVE PINION FRONT)
41201CSEAL, OIL (FOR REAR DIFFERENTIAL CARRIER)
REFER TO PNC 41204
REFER TO PNC 41204
REFER TO PNC 41204
41201DWASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION)
T=1.05
T=1.075
T=1.10
T=1.125
T=1.15
T=1.175
T=1.20
T=1.225
T=1.25
T=1.275
T=1.30
T=1.325
T=1.35
T=1.375
T=1.40
T=1.425
T=1.45
T=1.475
T=1.50
T=1.525
T=1.55
41204FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR
41204GNUT (FOR DRIVE PINION COMPANION FLANGE REAR)
41214SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL
41222ABOLT (FOR REAR DIFFERENTIAL RING GEAR SET)
41231SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING
41252DEFLECTOR, DUST (FOR REAR DIFFERENTIAL)
41302CASE SUB-ASSY, REAR DIFFERENTIAL
W(LSD)
W(REAR DIFFERENTIAL LOCK)
41302ABOLT(FOR REAR DIFFERENTIAL CASE)
41315NUT, REAR DIFFERENTIAL BEARING ADJUSTING
41316LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT
SINGLE TYPE
DOUBLE TYPE
41331GEAR, REAR DIFFERENTIAL SIDE
W(LSD)
W(REAR DIFFERENTIAL LOCK)
41341PINION, REAR DIFFERENTIAL
W(LSD)
41351WASHER, REAR DIFFERENTIAL PINION THRUST
W(REAR DIFFERENTIAL LOCK)
41361WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1
T=2.00,W(LSD)
T=1.525
T=1.550
T=1.575
T=1.600
T=1.625
T=1.650
T=1.675
T=1.700
T=1.725
T=1.750
T=1.775
T=1.800
T=1.825
T=1.850
T=1.875
T=1.900
T=1.925
T=1.950
T=1.975
T=2.000
T=2.025
T=2.050
T=2.075
T=2.100
T=2.125
T=1.525,W(REAR DIFFERENTIAL LOCK)
T=1.550,W(REAR DIFFERENTIAL LOCK)
T=1.575,W(REAR DIFFERENTIAL LOCK)
T=1.600,W(REAR DIFFERENTIAL LOCK)
T=1.625,W(REAR DIFFERENTIAL LOCK)
T=1.650,W(REAR DIFFERENTIAL LOCK)
T=1.675,W(REAR DIFFERENTIAL LOCK)
T=1.700,W(REAR DIFFERENTIAL LOCK)
T=1.725,W(REAR DIFFERENTIAL LOCK)
T=1.750,W(REAR DIFFERENTIAL LOCK)
T=1.775,W(REAR DIFFERENTIAL LOCK)
T=1.800,W(REAR DIFFERENTIAL LOCK)
T=1.825,W(REAR DIFFERENTIAL LOCK)
T=1.850,W(REAR DIFFERENTIAL LOCK)
T=1.875,W(REAR DIFFERENTIAL LOCK)
T=1.900,W(REAR DIFFERENTIAL LOCK)
T=1.925,W(REAR DIFFERENTIAL LOCK)
T=1.950,W(REAR DIFFERENTIAL LOCK)
T=1.975,W(REAR DIFFERENTIAL LOCK)
T=2.000,W(REAR DIFFERENTIAL LOCK)
T=2.025,W(REAR DIFFERENTIAL LOCK)
T=2.050,W(REAR DIFFERENTIAL LOCK)
T=2.075,W(REAR DIFFERENTIAL LOCK)
T=2.100,W(REAR DIFFERENTIAL LOCK)
T=2.125,W(REAR DIFFERENTIAL LOCK)
41371SPIDER, REAR DIFFERENTIAL
W(LSD)
9161160814
main91611-60814
25 parts on this diagram · 5 diagrams in section
