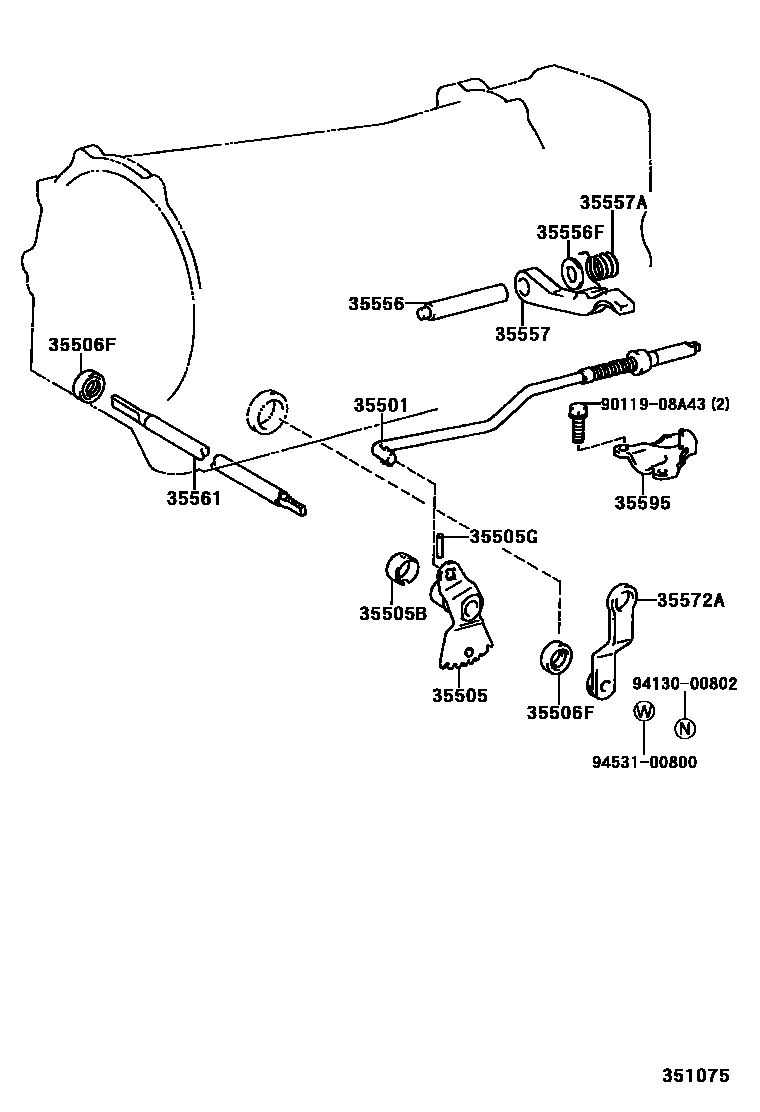

THROTTLE LINK & VALVE LEVER (ATM)

0001 1A442F 0002 1A343F 0003 1A442F,RUSSIA,SOUTH AMERICA SP0004 1A442F,CHINA SPEC 0005 1A750F

35501ROD SUB-ASSY, PARKING LOCK

main35501-36010iHDJ100..4FC199801-200307

main35501-36010iUZJ100..LHD199907-200208

SOUTH AMERICA SPEC

main35501-60010iUZJ100199801-200208

main35501-60020iHDJ100,UZJ100..5FC200208-200505

35505LEVER SUB-ASSY, MANUAL VALVE

main35505-30021iUZJ100199801-200208

main35505-60020iUZJ100..LHD199907-200208

RUSSIA SPEC

main35505-60020iHDJ100..4FC199801-200307

main35505-60050iHDJ100,UZJ100..5FC200208-200505

35505BSPACER (FOR MANUAL VALVE LEVER)

main90560-20006iUZJ100199801-200208

main90560-20008iHDJ100..4FC199801-200307

main90560-20008iUZJ100..LHD199907-200208

SOUTH AMERICA SPEC

35505GPIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER)

main90254-04011iUZJ100199801-200208

main90254-04012iHDJ100..4FC199801-200307

main90254-04012iUZJ100..LHD199907-200208

RUSSIA SPEC

35506FSEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)

main90311-12002iHDJ100,UZJ100..4FC199801-200505

35556SHAFT, PARKING LOCK PAWL

main35556-30020iUZJ100199801-200208

main35556-36010iHDJ100..4FC199801-200307

main35556-36010iUZJ100..LHD199907-200208

SOUTH AMERICA SPEC

main35556-60020iHDJ100,UZJ100..5FC200208-200505

35556FWASHER, PLATE (FOR PARKING LOCK PAWL SHAFT)

main90201-16012iHDJ100..4FC199801-200307

35557PAWL, PARKING LOCK

main35557-60020iUZJ100199801-200208

main35557-60030iHDJ100..4FC199801-200307

main35557-60030iUZJ100..LHD199907-200208

SOUTH AMERICA SPEC

main35557-60040iHDJ100,UZJ100..5FC200208-200505

35557ASPRING, TORSION (FOR PARKING LOCK PAWL)

main90508-21002iUZJ100199801-200208

main90508-30010iHDJ100..4FC199801-200307

main90508-30010iUZJ100..LHD199907-200208

CHINA SPEC

main90949-03123iHDJ100,UZJ100..5FC200208-200505

35561SHAFT, MANUAL VALVE LEVER

main35561-30070iUZJ100199801-200208

main35561-60020iHDJ100..4FC199801-200307

main35561-60020iUZJ100..LHD199907-200208

SOUTH AMERICA SPEC

main35561-60030iHDJ100,UZJ100..5FC200208-200505

35572ALEVER, TRANSMISSION CONTROL SHAFT

main35572-60050iHDJ100..4FC199801-200307

main35572-60050iUZJ100..LHD199907-200208

SOUTH AMERICA SPEC

main35572-60060iUZJ100199801-200208

35595BRACKET, PARKING LOCK PAWL

main35595-60010iUZJ100199801-200208

main35595-60020iHDJ100..4FC199801-200307

main35595-60020iUZJ100..LHD199907-200208

SOUTH AMERICA SPEC

main35595-60030iHDJ100,UZJ100..5FC200208-200505

9011908A43

main90119-08A43

9413000802

main94130-00802

9453100800

main94531-00800

15 parts on this diagram · 5 diagrams in section
