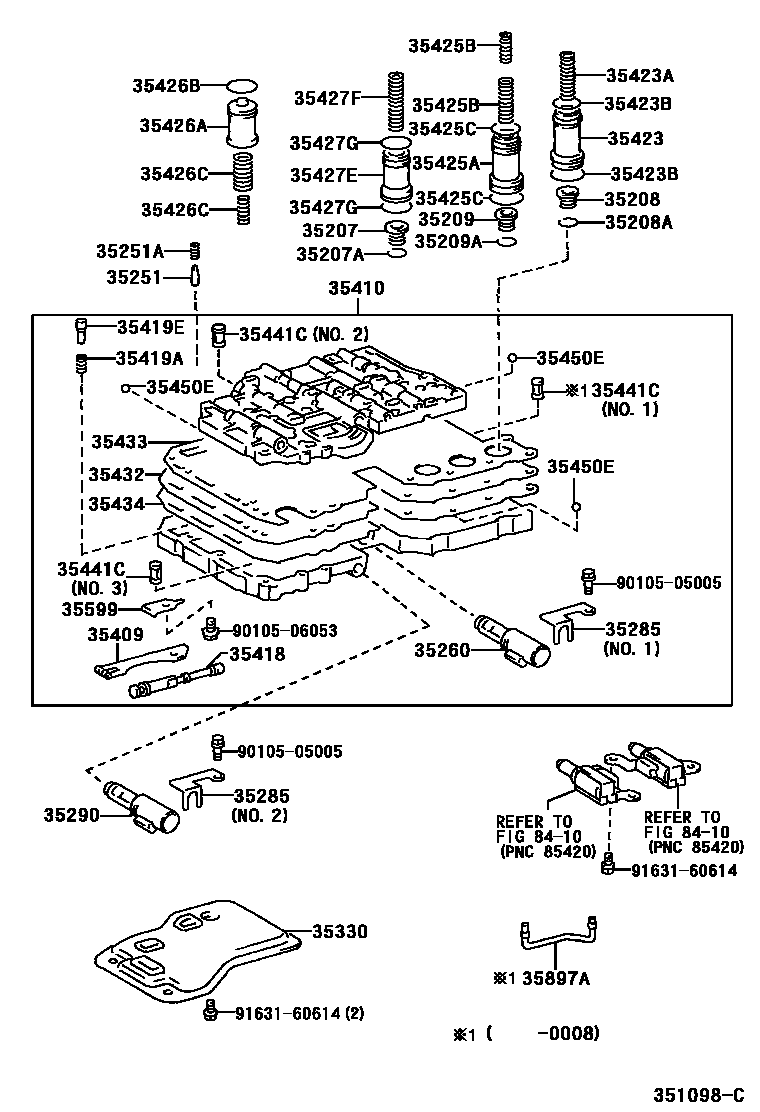

VALVE BODY & OIL STRAINER (ATM)
35207SPRING SUB-ASSY, B-0 ACCUMULATOR
35207ARING, HOLE SNAP (FOR B-0 ACCUMULATOR SPRING)
35208SPRING SUB-ASSY, B-2 ACCUMULATOR
35208ARING, HOLE SNAP (FOR B-2 ACCUMULATOR SPRING)
35209SPRING SUB-ASSY, C-2 ACCUMULATOR
35209ARING, HOLE SNAP (FOR C-2 ACCUMULATOR SPRING)
35251BODY, CHECK BALL
35251ASPRING, COMPRESSION (FOR CHECK BALL BODY)
35260ACCUMLATOR ASSY, THROTTLE PRESSURE
35285PLATE, SOLENOID LOCK
NO.1
NO.2
35290SOLENOID ASSY, LINE PRESSURE CONTROL
SOUTH AMERICA SPEC
35330STRAINER ASSY, VALVE BODY OIL
SOUTH AMERICA SPEC
35409SPRING SUB-ASSY, MANUAL DETENT
CHINA SPEC
35410BODY ASSY, TRANSMISSION VALVE
sub35410-60412
sub35410-60413
TRANSMISSION TYPE=A343F,REFER TO ILLUSTRATION FIG.35-01
TRANSMISSION TYPE=A442F,REFER TO ILLUSTRATION FIG.35-01
sub35410-35A20
sub35410-35A00
35418VALVE, MANUAL
RUSSIA SPEC
35419VALVE, CHECK, NO.1
CHINA SPEC
35419ASPRING, COMPRESSION (FOR CHECK VALVE)
SOUTH AMERICA SPEC
35419EVALVE, CHECK, NO.3
35423PISTON, B-2 ACCUMULATOR
35423ASPRING, COMPRESSION (FOR B-2 ACCUMULATOR PISTON)
35423BRING, O (FOR B-2 ACCUMULATOR PISTON)
UPPER
LOWER
35425BSPRING, COMPRESSION (FOR C-2 ACCUMULATOR PISTON)
RUSSIA SPEC,LOWER
LOWER
OUTER
INNER
SOUTH AMERICA SPEC,UPPER
UPPER
35425CRING, O (FOR C-2 ACCUMULATOR PISTON)
UPPER
UPPER
SOUTH AMERICA SPEC,UPPER
UPPER
LOWER
LOWER
LOWER
SOUTH AMERICA SPEC,LOWER
35426APISTON, C-0 ACCUMULATOR
35426BRING, O (FOR C-0 ACCUMULATOR PISTON)
35426CSPRING, COMPRESSION (FOR C-0 ACCUMULATOR PISTON)
INNER
OUTER
35427EPISTON, B-0 ACCUMULATOR
35427FSPRING, COMPRESSION (FOR B-0 ACCUMULATOR PISTON)
35427GRING, O (FOR B-0 ACCUMULATOR PISTON)
UPPER
LOWER
35441VALVE, LOW COAST SHIFT CONTROL
35441CSTRAINER, SOLENOID OIL
NO.2
NO.3
RUSSIA SPEC
NO.1
35450EBALL (FOR UPPER VALVE BODY)
OD=5.535,RUBBER
OD=6.35,RUBBER
OD=6.35
OD=6.35,RUSSIA SPEC
35599COVER, MANUAL DETENT SPRING
CHINA SPEC
35897ATUBE, 1ST & REVERSE BRAKE, NO.1
8410
9010505005
main90105-05005
9010506053
main90105-06053
9163160614
main91631-60614
42 parts on this diagram · 21 diagrams in section
