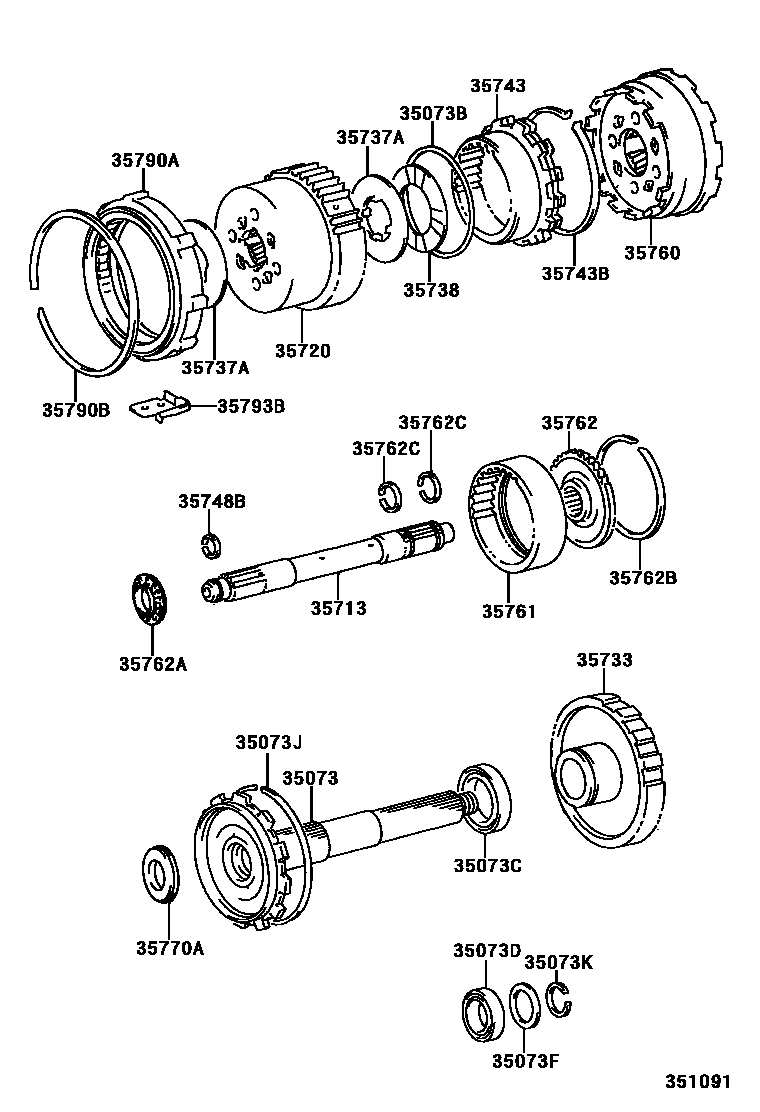

PLANETARY GEAR, REVERSE PISTON & COUNTER GEAR(ATM)
35073SHAFT SUB-ASSY, OUTPUT
SOUTH AMERICA SPEC
35073BRING, O (FOR OUTPUT SHAFT)
35073CBEARING, RADIAL BALL (FOR OUTPUT SHAFT FRONT)
35073DBEARING, RADIAL BALL (FOR OUTPUT SHAFT REAR)
35073FSPACER, NO.1 (FOR OUTPUT SHAFT REAR BEARING)
T=1.5,MARK 0
T=1.6,MARK 1
T=1.7,MARK 2
T=1.8,MARK 3
35073JRING, HOLE SNAP (FOR OUTPUT SHAFT)
35073KRING, SHAFT SNAP (FOR OUTPUT SHAFT REAR BEARING)
35713SHAFT, INTERMEDIATE
35733GEAR, PARKING LOCK
35737AWASHER, PLANETARY CARRIER THRUST, NO.1
SOUTH AMERICA SPEC
35738WASHER, PLANETARY CARRIER THRUST, NO.2
SOUTH AMERICA SPEC
35743GEAR, FRONT PLANETARY RING
35743BRING, HOLE SNAP (FOR FRONT PLANETARY RING GEAR)
35748BRING, INTERMEDIATE SHAFT OIL SEAL
35761GEAR, REAR PLANETARY RING
CHINA SPEC
35762FLANGE, REAR PLANETARY RING GEAR
SOUTH AMERICA SPEC
35762BRING, HOLE SNAP (FOR REAR PLANETARY RING GEAR FLANGE)
35762CRING, SHAFT SNAP (FOR REAR PLANETARY RING GEAR)
35770ABEARING, THRUST (FOR OUTPUT SHAFT)
35790ACLUTCH ASSY, 1 WAY
35790BRING, HOLE SNAP (FOR 1 WAY CLUTCH)
35793BRETAINER, 1 WAY CLUTCH
25 parts on this diagram · 5 diagrams in section
