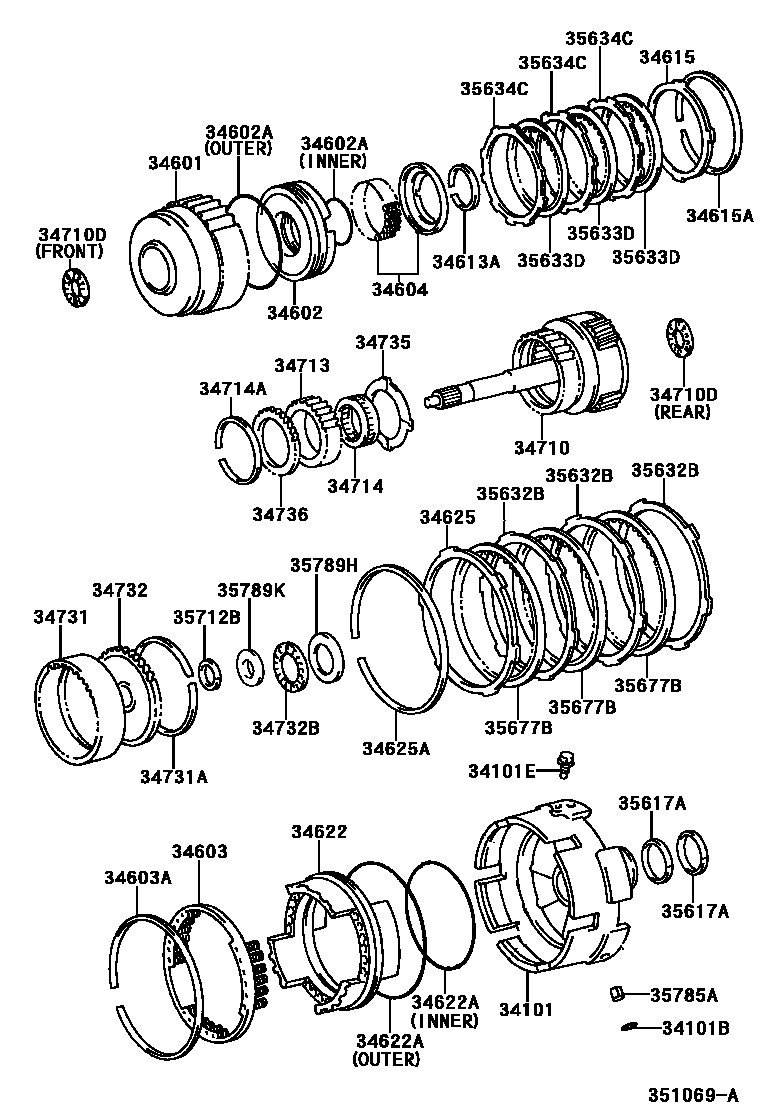

OVERDRIVE GEAR (ATM)
34101CASE SUB-ASSY, OVERDRIVE
34101BRING, O (FOR OVERDRIVE CASE)
34101EBOLT (FOR OVERDRIVE CASE & TRANSAXLE CASE SETTING)
*12-1.25PX20.5-13
34601DRUM SUB-ASSY, OVERDRIVE DIRECT CLUTCH
SOUTH AMERICA SPEC
34602PISTON SUB-ASSY, OVERDRIVE DIRECT CLUTCH
RUSSIA SPEC
34602ARING, O (FOR OVERDRIVE DIRECT CLUTCH PISTON)
SOUTH AMERICA SPEC,INNER
INNER
INNER
OUTER
SOUTH AMERICA SPEC,OUTER
OUTER
34603SPRING SUB-ASSY, OVERDRIVE BRAKE RETURN
SOUTH AMERICA SPEC
34603ARING, HOLE SNAP (FOR OVERDRIVE BRAKE RETURN SPRING)
CHINA SPEC
34604SPRING SUB-ASSY, OVERDRIVE CLUTCH RETURN
CHINA SPEC
34613ARING, SHAFT SNAP (FOR OVERDRIVE DIRECT CLUTCH RETURN SPRING)
RUSSIA SPEC
34615FLANGE, OVERDRIVE CLUTCH
T=3.1
T=3.2
T=3.3
T=3.4
T=3.5
T=3.6
T=4.6
T=4.6,SOUTH AMERICA SPEC
T=4.77
T=4.77,SOUTH AMERICA SPEC
T=4.94
T=4.94,SOUTH AMERICA SPEC
T=5.11
T=5.11,SOUTH AMERICA SPEC
34615ARING, HOLE SNAP (FOR OVERDRIVE CLUTCH FLANGE)
CHINA SPEC
34622PISTON, OVERDRIVE BRAKE
SOUTH AMERICA SPEC
34622ARING, O (FOR OVERDRIVE BRAKE PISTON)
OUTER
CHINA SPEC,OUTER
INNER
SOUTH AMERICA SPEC,INNER
INNER
OUTER
34625FLANGE, OVERDRIVE BRAKE, NO.1
T=3.3,MARK 33
T=3.8,MARK 38
T=3.9,MARK 39
T=4.0,MARK 40
T=3.5,MARK 35
T=3.6,MARK 36
T=3.7,MARK 37
T=5.0
T=5.0,RUSSIA SPEC
34625ARING, HOLE SNAP (FOR OVERDRIVE BRAKE FLANGE)
RUSSIA SPEC
34710GEAR ASSY, OVERDRIVE PLANETARY
CHINA SPEC
34710DBEARING, THRUST NEEDLE ROLLER(FOR OVERDRIVE PLANETARY GEAR)
REAR
SOUTH AMERICA SPEC,REAR
REAR
REAR
FRONT
SOUTH AMERICA SPEC,FRONT
FRONT
34713RACE, 1 WAY CLUTCH OUTER (FOR OVERDRIVE)
RUSSIA SPEC
34714CLUTCH, 1 WAY(FOR OVERDRIVE)
RUSSIA SPEC
34714ARING, HOLE SNAP(FOR 1 WAY CLUTCH)
RUSSIA SPEC
34731GEAR, OVERDRIVE PLANETARY RING
SOUTH AMERICA SPEC
34731ARING, HOLE SNAP (FOR OVERDRIVE PLANETARY RING GEAR)
SOUTH AMERICA SPEC
34732FLANGE, OVERDRIVE PLANETARY RING GEAR
RUSSIA SPEC
34732BBEARING, THRUST(FOR OVERDRIVE PLANETARY RING GEAR FLANGE)
CHINA SPEC
34735WASHER, OVERDRIVE PLANETARY GEAR THRUST, NO.1
34736WASHER, OVERDRIVE PLANETARY GEAR THRUST, NO.2
35617ARING, CLUTCH DRUM OIL SEAL (FOR OVERDRIVE)
SOUTH AMERICA SPEC
35632BPLATE, BRAKE (FOR OVERDRIVE)
T=2.4
T=4.0
35633DDISC, CLUTCH (FOR OVERDRIVE DIRECT CLUTCH)
SOUTH AMERICA SPEC
35634CPLATE, CLUTCH (FOR OVERDRIVE DIRECT CLUTCH)
T=2.0
RUSSIA SPEC
35677BDISC, CLUTCH (FOR OVERDRIVE BRAKE)
CHINA SPEC
35712BRING, OIL SEAL (FOR OVERDRIVE PLANETARY RING GEAR FLANGE)
35785ARETAINER, OVERDRIVE CASE RING
35789HRACE, THRUST BEARING (FOR OVERDRIVE CASE)
35789KRACE, THRUST BEARING (FOR OVERDRIVE PLANETARY GEAR)
36 parts on this diagram · 4 diagrams in section
