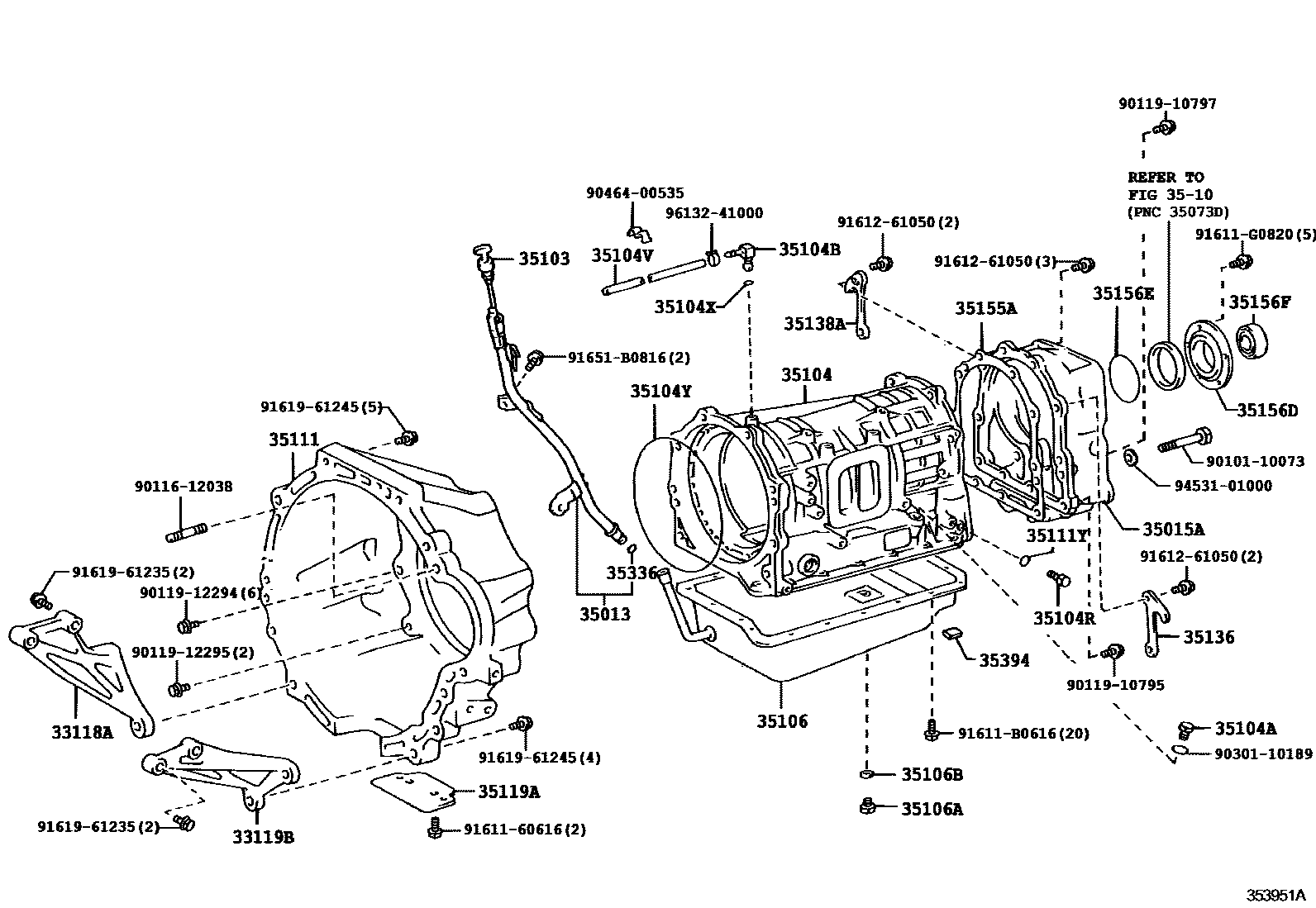

TRANSMISSION CASE & OIL PAN (ATM)
33118APLATE, STIFFENER, RH(ATM)
33119BPLATE, STIFFENER, LH(ATM)
35013TUBE SUB-ASSY, TRANSMISSION OIL FILLER
CHINA SPEC
35015AADAPTER SUB-ASSY, TRANSMISSION CASE, REAR
SOUTH AMERICA SPEC
3510
35103GAGE SUB-ASSY, TRANSMISSION OIL LEVEL
CHINA SPEC
35104APLUG, AUTOMATIC TRANSMISSION CASE
35104BPLUG, BREATHER, NO.1 (ATM)
RUSSIA SPEC
35104RPLUG, NO.2 (FOR TRANSAXLE CASE)
35104XRING, O (FOR BREATHER PLUG)
35104YRING, O (FOR AUTOMATIC TRANSMISSION CASE)
35106PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL
RUSSIA SPEC
35111HOUSING, AUTOMATIC TRANSMISSION
CHINA SPEC
35111YRING, O (FOR AUTOMATIC TRANSMISSION CASE)
SOUTH AMERICA SPEC
35119ACOVER, TRANSMISSION HOUSING
35136HANGER, TRANSMISSION,NO.1
RUSSIA SPEC
35138AHANGER, TRANSMISSION, NO.2
35155AGASKET, TRANSMISSION CASE ADAPTER
35156DCOVER, TRANSMISSION CASE REAR ADAPTER
35156ERING, O(FOR TRANSMISSION CASE REAR ADAPTER COVER)
35156FSEAL, OIL(FOR TRANSMISSION CASE REAR ADAPTER COVER)
35336RING, O (FOR TRANSMISSION OIL FILLER TUBE)
35394MAGNET, OIL CLEANER (FOR TRANSMISSION)
9010110073
main90101-10073
9011612038
main90116-12038
9011910795
main90119-10795
9011910797
main90119-10797
9011912294
main90119-12294
9011912295
main90119-12295
9030110189
main90301-10189
9046400535
main90464-00535
9161160616
main91611-60616
91611B0616
main91611-B0616
91611G0820
main91611-G0820
9161261050
main91612-61050
9161961235
main91619-61235
9161961245
main91619-61245
91651B0816
main91651-B0816
9453101000
main94531-01000
9613241000
main96132-41000
44 parts on this diagram · 7 diagrams in section
