TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)

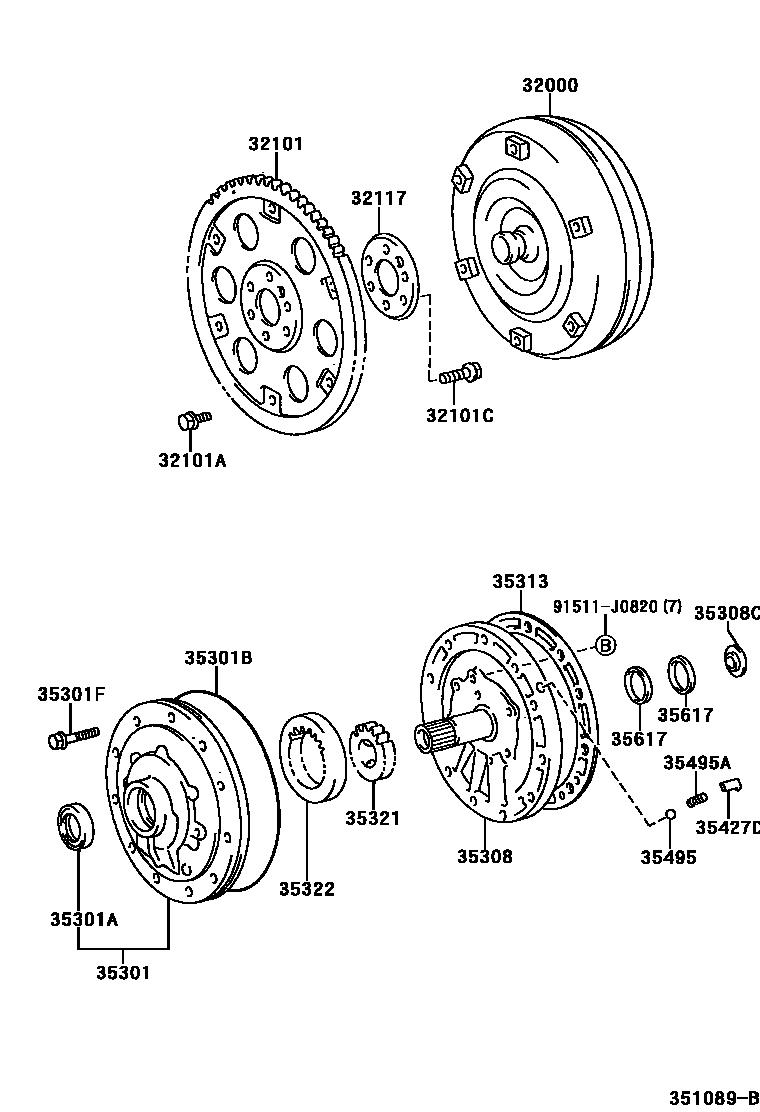

Parts diagram
32000CONVERTER ASSY, TORQUE
main32000-60120i199801-200208
TRANSMISSION TYPE=A343F,REFER TO ILLUSTRATION FIG.35-01
main32000-60140i199907-200208
TRANSMISSION TYPE=A442F,REFER TO ILLUSTRATION FIG.35-01
main32000-60150i199801-200108
sub32000-60200
main32000-60200i200108-200307
main32000-60250i200208-200308
sub32000-60280
main32000-60280i200308-200708
main32000-60290i200307-200708
32101GEAR SUB-ASSY, DRIVE PLATE & RING
main32101-50010i199801-200505
main32101-60040i199801-200505
32101ABOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
main90119-09026i200505
*9-1.25PX12.8-9,BLACK
main90119-09026i199801-200208
*9-1.25PX12.8-9,GREEN
main90119-09026i200208-200505
*9-1.25PX12.8-9,GREEN OR BLACK
main90119-09027i199801-200208
*9-1.25PX12.8-8.8,YELLOW
main90119-09027i200505
*9-1.25PX12.8-8.8,SILVER
main90119-09027i200208-200505
*9-1.25PX12.8-8.8,YELLOW OR SILVER
main90119-10789i200505
*10-1.25PX14-9,BLACK
main90119-10789i200208-200505
*10-1.25PX14-9,GREEN OR BLACK
main90119-10789i199801-200208
*10-1.25PX14-9,GREEN
main90119-10790i199801-200502
*10-1.25PX14-9,BLACK
sub90119-10954
main90119-10954i200503-200505
*10-1.25PX14-9,SILVER
32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)
main90105-12198i199801-200505
main90910-02129i199801-200505
*10-1.25PX23-16
32117SPACER, DRIVE PLATE, REAR
main32117-50010i199801-200505
main32117-60030i199801-200505
35301BODY SUB-ASSY, FRONT OIL PUMP
main35301-35010i199801-200208
main35301-60020i199801-200307
main35301-60020i199907-200208
SOUTH AMERICA SPEC
main35301-60030i200208-200505
35301ASEAL, OIL (FOR FRONT OIL PUMP)
main90311-38029i199801-200208
sub90311-38020
main90311-38083i200208-200505
main90311-42010i199801-200307
main90311-42010i199907-200208
SOUTH AMERICA SPEC
35301BRING, O (FOR FRONT OIL PUMP BODY)
main90301-99029i199907-200208
CHINA SPEC
main90301-99029i199801-200307
main90301-99033i199801-200208
main90301-99139i200208-200505
OUTER
main90301-99148i200208-200505
INNER
35301FBOLT (FOR FRONT OIL PUMP SETTING)
main90105-08091i199801-200208
*8-1.25PX35-35
main90105-08212i199801-200307
*8-1.25PX60-30
main90105-08212i199907-200208
*8-1.25PX60-30,RUSSIA SPEC
main90105-08213i199801-200307
*8-1.25PX60-20
main90105-08213i199907-200208
*8-1.25PX60-20,RUSSIA SPEC
main90105-08451i200610
*8-1.25PX40-30
main91511-K0840i200208-200609
*8-1.25PX40-30
35308COVER SUB-ASSY, FRONT OIL PUMP
main35308-60070i199907-200208
main35308-60080i199801-200307
35308CRACE, THRUST BEARING (FOR FRONT OIL PUMP COVER)
main35789-36040i199801-200307
T=0.8
main35789-36050i199801-200307
T=1.0
main35789-36060i199801-200307
T=1.4
35313GASKET, FRONT OIL PUMP COVER
main35313-60010i199801-200307
35321GEAR, FRONT OIL PUMP DRIVE
main35321-12020i199801-200208
T=10.690-10.699
main35321-12030i199801-200208
T=10.700-10.709
main35321-12040i199801-200208
T=10.710-10.720
main35321-12050i199801-200208
T=10.721-10.730
main35321-12060i199801-200208
T=10.731-10.740
main35321-50010i200309-200505
T=10.736-10.742
main35321-50020i200307-200505
T=10.743-10.749
main35321-50030i200307-200505
T=10.750-10.756
main35321-50040i200309-200505
T=10.757-10.763
main35321-50050i200307-200505
T=10.764-10.770
main35321-50060i200307-200505
T=10.771-10.777
main35321-50070i200307-200505
T=10.778-10.784
main35321-60040i199907-200208
T=13.948-13.962,CHINA SPEC
main35321-60040i199801-200307
T=13.948-13.962
main35321-60050i199801-200307
T=13.963-13.977
main35321-60050i199907-200208
T=13.963-13.977,SOUTH AMERICA SPEC
main35321-60060i199801-200307
T=13.978-13.992
main35321-60060i199907-200208
T=13.978-13.992,SOUTH AMERICA SPEC
main35321-60070i199801-200307
T=13.993-14.007
main35321-60070i199907-200208
T=13.993-14.007,SOUTH AMERICA SPEC
main35321-60080i199801-200307
T=14.008-14.022
main35321-60080i199907-200208
T=14.008-14.022,SOUTH AMERICA SPEC
main35321-60110i200208-200308
T=10.740-10.749
sub35321-50020
main35321-60120i200208-200308
T=10.750-10.759
sub35321-50030
main35321-60130i200208-200308
T=10.760-10.770
sub35321-50050
main35321-60140i200208-200308
T=10.771-10.780
sub35321-50060
main35321-60150i200208-200308
T=10.781-10.790
sub35321-50070
35322GEAR, FRONT OIL PUMP DRIVEN
main35322-12010i199801-200208
T=10.690-10.699
main35322-12020i199801-200208
T=10.700-10.709
main35322-12030i199801-200208
T=10.710-10.720
main35322-12040i199801-200208
T=10.721-10.730
main35322-12050i199801-200208
T=10.731-10.740
main35322-50010i200309-200505
T=10.736-10.742
main35322-50020i200307-200505
T=10.743-10.749
main35322-50030i200307-200505
T=10.750-10.756
main35322-50040i200309-200505
T=10.757-10.763
main35322-50050i200307-200505
T=10.764-10.770
main35322-50060i200307-200505
T=10.771-10.777
main35322-50070i200307-200505
T=10.778-10.784
main35322-60040i199801-200307
T=13.948-13.962
main35322-60040i199907-200208
T=13.948-13.962,SOUTH AMERICA SPEC
main35322-60050i199801-200307
T=13.963-13.977
main35322-60050i199907-200208
T=13.963-13.977,SOUTH AMERICA SPEC
main35322-60060i199801-200307
T=13.978-13.992
main35322-60060i199907-200208
T=13.978-13.992,SOUTH AMERICA SPEC
main35322-60070i199801-200307
T=13.993-14.007
main35322-60070i199907-200208
T=13.993-14.007,SOUTH AMERICA SPEC
main35322-60080i199801-200307
T=14.008-14.022
main35322-60080i199907-200208
T=14.008-14.022,SOUTH AMERICA SPEC
main35322-60110i200208-200308
T=10.740-10.749
sub35322-50020
main35322-60120i200208-200308
T=10.750-10.759
sub35322-50030
main35322-60130i200208-200308
T=10.760-10.770
sub35322-50050
main35322-60140i200208-200308
T=10.771-10.780
sub35322-50060
main35322-60150i200208-200308
T=10.781-10.790
sub35322-50070
35427DSEAT, CHECK VALVE SPRING
main35427-60010i199801-200307
35495BALL, CHECK
main35495-60010i199801-200307
35495ASPRING, COMPRESSION (FOR CHECK BALL)
main90501-18106i199801-200307
35617RING, CLUTCH DRUM OIL SEAL
main35617-30020i199801-200208
main35617-50030i200709
main35617-60010i199907-200208
SOUTH AMERICA SPEC
main35617-60010i199801-200307
main35617-60020i200208-200708
91511J0820
main91511-J0820
