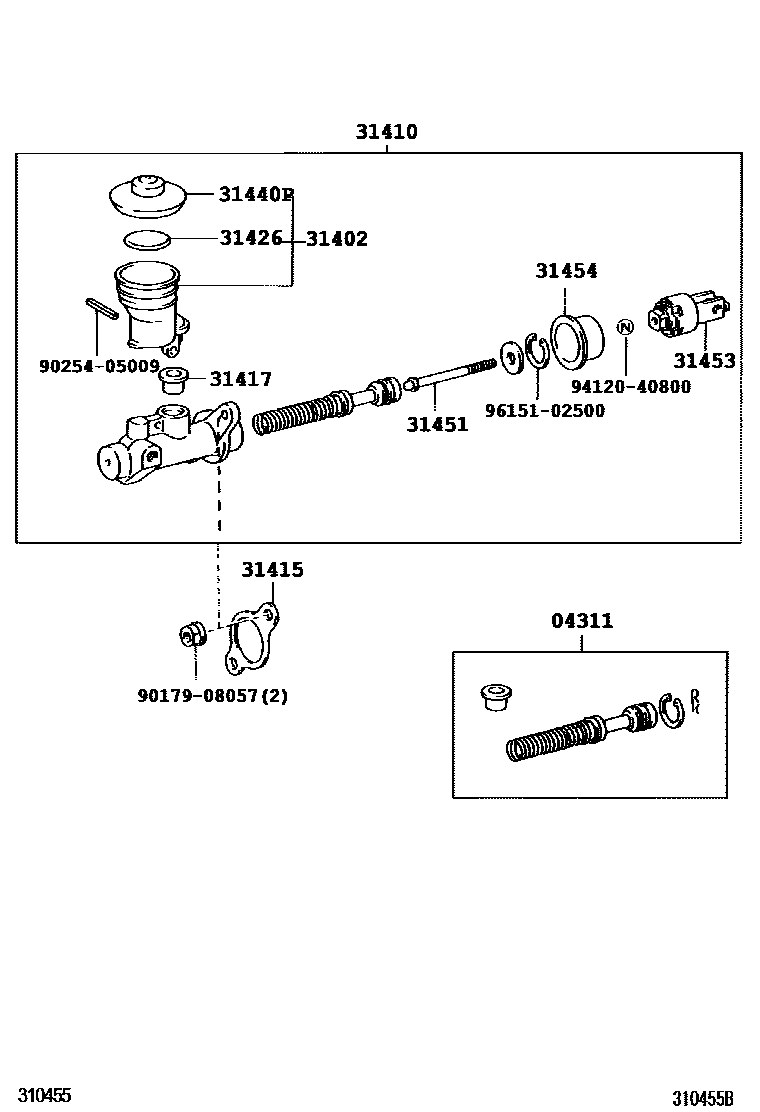

CLUTCH MASTER CYLINDER

04311CYLINDER KIT, CLUTCH MASTER

main04311-60100iHDJ100..5F199801-200505

31402RESERVOIR SUB-ASSY, CLUTCH MASTER CYLINDER

main31402-35030iHDJ100..5F199801-200505

31410CYLINDER ASSY, CLUTCH MASTER

main31410-60610iHDJ100..5F199801-200505

sub31410-60650

31415GASKET, CLUTCH MASTER CYLINDER

main31415-60020iHDJ100..5F199801-200505

31417GROMMET, CLUTCH RESERVOIR

main31417-35010iHDJ100..5F199801-200505

31426FLOAT, CLUTCH MASTER CYLINDER RESERVOIR

main31426-30011iHDJ100..5F199801-200505

31440PCAP ASSY, CLUTCH MASTER CYLINDER RESERVOIR FILLER

main47230-20040iHDJ100..5F199801-200505

31451ROD, CLUTCH MASTER CYLINDER PUSH

main31451-60080iHDJ100..5F199801-200505

31453CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD

main31453-35010iHDJ100..5F199801-200505

31454BOOT, CLUTCH MASTER CYLINDER

main31454-60020iHDJ100..5F199801-200505

9017908057

main90179-08057

9025405009

main90254-05009

9412040800

main94120-40800

9615102500

main96151-02500

14 parts on this diagram · 1 diagram in section
