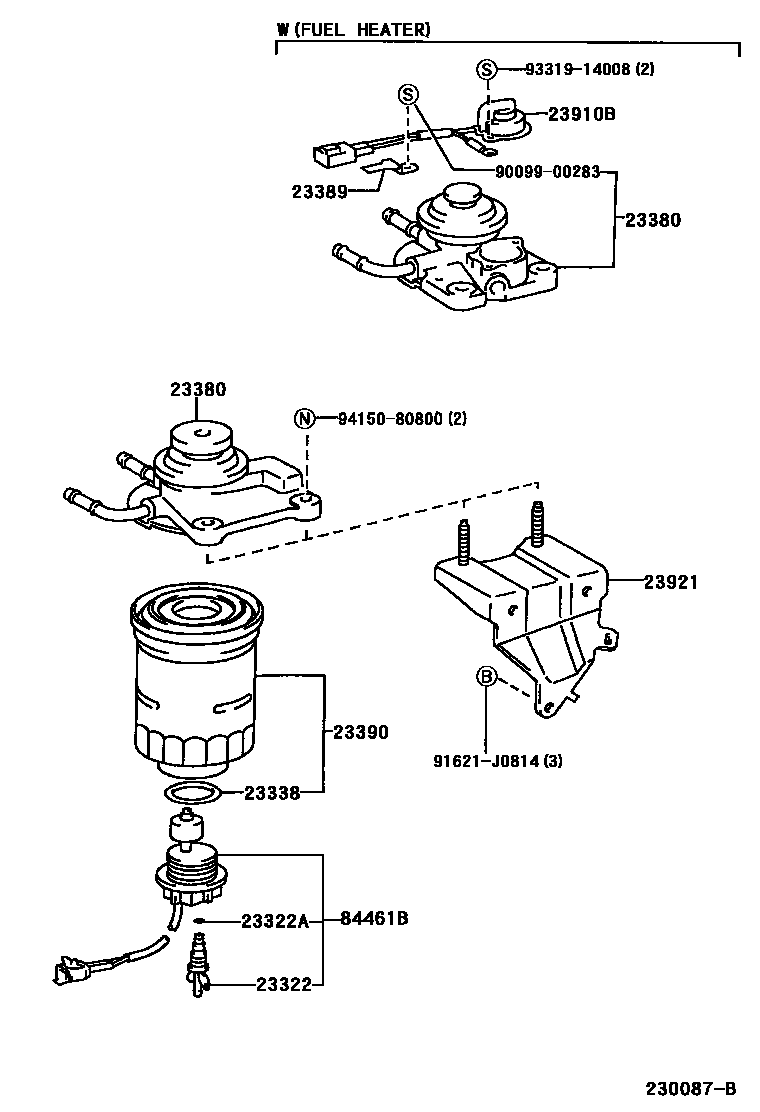

FUEL FILTER

0001 1 0002 1W(PRE FILTER)

23322PLUG, DRAIN(FOR FUEL FILTER)

main23388-64470i1HDFTE..HDJ100199801-200505

23322ARING, O(FOR DRAIN PLUG)

main23344-54010i1HDFTE..HDJ100199801-200505

23338GASKET(FOR WARNING SWITCH)

main23344-64010i1HDFTE..HDJ100199801-200505

23380CAP ASSY, FUEL FILTER

main23380-17370i1HDFTE..HDJ100..VX199801-200505

sub23380-17371

main23380-17380i1HDFTE..HDJ100199801-200505

W(FUEL HEATER)

sub23380-17381

23389CLAMP, FUEL FILTER

main23389-17380i1HDFTE..HDJ100199801-200505

23390ELEMENT ASSY, FUEL FILTER

main23390-64480i1HDFTE..HDJ100199801-200505

23910BHEATER ASSY, FUEL

main23910-17060i1HDFTE..HDJ100199801-200505

23921SUPPORT, FUEL FILTER

main23921-17050i1HDFTE..HDJ100199801-200505

84461BSWITCH, LEVEL WARNING

main84461-28040iHDJ100199801-200708

sub84461-28041

main84461-60050iHDJ100..LHD199801-200208

W(PRE FILTER)

9009900283

main90099-00283

91621J0814

main91621-J0814

9331914008

main93319-14008

9415080800

main94150-80800

13 parts on this diagram · 2 diagrams in section
