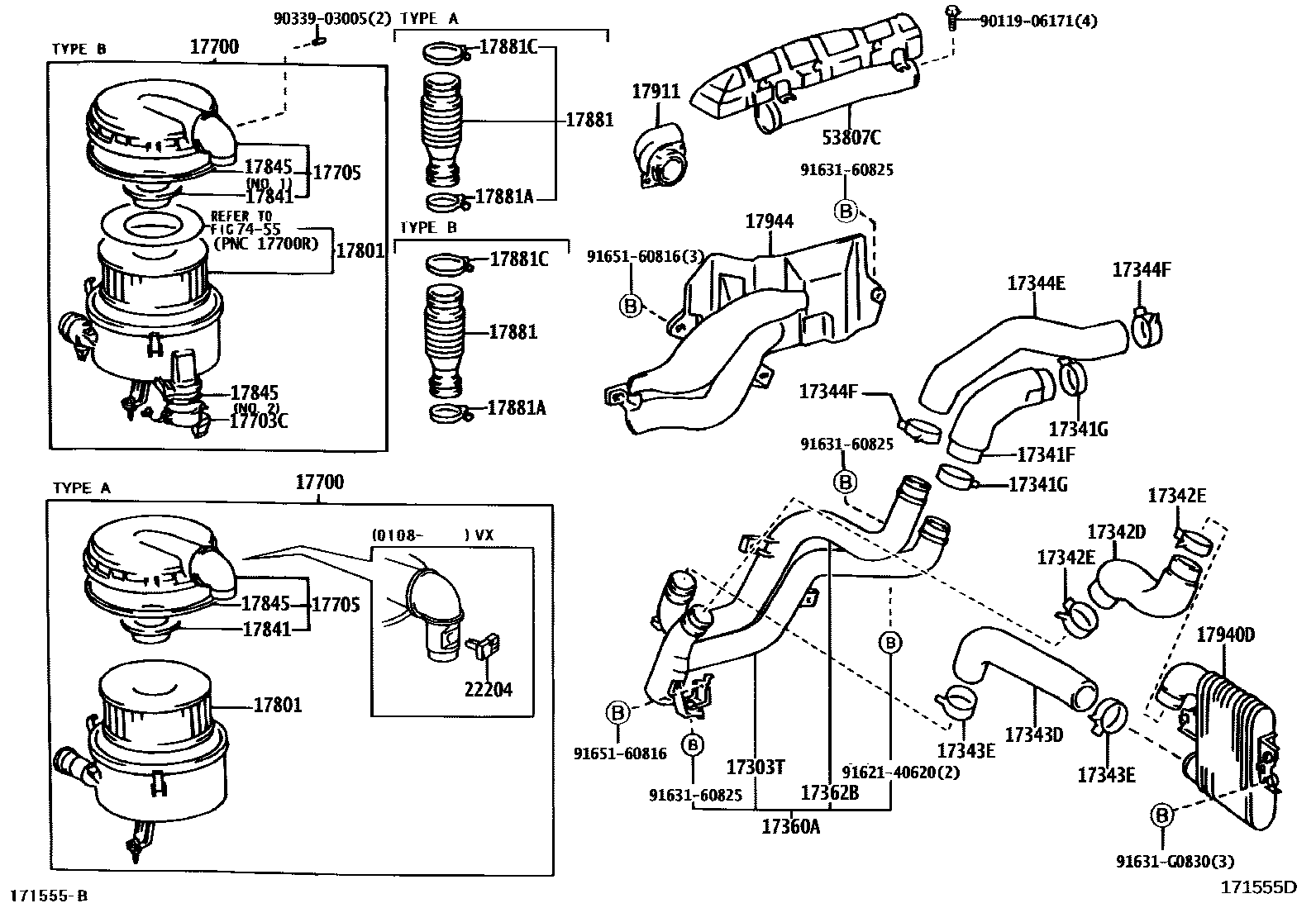

AIR CLEANER
17303TPIPE SUB-ASSY, AIR
TYPE B:REFER TO ILLUSTRATION
TYPE A:REFER TO ILLUSTRATION
17360ATUBE ASSY, AIR
TYPE B:REFER TO ILLUSTRATION
TYPE A:REFER TO ILLUSTRATION
17362BTUBE, AIR, NO.2
17700CLEANER ASSY, AIR
TYPE A:REFER TO ILLUSTRATION
TYPE B:REFER TO ILLUSTRATION
TYPE B:REFER TO ILLUSTRATION
TYPE A:REFER TO ILLUSTRATION
TYPE A:REFER TO ILLUSTRATION
TYPE A:REFER TO ILLUSTRATION
TYPE A:REFER TO ILLUSTRATION
TYPE B:REFER TO ILLUSTRATION
TYPE B:REFER TO ILLUSTRATION
17703CCAP SUB-ASSY, DUST
17705CAP SUB-ASSY, AIR CLEANER
TYPE A:REFER TO ILLUSTRATION
TYPE B:REFER TO ILLUSTRATION
TYPE B:REFER TO ILLUSTRATION
TYPE A:REFER TO ILLUSTRATION
TYPE A:REFER TO ILLUSTRATION
TYPE A:REFER TO ILLUSTRATION
TYPE B:REFER TO ILLUSTRATION
TYPE B:REFER TO ILLUSTRATION
17801ELEMENT SUB-ASSY, AIR CLEANER FILTER
TYPE A:REFER TO ILLUSTRATION
TYPE B:REFER TO ILLUSTRATION
TYPE A:REFER TO ILLUSTRATION
17841GASKET, FILTER ELEMENT
17845GASKET, AIR CLEANER CAP
TYPE B:REFER TO ILLUSTRATION,NO.1
NO.1
TYPE A:REFER TO ILLUSTRATION
NO.2
TYPE B:REFER TO ILLUSTRATION,NO.2
17881HOSE, AIR CLEANER, NO.1
sub17881-17061
TYPE B:REFER TO ILLUSTRATION
sub17881-17061
TYPE B:REFER TO ILLUSTRATION
TYPE A:REFER TO ILLUSTRATION
17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)
17881CCLAMP(FOR AIR CLEANER HOSE, NO.1)
17911DUCT, COOL AIR INTAKE, NO.1
17940DINTERCOOLER ASSY
17944PROTECTOR, INTERCOOLER PIPE
22204METER SUB-ASSY, INTAKE AIR FLOW
53807CDUCT SUB-ASSY, FRONT FENDER AIR, RH
7455
9011906171
main90119-06171
9033903005
main90339-03005
9162140620
main91621-40620
9163160825
main91631-60825
91631G0830
main91631-G0830
9165160816
main91651-60816
32 parts on this diagram · 7 diagrams in section
