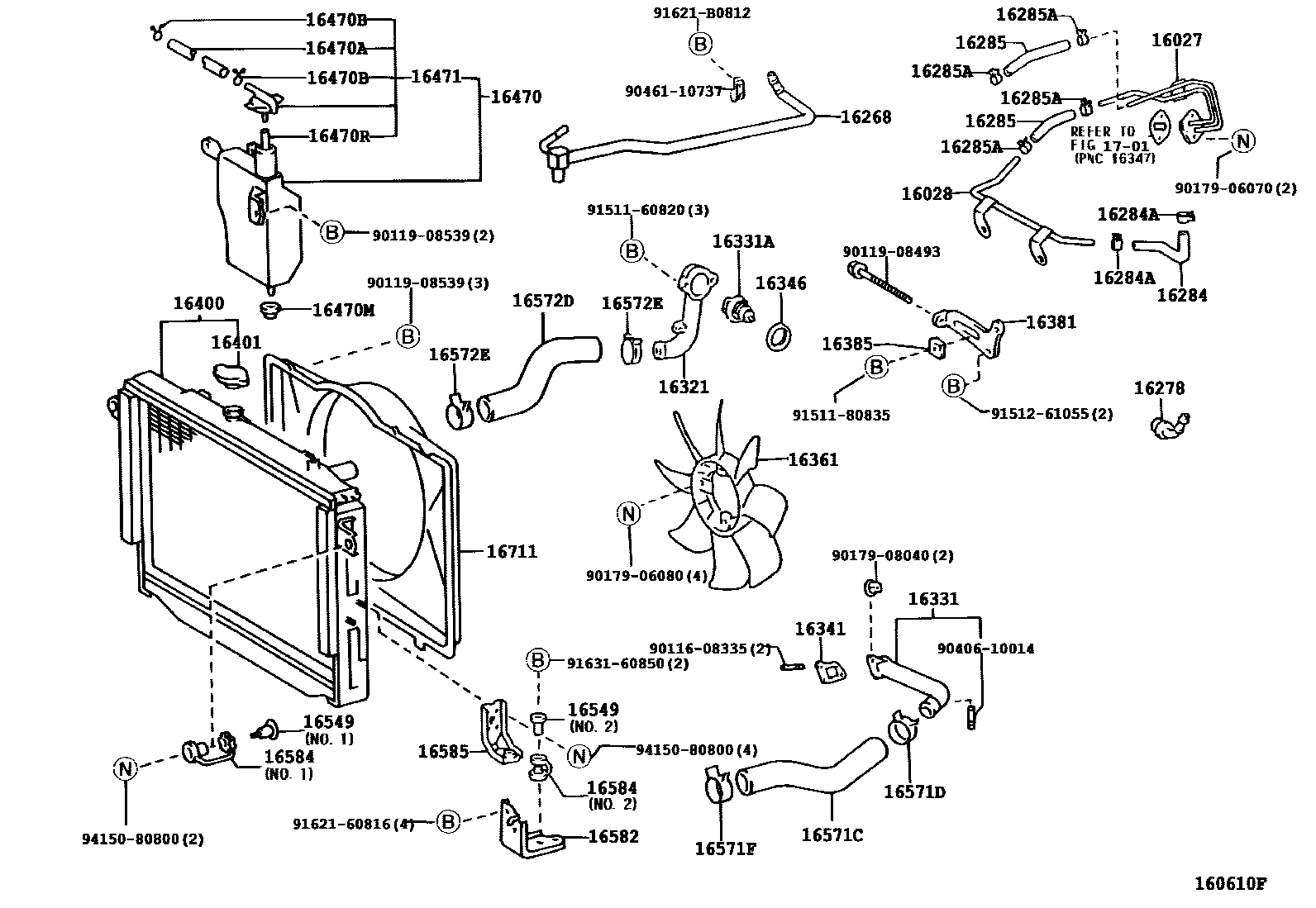

RADIATOR & WATER OUTLET
16027PIPE SUB-ASSY, TURBO WATER, NO.1
TYPE A:REFER TO ILLUSTRATION
TYPE B:REFER TO ILLUSTRATION
16028PIPE SUB-ASSY, TURBO WATER, NO.2
16268PIPE, WATER BY-PASS, NO.1
TYPE A:REFER TO ILLUSTRATION
TYPE B:REFER TO ILLUSTRATION
16278PIPE, WATER BY-PASS, NO.2
16284HOSE, TURBO WATER, NO.1
16284ACLIP(FOR TURBO WATER HOSE NO.1)
16285HOSE, TURBO WATER, NO.2
16285ACLIP(FOR TURBO WATER HOSE NO.2)
16321INLET, WATER
16331OUTLET, WATER
16331ATHERMOSTAT
*WAX 76-90
*WAX 82-95
*WAX 82-95
16341GASKET, WATER OUTLET
16346GASKET, THERMOSTAT
16361FAN
16381BAR, FAN BELT ADJUSTING
ALTERNATOR 12V 80A
ALTERNATOR 12V 120A
16385SLIDER, FAN BELT ADJUSTING
16400RADIATOR ASSY
MARK 1733
MARK 1734
MARK 1734
MARK 1735
MARK 1735
MARK 1738
MARK 1739
RUSSIA SPEC & W/O(TEMS)
MARK 6611
MARK 6611
MARK 6611
MARK 6612
MARK 6612
16401CAP SUB-ASSY, RADIATOR
16470TANK ASSY, RADIATOR RESERVE
16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)
*H,L=240
16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
16470MGROMMET
16470RHOSE, NO.2(FOR RADIATOR RESERVE TANK)
L=240
L=309
16471CAP SUB-ASSY, RESERVE TANK
16549COLLAR, RADIATOR SUPPORT, NO.2
NO.1
NO.2
16571CHOSE, RADIATOR, NO.1
16572DHOSE, RADIATOR, NO.2
16572ECLIP, RADIATOR HOSE, NO.2
16582BRACKET, RADIATOR, NO.1
16584INSULATOR, RADIATOR MOUNTING
NO.2
NO.1
16585BRACKET, RADIATOR, NO.3
16711SHROUD, FAN
1701
9011608335
main90116-08335
9011908493
main90119-08493
9011908539
main90119-08539
9017906070
main90179-06070
9017906080
main90179-06080
9017908040
main90179-08040
9040610014
main90406-10014
9046110737
main90461-10737
9151160820
main91511-60820
9151180835
main91511-80835
9151261055
main91512-61055
9162160816
main91621-60816
91621B0812
main91621-B0812
9163160850
main91631-60850
9415080800
main94150-80800
50 parts on this diagram · 9 diagrams in section
