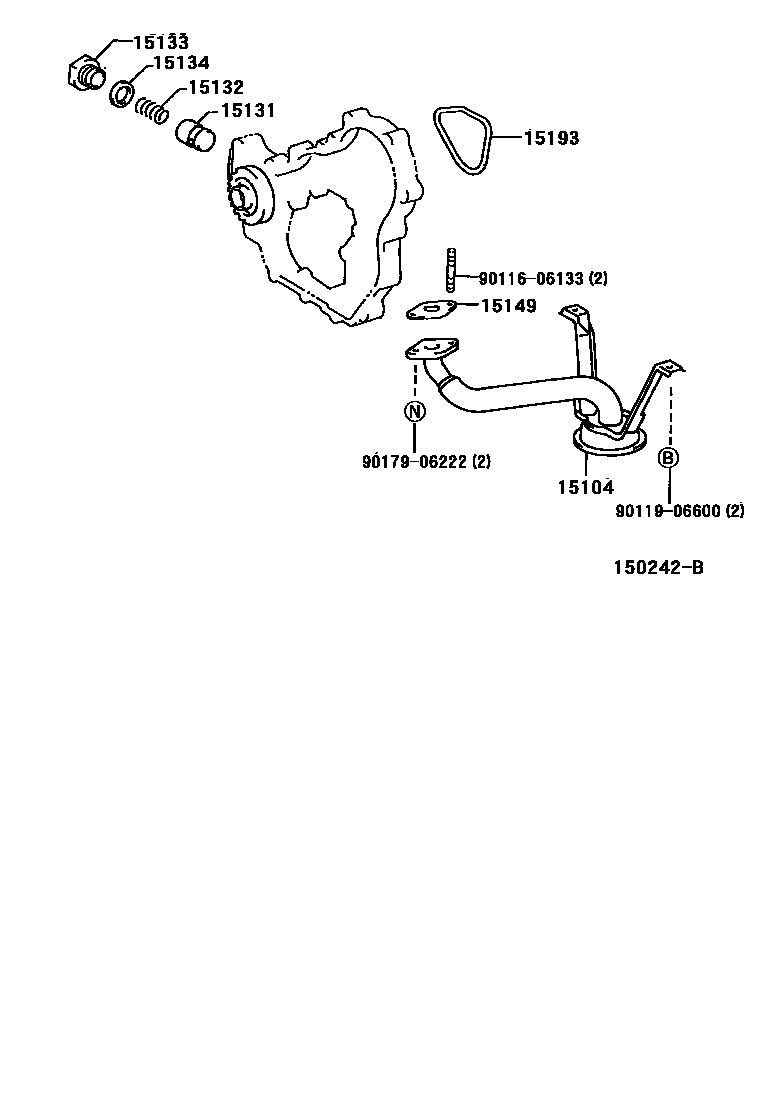

ENGINE OIL PUMP

0001 1 0002 1 0003 1 0004 1

15104STRAINER SUB-ASSY, OIL

main15104-17070i1HDFTE..HDJ100199801-200505

main15104-50160i2UZFE..UZJ100199801-200505

15131VALVE, OIL PUMP RELIEF

main15131-17010i1HDFTE..HDJ100199801-200708

main15131-24010i2UZFE..UZJ100199801-200505

15132SPRING, OIL PUMP RELIEF VALVE

main15132-17010i1HDFTE..HDJ100199801-200208

main15132-17041i1HDFTE..HDJ100200208-200505

main15132-62010i2UZFE..UZJ100199801-200505

15133PLUG, OIL PUMP RELIEF VALVE

main15133-17010i1HDFTE..HDJ100199801-200505

15134GASKET, OIL PUMP RELIEF VALVE

main15134-67020i1HDFTE..HDJ100199801-200505

15149GASKET, OIL STRAINER FLANGE

main15149-17010i1HDFTE..HDJ100199801-200505

15193GASKET, OIL PUMP

main15193-17010i1HDFTE..HDJ100199801-200505

9011606133

main90116-06133

9011906600

main90119-06600

9017906222

main90179-06222

10 parts on this diagram · 4 diagrams in section
