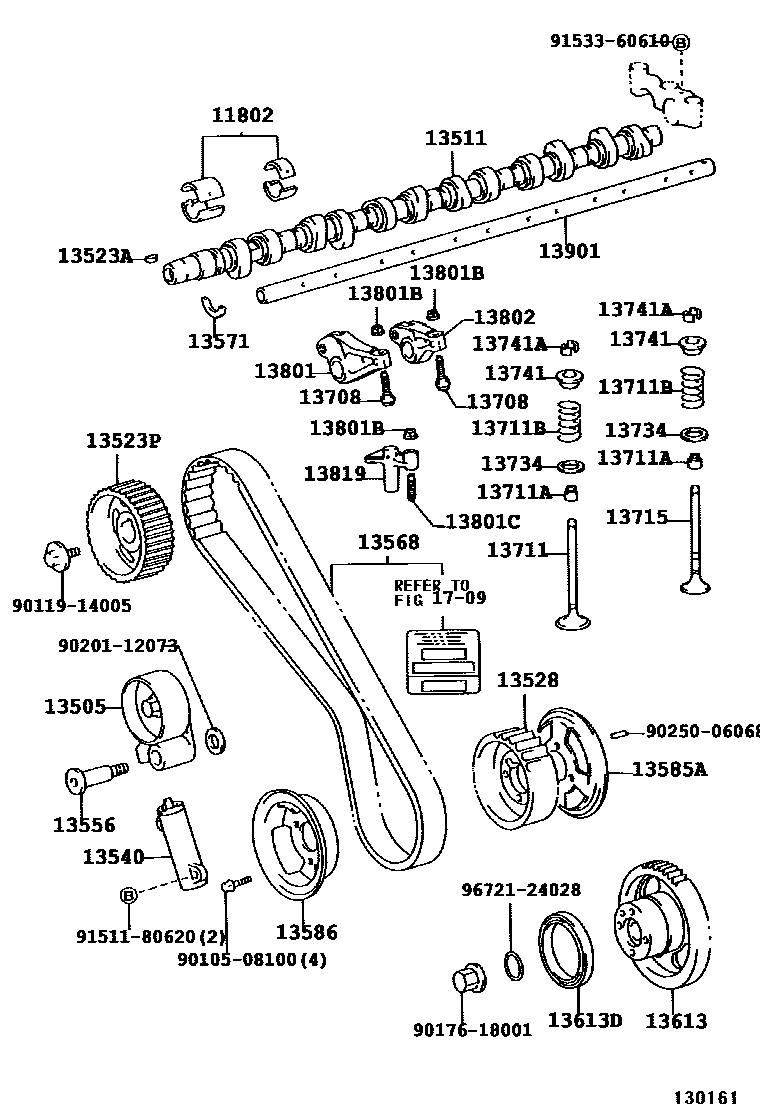

CAMSHAFT & VALVE
11802BEARING SET, CAMSHAFT
STD
13505IDLER SUB-ASSY, TIMING BELT, NO.1
13523AKEY, WOODRUFF(FOR TIMING GEAR)
13523PPULLEY, CAMSHAFT TIMING
13528GEAR, CAMSHAFT DRIVE
13540TENSIONER ASSY, CHAIN, NO.1
13556SHAFT, TIMING BELT IDLER
13568BELT, TIMING
13571PLATE, CAMSHAFT THRUST
13585AFLANGE, CAMSHAFT TIMING PULLEY, NO.1
13586FLANGE, CAMSHAFT TIMING PULLEY, NO.2
13613GEAR, INJECTION PUMP DRIVE
RUSSIA SPEC
NEW ZEALAND SPEC
W(EGR COOLER):REFER TO FIG 25-01
13613DBEARING, RADIAL BALL
13708SCREW SUB-ASSY, VALVE ADJUSTING
13711ASEAL OR RING, O(FOR VALVE STEM OIL)
EXHAUST
INTAKE
13715VALVE, EXHAUST
MARK U,M
LEADED GASOLINE SPEC
MARK U,Y
13734SEAT, VALVE SPRING
13741RETAINER, VALVE SPRING
13741ALOCK, VALVE SPRING RETAINER
13801ARM SUB-ASSY, VALVE ROCKER, NO.1
13801BNUT, HEXAGON(FOR VALVE ADJUSTING)
13801CSCREW, VALVE ADJUSTING
13802ARM SUB-ASSY, VALVE ROCKER, NO.2
13819BRIDGE, VALVE
13901SHAFT SUB-ASSY, VALVE ROCKER, NO.1
1709
9010508100
main90105-08100
9011914005
main90119-14005
9017618001
main90176-18001
9020112073
main90201-12073
9025006068
main90250-06068
9151180620
main91511-80620
9153360610
main91533-60610
9672124028
main96721-24028
37 parts on this diagram · 2 diagrams in section
