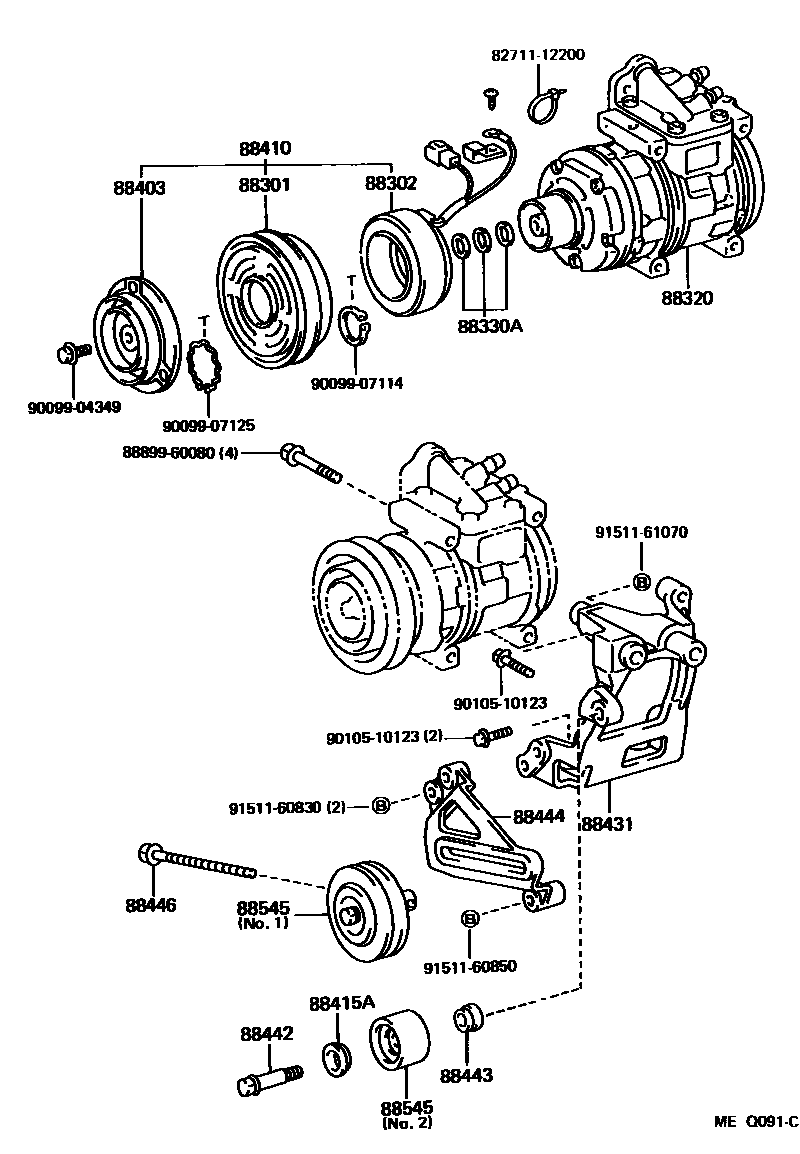

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88412-26030iFJ80199001-199201

SINGLE DEALER OPT

main88412-26030iFJ80199201-199208

main88412-30430iHDJ80..LHD199501-199801

sub88412-2A060

main88412-35030iHDJ80..RHD199001-199501

88302STATOR SUB-ASSY, MAGNET CLUTCH

main88411-22310iHDJ80..LHD199305-199801

sub88411-2A030

main88411-2B080iHDJ80,HZJ80..LHD199208-199305

main88411-2B080iHDJ80,HZJ80199108-199501

SINGLE DEALER OPT

main88411-35020iHDJ80..RHD199001-199109

SINGLE DEALER OPT

sub88411-30540

main88411-35030iHDJ80,HZJ80..LHD199001-199108

SINGLE DEALER OPT

sub88411-2B080

88320COMPRESSOR ASSY, COOLER

main88320-60340iHDJ80..RHD199001-199305

sub88320-35H91

main88320-60370iFJ80199001-199208

sub88320-60371

main88320-60450iFZJ80..GX199208-199305

sub88320-22H91

main88320-60560iHDJ80,HZJ80..LHD199305-199501

main88320-60580iFZJ80199305-199801

main88320-60630iHDJ80..RHD199501-199801

sub88320-60H91

88330AWASHER (FOR MAGNET CLUTCH)

main88335-14020iHDJ80..RHD199001-199801

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-16011iHDJ80..RHD199001-199501

SINGLE DEALER OPT

main88403-16011iFJ80;HDJ80..RHD199201-199305

main88403-30290iHDJ80,HZJ80..LHD199305-199801

main88403-30290iHDJ80..RHD199501-199801

SINGLE DEALER OPT

88410CLUTCH ASSY, MAGNET

main88410-22480iHDJ80..LHD199501-199801

main88410-26110iFZJ80199305-199801

main88410-35120iHDJ80..RHD199001-199305

main88410-35120iHDJ80..LHD..MTM..VX199305-199501

COLD SPEC

main88410-60190iFJ80199001-199208

sub88410-35160

main88410-60290iFZJ80199208-199305

main88410-60310iHDJ80..RHD199305-199501

88415ACOVER, DUST

main88415-36050iFJ80199001-199208

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main88431-60140iFJ80199001-199208

main88431-60150iHDJ80..RHD199001-199801

main88431-60200iFZJ80199208-199801

main88431-60260iHDJ80..LHD199501-199801

88442SHAFT, IDLE PULLEY

main88442-36010iFJ80199001-199208

88443COLLAR, IDLE PULLEY

main88443-36010iFJ80199001-199208

88444BRACKET, IDLE PULLEY

main88444-60050iHDJ80..RHD199501-199801

SINGLE AIR CONDITIONER

main88444-60090iFJ80199201-199208

main88444-60090iFJ80199001-199201

SINGLE DEALER OPT

main88444-60100iHDJ80,HZJ80..LHD199001-199208

SINGLE DEALER OPT

main88444-60100iHDJ80,HZJ80199208-199501

SINGLE AIR CONDITIONER

main88444-60110iHZJ80199503-199801

88446BOLT, IDLE PULLEY

main88446-35040iFZJ80199208-199801

main88446-60030iHDJ80,HZJ80..LHD199001-199801

88545PULLEY ASSY, IDLE

main88440-12160iFJ80199001-199101

SINGLE AIR CONDITIONER,NO.1

main88440-12160iFJ80199101-199208

SINGLE DEALER OPT,NO.1

main88440-26090iFZJ80199208-199801

main88440-35010iHDJ80..RHD199001-199101

main88440-36100iFJ80199001-199208

SINGLE AIR CONDITIONER,NO.2

main88440-60040iHZJ80199108-199801

main88440-60040iHDJ80..LHD199108-199801

SINGLE AIR CONDITIONER

main88440-60040iHDJ80,HZJ80..LHD199001-199108

SINGLE DEALER OPT

8271112200WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12200

8889960080COVER, EVAPORATOR

main88899-60080

9009904349

main90099-04349

9009907114

main90099-07114

9009907125

main90099-07125

9010510123

main90105-10123

9151160830

main91511-60830

9151160850

main91511-60850

9151161070

main91511-61070

22 parts on this diagram · 6 diagrams in section
