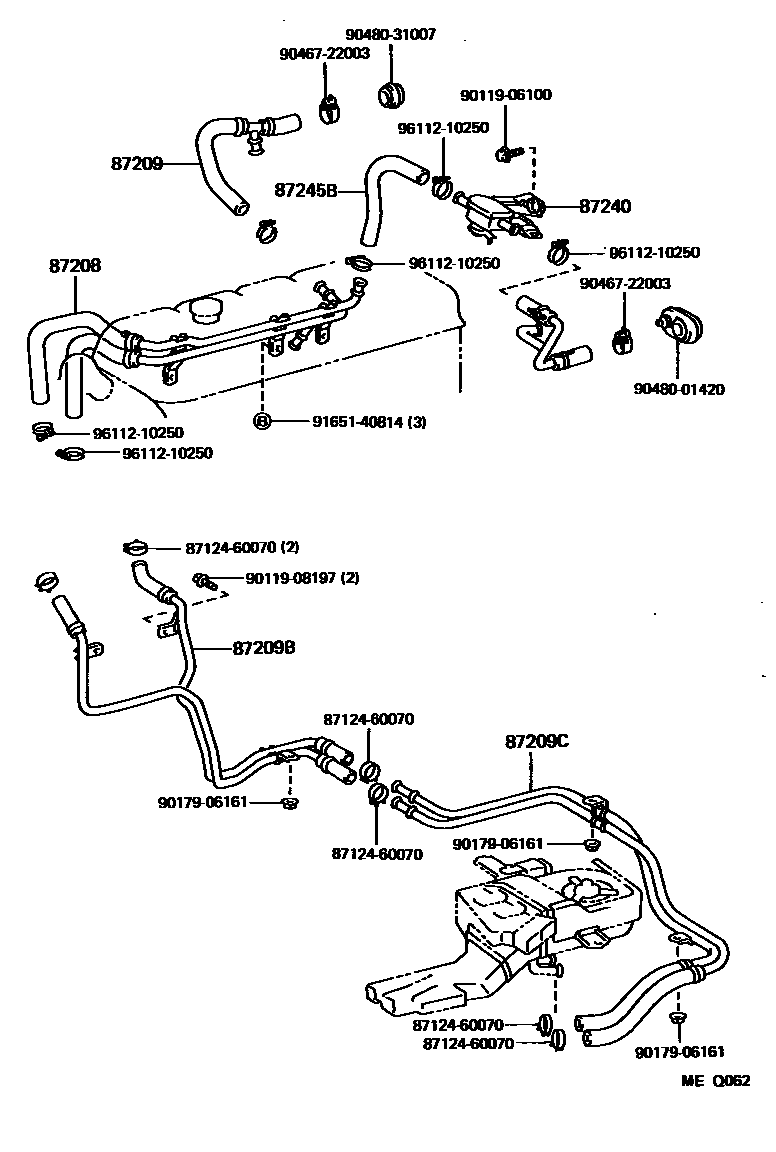

HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1 0003 1 0004 1 0006 1

87208PIPE SUB-ASSY, HEATER WATER

main87208-60290iFZJ80199208-199404

sub87208-60291

main87208-60291iFZJ80199404-199801

main87209-60130iFJ80199001-199208

87209HOSE SUB-ASSY, WATER

main87209-60150iHDJ80,HZJ80199001-199501

main87209-60160iFJ80199001-199208

main87209-60290iFZJ80199208-199801

main87209-60360iHDJ80,HZJ80199501-199801

87209BHOSE SUB-ASSY, WATER, B

main87209-60140iFJ80199201-199208

main87209-60260iFJ80199001-199201

main87209-60300iHDJ80..VX199201-199401

sub87209-60301

main87209-60301iHDJ80,HZJ80199401-199801

main87209-60370iHDJ80,HZJ80199501-199801

87209CHOSE SUB-ASSY, WATER, C

main87209-60120iFJ80199201-199208

main87209-60270iHDJ80,HZJ80..GX,STD199001-199201

main87209-60440iFZJ80199208-199401

sub87209-60441

main87209-60441iFZJ80199401-199801

87240VALVE ASSY, HEATER WATER

main87240-60070iFJ80199001-199201

main87240-60080iHDJ80..RHD199001-199201

main87240-60090iHDJ80,HZJ80..LHD199001-199208

main87240-60130iHDJ80..RHD199201-199407

main87240-60140iFZJ80,HDJ80,HZJ80..LHD199201-199501

main87240-60160iFZJ80,HDJ80..RHD199501-199801

main87240-60170iFZJ80,HDJ80,HZJ80..LHD199501-199801

87245BHOSE, HEATER WATER, INLET B

main87245-60100iFJ80199001-199208

main87245-60110iHDJ80,HZJ80199001-199201

main87245-60320iHDJ80,HZJ80199201-199801

main87245-60480iFZJ80199208-199801

8712460070CLAMP, HEATER

main87124-60070

9011906100

main90119-06100

9011908197

main90119-08197

9017906161

main90179-06161

9046722003

main90467-22003

9048001420

main90480-01420

9048031007

main90480-31007

9165140814

main91651-40814

9611210250

main96112-10250

15 parts on this diagram · 5 diagrams in section
