HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

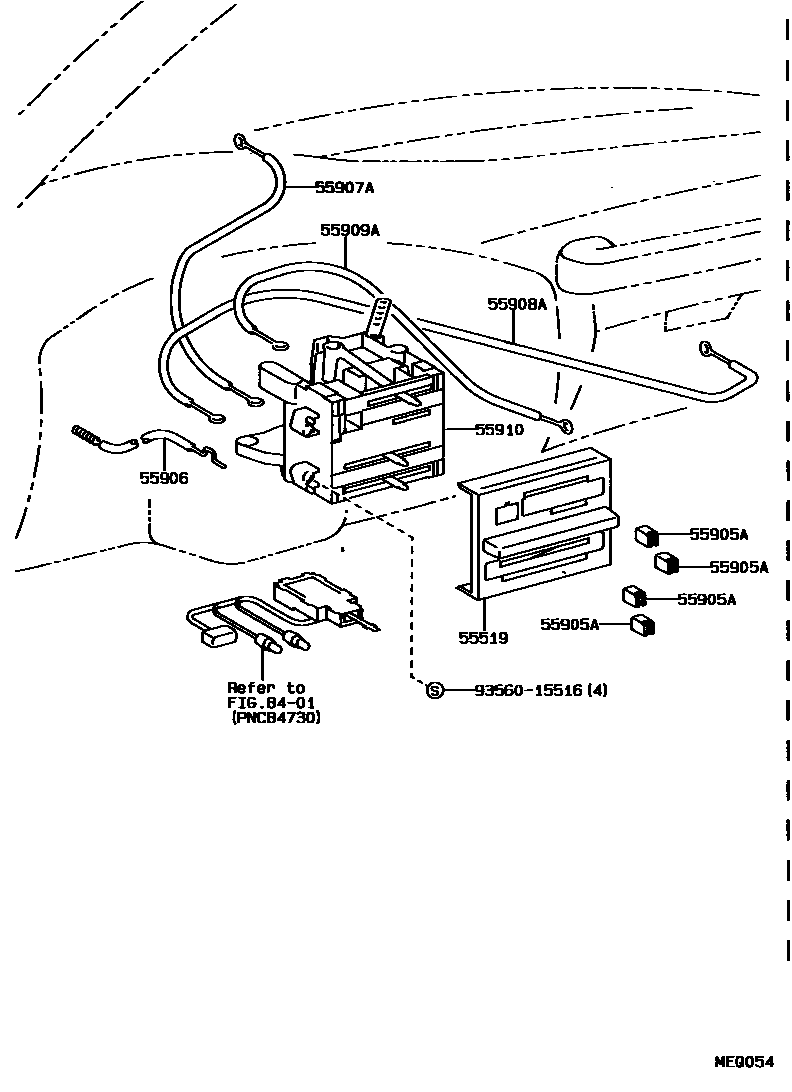

0001 1 0002 1 0003 1FRONT DUCT 0004 1REAR HEATER DUCT 0005 1AUTO AIR CONDITIONER SENSOR

55519PLATE, HEATER CONTROL NAME

main55519-60010iHDJ80..RHD199001-199801

W(AUTO AIR CONDITIONER)

main55519-60020iFJ80,HDJ80..VX199001-199801

main55519-60130iFJ80,HDJ80,HZJ80..GX,STD199001-199201

sub55519-60131

main55519-60131iFJ80,HDJ80,HZJ80..GX,STD199201-199801

sub55519-60041

main55519-60140iFJ80,HDJ80,HZJ80..GX,STD199001-199201

W(MANUAL AIR CONDITIONER)

sub55519-60141

55905AKNOB, HEATER CONTROL

main55905-12080iFJ80,HDJ80,HZJ80..GX,STD199001-199801

55906CABLE SUB-ASSY, HEATER CONTROL

main55906-60030iFJ80,HDJ80,HZJ80..GX,STD199001-199201

main55906-60031iFJ80,HDJ80,HZJ80..GX,STD199201-199501

main55906-60080iHDJ80,HZJ80..GX,STD199501-199801

55907ACABLE SUB-ASSY, WATER VALVE CONTROL

main55907-60030iFJ80,HDJ80,HZJ80..GX,STD199001-199201

main55907-60031iFJ80,HDJ80,HZJ80..GX,STD199201-199501

main55907-60110iHDJ80,HZJ80..GX,STD199501-199801

55908ACABLE SUB-ASSY, AIR INLET DAMPER CONTROL

main55908-60030iFJ80,HDJ80,HZJ80..GX,STD199001-199501

main55908-60060iHDJ80,HZJ80..GX,STD199501-199801

55909ACABLE SUB-ASSY, AIRMIX DAMPER CONTROL

main55909-60030iFJ80,HDJ80,HZJ80..GX,STD199001-199005

sub55909-60031

main55909-60031iFJ80,HDJ80,HZJ80..GX,STD199005-199201

main55909-60032iFJ80,HDJ80,HZJ80..GX,STD199201-199801

55910CONTROL ASSY, HEATER OR BOOST VENTILATOR

main55910-60020iFJ80,HDJ80,HZJ80..GX,STD199001-199005

sub55910-60021

main55910-60021iFJ80,HDJ80,HZJ80..GX,STD199005-199201

sub55910-60022

sub55906-60031

sub55907-60031

sub55909-60032

main55910-60022iFJ80,HDJ80,HZJ80..GX,STD199201-199409

sub55910-60100

main55910-60100iHDJ80,HZJ80..GX,STD199409-199801

8401

9356015516

main93560-15516

9 parts on this diagram · 5 diagrams in section
