MIRROR

87810MIRROR ASSY, INNER REAR VIEW

main87810-60080-03iFJ80,HDJ80,HZJ80199001-199208

LIGHT GRAY,TRIM1#

sub87810-60080

main87810-60080-06iFJ80,HDJ80,HZJ80199001-199208

LIGHT SABLE,TRIM4#

sub87810-60080

main87810-60080-42iFZJ80,HDJ80,HZJ80199208-199501

SABLE,TRIM4#

sub87810-60080

main87810-60080-B6iFZJ80,HDJ80,HZJ80199208-199501

BLUEISH GRAY,TRIM1#

sub87810-60080

main87810-60080-B6iFZJ80,HDJ80,HZJ80199501-199801

BLUEISH GRAY,TRIM1#,4#

sub87810-60080

87816SPRING, INNER REAR VIEW MIRROR

main74372-30030iFZJ80,HDJ80,HZJ80199001-199801

87834COVER, INNER REAR VIEW MIRROR STAY HOLDER

main87834-20080-26iFJ80,FZJ80,HDJ80,HZJ80199001-199501

SABLE,TRIM4#

sub87834-20080

main87834-20080-59iFJ80,HDJ80,HZJ80199001-199109

LIGHT GRAY,TRIM1#

sub87834-20080

main87834-20080-B6iFZJ80,HDJ80,HZJ80199501-199801

LIGHT GRAY,TRIM1#,4#

sub87834-20080

main87834-20080-B6iFJ80,FZJ80,HDJ80,HZJ80199109-199501

LIGHT GRAY,TRIM1#

sub87834-20080

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-60220iFJ80,HDJ80,HZJ80..GX,STD199001-199801

main87910-60390-02iFJ80,FZJ80,HDJ80..LHD..VX199001-199801

RED MICA,3H4

sub87910-60390

main87910-60390-03iFZJ80,HDJ80..LHD..VX199308-199501

BLUISH SILVER M,26P

sub87910-60390

main87910-60390-03iFJ80,FZJ80,HDJ80..LHD..VX199001-199308

BLUISH SILVER M,20R ,26P

sub87910-60390

main87910-60390-05iFZJ80,HDJ80..LHD..VX199208-199501

LIGHT BEIGE M,4K1

sub87910-60390

main87910-60390-05iFJ80,HDJ80..LHD..VX199001-199208

LIGHT BEIGE M,27P ,4K1

sub87910-60390

main87910-60390-08iFJ80,FZJ80,HDJ80..LHD..VX199001-199801

WHITE,045

sub87910-60390

main87910-60390-13iFJ80,FZJ80,HDJ80..LHD..VX199001-199501

DARK BLUISH GRAY M,183

sub87910-60390

main87910-60390-B0iFZJ80,HDJ80..LHD..VX199501-199801

GRAY MEOP,1A6

sub87910-60390

main87910-60390-B1iFZJ80,HDJ80..LHD..VX199501-199801

WARM GRAY PEARL ME,2AB

sub87910-60390

main87910-60390-C0iFZJ80,HDJ80..LHD..VX199608-199801

BLACK,202

sub87910-60390

main87910-60390-G0iFZJ80,HDJ80..LHD..VX199208-199501

DARK GREEN MICA,6M1

sub87910-60390

main87910-60390-G0iFZJ80,HDJ80..LHD..VX199501-199801

DARK GREEN MICA,2AC ,6M1

sub87910-60390

main87910-60390-J0iFZJ80,HDJ80..LHD..VX199501-199801

DK BLUE MM,8K0

sub87910-60390

main87910-60400iFZJ80,HDJ80..RHD199501-199801

main87910-60400-02iFZJ80,HDJ80..RHD199001-199801

RED MICA,3H4

sub87910-60400

main87910-60400-03iHDJ80..RHD199001-199308

BLUISH SILVER M,20R ,26P

sub87910-60400

main87910-60400-03iHDJ80..RHD199308-199407

BLUISH SILVER M,26P

sub87910-60400

main87910-60400-05iHDJ80..RHD199001-199208

LIGHT BEIGE M,27P ,4K1

sub87910-60400

main87910-60400-05iHDJ80..RHD199208-199407

LIGHT BEIGE M,4K1

sub87910-60400

main87910-60400-08iFZJ80,HDJ80..RHD199001-199801

WHITE,045

sub87910-60400

main87910-60400-13iHDJ80..RHD199001-199407

DARK BLUISH GRAY M,183

sub87910-60400

main87910-60400-B0iFZJ80,HDJ80..RHD199501-199801

GREY MEOP,1A6

sub87910-60400

main87910-60400-B1iFZJ80,HDJ80..RHD199501-199801

WARM GREY PEARL ME,2AB

sub87910-60400

main87910-60400-C0iFZJ80,HDJ80..RHD199608-199801

BLACK,202

sub87910-60400

main87910-60400-G0iHDJ80..RHD..TD2199208-199801

DARK GREEN MICA,6M1

sub87910-60400

main87910-60400-G0iFZJ80,HDJ80..RHD..(EFI,TD4)199208-199801

DARK GREEN MICA,2AC ,6M1

sub87910-60400

main87910-60400-J0iFZJ80,HDJ80..RHD199501-199801

DK BLUE MM,8K0

sub87910-60400

main87910-60420iFZJ80,HDJ80..GX199001-199801

DOOR REMOTE CONTROL MIRROR

87911GASKET, OUTER REAR VIEW MIRROR, RH

main87911-60010iFJ80,HDJ80,HZJ80199001-199801

87917BMIRROR, OUTER REAR VIEW, RH

main87917-60260iFJ80,HDJ80,HZJ80199001-199801

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-60160iFZJ80,HDJ80,HZJ80..GX,STD199001-199801

main87940-60330-02iFJ80,FZJ80,HDJ80..LHD..VX199001-199801

RED MICA,3H4

sub87940-60330

main87940-60330-03iFZJ80,HDJ80..LHD..VX199308-199501

BLUISH SILVER M,26P

sub87940-60330

main87940-60330-03iFJ80,FZJ80,HDJ80..LHD..VX199001-199308

BLUISH SILVER M,20R ,26P

sub87940-60330

main87940-60330-05iFZJ80,HDJ80..LHD..VX199208-199501

LIGHT BEIGE M,4K1

sub87940-60330

main87940-60330-05iFJ80,HDJ80..LHD..VX199001-199208

LIGHT BEIGE M,27P ,4K1

sub87940-60330

main87940-60330-08iFJ80,FZJ80,HDJ80..LHD..VX199001-199801

WHITE,045

sub87940-60330

main87940-60330-13iFJ80,FZJ80,HDJ80..LHD..VX199001-199501

DARK BLUISH GRAY M,183

sub87940-60330

main87940-60330-B0iFZJ80,HDJ80..LHD..VX199501-199801

GRAY MEOP,1A6

sub87940-60330

main87940-60330-B1iFZJ80,HDJ80..LHD..VX199501-199801

WARM GRAY PEARL ME,2AB

sub87940-60330

main87940-60330-C0iFZJ80,HDJ80..LHD..VX199608-199801

BLACK,202

sub87940-60330

main87940-60330-G0iFZJ80,HDJ80..LHD..VX199208-199501

DARK GREEN MICA,6M1

sub87940-60330

main87940-60330-G0iFZJ80,HDJ80..LHD..VX199501-199801

DARK GREEN MICA,2AC ,6M1

sub87940-60330

main87940-60330-J0iFZJ80,HDJ80..LHD..VX199501-199801

DK BLUE MM,8K0

sub87940-60330

main87940-60340iFZJ80,HDJ80..RHD199501-199801

main87940-60340-02iFZJ80,HDJ80..RHD199001-199801

RED MICA,3H4

sub87940-60340

main87940-60340-03iHDJ80..RHD199001-199308

BLUISH SILVER M,20R ,26P

sub87940-60340

main87940-60340-03iHDJ80..RHD199308-199407

BLUISH SILVER M,26P

sub87940-60340

main87940-60340-05iHDJ80..RHD199001-199208

LIGHT BEIGE M,27P ,4K1

sub87940-60340

main87940-60340-05iHDJ80..RHD199208-199407

LIGHT BEIGE M,4K1

sub87940-60340

main87940-60340-08iFZJ80,HDJ80..RHD199001-199801

WHITE,045

sub87940-60340

main87940-60340-13iHDJ80..RHD199001-199407

DARK BLUISH GRAY M,183

sub87940-60340

main87940-60340-B0iFZJ80,HDJ80..RHD199501-199801

GREY MEOP,1A6

sub87940-60340

main87940-60340-B1iFZJ80,HDJ80..RHD199501-199801

WARM GREY PEARL ME,2AB

sub87940-60340

main87940-60340-C0iFZJ80,HDJ80..RHD199608-199801

BLACK,202

sub87940-60340

main87940-60340-G0iHDJ80..RHD..TD2199208-199801

DARK GREEN MICA,6M1

sub87940-60340

main87940-60340-G0iHDJ80..RHD..TD2199208-199801

DARK GREEN MICA,2AC ,6M1

sub87940-60340

main87940-60340-J0iFZJ80,HDJ80..RHD199501-199801

DK BLUE MM,8K0

sub87940-60340

main87940-60360iFZJ80,HDJ80..GX199001-199801

DOOR REMOTE CONTROL MIRROR

87941GASKET, OUTER REAR VIEW MIRROR, LH

main87941-60010iFJ80,HDJ80,HZJ80199001-199801

87947BMIRROR, OUTER REAR VIEW, LH

main87947-60200iFJ80,HDJ80,HZJ80199001-199801

9011906312

main90119-06312

9331915012

main93319-15012

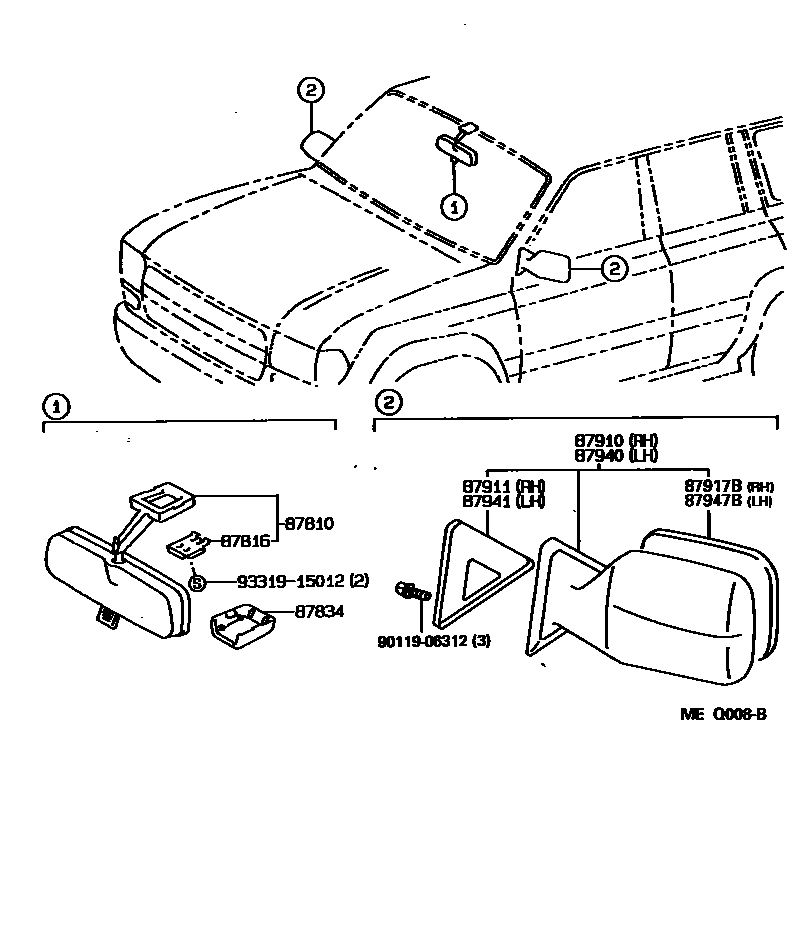

11 parts on this diagram · 1 diagram in section
