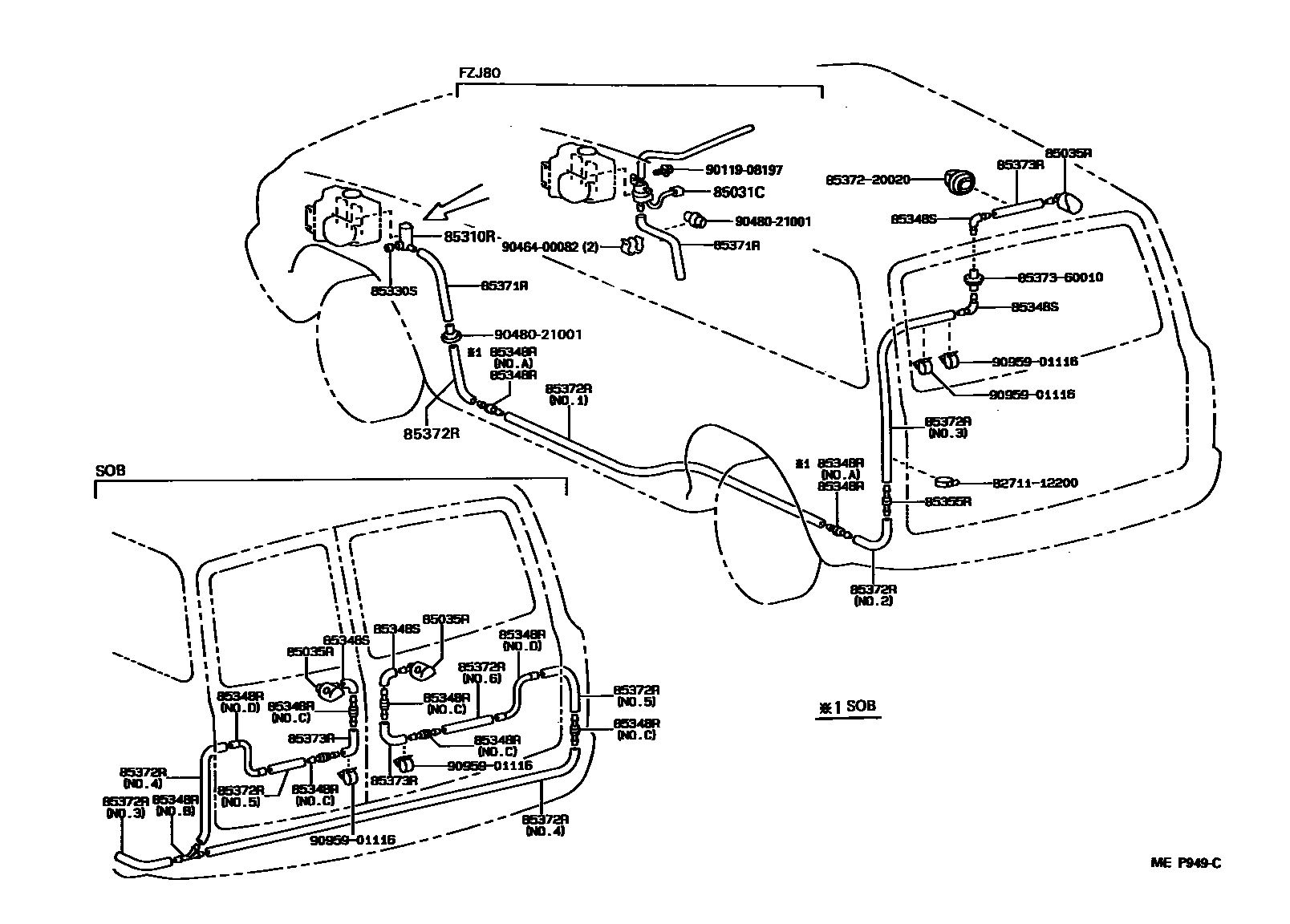

REAR WASHER
85031CVALVE SUB-ASSY, WASHER
85035RNOZZLE SUB-ASSY, REAR WASHER
RH
85310RMOTOR ASSY, REAR WASHER
85330SBUSH, REAR WASHER JAR
85348RJOINT, REAR WASHER HOSE, NO.1
NO.A
NO.B(3WAY)
NO.B(3 WAY)
NO.C
NO.D
85348SJOINT, REAR WASHER ELBOW, NO.1
85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)
85372RHOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE)
L=1000
L=1000,NO.3
L=600,NO.5,LH
L=3350
L=3350,NO.1
L=3350,COLD SPEC OR W(*66)
L=2000,NO.3
L=2000,COLD SPEC OR W(*66)
L=1000,NO.2
L=1000,NO.5,RH,NO.2
L=1000,NO.5,RH
L=1000,COLD SPEC OR W(*66)
L=1000
L=1000,NO.4,LH
L=1000,NO.4,LH,NO.5,RH
L=1000,NO.4,LH,NO.5,RH,NO.2
L=1000,NO.6,RH
L=3550,NO.4
L=3550
L=3550,NO.4,RH
L=1800
L=1800,NO.5,LH,NO.6,RH
85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)
L=1000
L=1000,LH,RH
L=1000
8271112200WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-12200
8537220020HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
main85372-20020
8537360010HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
main85373-60010
9011908197
main90119-08197
9046400082
main90464-00082
9048021001
main90480-21001
9095901116
main90959-01116
17 parts on this diagram · 1 diagram in section
