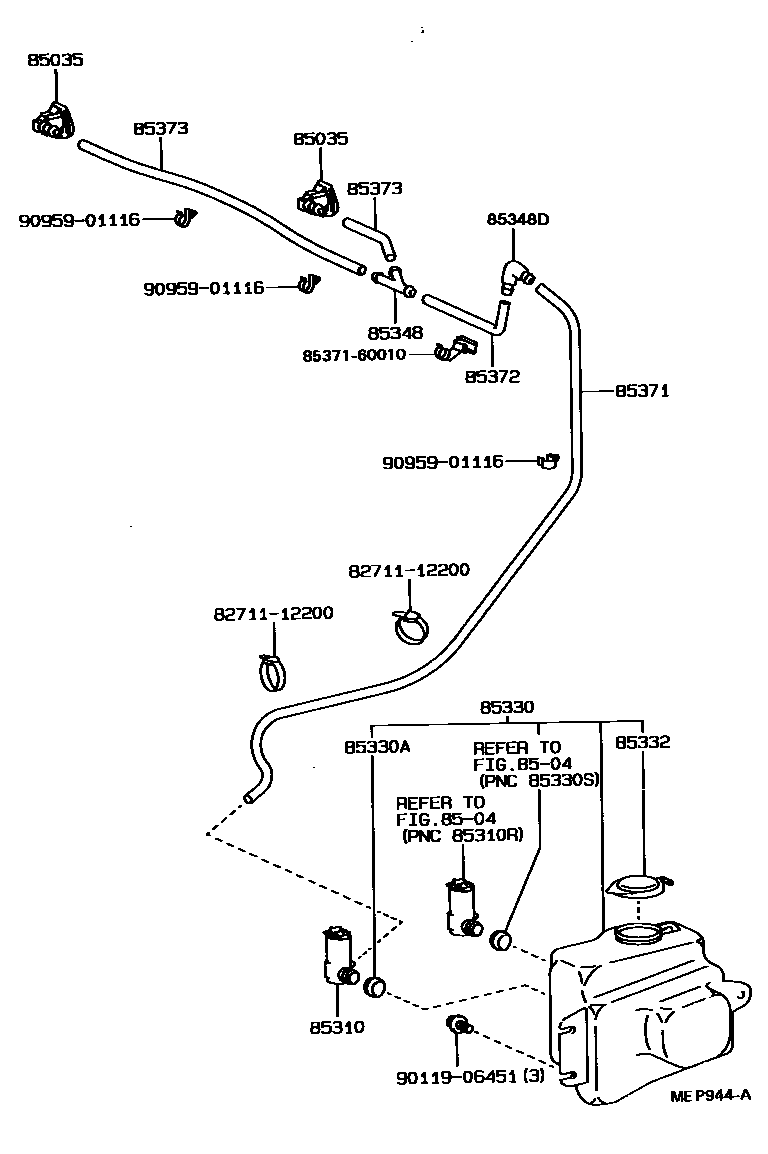

WINDSHIELD WASHER

0001 1 0002 1W(HEADLAMP CLEANER) 0003 1W(HEADLAMP CLEANER)

85035NOZZLE SUB-ASSY, WASHER

main85381-60010iFZJ80,HDJ80..RHD199001-199801

sub85381-30020

main85382-60010iFZJ80,HDJ80,HZJ80..LHD199001-199801

sub85381-30020

8504

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85310-16050iFJ80,HDJ80,HZJ80199001-199605

sub85330-60140

main85330-50020iFZJ80199208-199605

main85330-60130iFZJ80199605-199801

main85330-60140iHDJ80,HZJ80199605-199801

85330JAR ASSY, WINDSHIELD WASHER

main85315-60110iHDJ80..STD199001-199605

sub85315-60111

main85315-60111iHDJ80..STD199605-199608

main85315-60120iFZJ80..RHD199501-199605

sub85315-60121

main85315-60120iFZJ80..LHD199208-199605

W(HEADALMP CLEANER)

sub85315-60121

main85315-60121iFZJ80..RHD199605-199801

W(HEADALMP CLEANER)

main85315-60140iHDJ80,HZJ80..LHD199001-199605

W(HEADALMP CLEANER),NO.1

sub85315-60143

main85315-60140iHDJ80..RHD199001-199605

NO.1

sub85315-60143

main85315-60143iHDJ80..LHD199605-199801

W(HEADALMP CLEANER),NO.1

main85315-60143iHZJ80;HDJ80..RHD199605-199801

NO.1

main85325-60010iHDJ80..STD199001-199605

W(REAR WINDOW WIPER)

sub85325-60012

main85325-60010iFJ80,HDJ80,HZJ80..LHD..(GX,VX)199001-199501

sub85325-60012

main85325-60012iHDJ80..STD199605-199608

W(REAR WINDOW WIPER)

main85325-60012iHDJ80..LHD199608-199801

main85325-60060iFZJ80..LHD199208-199605

sub85325-60061

main85325-60061iFZJ80..LHD199605-199801

main85351-60050iHDJ80,HZJ80..LHD..(GX,VX)199001-199208

COLD SPEC & W(HEADLAMP CLEANER)

main85351-60050iFJ80;HZJ80..STD199001-199801

W(HEADALMP CLEANER),NO.2

main85351-60050iHDJ80..RHD199001-199801

NO.2

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089iFJ80,HDJ80,HZJ80199001-199801

85332CAP, WINDSHIELD WASHER JAR

main85316-34040iFZJ80199310-199801

main85316-60111iHDJ80,HZJ80199605-199801

main85332-12660iFZJ80,HDJ80,HZJ80199001-199310

sub85316-34040

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85334-22470iFZJ80..LHD199305-199801

NO.1

main85334-22470iFZJ80..RHD199305-199801

NO.2

main85348-14390iFJ80,HDJ80,HZJ80199001-199801

main85348-14390iFZJ80199001-199801

3WAY

main85375-10260iFZJ80..LHD199208-199801

NO.2

85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1

main85355-20200iHDJ80,HZJ80199001-199801

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90099-33080iFZJ80..LHD199305-199801

L=1450

main90099-33382iHZJ80199208-199801

COLD SPEC)

main90099-33382iFJ80199001-199801

COLD SPEC

main90099-33382iFJ80199201-199501

main90099-33790iFZJ80..RHD199501-199801

L=2600

main90446-06006iHDJ80,HZJ80199001-199801

L=2000

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-33075iFZJ80199501-199801

L=1100

main90099-33075iFZJ80199305-199501

L=1100,NO.1

main90099-33080iFZJ80..LHD..(GX,VX)199208-199801

L=1450

main90099-33080iHDJ80..RHD199001-199501

L=1450,COLD SPEC

main90099-33080iHZJ80..STD199208-199501

L=1450,COLD SPEC OR W(*66)

main90099-33080iFZJ80199305-199501

L=1450,NO.4,NO.5,NO.2

main90099-33084iFZJ80..LHD..(GX,VX)199208-199801

L=1450(*H,L=630)

sub90099-33080

main90446-07001iHDJ80,HZJ80199001-199801

L=1800

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-33080iHZJ80199208-199801

L=1450,COLD SPEC OR W(*66),LH

main90099-33080iHDJ80..STD199208-199801

L=1450,LH,RH

main90099-33080iHDJ80..STD199208-199801

L=1450,COLD SPEC,LH

main90099-33080iFZJ80199001-199801

L=1450,COLD SPEC,LH,RH

main90099-33080iHZJ80..STD199208-199501

L=1450,COLD SPEC OR W(*66)

main90099-33080iHDJ80..STD199208-199801

L=1450,COLD SPEC,RH

main90099-33080iHDJ80..STD199208-199801

L=1450,COLD SPEC OR W(*66),RH

main90446-06013iHDJ80,HZJ80199001-199801

L=1000,LH,RH

8271112200WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12200

8537160010HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main85371-60010

9011906451

main90119-06451

9095901116

main90959-01116

15 parts on this diagram · 3 diagrams in section
