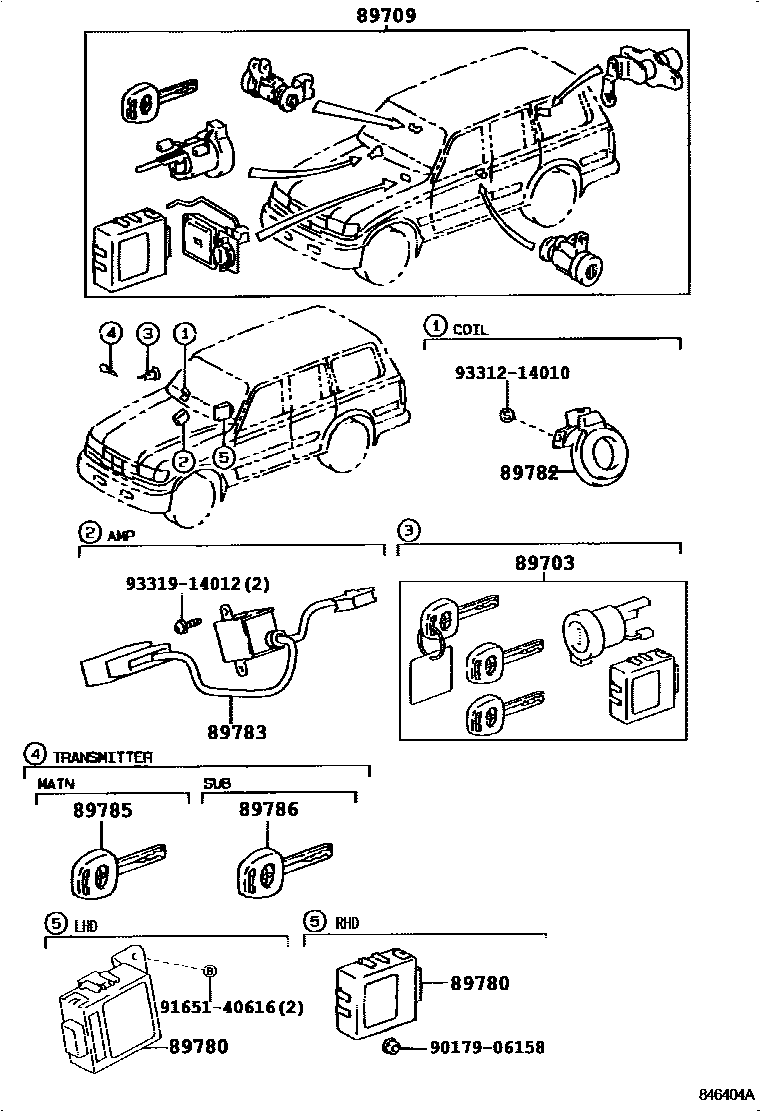

ANTI-THEFT DEVICE

0001 1 0002 1

89703CYLINDER & KEY SET, IGNITION W/TRANSPONDER

main89703-60010iFZJ80..LHD199505-199801

main89703-60020iFZJ80..RHD199505-199801

main89703-60050iHDJ80..LHD199605-199801

main89703-60060iHDJ80..RHD199605-199801

89709COMPUTER SET, TRANSPONDER KEY

main89709-60010iFZJ80..SOB199505-199801

main89709-60020iFZJ80..LHD..LUB199505-199801

main89709-60030iFZJ80..RHD199505-199801

89780COMPUTER ASSY, TRANSPONDER KEY

main89780-60010iFZJ80..LHD199505-199801

main89780-60020iFZJ80..RHD199505-199801

89782COIL, TRANSPONDER KEY

main89782-60010iFZJ80199505-199801

89783AMPLIFIER, TRANSPONDER KEY

main89783-60010iFZJ80199505-199801

89785TRANSMITTER, TRANSPONDER KEY MASTER

main89785-60020iFZJ80,HDJ80199505-199801

CUT KEY

main89785-60030iFZJ80199505-199801

BLANK KEY

89786TRANSMITTER, TRANSPONDER KEY SUB

main89786-60020iFZJ80,HDJ80199505-199801

CUT KEY

main89786-60030iFZJ80199505-199801

BLANK KEY

9017906158

main90179-06158

9165140616

main91651-40616

9331214010

main93312-14010

9331914012

main93319-14012

11 parts on this diagram · 2 diagrams in section
