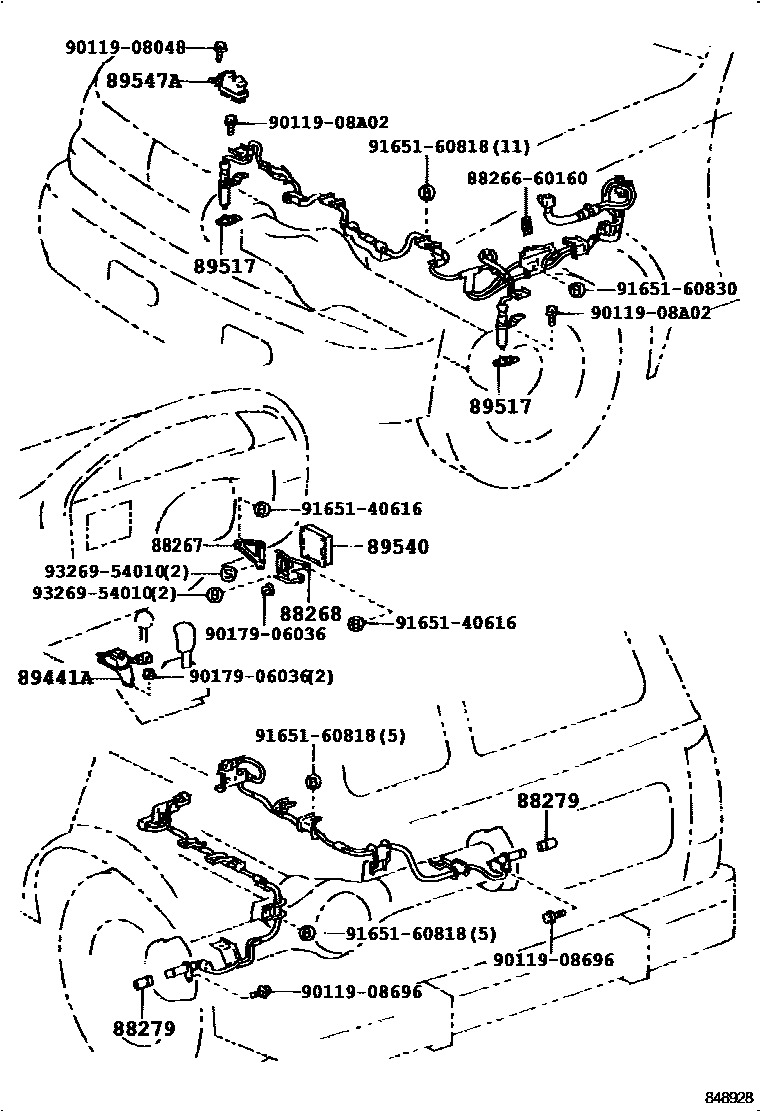

ABS & VSC

0001 1 0002 1 0003 1 0004 1

88267BRACKET, SKID CONTROL COMPUTER, NO.1

main88267-60010iFZJ80,HDJ80..RHD199208-199801

main88267-60020iFZJ80,HDJ80,HZJ80..LHD..(GX,VX)199208-199501

88268BRACKET, SKID CONTROL COMPUTER, NO.2

main88268-60010iFZJ80,HDJ80..RHD199208-199801

main88268-60020iFZJ80,HDJ80..LHD..(GX,VX)199501-199801

88279GUIDE, SKID CONTROL SENSOR

main88279-60010×2iFZJ80,HDJ80,HZJ80..GX,VX199208-199501

89441ASENSOR, DECELERATION

main89440-60020iHDJ80..RHD..ATM199208-199407

main89440-60021iFZJ80..RHD199501-199801

main89440-60030iHDJ80..RHD..MTM199208-199801

main89440-60040iFZJ80,HDJ80..LHD..ATM199208-199501

main89440-60041iFZJ80..LHD..ATM199501-199801

main89440-60050iFZJ80,HDJ80..LHD..MTM..LUB199501-199801

89517SPACER, SKID CONTROL SENSOR

main89517-60010iFZJ80,HDJ80,HZJ80..GX,VX199209-199501

T=0.15

main89517-60020iFZJ80,HDJ80,HZJ80..GX,VX199209-199501

T=0.25

main89517-60030iFZJ80,HDJ80,HZJ80..GX,VX199209-199501

T=0.35

89540COMPUTER ASSY, SKID CONTROL

main89541-60010iFZJ80,HDJ80,HZJ80..GX,VX199208-199501

main89541-60020iFZJ80,HDJ80..GX,VX199501-199801

89547ARELAY, SKID CONTROL W/BRACKET

main89547-60010iFZJ80,HDJ80,HZJ80..GX,VX199208-199501

8826660160CLAMP, AIR SUSPENSION SENSOR, NO.1

main88266-60160

9011908048

main90119-08048

9011908696

main90119-08696

9011908A02

main90119-08A02

9017906036

main90179-06036

9165140616

main91651-40616

9165160818

main91651-60818

9165160830

main91651-60830

9326954010

main93269-54010

16 parts on this diagram · 4 diagrams in section
