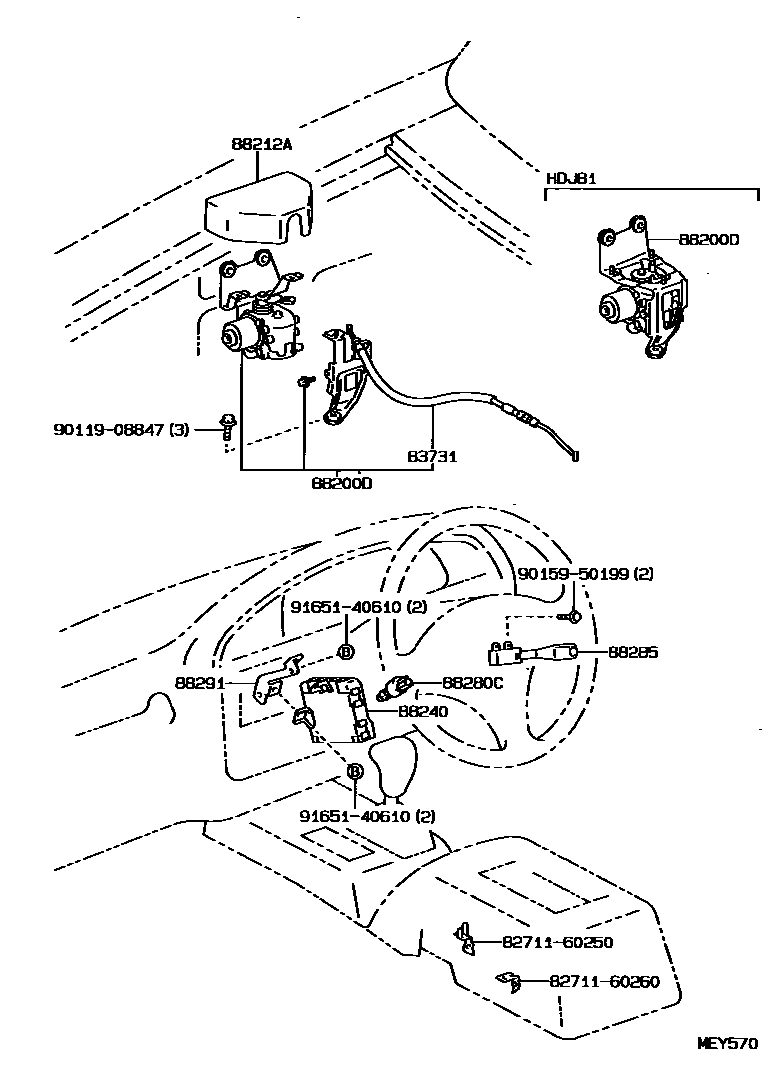

CRUISE CONTROL (AUTO DRIVE)

83731CABLE, CRUISE CONTROL

main83731-60020iFZJ80..VX199501-199801

88200DACTUATOR ASSY, CRUISE CONTROL

main88002-60030iFZJ80..VX199501-199801

main88200-60011iHDJ80..VX199501-199801

88212ACOVER, CRUISE CONTROL ACTUATOR

main88212-60010iFZJ80..VX199501-199801

88240COMPUTER ASSY, CRUISE CONTROL

main88240-60060iFZJ80..LHD..VX199501-199608

main88240-60090iFZJ80..RHD199501-199608

main88240-60101iHDJ80..RHD199501-199608

main88240-60110iHDJ80..LHD..VX199501-199608

main88240-60160iFZJ80..RHD199608-199801

main88240-60170iFZJ80..LHD..VX199608-199801

main88240-60190iHDJ80..RHD199608-199801

main88240-60200iHDJ80..LHD..VX199608-199801

88280CSWITCH ASSY, CLUTCH

main88280-14030iHDJ80..VX199608-199801

main88280-33010iHDJ80..VX199501-199608

88285SWITCH, CRUISE CONTROL

main84630-33020iFZJ80,HDJ80..VX199501-199602

sub84630-26011

main84630-60030iFZJ80,HDJ80..VX199602-199801

88291BRACKET, CRUISE CONTROL(AUTO DRIVE), NO.1

main88291-60010iFZJ80,HDJ80..RHD199501-199608

sub88291-60011

main88291-60020iFZJ80,HDJ80..RHD199501-199801

8271160250WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-60250

8271160260WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-60260

9011908847

main90119-08847

9015950199

main90159-50199

9165140610

main91651-40610

12 parts on this diagram · 1 diagram in section
