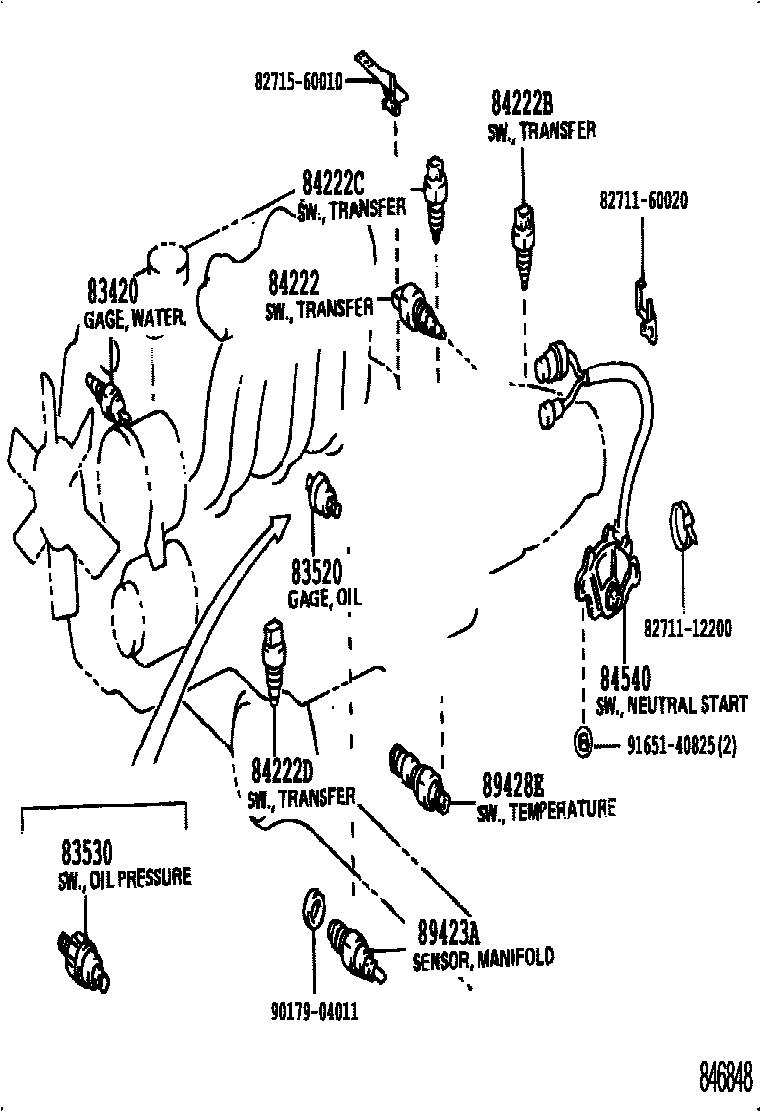

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-16040iFZJ80,HDJ80,HZJ80199208-199801

NIPPONDENSO

main83420-16040iFZJ80,HDJ80,HZJ80199506-199801

YAZAKI

main83420-20020iFJ80,HDJ80,HZJ80199001-199208

main83420-20030iFZJ80,HDJ80,HZJ80199208-199506

YAZAKI

sub83420-16040

83520GAGE ASSY,OIL PRESSURE SENDER

main83520-60010iFJ80,HDJ80,HZJ80..GX,VX199001-199112

sub83520-60011

main83520-60011iHZJ80..GX;FZJ80,HDJ80199112-199801

main83520-60040iFZJ80199601-199801

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-30060iHZJ80..STD199001-199801

sub83530-60030

84222SWITCH, TRANSFER INDICATOR, NO.1

main84222-12010iFJ80,HDJ80,HZJ80199001-199801

84222BSWITCH, TRANSFER INDICATOR, NO.2

main84222-60080iFJ80,HDJ80,HZJ80..ATM199001-199801

sub84222-60081

84222CSWITCH, TRANSFER INDICATOR, NO.3

main84222-12010iFJ80,HDJ80,HZJ80199001-199801

84222DSWITCH, TRANSFER INDICATOR, NO.4

main84222-12010iHZJ80..GX;FZJ80,HDJ80199001-199801

84540SWITCH ASSY, NEUTRAL START

main84540-60010iFJ80,FZJ80,HDJ80,HZJ80..ATM199001-199501

main84540-65010iFZJ80..ATM199501-199801

89423ASENSOR, MANIFOLD TEMPERATURE

main89423-60020iFJ80199001-199208

89428SWITCH, TEMPERATURE DETECT, NO.2

main89428-36030iHDJ80..ATM199208-199501

89428ESWITCH, TEMPERATURE, NO.2 (FOR TRANSMISSION)

main89428-26030iFZJ80,HDJ80..ATM199001-199501

main89428-60090iFZJ80..ATM199501-199801

8271112200WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12200

8271160020WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-60020

8271560010BRACKET,WIRING HARNESS CLAMP

main82715-60010

9017904011

main90179-04011

9165140825

main91651-40825

16 parts on this diagram · 16 diagrams in section
