METER

0001 1SPEEDMETER & CLOCK 0002 1SPEEDMETER & CLOCK 0003 1SPEEDMETER & CLOCK W(TACHOMET0004 1SPEEDMETER & CLOCK W(TACHOMET0005 1SPEEDMETER CABLE 0006 1SPEEDMETER CABLE 0007 1

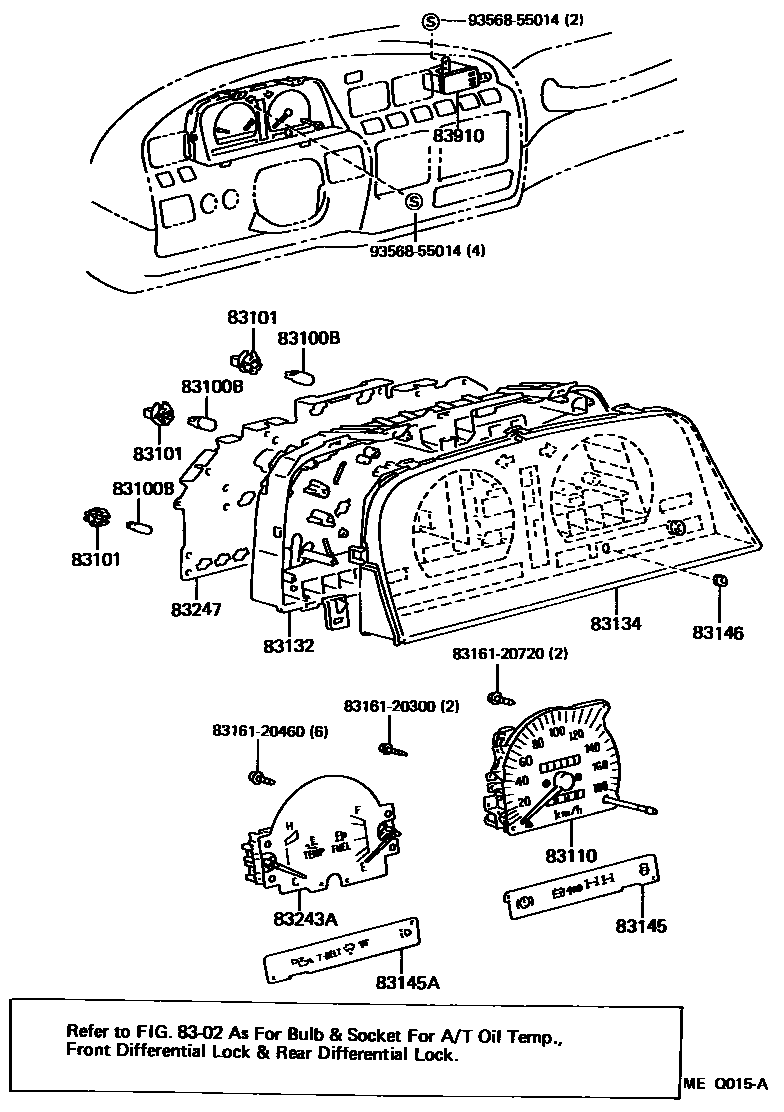

83100BBULB, COMBINATION METER, NO.1

main83119-36060×4iFZJ80,HDJ80,HZJ80199501-199605

12V 3.0W GREEN CAP

main83119-36080iFZJ80,HDJ80199501-199605

12V 2.0W

main83120-60010iFZJ80,HDJ80199605-199801

14V 2.0W

main83120-60020×7iHZJ80..STD199605-199801

12V 1.4W,W(SOCKET)

main90010-06006×4iFZJ80,HDJ80,HZJ80199605-199801

12V3.4W,W(GREEN CAP)

main90010-06007×3iFZJ80,HDJ80,HZJ80199605-199801

12V 3.4W,W(SOCKET)

main90981-11018×13iFZJ80..MTM;HZJ80..STD199501-199605

12V 1.2W W/O SOCKET

main90981-11035×4iFJ80,HDJ80,HZJ80199001-199208

14V 3.4W

main99132-12034×7iFZJ80,HZJ80199308-199501

12V 3.4W

83101SOCKET SUB-ASSY, COMBINATION METER BULB

main83101-14040×10iFZJ80..MTM199501-199605

1.2W OR 1.4W BULB

main83101-20040×6iFJ80,HDJ80,HZJ80..GX,VX199001-199208

3.4W BULB GREEN CAP

83110SPEEDOMETER ASSY

main83110-60200iHZJ80199001-199008

main83110-60201iHDJ80,HZJ80..LHD199008-199208

main83110-60202iHZJ80199208-199801

main83110-60330iFJ80199001-199208

main83110-60331iFZJ80..LHD199208-199801

main83110-60340iHDJ80..RHD199001-199008

main83110-60350iHDJ80..LHD199001-199008

main83110-60360iHDJ80..RHD199008-199208

main83110-60361iHDJ80..RHD199208-199605

main83110-60370iHDJ80..LHD..VX199001-199002

W(POWER STEERING---PPS)

main83110-60371iHDJ80..LHD199208-199801

main83110-6A230iFZJ80..RHD199501-199605

main83220-60150iFZJ80..RHD199608-199801

main83220-60170iHDJ80..RHD199608-199801

83132CASE, COMBINATION METER

main83132-60100iFJ80,HDJ80,HZJ80..GX,VX199001-199208

main83132-60120iHZJ80..STD199001-199208

main83132-60720iFZJ80,HDJ80,HZJ80..GX,VX199208-199501

main83132-60740iHZJ80..STD199208-199801

main83132-60770iHZJ80..GX;FZJ80,HDJ80199501-199801

83134COVER, COMBINATION METER, NO.1

main83134-60100iFJ80,FZJ80199001-199801

main83134-60120iHDJ80,HZJ80..GX,VX199001-199208

main83134-60140iHZJ80..STD199001-199801

83145LENS, METER, NO.1

main83145-60100iHDJ80..RHD;FJ80,HZJ80..GX,VX199008-199208

W(POWER STEERING)

main83145-60120iHDJ80..LHD199008-199208

main83145-60540iHZJ80..STD199001-199208

main83145-6A040iFZJ80,HDJ80199501-199605

main83145-6A080iHZJ80..GX199501-199605

main83145-6A100iHZJ80..STD199501-199605

main83146-60400iHDJ80,HZJ80..MTM..(GX,VX)199208-199501

main83146-60440iFZJ80,HDJ80..ATM199208-199501

main83146-60760iHZJ80..STD199208-199501

main83832-60350iFZJ80,HDJ80199605-199801

main83832-60450iHZJ80..GX199605-199801

main83832-60470iHZJ80..STD199605-199801

83145ALENS, METER, NO.2

main83145-60220iHDJ80..LHD199008-199208

main83145-60360iFJ80199001-199208

main83145-60400iHDJ80..GX199008-199208

W(POWER STEERING)

main83145-60620iHZJ80..STD199001-199208

main83145-6A200iFZJ80199501-199605

main83145-6A320iHDJ80199501-199605

main83145-6A420iHZJ80..GX199501-199605

main83145-6A480iHZJ80..STD199501-199605

main83146-60360iFZJ80199208-199501

main83146-60380iHDJ80,HZJ80..MTM..(GX,VX)199208-199501

main83146-60420iHDJ80..ATM199208-199501

main83146-60740iHZJ80..STD199208-199501

main83831-60350iFZJ80..MTM199605-199801

main83831-60360iHDJ80;FZJ80..ATM199605-199801

main83831-60450iHZJ80..GX199605-199801

main83831-60470iHZJ80..STD199605-199801

83146GROMMET, METER GLASS

main83145-89318iHDJ80,HZJ80199001-199208

83243AGAUGE SUB-ASSY, FUEL RECEIVER

main83243-60040iFJ80,HDJ80,HZJ80..GX,VX199001-199208

main83243-60060iHZJ80..STD199001-199208

main83243-60240iHZJ80..GX;FZJ80,HDJ80199208-199801

main83243-60260iHZJ80..STD199208-199801

83247PLATE, METER CIRCUIT

main83149-60680iFZJ80199208-199501

main83149-60700iHDJ80,HZJ80..MTM..(GX,VX)199208-199501

main83149-60720iHDJ80..ATM199208-199501

main83247-60120iHDJ80..LHD199008-199208

main83247-60180iFJ80199001-199208

main83247-60200iHDJ80..GX199008-199208

W(POWER STEERING)

main83247-60420iHZJ80..STD199001-199208

main83247-6A020iHZJ80..STD199208-199501

main83247-6A160iFZJ80..ATM199605-199801

main83247-6A260iHDJ80199501-199801

main83247-6A360iHZJ80..GX199501-199801

main83247-6A420iHZJ80..STD199501-199801

main83861-60350iFZJ80..MTM199605-199801

83910CLOCK ASSY

main83910-60030iFJ80,FZJ80,HDJ80,HZJ80..LHD199001-199501

main83910-60040iHDJ80..RHD199001-199407

main83910-60050iFJ80,FZJ80,HDJ80,HZJ80..LHD..(GX,VX)199001-199501

MULTIPLEX TYPE

main83910-60060iHDJ80..RHD199001-199407

MULTIPLEX TYPE

main83910-60150iFZJ80,HDJ80,HZJ80199501-199801

8316120300CASE, COMBINATION METER MIRROR, NO.1

main83161-20300

8316120460CASE, COMBINATION METER MIRROR, NO.1

main83161-20460

8316120720CASE, COMBINATION METER MIRROR, NO.1

main83161-20720

9356855014

main93568-55014

15 parts on this diagram · 7 diagrams in section
