WIRING & CLAMP

0001 1E/G ROOM WIRE 0002 1E/G ROOM WIRE 0003 1E/G ROOM WIRE CLAMPS 0004 1E/G WIRE & T/M WIRE 0005 1E/G WIRE & T/M WIRE 0006 1E/G WIRE & T/M WIRE 0007 1E/G WIRE & T/M WIRE 0008 1COWL & INSTRUMENT WIRE 0009 1COWL & INSTRUMENT WIRE 0010 1COWL & INSTRUMENT WIRE 0011 1COWL & INSTRUMENT WIRE 0012 1DOOR & ROOF WIRE 0013 1FLOOR,FRAME & SEAT WIRE 0014 1LUGGAGE & BACK DOOR WIRE 0015 1CABLE BOND 0016 1CABLE BOND 0017 1DIODE

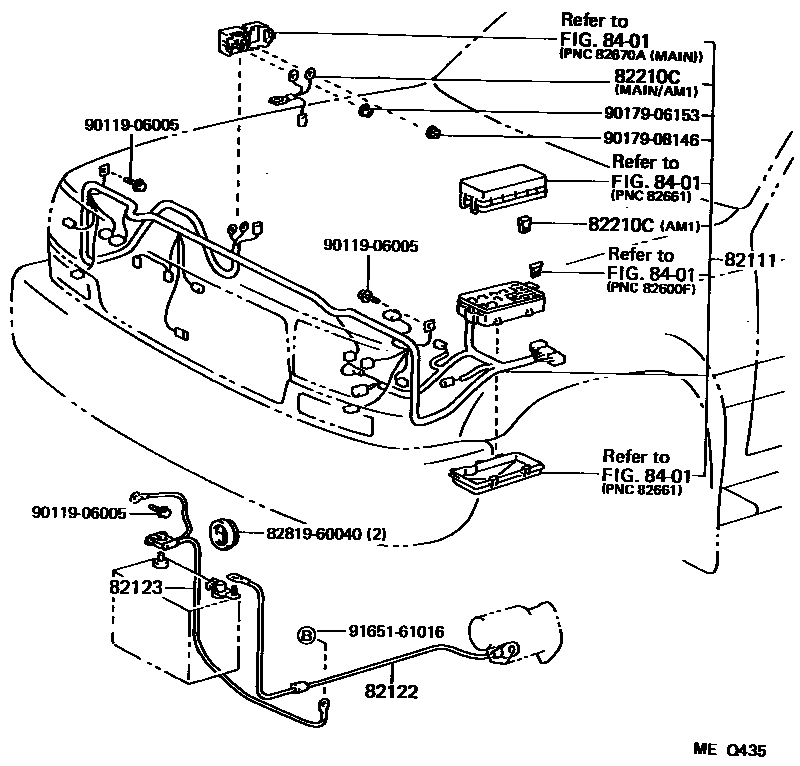

82111WIRE, ENGINE ROOM MAIN

main82111-60090iFJ80199001-199005

main82111-60091iFJ80199005-199108

main82111-60092iFJ80199108-199208

main82111-60140iHDJ80..RHD199001-199108

main82111-60141iHDJ80..RHD199108-199208

main82111-60142iHDJ80..RHD199208-199407

main82111-60144iHDJ80..RHD199501-199605

main82111-60145iHDJ80..RHD199608-199801

main82111-60180iHDJ80,HZJ80..LHD199001-199108

main82111-60181iHDJ80,HZJ80..LHD199108-199208

main82111-60182iHDJ80,HZJ80..LHD199208-199501

main82111-60184iHDJ80..LHD199501-199801

main82111-60230iFJ80199001-199108

W(12V 90A ALTERNATOR)

main82111-60231iFJ80199108-199208

W(12V 90A ALTERNATOR)

main82111-60330iFZJ80199208-199501

main82111-60332iFZJ80..LHD199501-199707

main82111-60333iFZJ80..LHD199707-199801

main82111-60340iFZJ80..RHD199501-199605

main82111-60341iFZJ80..RHD199608-199707

main82111-60342iFZJ80..RHD199707-199801

main82111-60380iHZJ80199501-199503

main82111-60381iHZJ80199503-199801

82122WIRE, ENGINE, NO.2

main82122-60010iFJ80199001-199201

main82122-60020iFJ80199201-199208

main82122-60050iHDJ80,HZJ80199001-199208

main82122-60051iHDJ80..TD4;HZJ80..SOB199208-199605

main82122-60181iFZJ80199208-199605

main82122-60182iFZJ80199608-199801

main82122-60191iFZJ80199501-199605

COLD SPEC

main82122-60192iFZJ80199608-199801

COLD SPEC

82123WIRE, ENGINE, NO.3

main82123-60010iFJ80199001-199201

main82123-60020iFJ80199001-199201

COLD SPEC

main82123-60040iHDJ80,HZJ80199001-199501

main82123-60041iHDJ80,HZJ80199501-199605

main82123-60042iHDJ80,HZJ80199608-199801

main82123-60120iFZJ80199208-199605

main82123-60121iFZJ80199608-199801

main82123-60130iFZJ80199501-199605

COLD SPEC

main82123-60131iFZJ80199608-199801

COLD SPEC

82210CFUSIBLE LINK

main82627-60080iHDJ80..RHD199501-199605

MAIN,GLOW,HEAD,AM1

main90982-08190iFZJ80,HDJ80..RHD..(EFI,TD4)199208-199605

60A,TERM.:FEMALE,YEL

main90982-08206iHZJ80..MTM199001-199208

GLOW RESISTER,E/G WIER GLOW

main90982-08227iFZJ80,HDJ80,HZJ80199501-199605

50A,TERM.:FEMALE,RED

main90982-08264iFZJ80..RHD199608-199801

L=110,MAIN,GLOW,AM2

main90982-08265iHDJ80..RHD199608-199801

L=110,0.5 GREEN

main90982-08266iHDJ80,HZJ80199001-199501

MAIN,GLOW,HEAD,AM1,MAIN/GLOW

8401

8281960040GROMMET, WIRING HARNESS

main82819-60040

9011906005

main90119-06005

9017906153

main90179-06153

9017908146

main90179-08146

9165161016

main91651-61016
