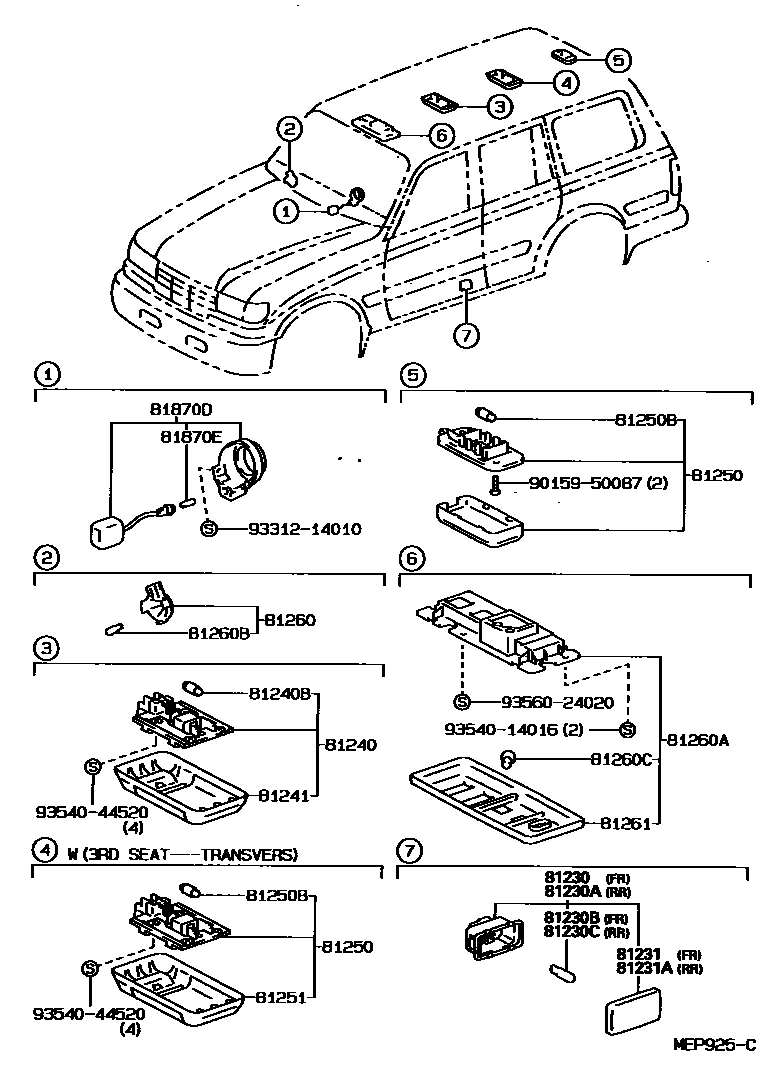

INTERIOR LAMP

81230LAMP ASSY, COURTESY

main81230-30140×2iFZJ80,HDJ80..VX199501-199801

81230ALAMP ASSY, COURTESY, NO.2

main81230-30140×2iFZJ80,HDJ80..VX199501-199801

81230BBULB(FOR COURTESY LAMP)

main90981-11020×2iFZJ80,HDJ80..VX199501-199801

12V 3.8W

81230CBULB(FOR COURTESY LAMP NO.2)

main90981-11020×2iFZJ80,HDJ80..VX199501-199801

12V 3.8W

81231LENS, COURTESY LAMP

main81231-50010×2iFZJ80,HDJ80..VX199501-199801

81231ALENS, COURTESY LAMP, NO.2

main81231-50010×2iFZJ80,HDJ80..VX199501-199801

81240LAMP ASSY, ROOM, NO.1

main81240-32020-B6iFZJ80,HDJ80,HZJ80199501-199801

LIGHT GRAY,TRIM1#,4#

main81240-60030-03iFJ80,FZJ80,HDJ80,HZJ80199001-199501

GRAY,TRIM1#

main81240-60030-06iFJ80,FZJ80,HDJ80,HZJ80199001-199501

LIGHT SABLE,TRIM4#

81240BBULB, ROOM LAMP, NO.1

main90981-11004iFJ80,FZJ80,HDJ80,HZJ80199001-199501

12V 10W

main99132-12100iFZJ80,HDJ80,HZJ80199501-199801

12V 10W

81241LENS, ROOM LAMP, NO.1

main81241-24020iFJ80,FZJ80,HDJ80,HZJ80199001-199801

81250LAMP ASSY, ROOM, NO.2

main81240-32020-B6iFZJ80,HDJ80,HZJ80199501-199801

LIGHT GRAY,TRIM1#,4#

main81240-60030-03iFJ80,HDJ80,HZJ80..GX199001-199108

W(3RD SEAT---TRANSVERS),GRAY,TRIM1#

main81240-60030-06iFZJ80,HDJ80,HZJ80199208-199501

LIGHT SABLE,TRIM4#

main81240-95704-03iFJ80,HDJ80,HZJ80199001-199208

GRAY,TRIM1#

main81240-95704-16iFJ80,HDJ80,HZJ80199001-199208

LIGHT SABLE,TRIM4#

main81240-95704-42iFZJ80,HDJ80,HZJ80199208-199501

SABLE,TRIM4#

main81240-95704-B1iFZJ80,HDJ80,HZJ80199208-199501

LIGHT GRAY,TRIM1#

81250BBULB, ROOM LAMP, NO.2

main90981-11004iFJ80,HDJ80,HZJ80199001-199208

12V 10W

main99132-12100iFZJ80,HDJ80,HZJ80199501-199801

12V 10W

81251LENS, ROOM LAMP, NO.2

main81241-24020iFJ80,FZJ80,HDJ80..VX199001-199501

W(3RD SEAT---TRANSVERS)

main81241-95013iFJ80,HDJ80,HZJ80199001-199208

81260LAMP ASSY, GLOVE BOX

main81260-32071iFZJ80,HDJ80,HZJ80..GX,VX199208-199801

81260ALAMP ASSY, MAP

main81260-60010iFJ80,HDJ80,HZJ80..GX,VX199001-199208

main81260-60010-03iFJ80,HDJ80,HZJ80..GX,VX199001-199208

LIGHT GRAY

main81260-60010-06iFJ80,HDJ80,HZJ80..GX,VX199001-199208

LIGHT SABLE

main81260-60010-42iFZJ80,HDJ80,HZJ80..GX,VX199208-199501

SABLE,TRIM4#

main81260-60010-B6iFZJ80,HDJ80,HZJ80..GX,VX199208-199501

BLUEISH GRAY,TRIM1#

81260BBULB(FOR GLOVE BOX)

main90981-11018iFJ80,HDJ80,HZJ80..GX,VX199001-199208

12V 1.2W W/O SOCKET

81260CBULB(FOR MAP LAMP)

main90981-12014iFZJ80,HDJ80,HZJ80..GX,VX199208-199501

12V 10W

81261LENS AND COVER, MAP LAMP

main81261-60010-03iFZJ80,HDJ80,HZJ80..GX,VX199503-199801

LIGHT GRAY,TRIM1#,4#

main81261-60010-06iFJ80,FZJ80,HDJ80,HZJ80..GX,VX199001-199501

LIGHT SABLE,TRIM4#

81870DLAMP ASSY, KEY CYLINDER

main81870-14010iFJ80,HDJ80..VX199001-199007

main81870-60010iFJ80,HDJ80..VX199007-199208

main81870-60011iFZJ80,HDJ80..VX199208-199505

81870EBULB, KEY CYLINDER LAMP

main90981-11014iFJ80,FZJ80,HDJ80..VX199001-199505

14V 1.4W

9015950087

main90159-50087

9331214010

main93312-14010

9354014016

main93540-14016

9354044520

main93540-44520

9356024020

main93560-24020

24 parts on this diagram · 1 diagram in section
