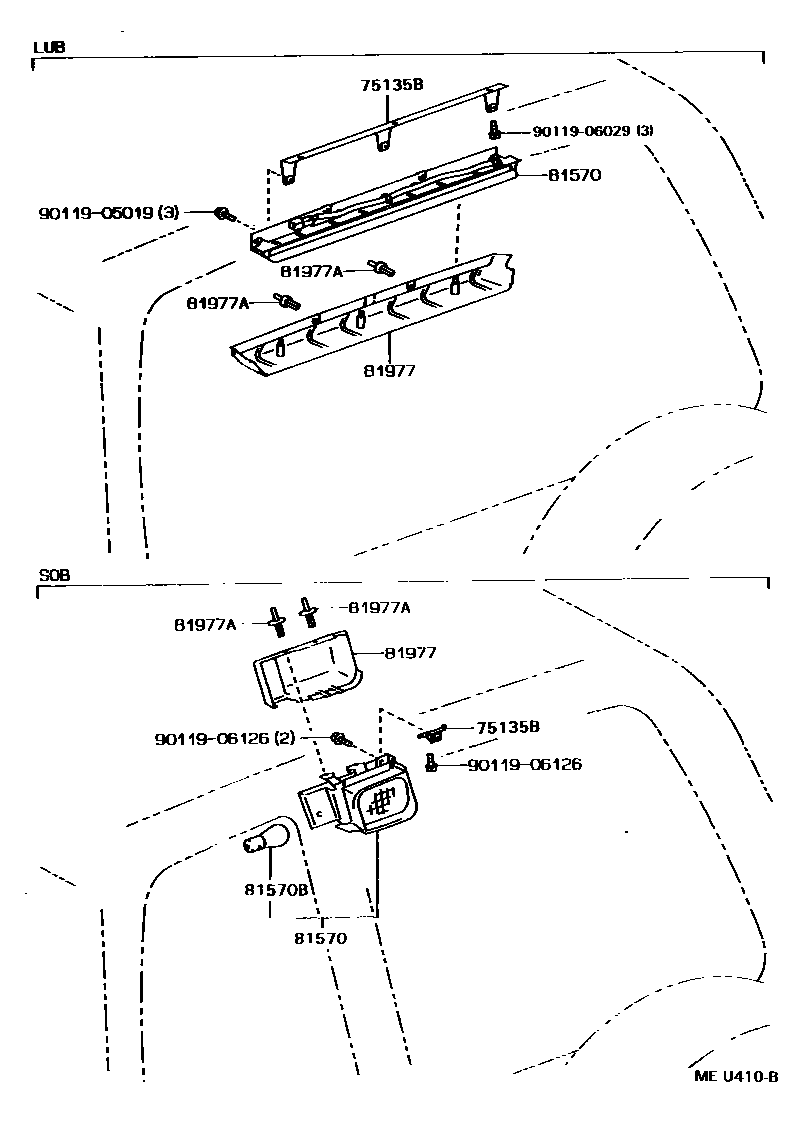

CENTER STOP LAMP

75135BBRACKET, CENTER STOP LAMP

main75135-60030iFZJ80,HDJ80..LUB199501-199801

main75135-60040iFZJ80,HDJ80..SOB199501-199801

81570LAMP ASSY, CENTER STOP

main81570-60011iFZJ80,HDJ80..LUB199501-199801

main81570-60021iFZJ80,HDJ80..SOB199501-199801

81570BBULB (FOR CENTER STOP LAMP)

main99132-11210iFZJ80,HDJ80..SOB199501-199801

12V 21W

81977COVER, CENTER STOP LAMP

main81977-60010iFZJ80,HDJ80..LUB199501-199801

main81977-60021-B0iFZJ80,HDJ80..SOB199501-199801

LIGHT GRAY,TRIM1#,4#

81977ACLIP (FOR CENTER STOP LAMP)

main90467-06141iFZJ80,HDJ80199501-199801

9011905019

main90119-05019

9011906029

main90119-06029

9011906126

main90119-06126

8 parts on this diagram · 1 diagram in section
