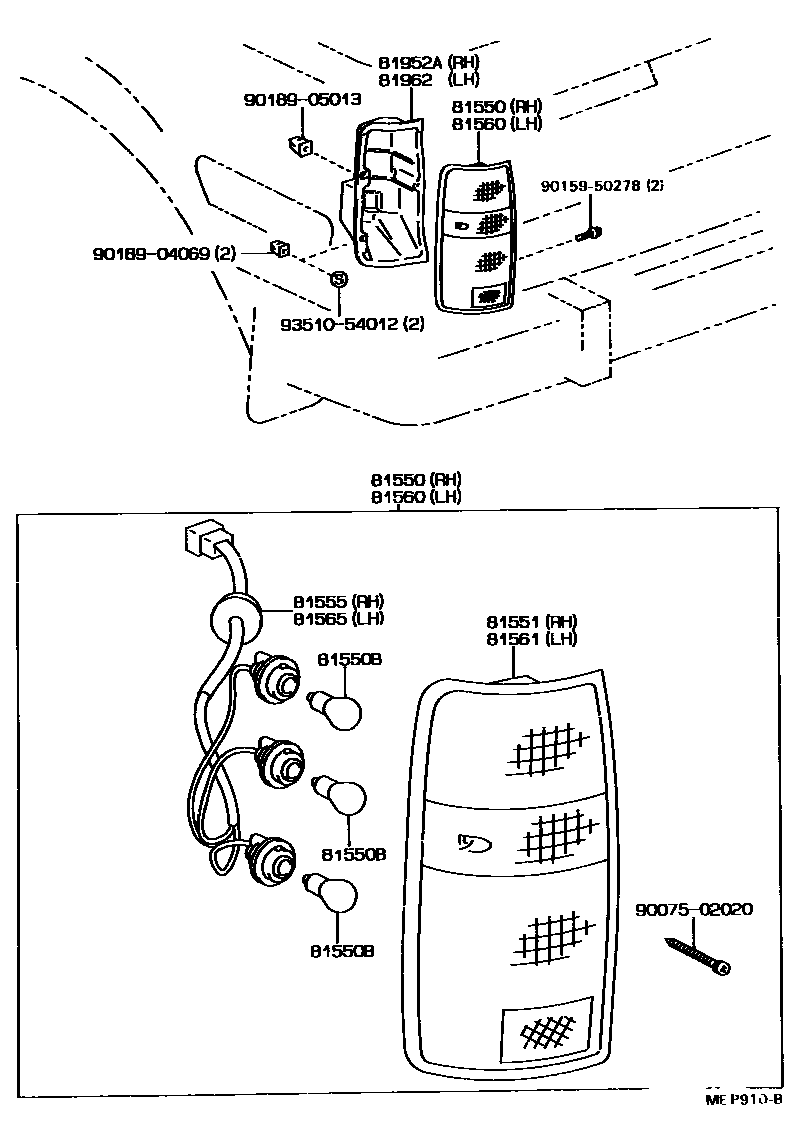

REAR COMBINATION LAMP

81550LAMP ASSY, REAR COMBINATION, RH

main81550-60330iFJ80,HDJ80,HZJ80199001-199204

sub81550-60331

main81550-60331iFJ80,HDJ80,HZJ80199204-199208

main81550-60332iFZJ80,HDJ80,HZJ80199208-199501

sub81550-60333

main81550-60333iFZJ80,HDJ80,HZJ80199501-199801

81550BBULB(FOR REAR COMBINATION LAMP)

main99132-11210iFZJ80,HDJ80,HZJ80199001-199801

12V 21W

main99132-21210iFZJ80,HDJ80,HZJ80199001-199801

12V 21/5W

81551LENS, REAR COMBINATION LAMP, RH

main81551-60330iFJ80,HDJ80,HZJ80199001-199002

sub81551-60340

main81551-60331iFJ80,HDJ80,HZJ80199204-199501

sub81551-60333

main81551-60333iFZJ80,HDJ80,HZJ80199501-199801

main81551-60340iFJ80,HDJ80,HZJ80199002-199204

sub81551-60331

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-60330iFJ80,HDJ80,HZJ80199001-199208

main81555-60332iFZJ80,HDJ80,HZJ80199208-199801

81560LAMP ASSY, REAR COMBINATION, LH

main81560-60250iFJ80,HDJ80,HZJ80199001-199204

sub81560-60251

main81560-60251iFJ80,HDJ80,HZJ80199204-199208

main81560-60252iFZJ80,HDJ80,HZJ80199208-199501

sub81560-60253

main81560-60253iFZJ80,HDJ80,HZJ80199501-199801

81561LENS, REAR COMBINATION LAMP, LH

main81561-60250iFJ80,HDJ80,HZJ80199001-199002

sub81561-60260

main81561-60251iFZJ80,HDJ80,HZJ80199204-199501

sub81561-60253

main81561-60253iFZJ80,HDJ80,HZJ80199501-199801

main81561-60260iFJ80,HDJ80,HZJ80199002-199204

sub81561-60251

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81565-60250iFJ80,HDJ80,HZJ80199001-199208

sub81555-60330

main81565-60252iFZJ80,HDJ80,HZJ80199208-199801

81952ACOVER, REAR LAMP, RH

main81952-60010iFJ80,HDJ80,HZJ80199001-199801

81962COVER, REAR LAMP, LH

main81962-60010iFJ80,HDJ80,HZJ80199001-199801

9007502020

main90075-02020

9015950278

main90159-50278

9018904069

main90189-04069

9018905013

main90189-05013

9351054012

main93510-54012

14 parts on this diagram · 1 diagram in section
