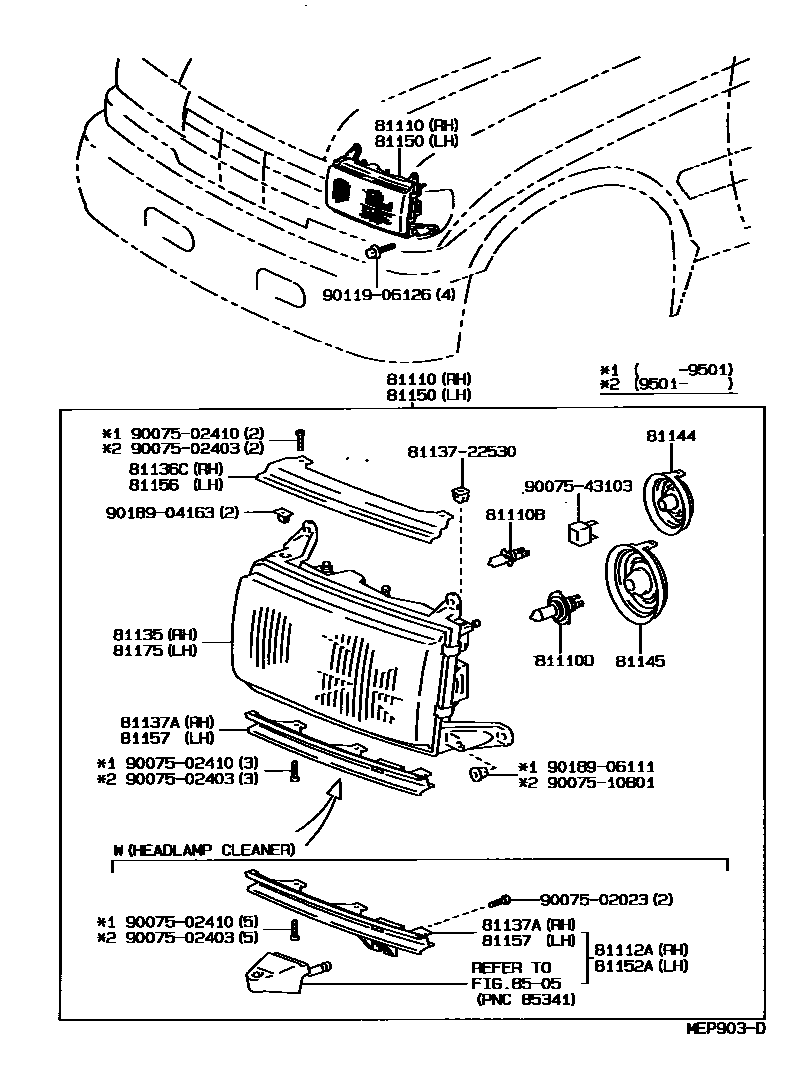

HEADLAMP

81110HEADLAMP ASSY, RH

main81110-60360iFJ80,HDJ80,HZJ80..LHD..(GX,VX)199001-199109

W(HEADLAMP CLEANER)

sub81110-60361

main81110-60361iFJ80,FZJ80,HDJ80,HZJ80..LHD..(GX,VX)199109-199305

W(HEADLAMP CLEANER)

sub81110-60362

main81110-60362iFZJ80,HDJ80,HZJ80..LHD..(GX,VX)199305-199310

W(HEADLAMP CLEANER)

sub81110-60363

main81110-60363iFZJ80,HDJ80,HZJ80..LHD..(GX,VX)199310-199501

W(HEADLAMP CLEANER)

main81110-60364iFZJ80,HDJ80..LHD..(GX,VX)199501-199511

W(HEADLAMP CLEANER)

sub81110-60365

main81110-60365iHZJ80..GX199511-199801

W(HEADLAMP CLEANER)

main81110-60410iHDJ80,HZJ80..LHD..(GX,VX)199001-199109

*FRG

sub81110-60411

main81110-60411iHDJ80..LHD;HZJ80..SOB..GX199109-199305

*FRG

sub81110-60412

main81110-60412iHDJ80..LHD;HZJ80..SOB..GX199305-199310

*FRG

sub81110-60413

main81110-60413iHDJ80..LHD;HZJ80..SOB..GX199310-199501

*FRG

main81110-60414iHDJ80..GX;FZJ80..LHD..ATM199501-199511

FINLAND OR *FRG SPEC;W(AUTO LEVELING)

sub81110-60415

main81110-60414iFZJ80,HDJ80..LHD..MTM..LUB199501-199508

*FRG;W(AUTO LEVELING SPEC)

sub81110-60415

main81110-60414iFZJ80..LUB..GX;HDJ80..LHD..VX199508-199511

*FRG;W(AUTO LEVELING)

sub81110-60415

main81110-60415iHDJ80..GX;FZJ80..LHD..ATM199511-199605

*FRG;W(AUTO LEVELING)

main81110-60415iFZJ80..LUB..GX;HDJ80..LHD..VX199511-199605

FINLAND OR *FRG SPEC;W(AUTO LEVELING)

main81110-60415iFZJ80,HDJ80..LHD..(GX,VX)199605-199801

W(LEVELING)

main81110-60420iHZJ80..STD199001-199109

sub81110-60421

main81110-60421iHZJ80..STD199109-199310

sub81110-60422

main81110-60422iHZJ80..STD199310-199501

main81110-60423iFZJ80,HDJ80..STD199501-199511

sub81110-60424

main81110-60424iFZJ80,HDJ80..STD199511-199801

main81110-60440iHDJ80..RHD199001-199109

UNITED KINGDOM SPEC

sub81110-60441

main81110-60441iHDJ80..RHD199109-199305

UNITED KINGDOM SPEC

sub81110-60442

main81110-60442iHDJ80..RHD199305-199310

UNITED KINGDOM SPEC

sub81110-60443

main81110-60443iHDJ80..RHD199310-199407

UNITED KINGDOM SPEC

main81110-60444iFZJ80,HDJ80..RHD199501-199511

UNITED KINGDOM SPEC

sub81110-60445

main81110-60445iFZJ80,HDJ80..RHD199605-199801

W(LEVELING)

main81110-60445iFZJ80,HDJ80..RHD199511-199605

UNITED KINGDOM SPEC

main81110-60470iFJ80,HDJ80,HZJ80..LHD..(GX,VX)199001-199109

sub81110-60471

main81110-60471iFZJ80,HDJ80,HZJ80..LHD..(GX,VX)199109-199305

sub81110-60472

main81110-60472iFZJ80,HDJ80,HZJ80..LHD..(GX,VX)199305-199310

sub81110-60473

main81110-60473iFZJ80,HDJ80,HZJ80..LHD..(GX,VX)199310-199501

main81110-60474iFZJ80,HDJ80..LHD..(GX,VX)199501-199511

sub81110-60475

main81110-60475iFZJ80,HDJ80..LHD..(GX,VX)199511-199801

main81110-60510iHDJ80,HZJ80..LHD..(GX,VX)199001-199109

SEMI-SEALED YELLOW

sub81110-60511

main81110-60511iHDJ80,HZJ80..LHD..(GX,VX)199109-199305

SEMI-SEALED YELLOW

sub81110-60512

main81110-60512iHDJ80,HZJ80..LHD..(GX,VX)199305-199308

SEMI-SEALED YELLOW

main81110-60520iHZJ80..STD199001-199109

SEMI-SEALED YELLOW(PLATED)

sub81110-60521

main81110-60521iHZJ80..STD199109-199308

SEMI-SEALED YELLOW(PLATED)

main81110-60540iHZJ80..STD199001-199109

W(HEADLAMP CLEANER)

sub81110-60541

main81110-60541iHZJ80..STD199109-199310

W(HEADLAMP CLEANER)

sub81110-60542

main81110-60542iHZJ80..STD199310-199501

W(HEADLAMP CLEANER)

main81110-60543iFZJ80,HDJ80..STD199501-199511

W(HEADLAMP CLEANER)

sub81110-60544

main81110-60544iFZJ80,HDJ80..STD199511-199801

W(HEADLAMP CLEANER)

main81110-60560iHDJ80..RHD199001-199109

sub81110-60561

main81110-60561iHDJ80..RHD199109-199305

sub81110-60562

main81110-60562iHDJ80..RHD199305-199310

sub81110-60563

main81110-60563iHDJ80..RHD199310-199407

main81110-60564iFZJ80,HDJ80..RHD199501-199511

sub81110-60565

main81110-60565iFZJ80,HDJ80..RHD199511-199801

main81110-60570iHZJ80..STD199001-199108

*FRG

sub81110-60571

main81110-60750iFZJ80,HDJ80..RHD199501-199511

FINLAND SPEC & W(HEADLAMP CLEANER)

sub81110-60751

main81110-60750iHDJ80..GX;FZJ80..LHD..ATM199508-199511

RIGHT AIMING & UNITED KINGDOM SPEC

sub81110-60751

main81110-60751iFZJ80,HDJ80..RHD199605-199801

W(LEVELING),NATO SPEC

main81110-60751iHDJ80..GX;FZJ80..LHD..ATM199511-199605

FINLAND SPEC & W(HEADLAMP CLEANER)

main81110-60751iHDJ80..GX;FZJ80..LHD..ATM199511-199605

RIGHT AIMING & UNITED KINGDOM SPEC

main81110-60751iFZJ80,HDJ80..LHD..(GX,VX)199605-199801

W(HEADLAMP CLEANER & LEVELING)

main81110-60760iFZJ80,HDJ80..STD199501-199511

*FRG

sub81110-60761

main81110-60761iFZJ80,HDJ80..STD199511-199605

*FRG

main81110-60761iFZJ80,HDJ80..STD199605-199801

W(LEVELING)

main81110-6A030iFZJ80,HDJ80..STD199605-199801

W(HEADLAMP CLEANER & LEVELING)

81110BBULB(FOR HEADLAMP, NO.1)

main90981-13017iFJ80,HDJ80,HZJ80199001-199801

12V 55W,*HAL *WH

81110DBULB(FOR HEADLAMP, NO.2)

main90981-13015iFZJ80,HDJ80,HZJ80199001-199302

12V 60/55W,*HAL *WH

sub90981-13058

main90981-13016iHDJ80,HZJ80..LHD..(GX,VX)199001-199308

12V 60/55W,*HAL *YE

sub90981-13H01

main90981-13058iFZJ80,HDJ80,HZJ80199302-199801

12V 60/55W,HALOGEN

81112ARIM, HEADLAMP, RH

main81116-60480iFZJ80,HDJ80,HZJ80..LHD..(GX,VX)199208-199305

sub81116-60482

main81116-60482iFZJ80,HDJ80,HZJ80..LHD..(GX,VX)199305-199501

main81116-60580iHZJ80..STD199208-199501

main81127-60364iFZJ80..RHD;FZJ80,HDJ80,HZJ80..MTM..(GX,VX)199501-199605

W(HEADLAMP CLEANER)

main81127-60364iFZJ80,HDJ80,HZJ80..GX,VX199605-199801

main81127-60370iFJ80;HDJ80..RHD199001-199407

main81127-60370iFZJ80,HDJ80,HZJ80..LHD..(GX,VX)199001-199501

W(HEADLAMP CLEANER)

main81127-60540iFZJ80,HDJ80,HZJ80..STD199501-199801

main81127-60540iHZJ80..STD199001-199501

W(HEADLAMP CLEANER)

81135UNIT ASSY, HEADLAMP, RH

main81130-60364iFZJ80,HDJ80,HZJ80..LHD199501-199511

sub81130-60365

main81130-60365iFZJ80,HDJ80,HZJ80..LHD199511-199801

main81130-60410iHDJ80..LHD199001-199310

*FRG

sub81130-60413

main81130-60413iHDJ80..LHD;HZJ80..SOB..GX199310-199501

*FRG

main81130-60414iHDJ80..GX;FZJ80..LHD..ATM199508-199511

RIGHT AIMING & UNITED KINGDOM SPEC

sub81130-60415

main81130-60414iHDJ80..GX;FZJ80..LHD..ATM199501-199511

FINLAND OR *FRG SPEC

sub81130-60415

main81130-60414iHDJ80..GX;FZJ80..LHD..ATM199501-199511

*FRG

sub81130-60415

main81130-60415iFZJ80,HDJ80..RHD199511-199605

FINLAND OR *FRG SPEC

main81130-60415iFZJ80,HDJ80..LHD199605-199801

W(LEVELING)

main81130-60415iFZJ80,HDJ80..LHD199605-199801

RIGHT AIMING & W(LEVELING)

main81130-60415iHDJ80..GX;FZJ80..LHD..ATM199511-199605

RIGHT AIMING & UNITED KINGDOM SPEC

main81130-60415iFZJ80,HDJ80..RHD199511-199605

*FRG

main81130-60440iHDJ80..RHD199001-199310

UNITED KINGDOM SPEC

sub81130-60443

main81130-60443iHDJ80..RHD199310-199407

UNITED KINGDOM SPEC

main81130-60444iFZJ80,HDJ80..RHD199501-199511

UNITED KINGDOM SPEC

sub81130-60445

main81130-60445iFZJ80,HDJ80..RHD199605-199801

W(LEVELING)

main81130-60445iFZJ80,HDJ80..RHD199511-199605

UNITED KINGDOM SPEC

main81130-60470iHDJ80,HZJ80..LHD199001-199208

FINLAND SPEC & W(HEADLAMP CLEANER)

sub81130-60473

main81130-60470iFZJ80,HDJ80,HZJ80..LHD199208-199310

sub81130-60473

main81130-60473iFZJ80,HDJ80,HZJ80..LHD199310-199501

main81130-60510iHZJ80..STD199001-199308

SEMI-SEALED YELLOW

main81130-60560iHDJ80..RHD199001-199310

sub81130-60563

main81130-60563iHDJ80..RHD199310-199407

main81130-60564iFZJ80,HDJ80..RHD199501-199511

sub81130-60565

main81130-60565iFZJ80,HDJ80..RHD199511-199801

main81130-60570iHZJ80..STD199001-199108

*FRG

81136CRIM, HEADLAMP, RH

main81116-60480iFZJ80199208-199305

GERMANY SPEC OR W(HEAD LANP CLEANER)

sub81116-60482

main81116-60480iHDJ80..LHD;HZJ80..SOB..GX199208-199305

W(HEADLAMP CLEANER)

sub81116-60482

main81116-60480iFJ80,HDJ80,HZJ80..GX,VX199001-199208

sub81116-60482

main81116-60482iFZJ80,HDJ80,HZJ80..GX,VX199305-199801

main81116-60580iFZJ80,HDJ80,HZJ80..STD199001-199801

81137ARIM, HEADLAMP, RH

main81117-60370iFJ80,FZJ80,HDJ80,HZJ80..LHD..(GX,VX)199001-199501

W(HEADLAMP CLEANER)

main81117-60370iHDJ80..RHD199001-199407

main81117-60395iFZJ80,HDJ80..LHD..(GX,VX)199501-199801

main81117-60480iFJ80,HDJ80,HZJ80..LHD..(GX,VX)199001-199208

UNITED KINGDOM SPEC

main81117-60480iFZJ80,HDJ80,HZJ80..LHD..(GX,VX)199208-199501

main81117-60540iHZJ80..STD199501-199801

main81117-60540iFZJ80,HDJ80..STD199001-199801

W(HEADLAMP CLEANER)

main81117-60580iFZJ80,HDJ80..STD199001-199801

81144COVER, HEADLAMP, NO.1

main90075-99031iFZJ80,HDJ80,HZJ80199001-199801

81145COVER, HEADLAMP, NO.2

main90075-99029iFZJ80,HDJ80,HZJ80199001-199801

81150HEADLAMP ASSY, LH

main81150-60180iFJ80,HDJ80,HZJ80..LHD..(GX,VX)199001-199109

W(HEADLAMP CLEANER)

sub81150-60181

main81150-60181iFJ80,FZJ80,HDJ80,HZJ80..LHD..(GX,VX)199109-199305

W(HEADLAMP CLEANER)

sub81150-60182

main81150-60182iFZJ80,HDJ80,HZJ80..LHD..(GX,VX)199305-199310

W(HEADLAMP CLEANER)

sub81150-60183

main81150-60183iFZJ80,HDJ80,HZJ80..LHD..(GX,VX)199310-199501

W(HEADLAMP CLEANER)

main81150-60184iHZJ80..GX199501-199511

W(HEADLAMP CLEANER)

sub81150-60185

main81150-60185iFZJ80,HDJ80..LHD..(GX,VX)199511-199801

W(HEADLAMP CLEANER)

main81150-60230iHDJ80..LHD199001-199109

*FRG

sub81150-60231

main81150-60231iHDJ80..LHD199109-199305

*FRG

sub81150-60232

main81150-60232iHDJ80..LHD;HZJ80..SOB..GX199305-199310

*FRG

sub81150-60233

main81150-60233iHDJ80..LHD;HZJ80..SOB..GX199310-199501

*FRG

main81150-60234iFZJ80..LHD..ATM199501-199511

*FRG

sub81150-60235

main81150-60234iFZJ80,HDJ80..LHD..MTM..LUB199501-199511

FINLAND OR *FRG SPEC

sub81150-60235

main81150-60235iFZJ80..LUB..GX;HDJ80..LHD..VX199511-199605

*FRG

main81150-60235iFZJ80,HDJ80..LHD..(GX,VX)199605-199801

W(LEVELING)

main81150-60235iHDJ80..GX;FZJ80..LHD..ATM199511-199605

FINLAND OR *FRG SPEC

main81150-60240iHZJ80..STD199001-199109

sub81150-60241

main81150-60241iHZJ80..STD199109-199310

sub81150-60242

main81150-60242iHZJ80..STD199310-199501

main81150-60243iFZJ80,HDJ80..STD199501-199511

sub81150-60244

main81150-60244iFZJ80,HDJ80..STD199511-199801

main81150-60260iHDJ80..RHD199001-199109

UNITED KINGDOM SPEC

sub81150-60261

main81150-60261iHDJ80..RHD199109-199305

UNITED KINGDOM SPEC

sub81150-60262

main81150-60262iHDJ80..RHD199305-199310

UNITED KINGDOM SPEC

sub81150-60263

main81150-60263iHDJ80..RHD199310-199407

UNITED KINGDOM SPEC

main81150-60264iFZJ80,HDJ80..RHD199501-199511

UNITED KINGDOM SPEC

sub81150-60265

main81150-60265iFZJ80,HDJ80..RHD199605-199801

W(LEVELING)

main81150-60265iFZJ80,HDJ80..RHD199511-199605

UNITED KINGDOM SPEC

main81150-60290iFJ80,HDJ80,HZJ80..LHD..(GX,VX)199001-199109

sub81150-60291

main81150-60291iFZJ80,HDJ80,HZJ80..LHD..(GX,VX)199109-199305

sub81150-60292

main81150-60292iFZJ80,HDJ80,HZJ80..LHD..(GX,VX)199305-199310

sub81150-60293

main81150-60293iFZJ80,HDJ80,HZJ80..LHD..(GX,VX)199310-199501

main81150-60294iFZJ80,HDJ80..LHD..(GX,VX)199501-199511

sub81150-60295

main81150-60295iFZJ80,HDJ80..LHD..(GX,VX)199511-199801

main81150-60330iHDJ80,HZJ80..LHD..(GX,VX)199001-199109

SEMI-SEALED YELLOW

sub81150-60331

main81150-60331iHDJ80,HZJ80..LHD..(GX,VX)199109-199305

SEMI-SEALED YELLOW

sub81150-60332

main81150-60332iHDJ80,HZJ80..LHD..(GX,VX)199305-199308

SEMI-SEALED YELLOW

main81150-60340iHZJ80..STD199001-199109

SEMI-SEALED YELLOW(PLATED)

sub81150-60341

main81150-60341iHZJ80..STD199109-199308

SEMI-SEALED YELLOW(PLATED)

main81150-60360iHZJ80..STD199001-199109

W(HEADLAMP CLEANER)

sub81150-60361

main81150-60361iHZJ80..STD199109-199310

W(HEADLAMP CLEANER)

sub81150-60362

main81150-60362iHZJ80..STD199310-199501

W(HEADLAMP CLEANER)

main81150-60363iFZJ80,HDJ80..STD199501-199511

W(HEADLAMP CLEANER)

sub81150-60364

main81150-60364iHZJ80..STD199511-199801

W(HEADLAMP CLEANER)

main81150-60380iHDJ80..RHD199001-199109

sub81150-60381

main81150-60381iHDJ80..RHD199109-199305

sub81150-60382

main81150-60382iHDJ80..RHD199305-199310

sub81150-60383

main81150-60383iHDJ80..RHD199310-199407

main81150-60384iFZJ80,HDJ80..RHD199501-199511

sub81150-60385

main81150-60385iFZJ80,HDJ80..RHD199511-199801

main81150-60390iHZJ80..STD199001-199108

*FRG

sub81150-60391

main81150-60570iFZJ80..LHD..ATM199501-199511

FINLAND SPEC & W(HEADLAMP CLEANER)

sub81150-60571

main81150-60570iHDJ80..GX;FZJ80..LHD..ATM199508-199511

RIGHT AIMING & UNITED KINGDOM SPEC

sub81150-60571

main81150-60571iFZJ80,HDJ80..LHD..(GX,VX)199605-199801

W(HEADLAMP CLEANER & LEVELING)

main81150-60571iHDJ80..GX;FZJ80..LHD..ATM199511-199605

FINLAND SPEC & W(HEADLAMP CLEANER)

main81150-60571iHDJ80..GX;FZJ80..LHD..ATM199511-199605

RIGHT AIMING & UNITED KINGDOM SPEC

main81150-60571iFZJ80,HDJ80..LHD..(GX,VX)199605-199801

W(LEVELING),NATO SPEC

main81150-60580iFZJ80,HDJ80..STD199501-199511

*FRG

sub81150-60581

main81150-60581iFZJ80,HDJ80..STD199511-199605

*FRG

main81150-60581iFZJ80,HDJ80..STD199605-199801

W(LEVELING)

main81150-60740iFZJ80,HDJ80..STD199605-199801

W(HEADLAMP CLEANER & LEVELING)

81152ARIM, HEADLAMP, LH

main81167-60184iHDJ80..GX;FZJ80..LHD..ATM199501-199605

W(HEADLAMP CLEANER)

main81167-60184iFZJ80,HDJ80,HZJ80..GX,VX199605-199801

main81167-60190iHDJ80,HZJ80..GX,VX199001-199401

W(HEADLAMP CLEANER)

main81167-60190iFZJ80,HDJ80,HZJ80..GX,VX199401-199501

main81167-60360iHZJ80..STD199001-199208

W(HEADLAMP CLEANER)

main81167-60360iFZJ80,HDJ80,HZJ80..STD199208-199801

81156RIM, HEADLAMP, LH

main81156-60300iFJ80,HDJ80,HZJ80..GX,VX199001-199305

sub81156-60302

main81156-60302iFZJ80,HDJ80,HZJ80..GX,VX199305-199801

main81156-60400iFZJ80,HDJ80,HZJ80..STD199001-199801

81157RIM, HEADLAMP, LH

main81157-60190iFJ80,FZJ80,HDJ80,HZJ80..LHD..(GX,VX)199001-199501

W(HEADLAMP CLEANER)

main81157-60190iHDJ80..RHD199001-199407

main81157-60215iFZJ80,HDJ80..LHD..(GX,VX)199501-199801

main81157-60300iHDJ80..RHD199001-199208

UNITED KINGDOM SPEC

main81157-60300iFZJ80,HDJ80,HZJ80..LHD..(GX,VX)199208-199501

main81157-60360iHZJ80..STD199001-199801

W(HEADLAMP CLEANER)

main81157-60360iHZJ80..STD199501-199801

main81157-60400iFZJ80,HDJ80..STD199001-199801

81175UNIT ASSY, HEADLAMP, LH

main81170-60184iFZJ80,HDJ80,HZJ80..LHD199501-199511

sub81170-60185

main81170-60185iFZJ80,HDJ80,HZJ80..LHD199511-199801

main81170-60230iHDJ80..LHD;HZJ80..SOB..GX199001-199310

*FRG

sub81170-60233

main81170-60233iHDJ80..LHD;HZJ80..SOB..GX199310-199501

*FRG

main81170-60234iHDJ80..GX;FZJ80..LHD..ATM199501-199511

FINLAND OR *FRG SPEC

sub81170-60235

main81170-60234iFZJ80,HDJ80..LHD..MTM199501-199511

*FRG

sub81170-60235

main81170-60234iFZJ80..MTM;HDJ80..LHD..(STD,VX)199508-199511

RIGHT AIMING & UNITED KINGDOM SPEC

sub81170-60235

main81170-60235iFZJ80..MTM;HDJ80..LHD..(STD,VX)199511-199605

RIGHT AIMING & UNITED KINGDOM SPEC

main81170-60235iHDJ80..GX;FZJ80..LHD..ATM199511-199605

*FRG

main81170-60235iHDJ80..GX;FZJ80..LHD..ATM199511-199605

FINLAND OR *FRG SPEC

main81170-60235iFZJ80,HDJ80..RHD199605-199801

RIGHT AIMING & W(LEVELING)

main81170-60235iFZJ80,HDJ80..LHD199605-199801

W(LEVELING)

main81170-60260iHDJ80..RHD199001-199310

UNITED KINGDOM SPEC

sub81170-60263

main81170-60263iHDJ80..RHD199310-199407

UNITED KINGDOM SPEC

main81170-60264iFZJ80,HDJ80..RHD199501-199511

UNITED KINGDOM SPEC

sub81170-60265

main81170-60265iFZJ80,HDJ80..RHD199511-199605

UNITED KINGDOM SPEC

main81170-60265iFZJ80,HDJ80..RHD199605-199801

W(LEVELING)

main81170-60290iFJ80,HDJ80,HZJ80..LHD199001-199208

FINLAND SPEC & W(HEADLAMP CLEANER)

sub81170-60293

main81170-60290iFZJ80,HDJ80,HZJ80..LHD199208-199310

sub81170-60293

main81170-60293iFZJ80,HDJ80,HZJ80..LHD199310-199501

main81170-60330iHDJ80,HZJ80..LHD..(GX,VX)199001-199308

SEMI-SEALED YELLOW

main81170-60380iHDJ80..RHD199001-199310

sub81170-60383

main81170-60383iHDJ80..RHD199310-199407

main81170-60384iFZJ80,HDJ80..RHD199501-199511

sub81170-60385

main81170-60385iFZJ80,HDJ80..RHD199511-199801

main81170-60390iHZJ80..STD199001-199108

*FRG

8505

8113722530PROTECTOR, HEADLAMP, NO.2 RH

main81137-22530

9007502023

main90075-02023

9007502403

main90075-02403

9007502410

main90075-02410

9007510801

main90075-10801

9007543103

main90075-43103

9011906126

main90119-06126

9018904163

main90189-04163

9018906111

main90189-06111

24 parts on this diagram · 1 diagram in section
