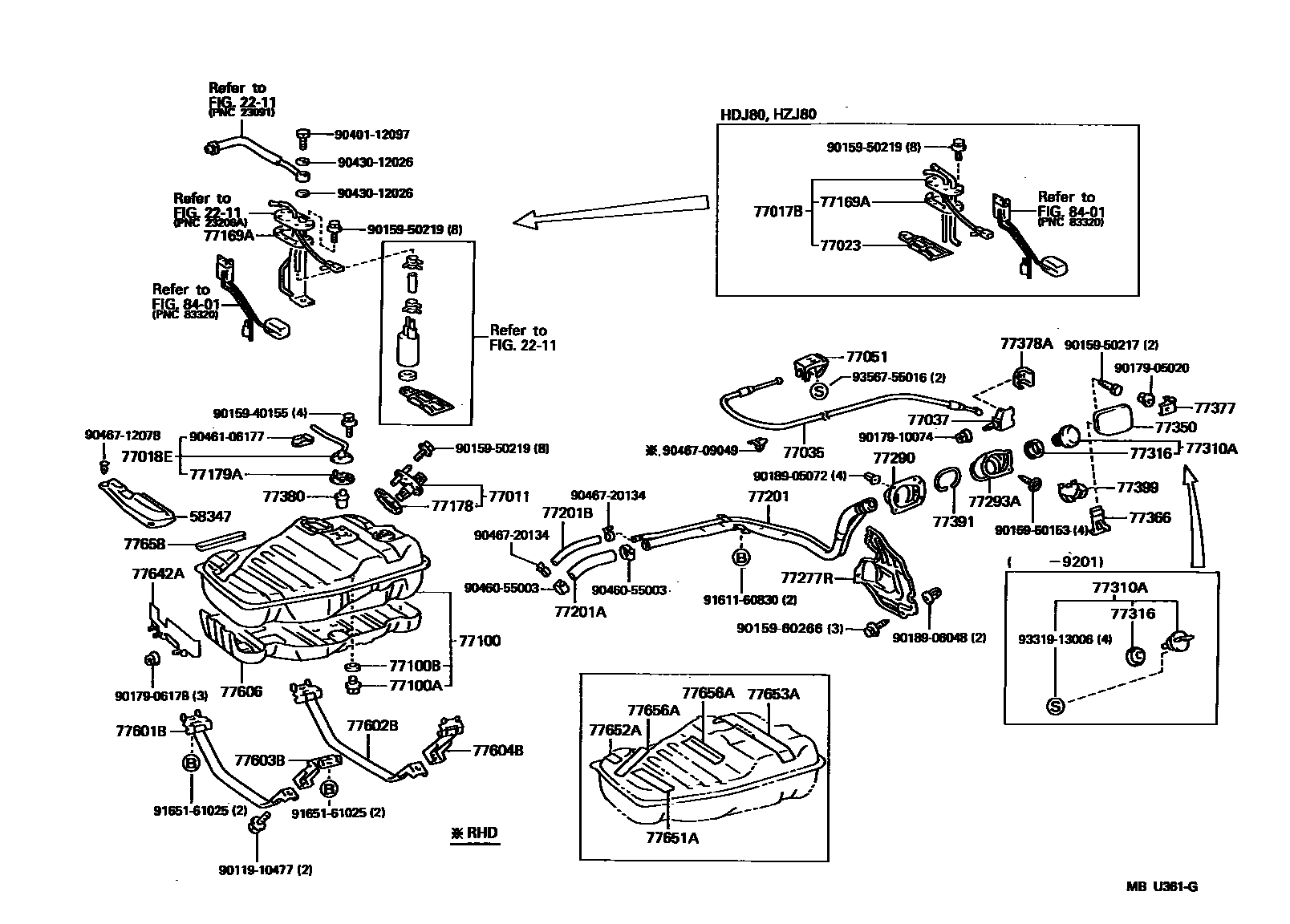

FUEL TANK & TUBE

0001 1 0002 1 0003 1 0004 1 0005 1

2211

58347INSULATOR, FUEL TANK HEAT

main58347-60010iFJ80¥3,620199001-199208

77011PIPE SUB-ASSY, FUEL TANK FILLER, LOWER

main77011-60030iFJ80,FZJ80,HDJ80,HZJ80¥3,490199001-199801

77017BTUBE SUB-ASSY, FUEL TANK VENT

main77017-60150iHDJ80¥9,200199001-199801

main77017-60160iHZJ80..STD¥9,100199001-199208

sub77017-60170¥9,200

main77017-60170iHZJ80..GX¥9,200199001-199801

77018ETUBE SUB-ASSY, FUEL TANK EVAPORATION VENT

main77018-60030iFJ80,FZJ80,HDJ80,HZJ80¥3,090199001-199801

77023FILTER SUB-ASSY, FUEL SUCTION TUBE

main77023-36010iHZJ80¥540199001-199801

main77023-60010iHDJ80¥630199001-199801

77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL

main77035-60010iFZJ80,HDJ80..RHD¥3,000199001-199801

main77035-60020iFJ80,FZJ80,HDJ80,HZJ80..LHD¥2,470199001-199801

77037LOCK SUB-ASSY, FUEL FILLER OPENING LID

main77037-12050iFJ80,FZJ80,HDJ80,HZJ80¥850199001-199801

77051LEVER SUB-ASSY, FUEL LID OPEN

main77051-30060-03iFJ80,FZJ80,HDJ80,HZJ80199001-199801

BLUISH GRAY,TRIM1#

sub77051-30060¥1,600

main77051-30060-06iFJ80,FZJ80,HDJ80,HZJ80199001-199501

SABLE,TRIM4#

sub77051-30060¥1,600

main77051-30060-E2iFZJ80,HDJ80,HZJ80199501-199801

OAK,TRIM4#

sub77051-30060¥1,600

77100TANK ASSY, FUEL

main77001-69025iHDJ80,HZJ80¥58,300199001-199208

sub77001-69026¥58,300

main77001-69035iFJ80¥58,300199001-199208

sub77001-69036¥58,500

main77001-69036iFZJ80¥58,500199208-199801

main77001-69065iHDJ80,HZJ80¥58,500199208-199801

MAIN-TANK

77100APLUG(FOR FUEL TANK)

main90105-12018iFJ80,HDJ80,HZJ80¥380199001-199208

main90105-12116iFZJ80,HDJ80,HZJ80¥110199208-199801

77100BGASKET(FOR FUEL TANK)

main90430-12245iFJ80,FZJ80,HDJ80,HZJ80¥160199001-199801

77169AGASKET, FUEL SUCTION TUBE SET

main77169-60010iHDJ80,HZJ80¥1,030199001-199801

77178GASKET, FUEL TANK FILLER PIPE, LOWER

main77178-35030iFJ80,FZJ80,HDJ80,HZJ80¥390199001-199801

77179AGASKET, FUEL TANK BREATHER TUBE

main77179-26010iFJ80,FZJ80,HDJ80,HZJ80¥230199001-199801

sub77179-26011¥190

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-60330iHDJ80,HZJ80¥19,800199001-199201

main77201-60331iHDJ80,HZJ80¥21,500199201-199801

main77201-60340iFJ80¥21,200199001-199201

main77201-60350iFJ80,FZJ80¥21,700199201-199801

77201AHOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE)

main77213-60090iFJ80,FZJ80,HDJ80,HZJ80¥2,170199001-199801

MARK=TANK

77201BHOSE, FUEL, NO.2(FOR FUEL TANK INLET PIPE)

main95311-13022iFJ80,FZJ80,HDJ80,HZJ80¥590199001-199801

L=220

77277TUBE, FUEL RETURN, NO.1

main77255-60490iFZJ80¥3,700199208-199801

77277RPROTECTOR, FUEL TANK FILLER PIPE

main77277-60020iFJ80,FZJ80,HDJ80,HZJ80¥1,820199001-199801

77290SHIELD ASSY, FUEL TANK FILLER PIPE

main77290-60010iFJ80,FZJ80,HDJ80,HZJ80¥1,550199001-199801

77293ASHIELD, FUEL TANK FILLER PIPE, NO.3

main77293-60050iFJ80,FZJ80,HDJ80,HZJ80¥1,210199001-199801

77310ACAP ASSY, FUEL TANK

main77310-12100iFJ80¥2,320199001-199201

main77310-35061iHDJ80,HZJ80¥2,320199001-199201

main77310-35080iFJ80,FZJ80¥2,790199201-199801

sub77310-12140¥2,790

main77310-35110iHDJ80,HZJ80¥2,790199201-199801

sub77310-12150¥2,780

77316GASKET, FUEL TANK CAP

main77316-12050iFJ80,HDJ80,HZJ80¥310199001-199201

main77316-16010iFJ80,FZJ80,HDJ80,HZJ80¥660199201-199801

77350LID ASSY, FUEL FILLER OPENING

main77350-60010iFJ80,FZJ80,HDJ80,HZJ80¥4,110199001-199801

77366SPRING, FUEL FILLER OPENING LID HINGE

main77360-22020iFJ80,FZJ80,HDJ80,HZJ80¥430199001-199801

77377RETAINER, FUEL FILLER OPENING LID LOCK

main77377-20030iFJ80,FZJ80,HDJ80,HZJ80¥700199001-199801

77378ACOVER, FUEL FILLER OPENING LID LOCK

main77378-60010iFJ80,FZJ80,HDJ80,HZJ80¥410199001-199801

77380VALVE ASSY, FUEL CUT OFF

main77380-26010iFJ80,FZJ80,HDJ80,HZJ80¥780199001-199801

77391RING, FUEL INLET BOX

main77391-60010iFJ80,FZJ80,HDJ80,HZJ80¥250199001-199801

77399HANGER, FUEL TANK CAP

main77399-22010iFJ80,HDJ80,HZJ80¥400199001-199201

main77399-60010iFJ80,FZJ80,HDJ80,HZJ80¥460199201-199801

77601BBAND SUB-ASSY, FUEL TANK, NO.1 RH

main77601-60150iFJ80,FZJ80,HDJ80,HZJ80¥3,700199001-199801

77602BBAND SUB-ASSY, FUEL TANK, NO.1 LH

main77602-60060iFJ80,FZJ80,HDJ80,HZJ80¥4,050199001-199801

77603BBAND SUB-ASSY, FUEL TANK, NO.2 RH

main77603-60010iFJ80,FZJ80,HDJ80,HZJ80¥2,070199001-199801

77604BBAND SUB-ASSY, FUEL TANK, NO.2 LH

main77604-60010iFJ80,FZJ80,HDJ80,HZJ80¥2,070199001-199801

77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1

main77606-60050iFJ80,HDJ80,HZJ80¥14,300199001-199208

main77606-60070iFZJ80,HDJ80,HZJ80¥16,600199208-199801

77642APROTECTOR, FUEL TANK, NO.2

main77642-60020iFJ80¥3,600199001-199208

77651ACUSHION, FUEL TANK, NO.1

main77651-60090iFJ80,FZJ80,HDJ80,HZJ80¥1,530199001-199801

77652ACUSHION, FUEL TANK, NO.2

main77652-60050iFJ80,FZJ80,HDJ80,HZJ80¥650199001-199801

sub77653-36010¥600

77653ACUSHION, FUEL TANK, NO.3

main77653-60040iFJ80,FZJ80,HDJ80,HZJ80¥2,140199001-199801

77656ACUSHION, FUEL TANK, NO.4

main77654-60030iFJ80,FZJ80,HDJ80,HZJ80¥1,030199001-199801

80X262

main77655-60010iFJ80,FZJ80,HDJ80,HZJ80¥820199001-199801

80X330

77658MOULDING, FUEL TANK EDGE

main77658-60040iFJ80,FZJ80,HDJ80,HZJ80¥550199001-199305

8401

9011910477

main90119-10477¥240

9015940155

main90159-40155¥120

9015950153

main90159-50153¥100

9015950217

main90159-50217¥70

9015950219

main90159-50219¥70

9015960266

main90159-60266¥100

9017905020

main90179-05020¥140

9017906178

main90179-06178¥100

9017910074

main90179-10074¥110

9018905072

main90189-05072¥140

9018906048

main90189-06048¥140

9040112097

main90401-12097¥310

9043012026

main90430-12026¥90

9046055003

main90460-55003¥270

9046106177

main90461-06177¥590

9046709049

main90467-09049¥160

9046712078

main90467-12078¥310

9046720134

main90467-20134¥90

9161160830

main91611-60830¥100

9165161025

main91651-61025¥100

9331913006

main93319-13006¥60

9356755016

main93567-55016¥110

65 parts on this diagram · 5 diagrams in section
