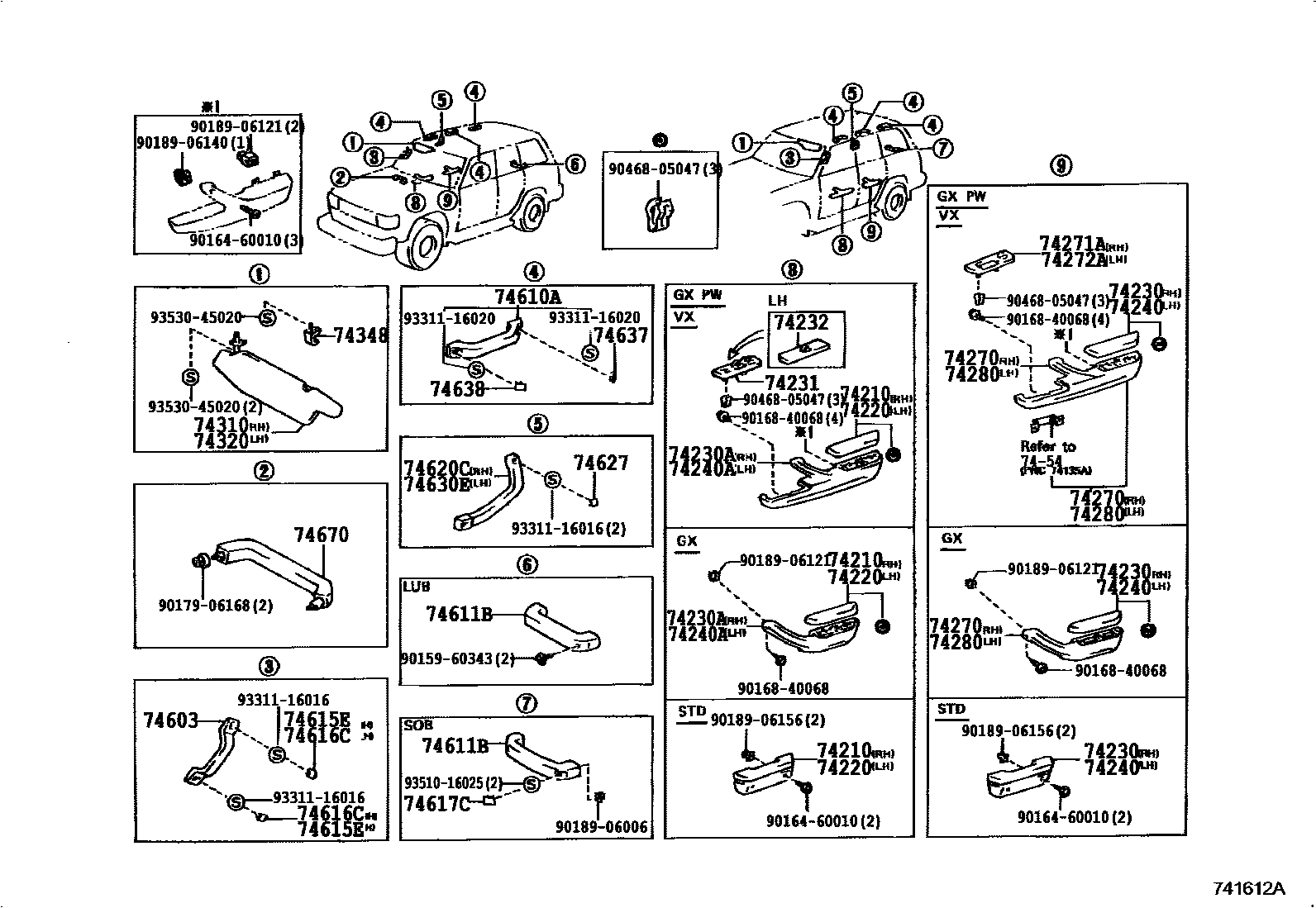

ARMREST & VISOR

74210ARMREST ASSY, FRONT, RH

main74210-60010-03iFJ80,FZJ80,HDJ80,HZJ80..GX199001-199801

BLUISH GRAY,TRIM1#

main74210-60010-06iFJ80,FZJ80,HDJ80,HZJ80..GX199001-199501

SABLE,TRIM4#

main74210-60010-E0iFZJ80,HDJ80,HZJ80..GX199501-199801

OAK,TRIM4#

main74210-60020-03iFJ80,FZJ80,HDJ80..VX199001-199501

BLUISH GRAY,TRIM1#

main74210-60020-06iFJ80,FZJ80,HDJ80..VX199001-199501

SABLE,TRIM4#

main74210-60050-B0iFZJ80,HDJ80..VX199208-199801

LEATHER PACKAGE,BLUISH GRAY,TRIM1#

main74210-60050-E0iFZJ80,HDJ80..VX199501-199801

LEATHER PACKAGE,OAK,TRIM4#

main74210-60070-B0iFZJ80,HDJ80..VX199501-199801

BLUISH GRAY,TRIM1#

main74210-60070-E0iFZJ80,HDJ80..VX199501-199801

OAK,TRIM4#

main74210-89106-13iFZJ80,HDJ80,HZJ80..STD199001-199801

BLUISH GRAY,TRIM1#

main74210-89106-16iHZJ80..STD199001-199501

SABLE,TRIM4#

main74210-89106-E3iFZJ80,HDJ80,HZJ80..STD199501-199801

OAK,TRIM4#

74220ARMREST ASSY, FRONT, LH

main74210-89106-13iFZJ80,HDJ80,HZJ80..STD199001-199801

BLUISH GRAY,TRIM1#

main74210-89106-16iHZJ80..STD199001-199501

SABLE,TRIM4#

main74210-89106-E3iFZJ80,HDJ80,HZJ80..STD199501-199801

OAK,TRIM4#

main74220-60010-03iFJ80,FZJ80,HDJ80,HZJ80..GX199001-199801

BLUISH GRAY,TRIM1#

main74220-60010-06iFJ80,FZJ80,HDJ80,HZJ80..GX199001-199501

SABLE,TRIM4#

main74220-60010-E0iFZJ80,HDJ80,HZJ80..GX199501-199801

OAK,TRIM4#

main74220-60020-03iFJ80,FZJ80,HDJ80..VX199001-199501

BLUISH GRAY,TRIM1#

main74220-60020-06iFJ80,FZJ80,HDJ80..VX199001-199501

SABLE,TRIM4#

main74220-60060-B0iFZJ80,HDJ80..VX199208-199801

LEATHER PACKAGE,BLUISH GRAY,TRIM1#

main74220-60060-E0iFZJ80,HDJ80..VX199501-199801

LEATHER PACKAGE,OAK,TRIM4#

main74220-60070-B0iFZJ80,HDJ80..VX199501-199801

BLUISH GRAY,TRIM1#

main74220-60070-E0iFZJ80,HDJ80..VX199501-199801

OAK,TRIM4#

74230ARMREST ASSY, REAR, RH

main74210-60010-03iFJ80,FZJ80,HDJ80,HZJ80..GX199001-199801

BLUISH GRAY,TRIM1#

main74210-60010-06iFJ80,FZJ80,HDJ80,HZJ80..GX199001-199501

SABLE,TRIM4#

main74210-60010-E0iFZJ80,HDJ80,HZJ80..GX199501-199801

OAK,TRIM4#

main74210-60020-03iFJ80,FZJ80,HDJ80..VX199001-199501

BLUISH GRAY,TRIM1#

main74210-60020-06iFJ80,FZJ80,HDJ80..VX199001-199501

SABLE,TRIM4#

main74210-60050-B0iFZJ80,HDJ80..VX199208-199801

LEATHER PACKAGE,BLUISH GRAY,TRIM1#

main74210-60050-E0iFZJ80,HDJ80..VX199501-199801

LEATHER PACKAGE,OAK,TRIM4#

main74210-60070-B0iFZJ80,HDJ80..VX199501-199801

BLUISH GRAY,TRIM1#

main74210-60070-E0iFZJ80,HDJ80..VX199501-199801

OAK,TRIM4#

main74210-89106-13iFZJ80,HDJ80,HZJ80..STD199001-199801

BLUISH GRAY,TRIM1#

main74210-89106-16iHZJ80..STD199001-199501

SABLE,TRIM4#

main74210-89106-E3iFZJ80,HDJ80,HZJ80..STD199501-199801

OAK,TRIM4#

74230APANEL ASSY, FRONT DOOR ARMREST BASE, RH

main74230-60020-03iFJ80,FZJ80,HDJ80,HZJ80..GX199001-199501

BLUISH GRAY,TRIM1#

main74230-60020-06iFJ80,FZJ80,HDJ80,HZJ80..GX199001-199501

SABLE,TRIM4#

main74230-60020-E0iFZJ80,HDJ80..GX199501-199801

OAK,TRIM4#

main74230-60030-03iFZJ80,HDJ80..GX199501-199801

BLUISH GRAY,TRIM1#

main74230-60030-06iFJ80,FZJ80,HDJ80,HZJ80..GX199001-199501

W(POWER WINDOW),SABLE,TRIM4#

main74230-60030-E0iFZJ80,HDJ80..GX199501-199801

W(POWER WINDOW),OAK,TRIM4#

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74231-60010-03iHDJ80..RHD199001-199407

BLUISH GRAY,TRIM1#

main74231-60010-06iHDJ80..RHD199001-199407

SABLE,TRIM4#

main74231-60020-03iFJ80,FZJ80,HDJ80,HZJ80..LHD..(GX,VX)199001-199501

BLUISH GRAY,TRIM1#

main74231-60020-06iFJ80,FZJ80,HDJ80,HZJ80..LHD..(GX,VX)199001-199501

SABLE,TRIM4#

main74231-60070-B0iFZJ80,HDJ80..RHD199501-199801

BLUISH GRAY,TRIM1#

main74231-60070-E0iFZJ80,HDJ80..RHD199501-199801

OAK,TRIM4#

main74231-60080-B0iFZJ80,HDJ80,HZJ80..LHD..(GX,VX)199501-199801

BLUISH GRAY,TRIM1#

main74231-60080-E0iFZJ80,HDJ80,HZJ80..LHD..(GX,VX)199501-199801

OAK,TRIM4#

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74232-60010-03iFJ80,FZJ80,HDJ80,HZJ80..LHD..(GX,VX)199001-199501

BLUISH GRAY,TRIM1#

main74232-60010-06iFJ80,FZJ80,HDJ80,HZJ80..LHD..(GX,VX)199001-199501

SABLE,TRIM4#

main74232-60020-03iHDJ80..RHD199001-199407

BLUISH GRAY,TRIM1#

main74232-60020-06iHDJ80..RHD199001-199407

SABLE,TRIM4#

main74232-60060-B0iFZJ80,HDJ80..RHD199501-199801

BLUISH GRAY,TRIM1#

main74232-60060-E0iFZJ80,HDJ80..RHD199501-199801

OAK,TRIM4#

main74232-60070-B0iFZJ80,HDJ80,HZJ80..LHD..(GX,VX)199501-199801

BLUISH GRAY,TRIM1#

main74232-60070-E0iFZJ80,HDJ80,HZJ80..LHD..(GX,VX)199501-199801

OAK,TRIM4#

74240ARMREST ASSY, REAR, LH

main74210-89106-13iFZJ80,HDJ80,HZJ80..STD199001-199801

BLUISH GRAY,TRIM1#

main74210-89106-16iHZJ80..STD199001-199501

SABLE,TRIM4#

main74210-89106-E3iFZJ80,HDJ80,HZJ80..STD199501-199801

OAK,TRIM4#

main74220-60010-03iFJ80,FZJ80,HDJ80,HZJ80..GX199001-199801

BLUISH GRAY,TRIM1#

main74220-60010-06iFJ80,FZJ80,HDJ80,HZJ80..GX199001-199501

SABLE,TRIM4#

main74220-60010-E0iFZJ80,HDJ80,HZJ80..GX199501-199801

OAK,TRIM4#

main74220-60020-03iFJ80,FZJ80,HDJ80..VX199001-199501

BLUISH GRAY,TRIM1#

main74220-60020-06iFJ80,FZJ80,HDJ80..VX199001-199501

SABLE,TRIM4#

main74220-60060-B0iFZJ80,HDJ80..VX199208-199801

LEATHER PACKAGE,BLUISH GRAY,TRIM1#

main74220-60060-E0iFZJ80,HDJ80..VX199501-199801

LEATHER PACKAGE,OAK,TRIM4#

main74220-60070-B0iFZJ80,HDJ80..VX199501-199801

BLUISH GRAY,TRIM1#

main74220-60070-E0iFZJ80,HDJ80..VX199501-199801

OAK,TRIM4#

74240APANEL ASSY, FRONT DOOR ARMREST BASE, LH

main74240-60010-03iFZJ80,HDJ80..GX199501-199801

BLUISH GRAY,TRIM1#

main74240-60010-06iFJ80,FZJ80,HDJ80,HZJ80..GX199001-199501

SABLE,TRIM4#

main74240-60010-E0iFZJ80,HDJ80..GX199501-199801

OAK,TRIM4#

main74240-60020-03iFJ80,FZJ80,HDJ80,HZJ80..GX199001-199501

BLUISH GRAY,TRIM1#

main74240-60020-06iFJ80,FZJ80,HDJ80,HZJ80..GX199001-199501

W(POWER WINDOW),SABLE,TRIM4#

main74240-60020-E0iFZJ80,HDJ80..GX199501-199801

W(POWER WINDOW),OAK,TRIM4#

74270PANEL ASSY, REAR DOOR ARMREST BASE, RH

main74230-60020-03iFZJ80,HDJ80..GX199501-199801

BLUISH GRAY,TRIM1#

main74230-60020-06iFJ80,FZJ80,HDJ80,HZJ80..GX199001-199501

SABLE,TRIM4#

main74230-60020-E0iFZJ80,HDJ80..GX199501-199801

OAK,TRIM4#

main74270-60010-03iFZJ80,HDJ80..GX199501-199801

BLUISH GRAY,TRIM1#

main74270-60010-06iFJ80,FZJ80,HDJ80,HZJ80..GX199001-199501

W(POWER WINDOW),SABLE,TRIM4#

main74270-60010-E0iFZJ80,HDJ80..GX199501-199801

W(POWER WINDOW),OAK,TRIM4#

74271APANEL, REAR DOOR ARMREST BASE, UPPER RH

main74271-60010-03iFJ80,FZJ80,HDJ80,HZJ80..GX,VX199001-199501

BLUISH GRAY,TRIM1#

main74271-60010-06iFJ80,FZJ80,HDJ80,HZJ80..GX,VX199001-199501

SABLE,TRIM4#

main74271-60030-B0iFZJ80,HDJ80,HZJ80..GX,VX199501-199801

BLUISH GRAY,TRIM1#

main74271-60030-E0iFZJ80,HDJ80,HZJ80..GX,VX199501-199801

OAK,TRIM4#

74272APANEL, REAR DOOR ARMREST BASE, UPPER LH

main74272-60010-03iFJ80,FZJ80,HDJ80,HZJ80..GX,VX199001-199501

BLUISH GRAY,TRIM1#

main74272-60010-06iFJ80,FZJ80,HDJ80,HZJ80..GX,VX199001-199501

SABLE,TRIM4#

main74272-60030-B0iFZJ80,HDJ80,HZJ80..GX,VX199501-199801

BLUISH GRAY,TRIM1#

main74272-60030-E0iFZJ80,HDJ80,HZJ80..GX,VX199501-199801

OAK,TRIM4#

74280PANEL ASSY, REAR DOOR ARMREST BASE, LH

main74240-60010-03iFJ80,FZJ80,HDJ80,HZJ80..GX199001-199501

BLUISH GRAY,TRIM1#

main74240-60010-06iFJ80,FZJ80,HDJ80,HZJ80..GX199001-199501

SABLE,TRIM4#

main74240-60010-E0iFZJ80,HDJ80..GX199501-199801

OAK,TRIM4#

main74280-60010-03iFJ80,FZJ80,HDJ80,HZJ80..GX199001-199501

BLUISH GRAY,TRIM1#

main74280-60010-06iFJ80,FZJ80,HDJ80,HZJ80..GX199001-199501

W(POWER WINDOW),SABLE,TRIM4#

main74280-60010-E0iFZJ80,HDJ80..GX199501-199801

W(POWER WINDOW),OAK,TRIM4#

74310VISOR ASSY, RH

main74310-60060-03iHZJ80..STD199001-199108

LIGHT GRAY,TRIM1#

main74310-60060-06iHZJ80..STD199001-199108

LIGHT SABLE,TRIM4#

main74310-60070-03iFJ80,FZJ80,HDJ80..LHD..VX199001-199305

LIGHT GRAY,TRIM1#

main74310-60070-06iFJ80,FZJ80,HDJ80..LHD..VX199001-199305

LIGHT SABLE,TRIM4#

main74310-60070-B0iFZJ80,HDJ80..LHD..VX199305-199501

LIGHT GRAY,TRIM1#

main74310-60070-E0iFZJ80,HDJ80..LHD..VX199305-199501

LIGHT SABLE,TRIM4#

main74310-60140-03iFJ80,FZJ80,HDJ80,HZJ80..GX199001-199305

LIGHT GRAY,TRIM1#

main74310-60140-06iFJ80,FZJ80,HDJ80,HZJ80..GX199001-199305

LIGHT SABLE,TRIM4#

main74310-60140-B0iFZJ80,HDJ80,HZJ80..GX199305-199501

LIGHT GRAY,TRIM1#

main74310-60140-E0iFZJ80,HDJ80,HZJ80..GX199305-199501

LIGHT SABLE,TRIM4#

main74310-60210-03iHDJ80..RHD199001-199108

BLUISH GRAY,TRIM1#

main74310-60210-06iHDJ80..RHD199001-199108

SABLE,TRIM4#

main74310-60211-12iHDJ80..RHD199108-199305

LIGHT GRAY,TRIM1#

main74310-60211-48iHDJ80..RHD199108-199305

LIGHT SABLE,TRIM4#

main74310-60211-B0iHDJ80..RHD199305-199407

LIGHT GRAY,TRIM1#

main74310-60211-E0iHDJ80..RHD199305-199407

LIGHT SABLE,TRIM4#

main74310-60310-B0iHZJ80..STD199108-199305

LIGHT GRAY,TRIM1#

main74310-60310-B1iHZJ80..STD199305-199501

LIGHT GRAY,TRIM1#

main74310-60310-E0iHZJ80..STD199108-199305

LIGHT SABLE,TRIM4#

main74310-60310-E1iHZJ80..STD199305-199501

LIGHT SABLE,TRIM4#

main74310-60460-B0iFZJ80,HDJ80,HZJ80..LHD..(GX,VX)199501-199801

LIGHT GRAY,TRIM1#,4#

main74310-60470-B0iFZJ80,HDJ80..RHD;FZJ80,HDJ80,HZJ80..STD199501-199801

LIGHT GRAY,TRIM1#,4#

main74310-60490-B0iFZJ80,HDJ80..LHD..(GX,VX)199501-199508

W(*80,FRONT PASSENGER SIDE),LIGHT GRAY,TRIM1#,4#

74320VISOR ASSY, LH

main74320-60060-03iHDJ80..RHD199001-199305

BLUISH GRAY,TRIM1#

main74320-60060-06iHDJ80..RHD199001-199305

SABLE,TRIM4#

main74320-60060-B0iHDJ80..RHD199305-199407

LIGHT GRAY,TRIM1#

main74320-60060-E0iHDJ80..RHD199305-199407

LIGHT SABLE,TRIM4#

main74320-60100-03iFJ80,HDJ80,HZJ80..GX,STD199001-199010

LIGHT GRAY,TRIM1#

main74320-60100-06iFJ80,HDJ80,HZJ80..GX,STD199001-199010

LIGHT SABLE,TRIM4#

main74320-60200-03iFJ80,HDJ80..LHD..VX199001-199010

BLUISH GRAY,TRIM1#

main74320-60200-06iFJ80,HDJ80..LHD..VX199001-199010

SABLE,TRIM4#

main74320-60201-03iFJ80,FZJ80,HDJ80..LHD..VX199010-199305

LIGHT GRAY,TRIM1#

main74320-60201-06iFJ80,FZJ80,HDJ80..LHD..VX199010-199305

LIGHT SABLE,TRIM4#

main74320-60201-B0iFZJ80,HDJ80..LHD..VX199305-199501

LIGHT GRAY,TRIM1#

main74320-60201-E0iFZJ80,HDJ80..LHD..VX199305-199501

LIGHT SABLE,TRIM4#

main74320-60250-03iFJ80,FZJ80,HDJ80,HZJ80..GX,STD199010-199305

LIGHT GRAY,TRIM1#

main74320-60250-06iFJ80,FZJ80,HDJ80,HZJ80..GX,STD199010-199305

LIGHT SABLE,TRIM4#

main74320-60250-B0iFZJ80,HDJ80,HZJ80..GX,STD199305-199501

LIGHT GRAY,TRIM1#

main74320-60250-E0iFZJ80,HDJ80,HZJ80..GX,STD199305-199501

LIGHT SABLE,TRIM4#

main74320-60410-B0iFZJ80,HDJ80,HZJ80..LHD199501-199801

LIGHT GRAY,TRIM1#,4#

main74320-60440-B0iFZJ80,HDJ80..RHD199501-199801

LIGHT GRAY,TRIM1#,4#

74348HOLDER, VISOR

main74348-60010-03×2iFJ80,FZJ80,HDJ80,HZJ80199001-199501

LIGHT GRAY,TRIM1#

sub74348-12020

main74348-60010-06×2iFJ80,FZJ80,HDJ80,HZJ80199001-199501

LIGHT SABLE,TRIM4#

sub74348-12020

main74348-91601-13×2iFZJ80,HDJ80,HZJ80199501-199801

MEDIUM GRAY,TRIM1#,4#

7454

74603GRIP SUB-ASSY, ASSIST, FRONT

main74610-60010-03iFJ80,FZJ80,HDJ80,HZJ80199001-199501

LIGHT GRAY,TRIM1#

sub74610-36020

sub74615-60011

sub74616-60011

main74610-60010-06iFJ80,FZJ80,HDJ80,HZJ80199001-199501

LIGHT SABLE,TRIM4#

sub74610-36020

sub74615-60011

sub74616-60011

main74610-60030-B0×2iFZJ80,HDJ80..GX199501-199608

LIGHT GRAY,TRIM1#,4#

sub74620-60030

sub74615-60020

sub74610-60031

sub74615-60011

sub74616-60011

74610AGRIP SUB-ASSY, ASSIST

main74610-60020-03×3iFZJ80,HDJ80,HZJ80..GX,VX199208-199501

W(3RD SEAT),LIGHT GRAY,TRIM1#,4#

main74610-60020-06×3iFJ80,FZJ80,HDJ80..VX199001-199501

W(3RD SEAT),LIGHT SABLE,TRIM4#

main74610-60050-B0×5iHZJ80;FZJ80,HDJ80..GX199501-199801

W(3RD SEAT),LIGHT GRAY,TRIM1#,4#

74611BGRIP, ASSIST

main74610-10020-26iFJ80,HDJ80,HZJ80..SOB199001-199208

SABLE,TRIM4#

main74610-10020-30iFZJ80,HDJ80,HZJ80..SOB199305-199801

BLUISH GRAY,TRIM1#

main74610-10020-E3iFZJ80,HDJ80,HZJ80..SOB199501-199801

OAK,TRIM4#

main74611-91701-03iFJ80,FZJ80,HDJ80,HZJ80..LUB199001-199801

BLUISH GRAY,TRIM1#

main74611-91701-16iFJ80,FZJ80,HDJ80,HZJ80..LUB199001-199501

SABLE,TRIM4#

main74611-91701-E1iFZJ80,HDJ80..LUB199501-199801

OAK,TRIM4#

74615EPLUG, FRONT ASSIST GRIP, NO.1 RH

main74615-60010-03iFZJ80,HDJ80..GX,STD199608-199801

W/O(*80),LIGHT GRAY,TRIM1#,4#

main74615-60010-06iFJ80,FZJ80,HDJ80,HZJ80199001-199501

LIGHT SABLE,TRIM4#

74616CPLUG, FRONT ASSIST GRIP, NO.1 LH

main74616-60010-03iFZJ80,HDJ80..GX199501-199608

LIGHT GRAY,TRIM1#,4#

main74616-60010-06iFJ80,FZJ80,HDJ80,HZJ80199001-199501

LIGHT SABLE,TRIM4#

74617CPLUG, ASSIST GRIP

main74617-14010-40×2iFJ80,FZJ80,HDJ80,HZJ80..SOB199001-199501

SABLE,TRIM4#

main74617-14010-50×2iFJ80,FZJ80,HDJ80,HZJ80..SOB199001-199801

BLUISH GRAY,TRIM1#

main74617-14010-E2×2iFZJ80,HDJ80,HZJ80..SOB199501-199801

OAK,TRIM4#

74620CGRIP ASSY, ASSIST, REAR RH

main74620-60010-03iHZJ80199503-199801

W(FRONT BENCH SEAT),LIGHT GRAY,TRIM1#,4#

main74620-60010-06iHDJ80,HZJ80..MTM..(GX,STD)199001-199208

FINLAND SPEC,LIGHT SABLE,TRIM4#

main74620-60020-03iFJ80,FZJ80,HDJ80,HZJ80199001-199501

LIGHT GRAY,TRIM1#

main74620-60020-06iFJ80,FZJ80,HDJ80,HZJ80199001-199501

LIGHT SABLE,TRIM4#

74627PLUG, REAR ASSIST GRIP

main74627-60010-03×4iHDJ80,HZJ80..MTM..(GX,STD)199001-199208

FINLAND SPEC,LIGHT GRAY,TRIM1#

main74627-60010-06×4iHDJ80,HZJ80..MTM..(GX,STD)199001-199208

FINLAND SPEC,LIGHT SABLE,TRIM4#

74630EGRIP ASSY, ASSIST, REAR LH

main74630-60010-03iHDJ80,HZJ80..MTM..(GX,STD)199001-199208

FINLAND SPEC,LIGHT GRAY,TRIM1#

main74630-60010-06iHDJ80,HZJ80..MTM..(GX,STD)199001-199208

FINLAND SPEC,LIGHT SABLE,TRIM4#

main74630-60020-03iFJ80,FZJ80,HDJ80,HZJ80199001-199501

LIGHT GRAY,TRIM1#

main74630-60020-06iFJ80,FZJ80,HDJ80,HZJ80199001-199501

LIGHT SABLE,TRIM4#

74637PLUG, ASSIST GRIP, NO.2 RH

main74637-60010-03×5iFJ80,FZJ80,HDJ80,HZJ80199001-199501

LIGHT GRAY,TRIM1#

main74637-60010-06×5iFJ80,FZJ80,HDJ80,HZJ80..GX,STD199108-199501

W(3RD SEAT),LIGHT SABLE,TRIM4#

74638PLUG, ASSIST GRIP, NO.2 LH

main74638-60010-03×5iHZJ80;FZJ80,HDJ80..GX199501-199801

W(3RD SEAT),LIGHT GRAY,TRIM1#,4#

main74638-60010-06×5iFJ80,FZJ80,HDJ80,HZJ80199001-199501

W(3RD SEAT),LIGHT SABLE,TRIM4#

74670GRIP ASSY, INSTRUMENT ASSIST

main74670-60010-03iFJ80,FZJ80,HDJ80,HZJ80..LHD199001-199501

BLUISH GRAY,TRIM1#

main74670-60010-06iFJ80,FZJ80,HDJ80,HZJ80..LHD199001-199501

SABLE,TRIM4#

main74670-60020-03iHDJ80..RHD199001-199407

BLUISH GRAY,TRIM1#

main74670-60020-06iHDJ80..RHD199001-199407

SABLE,TRIM4#

main74670-60040-B0iFZJ80,HDJ80,HZJ80199501-199608

BLUISH GRAY,TRIM1#

main74670-60040-E0iFZJ80,HDJ80,HZJ80..GX,STD199608-199801

OAK,TRIM4#

9015960343

main90159-60343

9016460010

main90164-60010

9016840068

main90168-40068

9017906168

main90179-06168

9018906006

main90189-06006

9018906121

main90189-06121

9018906140

main90189-06140

9018906156

main90189-06156

9046805047

main90468-05047

9331116016

main93311-16016

9331116020

main93311-16020

9351016025

main93510-16025

9353045020

main93530-45020

41 parts on this diagram · 1 diagram in section
