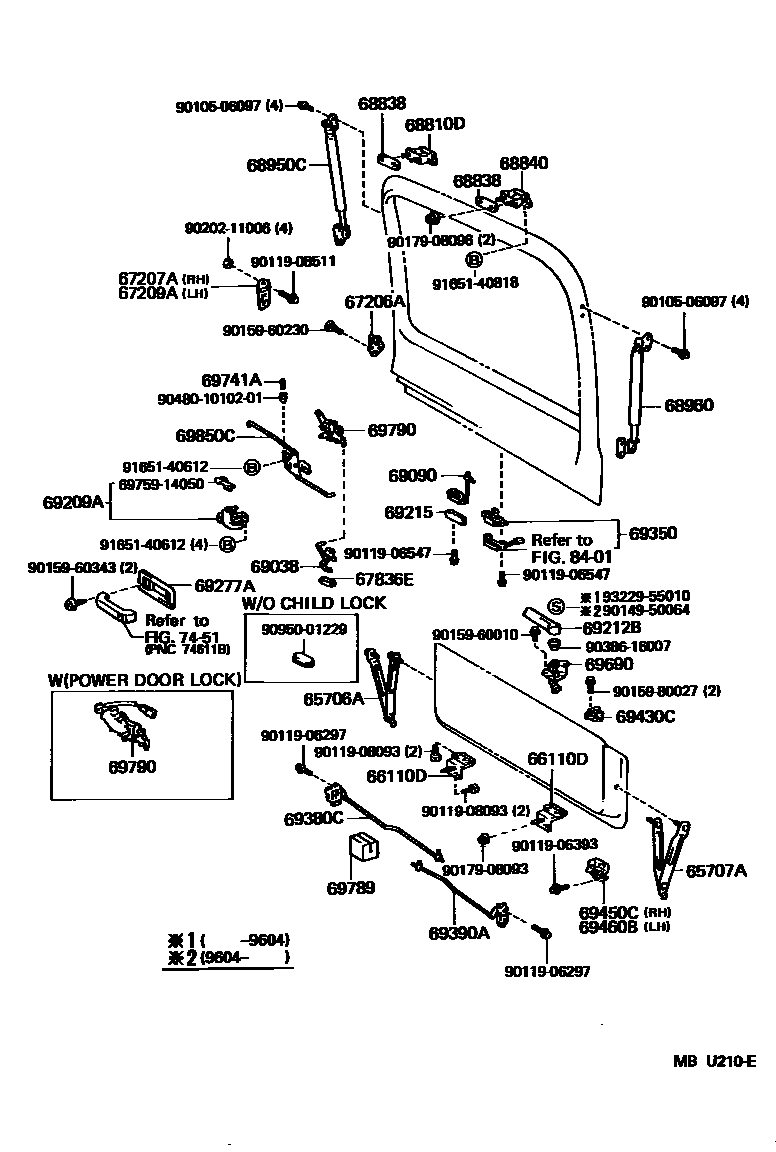

BACK DOOR LOCK & HINGE

0001 1 0002 1

65706ASTAY SUB-ASSY, TAIL GATE, RH

main65706-60010iFJ80,HDJ80,HZJ80..LUB199001-199207

sub65706-60011

main65706-60011iFJ80,FZJ80,HDJ80,HZJ80..LUB199207-199511

sub65706-60012

main65706-60012iFZJ80,HDJ80..LUB199511-199801

65707ASTAY SUB-ASSY, TAIL GATE, LH

main65707-60010iFJ80,HDJ80,HZJ80..LUB199001-199207

sub65707-60011

main65707-60011iFJ80,FZJ80,HDJ80,HZJ80..LUB199207-199511

sub65707-60012

main65707-60012iFZJ80,HDJ80..LUB199511-199801

66110DHINGE ASSY, TAIL GATE

main66110-60010iFJ80,FZJ80,HDJ80,HZJ80..LUB199001-199801

67206ABRACKET SUB-ASSY, BACK DOOR STOPPER

main67206-60020iFJ80,HDJ80,HZJ80..LUB199001-199105

sub67206-60021

main67206-60021iFJ80,FZJ80,HDJ80,HZJ80..LUB199105-199212

sub67206-60030

main67206-60030iFZJ80,HDJ80,HZJ80..LUB199212-199801

67207ASTOPPER SUB-ASSY, BACK DOOR, RH

main67207-60020iFJ80,FZJ80,HDJ80,HZJ80..LUB199001-199210

sub67207-60021

main67207-60021iFZJ80,HDJ80,HZJ80..LUB199210-199801

67209ASTOPPER SUB-ASSY, BACK DOOR, LH

main67208-60020iFJ80,FZJ80,HDJ80,HZJ80..LUB199001-199210

sub67208-60021

main67208-60021iFZJ80,HDJ80,HZJ80..LUB199210-199801

67836ECOVER, REAR DOOR LOCK CHILD PROTECTION

main67836-14010iFJ80,FZJ80,HDJ80,HZJ80..LUB199001-199801

68810DHINGE ASSY, BACK DOOR, RH

main68810-60010iFJ80,FZJ80,HDJ80,HZJ80..LUB199001-199801

68838PAD, BACK DOOR HINGE, NO.1

main68838-20020iFJ80,FZJ80,HDJ80,HZJ80..LUB199001-199801

68840HINGE ASSY, BACK DOOR, LH

main68810-60010iFJ80,FZJ80,HDJ80,HZJ80..LUB199001-199801

68950CSTAY ASSY, BACK DOOR, RH

main68950-60030iFJ80,HDJ80,HZJ80..LUB199001-199008

main68950-60031iFJ80,FZJ80,HDJ80,HZJ80..LUB199008-199211

sub68950-60032

main68950-60032iFZJ80,HDJ80,HZJ80..LUB199211-199605

main68950-60040iFZJ80,HDJ80..LUB199605-199801

68960STAY ASSY, BACK DOOR, LH

main68960-60020iFJ80,HDJ80,HZJ80..LUB199001-199008

main68960-60021iFJ80,FZJ80,HDJ80,HZJ80..LUB199008-199211

sub68960-60022

main68960-60022iFZJ80,HDJ80,HZJ80..LUB199211-199605

main68960-60030iFZJ80,HDJ80..LUB199605-199801

69038PROTECTOR SUB-ASSY, BACK DOOR CHILD

main69038-60010iFJ80,FZJ80,HDJ80,HZJ80..LUB199001-199801

69090HANDLE ASSY, BACK DOOR, OUTSIDE

main69090-60010iFJ80,FZJ80,HDJ80,HZJ80..LUB199001-199801

69209AHANDLE SUB-ASSY, BACK DOOR, INSIDE

main69209-60020-03iFJ80,FZJ80,HDJ80,HZJ80..LUB199001-199801

BLUISH GRAY,TRIM1#

sub69209-60020

main69209-60020-06iFJ80,FZJ80,HDJ80,HZJ80..LUB199001-199501

SABLE,TRIM4#

sub69209-60020

main69209-60020-E0iFZJ80,HDJ80..LUB199505-199801

OAK,TRIM4#

sub69209-60020

69212BHANDLE, BACK DOOR INSIDE

main69212-60030iFZJ80,HDJ80,HZJ80199604-199801

main69212-90K00iFJ80,FZJ80,HDJ80,HZJ80199001-199604

sub69212-60030

sub90149-50064

69215HANDLE, BACK DOOR OUTSIDE

main69215-60020iFJ80,FZJ80,HDJ80,HZJ80..LUB199001-199801

69277ABEZEL, BACK DOOR INSIDE HANDLE

main69277-91701-03iFJ80,FZJ80,HDJ80,HZJ80..LUB199001-199801

BLUISH GRAY,TRIM1#

sub69277-91701

main69277-91701-16iFJ80,FZJ80,HDJ80,HZJ80..LUB199001-199501

SABLE,TRIM4#

sub69277-91701

main69277-91701-E1iFZJ80,HDJ80..LUB199501-199801

OAK,TRIM4#

sub69277-91701

69350LOCK ASSY, BACK DOOR

main69350-60040iFJ80,FZJ80,HDJ80,HZJ80..LUB199001-199801

main69350-60050iFJ80,FZJ80,HDJ80,HZJ80..SOB199001-199801

main69350-60090iFJ80,FZJ80..SOB..GX199001-199801

W(REAR SEPARATED FIXED SEAT & 3RD TRANSVERSE SEAT)

main69350-60090iHZJ80..SOB199108-199501

W(3RD TRANSVERSE SEAT OR 3RD PARALLEL SEAT )

main69350-60090iHZJ80..STD199501-199801

69380CLOCK ASSY, BACK DOOR, LOWER

main69380-60020iFJ80,FZJ80,HDJ80,HZJ80..LUB199001-199801

main69380-60030iFJ80,FZJ80,HDJ80,HZJ80..SOB199001-199801

69390ALOCK ASSY, TAIL GATE, LOWER LH

main69390-60030iFJ80,FZJ80,HDJ80,HZJ80..LUB199001-199801

69430CSTRIKER ASSY, BACK DOOR LOCK

main69430-60020iFJ80,FZJ80,HDJ80,HZJ80..LUB199001-199801

69450CSTRIKER ASSY, BACK DOOR LOCK, RH

main69450-60010iFJ80,FZJ80,HDJ80,HZJ80..LUB199001-199510

sub69450-60011

main69450-60011iFZJ80,HDJ80..LUB199510-199801

69460BSTRIKER ASSY, BACK DOOR LOCK, LH

main69460-60010iFJ80,FZJ80,HDJ80,HZJ80..LUB199001-199510

sub69460-60011

main69460-60011iFZJ80,HDJ80..LUB199510-199801

69690CONTROL ASSY, BACK DOOR REMOTE

main69690-60010iFJ80,FZJ80,HDJ80,HZJ80..LUB199001-199801

main69690-60020iFJ80,HDJ80,HZJ80..SOB199001-199104

sub69690-60021

main69690-60021iFJ80,HDJ80,HZJ80..SOB199104-199110

sub69690-60022

main69690-60022iFJ80,FZJ80,HDJ80,HZJ80..SOB199110-199801

69741AKNOB, BACK DOOR LOCK CONTROL

main69741-28010-C0iFJ80,FZJ80,HDJ80,HZJ80..LUB199001-199408

BLACK,TRIM1#,4#

sub69741-28010

main69741-28010-C1iFZJ80,HDJ80..LUB199408-199801

BLACK,TRIM1#,4#

sub69741-28010

69789SILENCER, BACK DOOR LOCK CONTROL LINK

main69789-60010iFJ80,FZJ80,HDJ80,HZJ80..LUB199001-199801

69790CONTROL ASSY, BACK DOOR LOCK

main69790-60010iFJ80,FZJ80,HDJ80,HZJ80..LUB..GX199001-199801

main69790-60020iFJ80,FZJ80,HDJ80..VX199001-199801

W(*PW)

main69790-60050iFJ80,FZJ80,HDJ80,HZJ80..LUB..GX199001-199801

W(REAR SEPARATED FIXED SEAT & 3RD TRANSVERSE SEAT)

main69790-60060iFJ80,FZJ80,HDJ80,HZJ80..LUB..GX199001-199801

W(*PW & REAR SEPARATED RECLINING SEAT & 3RD TRANSVERSE SEAT)

main69790-60060iFJ80,FZJ80,HDJ80,HZJ80..LUB..GX199001-199801

W(REAR SEPARATED RECLINING SEAT & 3RD TRANSVESE SEAT)

69850CLINK ASSY, BACK DOOR INSIDE LOCKING

main69850-60010iFJ80,FZJ80,HDJ80,HZJ80..LUB199001-199801

7451

8401

6975914050SNAP, DOOR LOCK CONTROL LINK, NO.1

main69759-14050

9010506097

main90105-06097

9011906297

main90119-06297

9011906393

main90119-06393

9011906547

main90119-06547

9011908093

main90119-08093

9011908511

main90119-08511

9014950064

main90149-50064

9015960010

main90159-60010

9015960230

main90159-60230

9015960343

main90159-60343

9015980027

main90159-80027

9017908093

main90179-08093

9017908096

main90179-08096

9020211006

main90202-11006

9038616007

main90386-16007

904801010201

main90480-1010201

9095001229

main90950-01229

9165140612

main91651-40612

9165140818

main91651-40818

9322955010

main93229-55010

52 parts on this diagram · 2 diagrams in section
