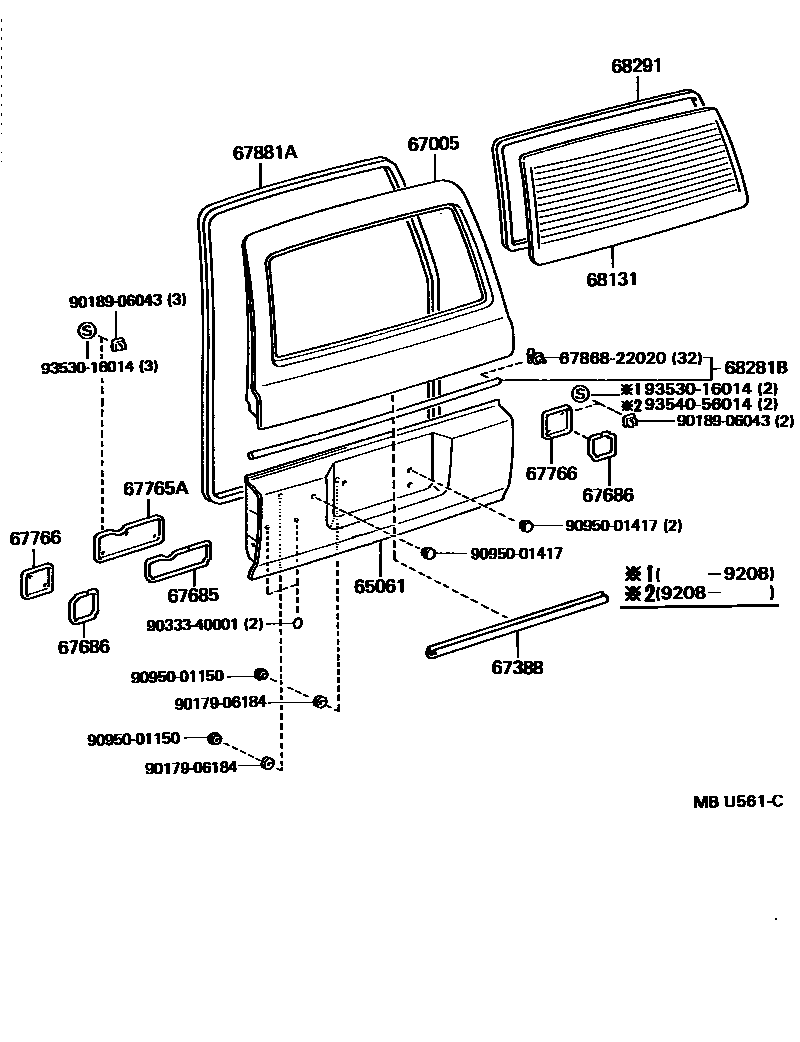

BACK DOOR PANEL & GLASS

0001 1 0002 1 0003 1 0004 1

65061PANEL SUB-ASSY, TAIL GATE

main65061-60040iFZJ80..LHD..VX199001-199504

FINLAND SPEC

sub65061-60041

main65061-60041iHDJ80..GX;FZJ80..LHD..VX199504-199605

FINLAND SPEC

main65061-60050iFJ80,FZJ80,HDJ80,HZJ80..LUB199001-199504

sub65061-60051

main65061-60051iFZJ80,HDJ80..LUB199504-199801

67005PANEL SUB-ASSY, BACK DOOR

main67005-60100iFJ80,FZJ80,HDJ80,HZJ80..LUB199001-199301

sub67005-60101

sub75441-60071

sub90467-06096

main67005-60101iFZJ80,HDJ80,HZJ80..LUB199301-199605

main67005-60121iFZJ80,HDJ80..LUB199501-199605

W(HIGH MOUNT STOP LAMP)

main67005-60121iFZJ80,HDJ80..LUB199605-199608

main67005-6A610iFZJ80,HDJ80..LUB199608-199801

67388PROTECTOR, BACK DOOR EDGE

main67388-60010iHDJ80..LHD..MTM..VX199001-199801

67685PACKING, BACK DOOR SERVICE HOLE, NO.1

main67685-60010iFJ80,FZJ80,HDJ80,HZJ80..LUB199001-199801

67686PACKING, BACK DOOR SERVICE HOLE, NO.2

main67685-60010iFZJ80,HDJ80,HZJ80..LUB199208-199801

main67686-60010iFJ80,HDJ80,HZJ80..LUB199001-199208

sub67685-60010

67765ACOVER, BACK DOOR SERVICE HOLE, NO.1

main67765-60010iFJ80,FZJ80,HDJ80,HZJ80..LUB199001-199801

67766COVER, BACK DOOR SERVICE HOLE, NO.2

main67766-60010iFJ80,FZJ80,HDJ80,HZJ80..LUB199001-199801

67881AWEATHERSTRIP, BACK DOOR

main67881-60010iFJ80,HDJ80,HZJ80..LUB199001-199010

main67881-60020iFJ80,HDJ80,HZJ80..SOB199001-199201

main67881-60021iFJ80,FZJ80,HDJ80,HZJ80..SOB199201-199801

main67881-60060iFJ80,FZJ80,HDJ80,HZJ80..LUB199010-199801

68131GLASS, BACK DOOR

main68131-60120iFJ80,FZJ80,HDJ80,HZJ80..LUB199001-199305

*EHTT,T=3.5

sub68131-60121

main68131-60121iFZJ80,HDJ80,HZJ80..LUB199305-199608

*EHTT,T=4.0,BLUE

sub68131-60290

main68131-60290iFZJ80,HDJ80..LUB199608-199801

*EHT,T=4.0,GREEN

68281BWEATHERSTRIP, LIFT GATE

main68281-60010iFJ80,FZJ80,HDJ80,HZJ80..LUB199001-199801

68291WEATHERSTRIP, BACK DOOR GLASS

main68291-60040iFJ80,FZJ80,HDJ80,HZJ80..LUB..GX199001-199801

main68291-60050iFJ80,FZJ80,HDJ80..VX199001-199801

6786822020CLIP, FRONT DOOR GLASS WEATHERSTRIP

main67868-22020

9017906184

main90179-06184

9018906043

main90189-06043

9033340001

main90333-40001

9095001150

main90950-01150

9095001417

main90950-01417

9353016014

main93530-16014

9354056014

main93540-56014

19 parts on this diagram · 4 diagrams in section
