REAR DOOR PANEL & GLASS

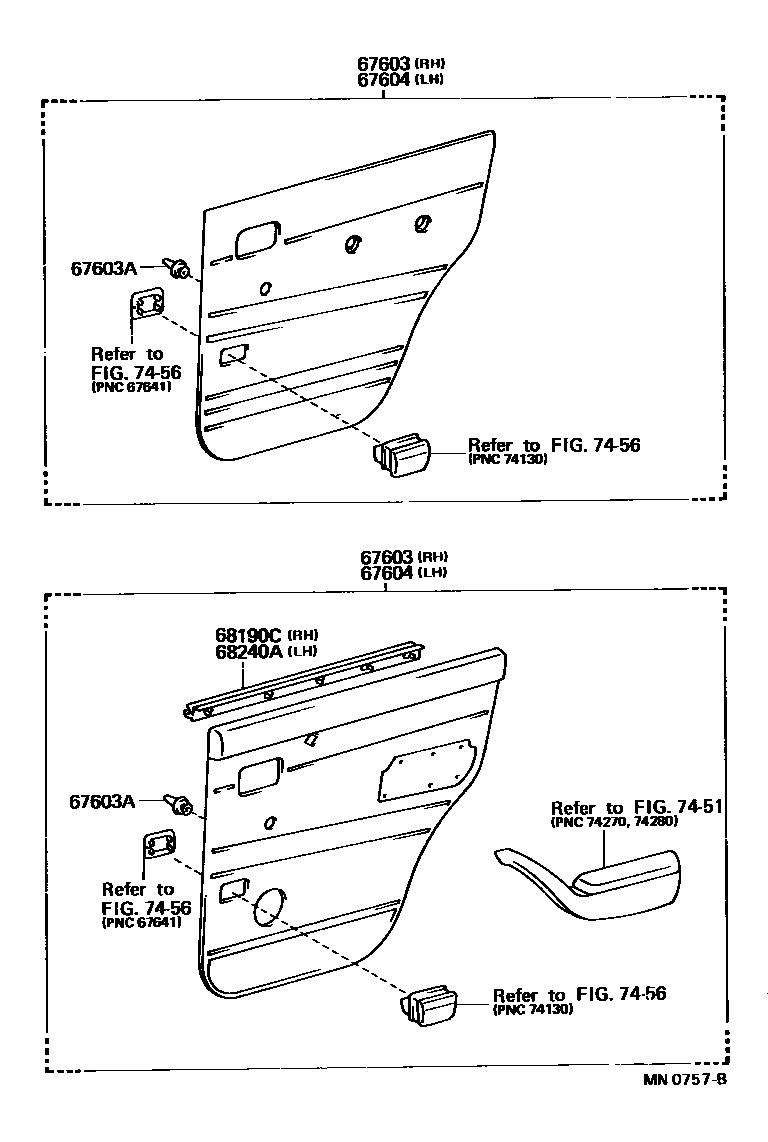

Parts diagram
67603BOARD SUB-ASSY, REAR DOOR TRIM, RH
main67630-60010-03i199001-199801
BLUISH GRAY,TRIM1#
sub67630-60010
main67630-60010-06i199001-199501
SABLE,TRIM4#
sub67630-60010
main67630-60010-E0i199501-199801
OAK,TRIM4#
sub67630-60010
main67630-60020-03i199501-199801
W(REAR DOOR SPEAKER),BLUISH GRAY,TRIM1#
main67630-60020-E1i199501-199801
W(REAR DOOR SPEAKER),OAK,TRIM4#
main67630-60040-03i199001-199501
BLUISH GRAY,TRIM1#
main67630-60040-06i199001-199501
SABLE,TRIM4#
main67630-60050-03i199001-199501
W(REAR DOOR SPEAKER),BLUISH GRAY,TRIM1#
main67630-60050-06i199001-199501
W(REAR DOOR SPEAKER),SABLE,TRIM4#
main67630-60060-03i199001-199501
W(POWER WINDOW),BLUISH GRAY,TRIM1#
main67630-60060-06i199001-199501
W(POWER WINDOW),SABLE,TRIM4#
main67630-60070-03i199001-199501
W(POWER WINDOW & REAR DOOR SPEAKER),BLUISH GRAY,TRIM1#
main67630-60070-06i199001-199501
W(POWER WINDOW & REAR DOOR SPEAKER),SABLE,TRIM4#
main67630-60140-03i199001-199501
BLUISH GRAY,TRIM1#
main67630-60140-06i199001-199501
SABLE,TRIM4#
main67630-60150-03i199001-199501
W(REAR DOOR SPEAKER),BLUISH GRAY,TRIM1#
main67630-60150-06i199001-199501
W(REAR DOOR SPEAKER),SABLE,TRIM4#
main67630-60220-B1i199208-199501
LEATHER PACKAGE,BLUISH GRAY,TRIM1#
sub67630-60221
main67630-60310-B0i199501-199607
BLUISH GRAY,TRIM1#
sub67630-60311
main67630-60310-E0i199501-199607
OAK,TRIM4#
sub67630-60311
main67630-60311-B0i199607-199801
BLUISH GRAY,TRIM1#
main67630-60311-E0i199607-199801
OAK,TRIM4#
main67630-60320-B0i199501-199607
W(REAR DOOR SPEAKER),BLUISH GRAY,TRIM1#
sub67630-60321
main67630-60320-E0i199501-199607
W(REAR DOOR SPEAKER),OAK,TRIM4#
sub67630-60321
main67630-60321-B0i199607-199801
W(REAR DOOR SPEAKER),OAK,TRIM4#
main67630-60321-E0i199607-199801
W(REAR DOOR SPEAKER),BLUISH GRAY,TRIM1#
main67630-60330-B0i199501-199607
W(POWER WINDOW),BLUISH GRAY,TRIM1#
sub67630-60331
main67630-60330-E0i199501-199607
W(POWER WINDOW),OAK,TRIM4#
sub67630-60331
main67630-60331-B0i199607-199801
W(POWER WINDOW),BLUISH GRAY,TRIM1#
main67630-60331-E0i199607-199801
W(POWER WINDOW),OAK,TRIM4#
main67630-60340-B0i199501-199607
W(POWER WINDOW & REAR DOOR SPEAKER),BLUISH GRAY,TRIM1#
sub67630-60341
main67630-60340-B0i199501-199607
BLUISH GRAY,TRIM1#
sub67630-60341
main67630-60340-E0i199501-199607
OAK,TRIM4#
sub67630-60341
main67630-60340-E0i199501-199607
W(POWER WINDOW & REAR DOOR SPEAKER),OAK,TRIM4#
sub67630-60341
main67630-60341-B0i199607-199801
W(POWER WINDOW & REAR DOOR SPEAKER),BLUISH GRAY,TRIM1#
main67630-60341-B0i199607-199801
BLUISH GRAY,TRIM1#
main67630-60341-E0i199607-199801
W(POWER WINDOW & REAR DOOR SPEAKER),OAK,TRIM4#
main67630-60341-E0i199607-199801
OAK,TRIM4#
main67630-60350-B1i199501-199607
BLUISH GRAY,TRIM1#
sub67630-60351
main67630-60350-B1i199501-199607
W/O(REAR DOOR SPEAKER),BLUISH GRAY,TRIM1#
sub67630-60351
main67630-60350-E1i199501-199607
OAK,TRIM4#
sub67630-60351
main67630-60350-E1i199501-199607
W/O(REAR DOOR SPEAKER),OAK,TRIM4#
sub67630-60351
main67630-60351-B1i199607-199801
W/O(REAR DOOR SPEAKER),BLUISH GRAY,TRIM1#
main67630-60351-B1i199607-199801
BLUISH GRAY,TRIM1#
main67630-60351-E1i199607-199801
OAK,TRIM4#
main67630-60351-E1i199607-199801
W/O(REAR DOOR SPEAKER),OAK,TRIM4#
main67630-60360-B1i199501-199607
W(REAR DOOR SPEAKER),BLUISH GRAY,TRIM1#
sub67630-60361
main67630-60360-B1i199501-199607
BLUISH GRAY,TRIM1#
sub67630-60361
main67630-60360-E1i199501-199607
W(REAR DOOR SPEAKER),OAK,TRIM4#
sub67630-60361
main67630-60360-E1i199501-199607
OAK,TRIM4#
sub67630-60361
main67630-60361-B1i199607-199801
BLUISH GRAY,TRIM1#
main67630-60361-B1i199607-199801
W(REAR DOOR SPEAKER),BLUISH GRAY,TRIM1#
main67630-60361-E1i199607-199801
W(REAR DOOR SPEAKER),OAK,TRIM4#
main67630-60361-E1i199607-199801
OAK,TRIM4#
main67630-60370-B1i199501-199508
LEATHER PACKAGE,BLUISH GRAY,TRIM1#
sub67630-60371
main67630-60370-E0i199501-199508
LEATHER PACKAGE,OAK,TRIM4#
sub67630-60371
main67630-60371-B1i199508-199607
LEATHER PACKAGE,BLUISH GRAY,TRIM1#
sub67630-60373
main67630-60371-E0i199508-199607
LEATHER PACKAGE,OAK,TRIM4#
sub67630-60373
main67630-60373-B1i199607-199801
LEATHER PACKAGE,BLUISH GRAY,TRIM1#
main67630-60373-E0i199607-199801
LEATHER PACKAGE,OAK,TRIM4#
67603ARETAINER(FOR REAR DOOR TRIM BOARD)
main67771-12040i199001-199208
GRAY
main67771-12040i199001-199004
W(POWER WINDOW),GRAY
main67771-12050i199001-199801
RED
main67771-12050i199004-199107
W(POWER WINDOW),RED
main67771-30090i199107-199801
YELLOW
67604BOARD SUB-ASSY, REAR DOOR TRIM, LH
main67640-60010-03i199001-199801
BLUISH GRAY,TRIM1#
sub67640-60010
main67640-60010-06i199001-199501
SABLE,TRIM4#
sub67640-60010
main67640-60010-E0i199501-199801
OAK,TRIM4#
sub67640-60010
main67640-60020-03i199501-199801
W(REAR DOOR SPEAKER),BLUISH GRAY,TRIM1#
main67640-60020-E1i199501-199801
W(REAR DOOR SPEAKER),OAK,TRIM4#
main67640-60040-03i199001-199501
BLUISH GRAY,TRIM1#
main67640-60040-06i199001-199501
SABLE,TRIM4#
main67640-60050-03i199001-199501
W(REAR DOOR SPEAKER),BLUISH GRAY,TRIM1#
main67640-60050-06i199001-199501
W(REAR DOOR SPEAKER),SABLE,TRIM4#
main67640-60060-03i199001-199501
W(POWER WINDOW),BLUISH GRAY,TRIM1#
main67640-60060-06i199001-199501
W(POWER WINDOW),SABLE,TRIM4#
main67640-60070-03i199001-199501
W(POWER WINDOW & REAR DOOR SPEAKER),BLUISH GRAY,TRIM1#
main67640-60070-06i199001-199501
W(POWER WINDOW & REAR DOOR SPEAKER),SABLE,TRIM4#
main67640-60140-03i199001-199501
BLUISH GRAY,TRIM1#
main67640-60140-06i199001-199501
SABLE,TRIM4#
main67640-60150-03i199001-199501
W(REAR DOOR SPEAKER),BLUISH GRAY,TRIM1#
main67640-60150-06i199001-199501
W(REAR DOOR SPEAKER),SABLE,TRIM4#
main67640-60220-B1i199208-199501
LEATHER PACKAGE,BLUISH GRAY,TRIM1#
sub67640-60221
main67640-60310-B0i199501-199607
BLUISH GRAY,TRIM1#
sub67640-60311
main67640-60310-E0i199501-199607
OAK,TRIM4#
sub67640-60311
main67640-60311-B0i199607-199801
BLUISH GRAY,TRIM1#
main67640-60311-E0i199607-199801
OAK,TRIM4#
main67640-60320-B0i199501-199607
W(REAR DOOR SPEAKER),BLUISH GRAY,TRIM1#
sub67640-60321
main67640-60320-E0i199501-199607
W(REAR DOOR SPEAKER),OAK,TRIM4#
sub67640-60321
main67640-60321-B0i199607-199801
W(REAR DOOR SPEAKER),BLUISH GRAY,TRIM1#
main67640-60321-E0i199607-199801
W(REAR DOOR SPEAKER),OAK,TRIM4#
main67640-60330-B0i199501-199607
W(POWER WINDOW),BLUISH GRAY,TRIM1#
sub67640-60331
main67640-60330-E0i199501-199607
W(POWER WINDOW),OAK,TRIM4#
sub67640-60331
main67640-60331-B0i199607-199801
W(POWER WINDOW),BLUISH GRAY,TRIM1#
main67640-60331-E0i199607-199801
W(POWER WINDOW),OAK,TRIM4#
main67640-60340-B0i199501-199607
BLUISH GRAY,TRIM1#
sub67640-60341
main67640-60340-B0i199501-199607
W(POWER WINDOW & REAR DOOR SPEAKER),BLUISH GRAY,TRIM1#
sub67640-60341
main67640-60340-E0i199501-199607
W(POWER WINDOW & REAR DOOR SPEAKER),OAK,TRIM4#
sub67640-60341
main67640-60340-E0i199501-199607
OAK,TRIM4#
sub67640-60341
main67640-60341-B0i199607-199801
BLUISH GRAY,TRIM1#
main67640-60341-B0i199607-199801
W(POWER WINDOW & REAR DOOR SPEAKER),BLUISH GRAY,TRIM1#
main67640-60341-E0i199607-199801
W(POWER WINDOW & REAR DOOR SPEAKER),OAK,TRIM4#
main67640-60341-E0i199607-199801
OAK,TRIM4#
main67640-60350-B1i199501-199607
BLUISH GRAY,TRIM1#
sub67640-60351
main67640-60350-B1i199501-199607
W/O(REAR DOOR SPEAKER),BLUISH GRAY,TRIM1#
sub67640-60351
main67640-60350-E1i199501-199607
OAK,TRIM4#
sub67640-60351
main67640-60350-E1i199501-199607
W/O(REAR DOOR SPEAKER),OAK,TRIM4#
sub67640-60351
main67640-60351-B1i199607-199801
W/O(REAR DOOR SPEAKER),BLUISH GRAY,TRIM1#
main67640-60351-B1i199607-199801
BLUISH GRAY,TRIM1#
main67640-60351-E1i199607-199801
W/O(REAR DOOR SPEAKER),OAK,TRIM4#
main67640-60351-E1i199607-199801
OAK,TRIM4#
main67640-60360-B1i199501-199607
W(REAR DOOR SPEAKER),BLUISH GRAY,TRIM1#
sub67640-60361
main67640-60360-B1i199501-199607
BLUISH GRAY,TRIM1#
sub67640-60361
main67640-60360-E1i199501-199607
W(REAR DOOR SPEAKER),OAK,TRIM4#
sub67640-60361
main67640-60360-E1i199501-199607
OAK,TRIM4#
sub67640-60361
main67640-60361-B1i199607-199801
W(REAR DOOR SPEAKER),BLUISH GRAY,TRIM1#
main67640-60361-B1i199607-199801
BLUISH GRAY,TRIM1#
main67640-60361-E1i199607-199801
W(REAR DOOR SPEAKER),OAK,TRIM4#
main67640-60361-E1i199607-199801
OAK,TRIM4#
main67640-60370-B1i199501-199508
LEATHER PACKAGE,BLUISH GRAY,TRIM1#
sub67640-60371
main67640-60370-E0i199501-199508
LEATHER PACKAGE,OAK,TRIM4#
sub67640-60371
main67640-60371-B1i199508-199607
LEATHER PACKAGE,BLUISH GRAY,TRIM1#
sub67640-60373
main67640-60371-E0i199508-199607
LEATHER PACKAGE,OAK,TRIM4#
sub67640-60373
main67640-60373-B1i199607-199801
LEATHER PACKAGE,BLUISH GRAY,TRIM1#
main67640-60373-E0i199607-199801
LEATHER PACKAGE,OAK,TRIM4#
68190CWEATHERSTRIP ASSY, REAR DOOR GLASS, INNER RH
main68190-60010i199001-199609
sub68190-60011
sub68240-60050
main68190-60011i199609-199801
main68190-60020i199208-199801
68240AWEATHERSTRIP ASSY, REAR DOOR GLASS, INNER LH
main68190-60010i199001-199609
sub68190-60011
sub68240-60050
main68240-60010i199001-199801
main68240-60050i199609-199801
7451
7456

7 parts on this diagram · 3 diagrams in section
