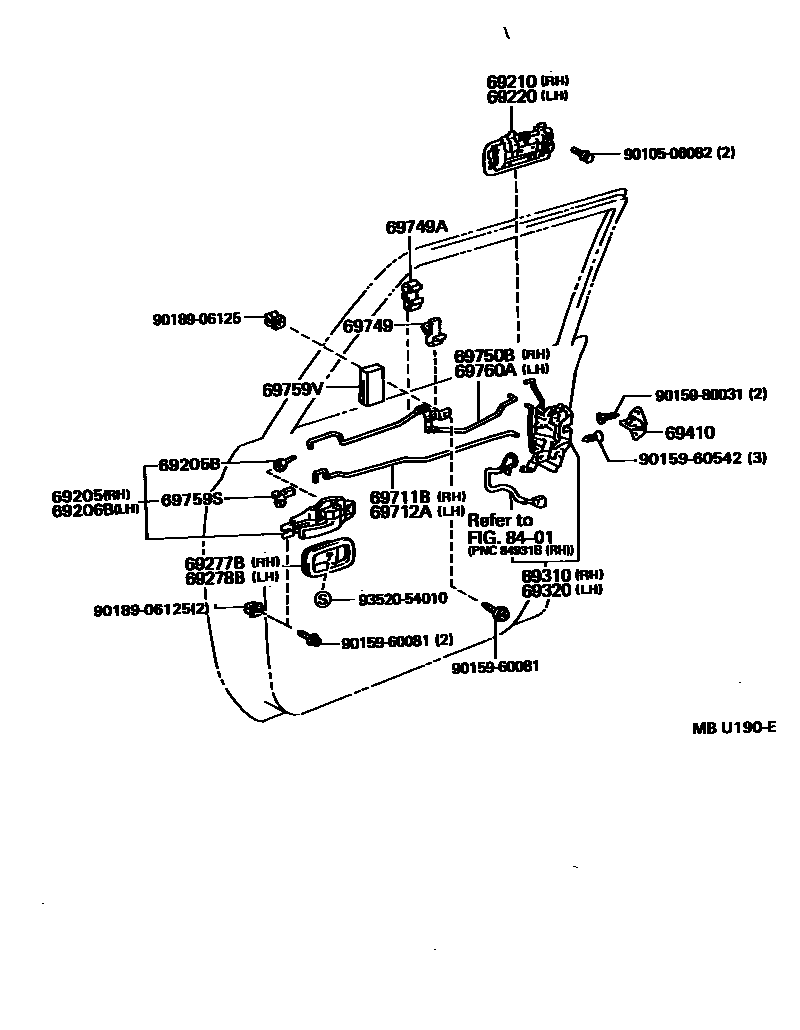

FRONT DOOR LOCK & HANDLE

69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-60030-03iFJ80,FZJ80,HDJ80,HZJ80199001-199501

GRAY,TRIM1#

main69205-60030-06iFJ80,FZJ80,HDJ80,HZJ80199001-199501

SABLE,TRIM4#

main69205-60040-B0iFZJ80,HDJ80,HZJ80199501-199801

BLUISH GRAY,TRIM1#

sub69205-60040

main69205-60040-E0iFZJ80,HDJ80,HZJ80199501-199801

OAK,TRIM4#

sub69205-60040

69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)

main90541-04018iFJ80,FZJ80,HDJ80,HZJ80199001-199308

69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69206-60030-03iFJ80,FZJ80,HDJ80,HZJ80199001-199501

GRAY,TRIM1#

sub69206-60030

main69206-60030-06iFJ80,FZJ80,HDJ80,HZJ80199001-199501

SABLE,TRIM4#

sub69206-60030

main69206-60040-B0iFZJ80,HDJ80,HZJ80199501-199801

BLUISH GRAY,TRIM1#

main69206-60040-E0iFZJ80,HDJ80,HZJ80199501-199801

OAK,TRIM4#

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-60010iFJ80,FZJ80,HDJ80,HZJ80..GX,STD199001-199801

PLATED

main69210-60020-02iFJ80,FZJ80,HDJ80..VX199001-199801

RED MICA,3H4

main69210-60020-02iFZJ80,HDJ80..VX199305-199501

RED MICA,26W ,3H4

main69210-60020-03iFJ80,FZJ80,HDJ80..VX199001-199501

DARK BLUISH GRAY M,183

main69210-60020-05iFZJ80,HDJ80..VX199208-199501

L. BEIGE M,4K1

main69210-60020-05iFJ80,HDJ80..VX199001-199208

L. BEIGE M,27P ,4K1

main69210-60020-08iFJ80,FZJ80,HDJ80..VX199001-199801

WHITE,045

main69210-60020-13iFZJ80,HDJ80..VX199305-199501

BLUISH SILVER M,26P

main69210-60020-13iFJ80,FZJ80,HDJ80..VX199001-199305

BLUISH SILVER M,20R ,26P

main69210-60020-B0iFZJ80,HDJ80..VX199501-199801

GRAY M OPAL,1A6

main69210-60020-B1iFZJ80,HDJ80..VX199501-199801

WARM GRAY PEARL ME,2AB

main69210-60020-C0iFZJ80,HDJ80..VX199608-199801

BLACK,202

main69210-60020-G0iFZJ80,HDJ80..VX199501-199801

DARK GREEN MICA,2AC ,6M1

main69210-60020-G0iFZJ80,HDJ80..VX199208-199501

DARK GREEN MICA,6M1

main69210-60020-J0iFZJ80,HDJ80..VX199501-199801

DK BLUE MM,8K0

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69220-60010iFJ80,FZJ80,HDJ80,HZJ80..GX,STD199001-199801

*CR

main69220-60020-02iFJ80,FZJ80,HDJ80..VX199001-199801

RED MICA,3H4

main69220-60020-02iFZJ80,HDJ80..VX199305-199501

RED MICA,26W ,3H4

main69220-60020-03iFJ80,FZJ80,HDJ80..VX199001-199501

DARK BLUISH GRAY M,183

main69220-60020-05iFZJ80,HDJ80..VX199208-199501

L. BEIGE M,4K1

main69220-60020-05iFJ80,HDJ80..VX199001-199208

L. BEIGE M,27P ,4K1

main69220-60020-08iFJ80,FZJ80,HDJ80..VX199001-199801

WHITE,045

main69220-60020-13iFZJ80,HDJ80..VX199305-199501

BLUISH SILVER M,26P

main69220-60020-13iFJ80,FZJ80,HDJ80..VX199001-199305

BLUISH SILVER M,20R ,26P

main69220-60020-B0iFZJ80,HDJ80..VX199501-199801

GRAY M OPAL,1A6

main69220-60020-B1iFZJ80,HDJ80..VX199501-199801

WARM GRAY PEARL ME,2AB

main69220-60020-C0iFZJ80,HDJ80..VX199608-199801

BLACK,202

main69220-60020-G0iFZJ80,HDJ80..VX199208-199501

DARK GREEN MICA,6M1

main69220-60020-G0iFZJ80,HDJ80..VX199501-199801

DARK GREEN MICA,2AC ,6M1

main69220-60020-J0iFZJ80,HDJ80..VX199501-199801

DK BLUE MM,8K0

69277BBEZEL, FRONT DOOR INSIDE HANDLE, RH

main69277-60010-03iFJ80,FZJ80,HDJ80,HZJ80199001-199801

BLUISH GRAY,TRIM1#

sub69277-60010

main69277-60010-06iFJ80,FZJ80,HDJ80,HZJ80199001-199501

SABLE,TRIM4#

sub69277-60010

main69277-60010-E0iFZJ80,HDJ80,HZJ80199501-199801

OAK,TRIM4#

sub69277-60010

69278BBEZEL, FRONT DOOR INSIDE HANDLE, LH

main69278-60010-03iFJ80,FZJ80,HDJ80,HZJ80199001-199801

BLUISH GRAY,TRIM1#

sub69278-60010

main69278-60010-06iFJ80,FZJ80,HDJ80,HZJ80199001-199501

SABLE,TRIM4#

sub69278-60010

main69278-60010-E0iFZJ80,HDJ80,HZJ80199501-199801

OAK,TRIM4#

sub69278-60010

69310LOCK ASSY, FRONT DOOR, RH

main69030-60010iHDJ80..RHD199001-199208

sub69030-60011

main69030-60011iFZJ80,HDJ80..GX199608-199801

W(*PW)

main69030-60011iFZJ80,HDJ80..RHD199208-199608

main69030-60030iFJ80,HDJ80..LHD..VX199001-199208

W(*PW)

sub69030-60031

main69030-60031iFZJ80,HDJ80,HZJ80..GX199208-199608

W(*PW)

sub69030-60011

main69030-60031iHZJ80..GX199608-199801

sub69030-60011

main69310-60050iFJ80,HDJ80,HZJ80..GX,STD199001-199208

sub69310-60051

main69310-60051iHZJ80..STD;FZJ80,HDJ80..GX,STD199208-199801

69320LOCK ASSY, FRONT DOOR, LH

main69040-60010iHDJ80..RHD199001-199208

sub69040-60011

main69040-60011iFZJ80,HDJ80..RHD199208-199608

sub69040-60031

main69040-60030iFJ80,HDJ80..LHD..VX199001-199208

W(*PW)

sub69040-60031

main69040-60031iFZJ80,HDJ80..LHD..VX199208-199801

W(*PW)

main69040-60031iHZJ80..GX;FZJ80,HDJ80..LHD..VX199501-199801

main69320-60050iFJ80,HDJ80,HZJ80..GX,STD199001-199208

sub69320-60051

main69320-60051iFZJ80,HDJ80,HZJ80..GX,STD199208-199801

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-87001iFJ80,FZJ80,HDJ80,HZJ80199001-199801

69711BLINK, FRONT DOOR LOCK REMOTE CONTROL, RH

main69711-60010iFJ80,HDJ80,HZJ80199001-199201

sub69711-60011

main69711-60011iFJ80,FZJ80,HDJ80,HZJ80199201-199801

69712ALINK, FRONT DOOR LOCK REMOTE CONTROL, LH

main69712-60010iFJ80,HDJ80,HZJ80199001-199201

sub69712-60011

main69712-60011iFJ80,FZJ80,HDJ80,HZJ80199201-199801

69749CLAMP, FRONT DOOR LOCK LINK

main69749-12010iFJ80,FZJ80,HDJ80,HZJ80199201-199801

69749ACLAMP, FRONT DOOR LOCK LINK, NO.1

main69749-12030iFJ80,FZJ80,HDJ80,HZJ80199001-199801

69750BLINK ASSY, FRONT DOOR INSIDE LOCKING, RH

main69750-60010iFJ80,FZJ80,HDJ80,HZJ80199001-199801

69759SSNAP, FRONT DOOR INSIDE HANDLE

main69759-14050iFJ80,FZJ80,HDJ80,HZJ80199001-199801

LH

main69759-24070iFJ80,FZJ80,HDJ80,HZJ80199001-199801

RH

69759VSILENCER, FRONT DOOR LOCK LINK

main69759-30021iFJ80,FZJ80,HDJ80,HZJ80199001-199801

69760ALINK ASSY, FRONT DOOR INSIDE LOCKING, LH

main69760-60010iFJ80,FZJ80,HDJ80,HZJ80199001-199801

8401

9010506082

main90105-06082

9015960081

main90159-60081

9015960542

main90159-60542

9015980031

main90159-80031

9018906125

main90189-06125

9352054010

main93520-54010

25 parts on this diagram · 1 diagram in section
