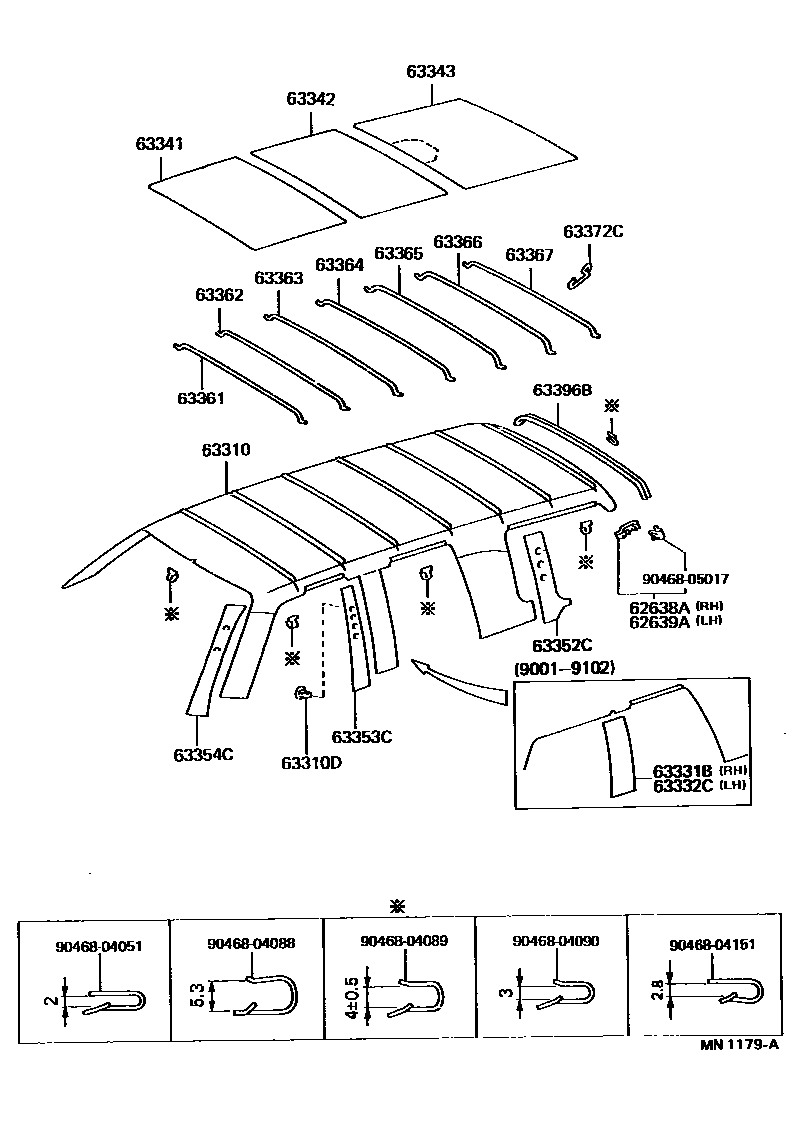

ROOF HEADLINING & SILENCER PAD

0001 1 0002 1MOON ROOF 0003 1 0004 1MOON ROOF

62638AGARNISH, QUARTER PILLAR, RH

main62638-60010-03iHZJ80..STD199001-199501

LIGHT GRAY,TRIM1#

main62638-60010-06iHZJ80..STD199001-199501

LIGHT SABLE,TRIM4#

main62638-60040-B0iFZJ80,HDJ80,HZJ80..STD199501-199801

LIGHT GRAY,TRIM1#,4#

62639AGARNISH, QUARTER PILLAR, LH

main62639-60010-03iHZJ80..STD199001-199501

LIGHT GRAY,TRIM1#

main62639-60010-06iHZJ80..STD199001-199501

LIGHT SABLE,TRIM4#

main62639-60020-B0iFZJ80,HDJ80,HZJ80..STD199501-199801

LIGHT GRAY,TRIM1#,4#

63310HEADLINING ASSY, ROOF

main63310-60010-03iFJ80,FZJ80,HDJ80..VX199001-199501

BLUISH GRAY,TRIM1#

main63310-60010-06iFJ80,FZJ80,HDJ80..VX199001-199501

SABLE,TRIM4#

main63310-60020-03iFJ80,FZJ80,HDJ80,HZJ80..GX,STD199001-199501

LIGHT GRAY,TRIM1#

main63310-60020-06iFJ80,FZJ80,HDJ80,HZJ80..GX,STD199001-199501

LIGHT SABLE,TRIM4#

main63310-60030-03iHDJ80..RHD199001-199407

W(MOON ROOF),BLUISH GRAY,TRIM1#

main63310-60030-06iHDJ80..RHD199001-199407

W(MOON ROOF),SABLE,TRIM4#

main63310-60050-03iFJ80,FZJ80,HDJ80..LHD..VX199001-199501

W(MOON ROOF),BLUISH GRAY,TRIM1#

main63310-60050-06iFJ80,FZJ80,HDJ80..LHD..VX199001-199501

W(MOON ROOF),SABLE,TRIM4#

main63310-60060-03iFJ80,FZJ80,HDJ80,HZJ80..GX199001-199501

W(MOON ROOF),LIGHT GRAY,TRIM1#

main63310-60060-06iFJ80,FZJ80,HDJ80,HZJ80..GX199001-199501

W(MOON ROOF),LIGHT SABLE,TRIM4#

main63311-60200-B0iFZJ80,HDJ80,HZJ80199501-199801

LIGHT GRAY,TRIM1#,4#

main63311-60320-B0iFZJ80,HDJ80..GX,VX199501-199801

W(MOON ROOF),LIGHT GRAY,TRIM1#,4#

63310DCLIP, ROOF HEADLINING

main90467-06070-B2iFZJ80,HDJ80..VX199501-199801

W(TRANSVERSE 3RD SEAT),LIGHT GRAY,TRIM1#,4#

sub90467-06070

main90467-06070-B2iFZJ80,HDJ80..VX199501-199801

LIGHT GRAY,TRIM1#,4#

sub90467-06070

main90467-06161-01iFZJ80,HDJ80,HZJ80199001-199501

BLACK,TRIM1#,4#

sub90467-06161

63331BHEADLINING, ROOF, CENTER RH

main63331-60010-03iFJ80,HDJ80..VX199001-199102

BLUISH GRAY,TRIM1#

main63331-60010-06iFJ80,HDJ80..VX199001-199102

SABLE,TRIM4#

main63331-60020-03iFJ80,HDJ80,HZJ80..GX,STD199001-199102

LIGHT GRAY,TRIM1#

main63331-60020-06iFJ80,HDJ80,HZJ80..GX,STD199001-199102

LIGHT SABLE,TRIM4#

63332CHEADLINING, ROOF, CENTER LH

main63332-60010-03iFJ80,HDJ80..VX199001-199102

BLUISH GRAY,TRIM1#

main63332-60010-06iFJ80,HDJ80..VX199001-199102

SABLE,TRIM4#

main63332-60020-03iFJ80,HDJ80,HZJ80..GX,STD199001-199102

LIGHT GRAY,TRIM1#

main63332-60020-06iFJ80,HDJ80,HZJ80..GX199001-199102

LIGHT SABLE,TRIM4#

63341PAD, ROOF SILENCER, NO.1

main63341-60051iFZJ80,HDJ80,HZJ80199502-199801

main63342-60010iFJ80,FZJ80,HDJ80,HZJ80199001-199502

sub63343-60010

63342PAD, ROOF SILENCER, NO.2

main63342-60010iFJ80,FZJ80,HDJ80,HZJ80199001-199801

sub63343-60010

63343PAD, ROOF SILENCER, NO.3

main63341-60051iFZJ80,HDJ80,HZJ80199501-199801

200X1100

main63343-60010iFJ80,FZJ80,HDJ80,HZJ80199001-199501

main63343-60032iFZJ80,HDJ80,HZJ80199501-199801

410X1100

sub63343-60010

63352CPAD, ROOF HEADLINING, END

main63352-60010iFJ80,FZJ80,HDJ80,HZJ80199001-199501

63353CPAD, ROOF HEADLINING, CENTER

main63353-60010iFJ80,FZJ80,HDJ80,HZJ80199001-199501

63354CPAD, ROOF HEADLINING FRONT SIDE

main63354-60010iFJ80,FZJ80,HDJ80,HZJ80199001-199501

63361SUPPORT, ROOF HEADLINING, NO.1

main63361-60010iFJ80,FZJ80,HDJ80,HZJ80199001-199501

L=1194,BROWN

main63361-60020iFJ80,FZJ80,HDJ80,HZJ80199001-199501

L=1197,NATURAL

main63361-60030iFJ80,FZJ80,HDJ80,HZJ80199001-199501

L=1200,DARK GREEN

main63361-60100iFJ80,FZJ80,HDJ80,HZJ80199001-199501

L=1203,ORANGE

63362SUPPORT, ROOF HEADLINING, NO.2

main63361-60010iFJ80,FZJ80,HDJ80,HZJ80199001-199501

L=1194,BROWN

main63361-60020iFJ80,FZJ80,HDJ80,HZJ80199001-199501

L=1197,NATURAL

main63361-60030iFJ80,FZJ80,HDJ80,HZJ80199001-199501

L=1200,DARK GREEN

main63361-60100iFJ80,FZJ80,HDJ80,HZJ80199001-199501

L=1203,ORANGE

63363SUPPORT, ROOF HEADLINING, NO.3

main63361-60010iFJ80,FZJ80,HDJ80,HZJ80199001-199501

L=1194,BROWN

main63361-60020iFJ80,FZJ80,HDJ80,HZJ80199001-199501

L=1197,NATURAL

main63361-60030iFJ80,FZJ80,HDJ80,HZJ80199001-199501

L=1200,DARK GREEN

main63361-60100iFJ80,FZJ80,HDJ80,HZJ80199001-199501

L=1203,ORANGE

63364SUPPORT, ROOF HEADLINING, NO.4

main63361-60010iFJ80,FZJ80,HDJ80,HZJ80199001-199501

L=1194,BROWN

main63361-60020iFJ80,FZJ80,HDJ80,HZJ80199001-199501

L=1197,NATURAL

main63361-60030iFJ80,FZJ80,HDJ80,HZJ80199001-199501

L=1200,DARK GREEN

main63361-60100iFJ80,FZJ80,HDJ80,HZJ80199001-199501

L=1203,ORANGE

63365SUPPORT, ROOF HEADLINING, NO.5

main63362-60010iFJ80,FZJ80,HDJ80,HZJ80199001-199501

L=1216,BLUE

main63362-60020iFJ80,FZJ80,HDJ80,HZJ80199001-199501

L=1219,RED

main63362-60030iFJ80,FZJ80,HDJ80,HZJ80199001-199501

L=1222,YELLOW

63366SUPPORT, ROOF HEADLINING, NO.6

main63362-60010iFJ80,FZJ80,HDJ80,HZJ80199001-199501

L=1216,BLUE

main63362-60020iFJ80,FZJ80,HDJ80,HZJ80199001-199501

L=1219,RED

main63362-60030iFJ80,FZJ80,HDJ80,HZJ80199001-199501

L=1222,YELLOW

63367SUPPORT, ROOF HEADLINING, NO.7

main63364-60010iFJ80,FZJ80,HDJ80,HZJ80199001-199501

L=1214,WHITE

main63364-60020iFJ80,FZJ80,HDJ80,HZJ80199001-199501

L=1217,BLACK

main63364-60030iFJ80,FZJ80,HDJ80,HZJ80199001-199501

L=1220,GREEN

63372CHOOK, ROOF HEADLINING SUPPORT

main63372-60010iFJ80,FZJ80,HDJ80,HZJ80199001-199501

63396BTRIM, ROOF HEADLINING, REAR CENTER

main63396-60010-03iFZJ80,HDJ80,HZJ80199001-199501

LIGHT GRAY,TRIM1#

main63396-60010-06iFJ80,FZJ80,HDJ80,HZJ80199001-199501

LIGHT SABLE,TRIM4#

main63396-60020-B0iFZJ80,HDJ80,HZJ80199501-199801

LIGHT GRAY,TRIM1#,4#

sub63396-60020

9046804051

main90468-04051

9046804088

main90468-04088

9046804089

main90468-04089

9046804090

main90468-04090

9046804151

main90468-04151

9046805017

main90468-05017

27 parts on this diagram · 4 diagrams in section
