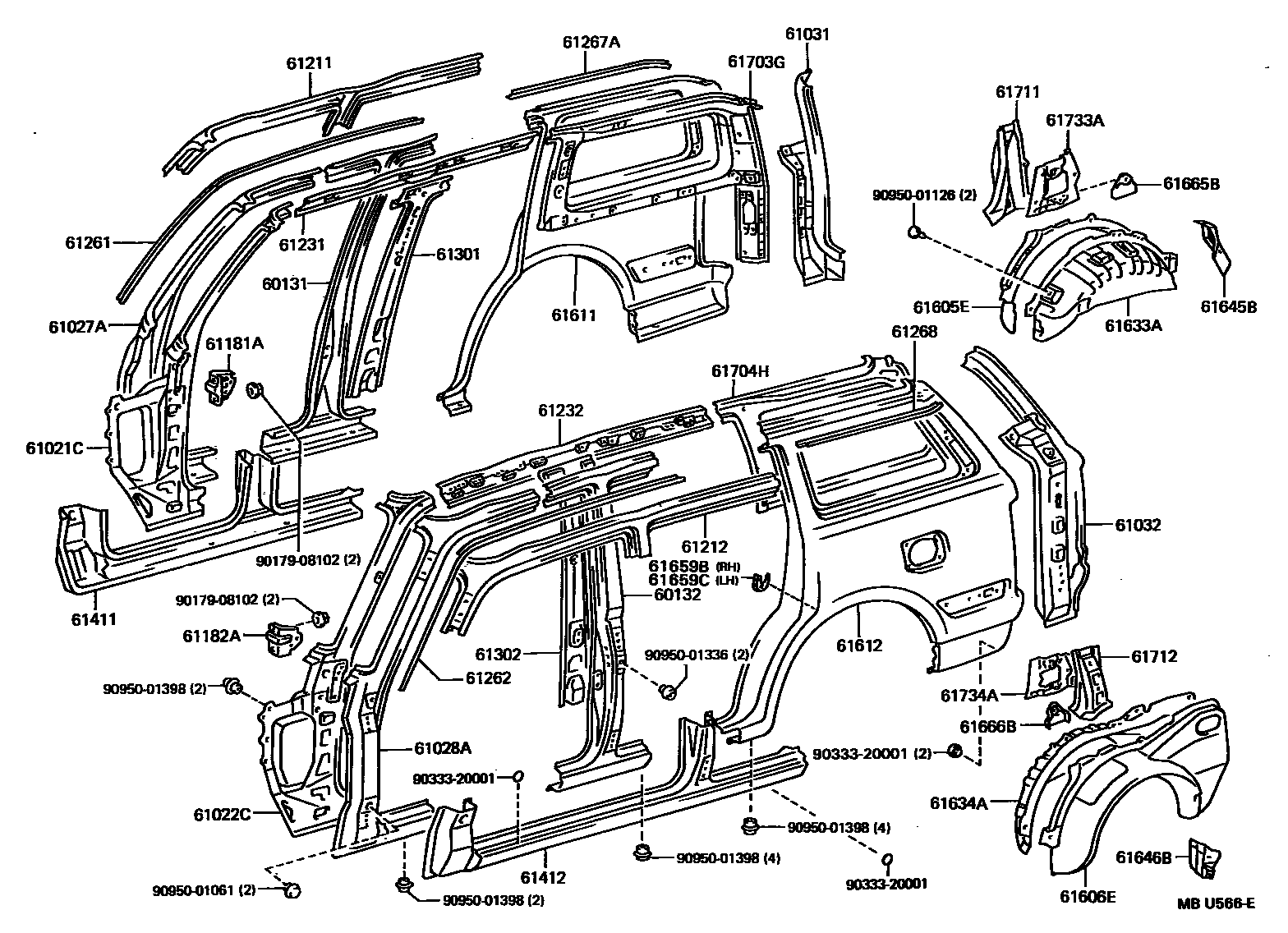

SIDE MEMBER

0001 1 0002 1 0003 1

60131PILLAR SUB-ASSY, CENTER BODY, NO.2 RH

main60131-60010iFJ80,FZJ80,HDJ80,HZJ80..GX,STD199001-199501

sub60131-60011

main60131-60011iHZJ80..STD;FZJ80,HDJ80..GX,STD199501-199511

sub60131-60021

sub90950-01336

main60131-60020iHZJ80..ATM;FJ80,HDJ80..GX;HZJ80..SOB..GX199001-199501

W(5 SPEAKER OR VOLTAGE CONVERTER OR *RCM)

sub60131-60021

main60131-60020iHZJ80..STD199201-199501

W(*RCM)

sub60131-60021

main60131-60021iFZJ80,HDJ80..STD199501-199511

W(*RCM)

sub60131-60022

main60131-60021iHZJ80..GX;FZJ80,HDJ80..VX199501-199511

W(5 SPEAKER OR VOLTAGE CONVERTER OR *RCM)

sub60131-60022

main60131-60021iFZJ80,HDJ80,HZJ80199511-199601

sub60131-60022

main60131-60022iFZJ80,HDJ80,HZJ80199601-199801

60132PILLAR SUB-ASSY, CENTER BODY, NO.2 LH

main60132-60010iFJ80,FZJ80,HDJ80,HZJ80..GX,STD199001-199501

sub60132-60011

main60132-60011iHZJ80..STD;FZJ80,HDJ80..GX,STD199501-199511

sub60132-60021

sub90950-01336

main60132-60020iHZJ80..STD199201-199501

W(5 SPEAKER OR VOLTAGE CONVERTER OR *RCM)

sub60132-60021

main60132-60020iFJ80,HDJ80,HZJ80..GX199001-199201

W(*PW OR 5 SPEAKER)

sub60132-60021

main60132-60020iFJ80,FZJ80,HDJ80..VX199001-199501

sub60132-60021

main60132-60020iHZJ80..STD199201-199501

W(*RCM)

sub60132-60021

main60132-60021iFZJ80,HDJ80..STD199501-199511

W(*RCM)

sub60132-60022

main60132-60021iFZJ80,HDJ80,HZJ80199511-199601

sub60132-60022

main60132-60021iFZJ80,HDJ80..GX199501-199511

W(5 SPEAKER OR VOLTAGE CONVERTER OR *RCM)

sub60132-60022

main60132-60022iFZJ80,HDJ80,HZJ80199601-199801

61021CPILLAR SUB-ASSY, FRONT BODY, RH

main61021-60010iHDJ80..RHD199001-199208

sub61021-60011

main61021-60011iHDJ80..RHD199208-199407

sub61021-60012

main61021-60012iFZJ80,HDJ80..RHD199501-199801

main61021-60030iFJ80,HDJ80,HZJ80..LHD199001-199208

sub61021-60031

main61021-60031iFZJ80,HDJ80,HZJ80..LHD199208-199501

sub61021-60032

main61021-60032iFZJ80,HDJ80,HZJ80..LHD199501-199801

61022CPILLAR SUB-ASSY, FRONT BODY, LH

main61022-60020iFJ80,HDJ80,HZJ80..LHD199001-199208

sub61022-60021

main61022-60021iFZJ80,HDJ80,HZJ80..LHD199208-199408

sub61022-60022

main61022-60022iFZJ80,HDJ80,HZJ80..LHD199501-199801

main61022-60040iHDJ80..RHD199001-199208

sub61022-60041

main61022-60041iHDJ80..RHD199208-199407

sub61022-60042

main61022-60042iFZJ80,HDJ80..RHD199501-199801

61027APILLAR SUB-ASSY, FRONT BODY, OUTER RH

main61027-60090iFJ80,FZJ80,HDJ80,HZJ80..GX,STD199001-199501

sub61027-60091

main61027-60091iHZJ80..STD;FZJ80,HDJ80..GX,STD199501-199511

sub61027-60101

sub90950-01061

main61027-60100iFZJ80,HDJ80,HZJ80..GX199001-199501

W(5 SPEAKER OR VOLTAGE CONVERTER OR *RCM)

sub61027-60101

main61027-60100iHZJ80..STD199201-199501

W(*RCM)

sub61027-60101

main61027-60101iFZJ80,HDJ80..STD199501-199511

W(*RCM)

sub61027-60102

main61027-60101iHZJ80..GX;FZJ80,HDJ80..VX199501-199511

W(5 SPEAKER OR VOLTAGE CONVERTER OR *RCM)

sub61027-60102

main61027-60101iFZJ80,HDJ80,HZJ80199511-199601

sub61027-60102

main61027-60102iFZJ80,HDJ80,HZJ80199601-199801

61028APILLAR SUB-ASSY, FRONT BODY, OUTER LH

main61028-60070iFJ80,FZJ80,HDJ80,HZJ80..GX,STD199001-199501

sub61028-60071

main61028-60071iHZJ80..STD;FZJ80,HDJ80..GX,STD199501-199511

sub61028-60081

sub90950-01061

main61028-60080iFJ80,FZJ80,HDJ80..VX199001-199501

sub61028-60081

main61028-60080iHZJ80..STD199201-199501

W(*RCM)

sub61028-60081

main61028-60080iHZJ80..STD199201-199501

W(5 SPEAKER OR *PW OR *RCM)

sub61028-60081

main61028-60080iFJ80,HDJ80,HZJ80..GX199001-199201

W(VOLVAGE CONVER OR 5 SPEAKER)

sub61028-60081

main61028-60081iFZJ80,HDJ80,HZJ80..STD199501-199511

W(*RCM)

sub61028-60082

main61028-60081iHZJ80..GX;FZJ80,HDJ80..VX199501-199511

W(5 SPEAKER OR *PW OR *RCM)

sub61028-60082

main61028-60081iFZJ80,HDJ80,HZJ80199511-199601

sub61028-60082

main61028-60082iFZJ80,HDJ80,HZJ80199601-199801

61031EXTENSION SUB-ASSY, QUARTER PANEL, REAR LOWER RH

main61031-60010iFJ80,FZJ80,HDJ80,HZJ80..LUB199001-199501

sub61031-60011

main61031-60011iFZJ80,HDJ80..LUB199501-199801

main61031-60030iHZJ80..STD199001-199208

FINLAND SPEC

sub61031-60031

main61031-60040iHZJ80..STD199001-199208

FINLAND SPEC & W(*RWD)

sub61031-60041

main61031-60040iFJ80,FZJ80,HDJ80,HZJ80..SOB199001-199501

sub61031-60041

main61031-60041iFZJ80,HDJ80,HZJ80..SOB199501-199801

61032EXTENSION SUB-ASSY, QUARTER PANEL, REAR LOWER LH

main61032-60010iFJ80,FZJ80,HDJ80,HZJ80..LUB199001-199501

sub61032-60011

main61032-60011iFZJ80,HDJ80..LUB199501-199801

main61032-60020iFJ80,FZJ80,HDJ80,HZJ80..SOB199001-199501

sub61032-60021

main61032-60021iFZJ80,HDJ80,HZJ80..SOB199501-199801

61181ABRACKET, INSTRUMENT SIDE, RH

main61181-60010iFJ80,FZJ80,HDJ80,HZJ80..LHD199001-199801

61182APILLAR, FRONT BODY, INNER LH

main61182-60010iFZJ80,HDJ80..RHD199001-199801

61211RAIL, ROOF SIDE, OUTER RH

main61211-60020iFJ80,HDJ80,HZJ80199001-199801

61212RAIL, ROOF SIDE, OUTER LH

main61212-60020iFJ80,FZJ80,HDJ80,HZJ80199001-199801

61231RAIL, ROOF SIDE, INNER RH

main61231-60010iFJ80,FZJ80,HDJ80,HZJ80199001-199501

sub61231-60011

main61231-60011iFZJ80,HDJ80,HZJ80199501-199507

sub61231-60012

main61231-60012iFZJ80,HDJ80,HZJ80199507-199801

61232RAIL, ROOF SIDE, INNER LH

main61232-60010iFJ80,FZJ80,HDJ80,HZJ80199001-199501

sub61232-60011

main61232-60011iFZJ80,HDJ80,HZJ80199501-199507

sub61232-60012

main61232-60012iFZJ80,HDJ80,HZJ80199507-199801

61261CHANNEL, ROOF DRIP, RH

main61261-60010iFJ80,FZJ80,HDJ80,HZJ80199001-199801

61262CHANNEL, ROOF DRIP, LH

main61262-60010iFJ80,FZJ80,HDJ80,HZJ80199001-199801

61267ACHANNEL, ROOF DRIP SIDE, REAR RH

main61207-60010iFJ80,FZJ80,HDJ80,HZJ80199001-199501

main61267-60010iFZJ80,HDJ80,HZJ80199501-199801

61268CHANNEL, ROOF DRIP SIDE, REAR LH

main61208-60010iFJ80,FZJ80,HDJ80,HZJ80199001-199501

main61268-60010iFZJ80,HDJ80,HZJ80199501-199801

61301PILLAR SUB-ASSY, CENTER BODY, RH

main61301-60060iHDJ80,HZJ80..MTM..(GX,STD)199001-199208

FINLAND SPEC

sub61301-60080

main61301-60070iFJ80,FZJ80,HDJ80,HZJ80199001-199501

sub61301-60071

main61301-60071iFZJ80,HDJ80,HZJ80199501-199507

sub61301-60072

main61301-60072iFZJ80,HDJ80,HZJ80199507-199801

main61301-60110iHZJ80199501-199507

W/O(ADJUSTABLE SEAT BELT ANCHOR)

sub61301-60111

main61301-60111iHZJ80199507-199801

W/O(ADJUSTABLE SEAT BELT ANCHOR)

61302PILLAR SUB-ASSY, CENTER BODY, LH

main61302-60080iHDJ80,HZJ80..MTM..(GX,STD)199001-199208

FINLAND SPEC

sub61302-60100

main61302-60090iFJ80,FZJ80,HDJ80,HZJ80199001-199501

sub61302-60091

main61302-60091iFZJ80,HDJ80,HZJ80199501-199507

sub61302-60092

main61302-60092iFZJ80,HDJ80,HZJ80199507-199801

main61302-60150iHZJ80199501-199507

W/O(ADJUSTABLE SEAT BELT ANCHOR)

sub61302-60151

main61302-60151iHZJ80199507-199801

W/O(ADJUSTABLE SEAT BELT ANCHOR)

61411PANEL, ROCKER, OUTER RH

main61411-60020iFJ80,HDJ80,HZJ80199001-199601

sub61411-60021

main61411-60021iFZJ80,HDJ80,HZJ80199601-199801

61412PANEL, ROCKER, OUTER LH

main61412-60020iFJ80,FZJ80,HDJ80,HZJ80199001-199601

sub61412-60021

main61412-60021iFZJ80,HDJ80,HZJ80199601-199801

61605EPANEL, QUARTER, RH

main61605-60020iFJ80,FZJ80,HDJ80,HZJ80199001-199801

61606EPANEL, QUARTER, LH

main61606-60020iFJ80,FZJ80,HDJ80,HZJ80199001-199801

61611PANEL, QUARTER, RH

main60161-60010iFJ80,HDJ80,HZJ80..GX199001-199501

sub60161-60011

main60161-60011iFZJ80,HDJ80..GX199501-199801

main60161-60020iFJ80,HDJ80,HZJ80..GX199001-199501

W(*SPM)

sub60161-60021

main60161-60021iFZJ80,HDJ80..GX199501-199801

W(*SPM)

main60161-60030iHDJ80;FJ80,HZJ80..GX199001-199208

W(OVER FENDER & MUD GUARD)

main60161-60030iHDJ80..VX199201-199208

W(*OF & *SPM)

main60161-60031iHDJ80..GX199208-199501

W(*OF & *SPM)

main60161-60031iFZJ80199208-199501

W(OVER FENDER & MUD GUARD)

main60161-60032iFZJ80,HDJ80..VX199501-199801

W(OVER FENDER & MUD GUARD)

main60161-60032iFZJ80,HDJ80..GX199501-199801

W(*OF & *SPM)

main60161-60080iHZJ80..STD199001-199501

sub60161-60081

main60161-60081iFZJ80,HDJ80,HZJ80..STD199501-199801

61612PANEL, QUARTER, LH

main60162-60010iFJ80,HDJ80,HZJ80..GX199001-199501

sub60162-60011

main60162-60011iFZJ80,HDJ80..GX199501-199801

main60162-60020iFJ80,HDJ80,HZJ80..GX199001-199501

W(*SPM)

sub60162-60021

main60162-60021iHZJ80..GX;FZJ80,HDJ80..VX199501-199801

W(*SPM)

main60162-60030iFJ80,HDJ80,HZJ80..GX199001-199208

W(OVER FENDER & MUD GUARD)

main60162-60030iFJ80,HDJ80..VX199201-199208

W(*OF & *SPM)

main60162-60031iHDJ80..VX199208-199501

W(OVER FENDER & MUD GUARD)

main60162-60031iFZJ80199208-199501

W(*OF & *SPM)

main60162-60032iFZJ80,HDJ80..VX199501-199801

W(OVER FENDER & MUD GUARD)

main60162-60032iFZJ80,HDJ80..GX199501-199801

W(*OF & *SPM)

main60162-60070iHZJ80..STD199001-199501

sub60162-60071

main60162-60071iFZJ80,HDJ80,HZJ80..STD199501-199801

61633APANEL, QUARTER WHEEL HOUSE, INNER RH

main61607-60020iFJ80,FZJ80,HDJ80,HZJ80199001-199801

main61607-60030iHZJ80..SOB199108-199501

*EX-USSR & W(3RD PARALLEL SEAT)

main61607-60030iHZJ80199501-199801

W(3RD PARALLEL SEAT)

main61607-60040iHZJ80;FZJ80,HDJ80..GX199001-199801

W(REAR TRANSVERSE SEAT)

main61607-60040iHZJ80..STD199108-199401

*EX-USSR & W(REAR TRANSVERSE SEAT)

61634APANEL, QUARTER WHEEL HOUSE, INNER LH

main61608-60070iFJ80,FZJ80,HDJ80,HZJ80199001-199801

main61608-60080iFJ80,FZJ80,HDJ80,HZJ80..GX199001-199801

W(REAR TRANSVERSE SEAT)

main61608-60090iHZJ80199501-199801

W(3RD PARALLEL SEAT)

main61608-60090iHZJ80..SOB199108-199501

*EX-USSR & W(3RD PARALLEL SEAT)

main61608-60100iHZJ80..SOB199108-199501

*EX-USSR & W(REAR TRANSVERSE SEAT)

sub61608-60080

sub90950-01126

main61608-60100iHZJ80199501-199801

W(REAR TRANSVERSE SEAT)

sub61608-60080

sub90950-01126

61645BGUSSET, QUARTER WHEEL HOUSE, REAR RH

main61645-60020iFJ80,FZJ80,HDJ80,HZJ80199001-199801

61646BGUSSET, QUARTER WHEEL HOUSE, REAR LH

main61646-60030iFJ80,FZJ80,HDJ80,HZJ80199001-199501

sub61646-60031

main61646-60031iFZJ80,HDJ80,HZJ80199501-199801

61659BRETAINER, REAR DOOR OPEN SWITCH SET, RH

main61659-60010iFJ80,FZJ80,HDJ80,HZJ80199001-199801

61659CRETAINER, REAR DOOR OPEN SWITCH SET, LH

main61659-60010iFJ80,FZJ80,HDJ80,HZJ80199001-199801

61665BREINFORCE, SEAT BELT ANCHORAGE TO QUARTER WHEEL HOUSE, RH

main61665-60010iFJ80,FZJ80,HDJ80,HZJ80199001-199801

61666BREINFORCE, SEAT BELT ANCHORAGE TO QUARTER WHEEL HOUSE, LH

main61665-60010iFJ80,FZJ80,HDJ80,HZJ80199001-199801

61703GPANEL SUB-ASSY, QUARTER, INNER RH

main61703-60010iFJ80,FZJ80,HDJ80,HZJ80199001-199501

sub61703-60011

main61703-60010iHZJ80..SOB..GX199108-199409

*EX-USSR & W(REAR TRANSVERSE SEAT)

sub61703-60011

main61703-60011iFZJ80,HDJ80,HZJ80..STD199409-199801

main61703-60020iHDJ80,HZJ80..LUB..GX199001-199501

W(REAR SEAT(SEPARATED,RECRINING,3RD TRANSVERSE SEAT))

sub61703-60110

main61703-60020iHDJ80..VX199001-199501

W(REAR SEAT(SEPARATED,FIXED,3RD TRANSVERS SEAT))

sub61703-60110

main61703-60030iHZJ80..SOB199108-199409

*EX-USSR & W(3RD PARALLEL SEAT)

sub61703-60031

main61703-60031iHZJ80..STD199409-199801

W(3RD PARALLEL SEAT)

main61703-60060iFJ80,HDJ80,HZJ80..GX199001-199011

W(TONNEAU COVER)

sub61703-60061

sub64931-60011

sub93230-56035

main61703-60061iHDJ80,HZJ80..LUB..GX199011-199501

W(TONNEAU COVER)

sub61703-60140

main61703-60090iFJ80,HDJ80,HZJ80..GX199001-199011

W(TONNEAU COVER & 3RD TRANSVERS SEAT)

sub61703-60091

sub64931-60011

sub93230-56035

main61703-60091iFJ80,FZJ80,HDJ80,HZJ80..GX199011-199501

W(TONNEAU COVER & 3RD TRANSVERS SEAT)

sub61703-60150

main61703-60100iHZJ80..SOB..GX;FZJ80,HDJ80..(GX,VX)..(EFI,TD4)199409-199801

main61703-60110iFZJ80,HDJ80..VX..(EFI,TD4)199409-199801

W(REAR SEAT(SEPARATED,RECRINING,3RD TRANSVERSE SEAT))

main61703-60110iFZJ80,HDJ80..VX..(EFI,TD4)199409-199801

W(REAR SEAT(SEPARATED,FIXED,3RD TRANSVERS SEAT))

main61703-60120iHZJ80..SOB..GX199409-199801

W(3RD PARALLEL SEAT)

main61703-60140iFZJ80,HDJ80..GX..(EFI,TD4)199409-199801

W(TONNEAU COVER)

sub61703-60150

sub90950-01126

main61703-60150iFZJ80,HDJ80..GX..(EFI,TD4)199409-199801

W(TONNEAU COVER & 3RD TRANSVERS SEAT)

61704HPANEL SUB-ASSY, QUARTER, INNER LH

main61704-60010iHDJ80,HZJ80..LUB199001-199501

sub61704-60011

main61704-60010iHZJ80..SOB..GX199108-199401

*EX-USSR & W(3RD TRANSVERSE SEAT)

sub61704-60011

main61704-60010iHZJ80..SOB199401-199409

*EX-USSR & W(REAR TRANSVERSE SEAT)

sub61704-60011

main61704-60011iFZJ80,HDJ80,HZJ80..STD199409-199801

main61704-60020iFJ80,FZJ80,HDJ80..VX199001-199501

W(REAR SEAT(SEPARATED,RECRINING,3RD TRANSVERSE SEAT)

sub61704-60100

main61704-60020iHDJ80,HZJ80..LUB..GX199001-199501

W(REAR SEAT(SEPARATED,FIXED,3RD TRANSVERS SEAT))

sub61704-60100

main61704-60031iHZJ80..SOB199108-199409

*EX-USSR & W(3RD PARALLEL SEAT)

sub61704-60032

main61704-60032iHZJ80..STD199409-199801

W(3RD PARALLEL SEAT)

main61704-60050iFJ80,HDJ80,HZJ80..GX199001-199011

W(TONNEAU COVER)

sub61704-60051

sub64932-60011

sub93230-56035

main61704-60051iFJ80,FZJ80,HDJ80,HZJ80..GX199011-199501

W(TONNEAU COVER)

sub61704-60120

main61704-60080iFJ80,HDJ80,HZJ80..GX199001-199011

W(TONNEAU COVER & 3RD TRANSVERS SEAT)

sub61704-60081

sub64932-60011

sub93230-56035

main61704-60081iHDJ80,HZJ80..LUB..GX199011-199501

W(TONNEAU COVER & 3RD TRANSVERS SEAT)

sub61704-60130

main61704-60090iHZJ80..SOB..GX;FZJ80,HDJ80..(GX,VX)..(EFI,TD4)199409-199801

main61704-60100iFZJ80,HDJ80..GX..(EFI,TD4)199409-199801

W(REAR SEAT(SEPARATED,FIXED,3RD TRANSVERS SEAT))

main61704-60100iFZJ80,HDJ80..GX..(EFI,TD4)199409-199801

W(REAR SEAT(SEPARATED,RECRINING,3RD TRANSVERSE SEAT)

main61704-60110iHZJ80..SOB..GX199409-199801

W(3RD PARALLEL SEAT)

main61704-60120iFZJ80,HDJ80..GX..(EFI,TD4)199409-199801

W(TONNEAU COVER)

sub61704-60130

sub90950-01126

main61704-60130iFZJ80,HDJ80..GX..(EFI,TD4)199409-199801

W(TONNEAU COVER & 3RD TRANSVERS SEAT)

61711PANEL, ROOF SIDE, OUTER RH

main61711-60010iFJ80,FZJ80,HDJ80,HZJ80199001-199801

61712PANEL, ROOF SIDE, OUTER LH

main61712-60010iFJ80,FZJ80,HDJ80,HZJ80199001-199801

61733APANEL, ROOF SIDE, INNER FRONT RH

main61733-60010iFJ80,FZJ80,HDJ80,HZJ80199001-199801

61734APANEL, ROOF SIDE, INNER FRONT LH

main61734-60010iFJ80,FZJ80,HDJ80,HZJ80199001-199801

9017908102

main90179-08102

9033320001

main90333-20001

9095001061

main90950-01061

9095001126

main90950-01126

9095001336

main90950-01336

9095001398

main90950-01398

46 parts on this diagram · 3 diagrams in section
