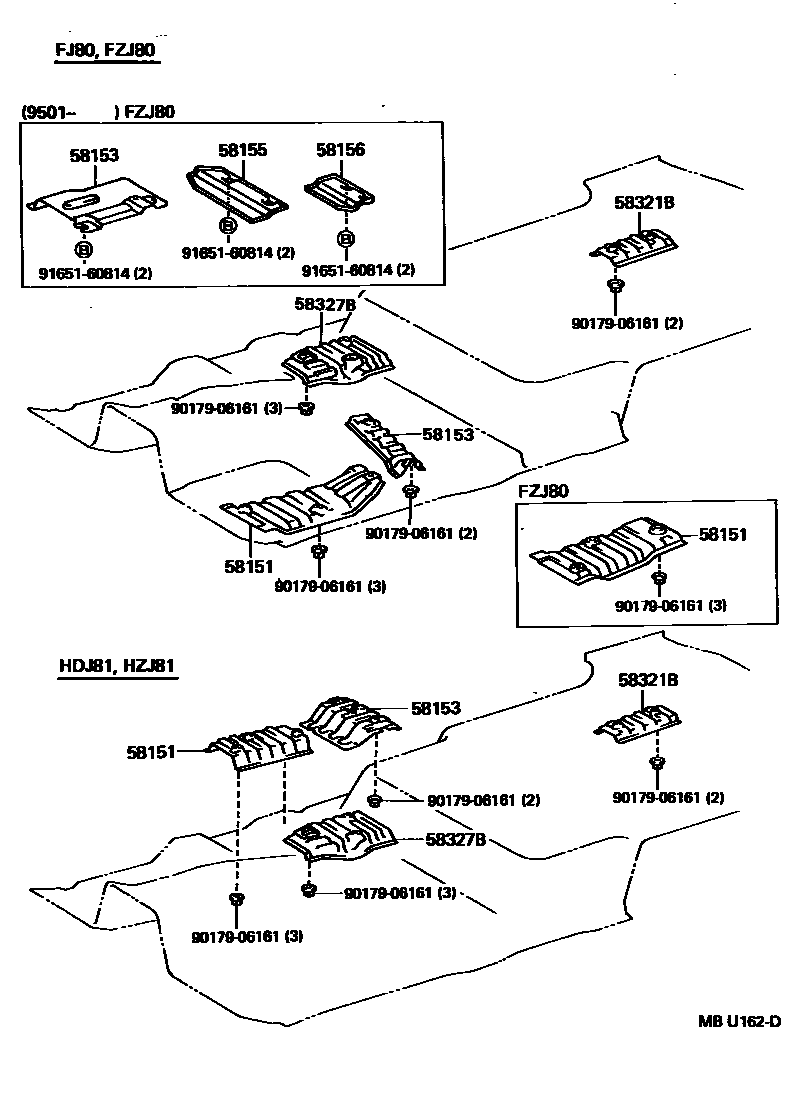

FLOOR INSULATOR

58151INSULATOR, FRONT FLOOR HEAT, NO.1

main58041-60010iFJ80¥10,900199001-199208

main58041-60020iFZJ80¥11,400199208-199801

main58151-60010iHDJ80,HZJ80¥3,610199001-199801

58153INSULATOR, FRONT FLOOR HEAT, NO.2

main58042-60010iFJ80¥3,090199001-199208

main58153-60010iHDJ80,HZJ80¥3,200199001-199801

main58153-60030iFZJ80¥6,400199208-199501

main58153-60040iFZJ80¥1,790199501-199801

58155INSULATOR, FRONT FLOOR HEAT, NO.3

main58155-60020iFZJ80¥3,410199501-199801

main58155-60030iFZJ80..GX,VX¥2,120199501-199801

W(SIDE STEP)

main58155-60030iFZJ80..STD¥2,120199501-199801

W(SIDE STEP) OR W(*OF)

58156INSULATOR, FRONT FLOOR HEAT, NO.4

main58156-60010iFZJ80¥1,490199501-199801

58321BINSULATOR, REAR FLOOR HEAT, NO.1

main58321-60010iFJ80,FZJ80,HDJ80,HZJ80¥2,700199001-199801

58327BINSULATOR, MAIN MUFFLER HEAT

main58043-60010iFJ80,FZJ80¥11,600199001-199801

main58327-60010iHDJ80,HZJ80¥6,200199001-199801

9017906161

main90179-06161¥70

9165160814

main91651-60814¥130

8 parts on this diagram · 1 diagram in section
