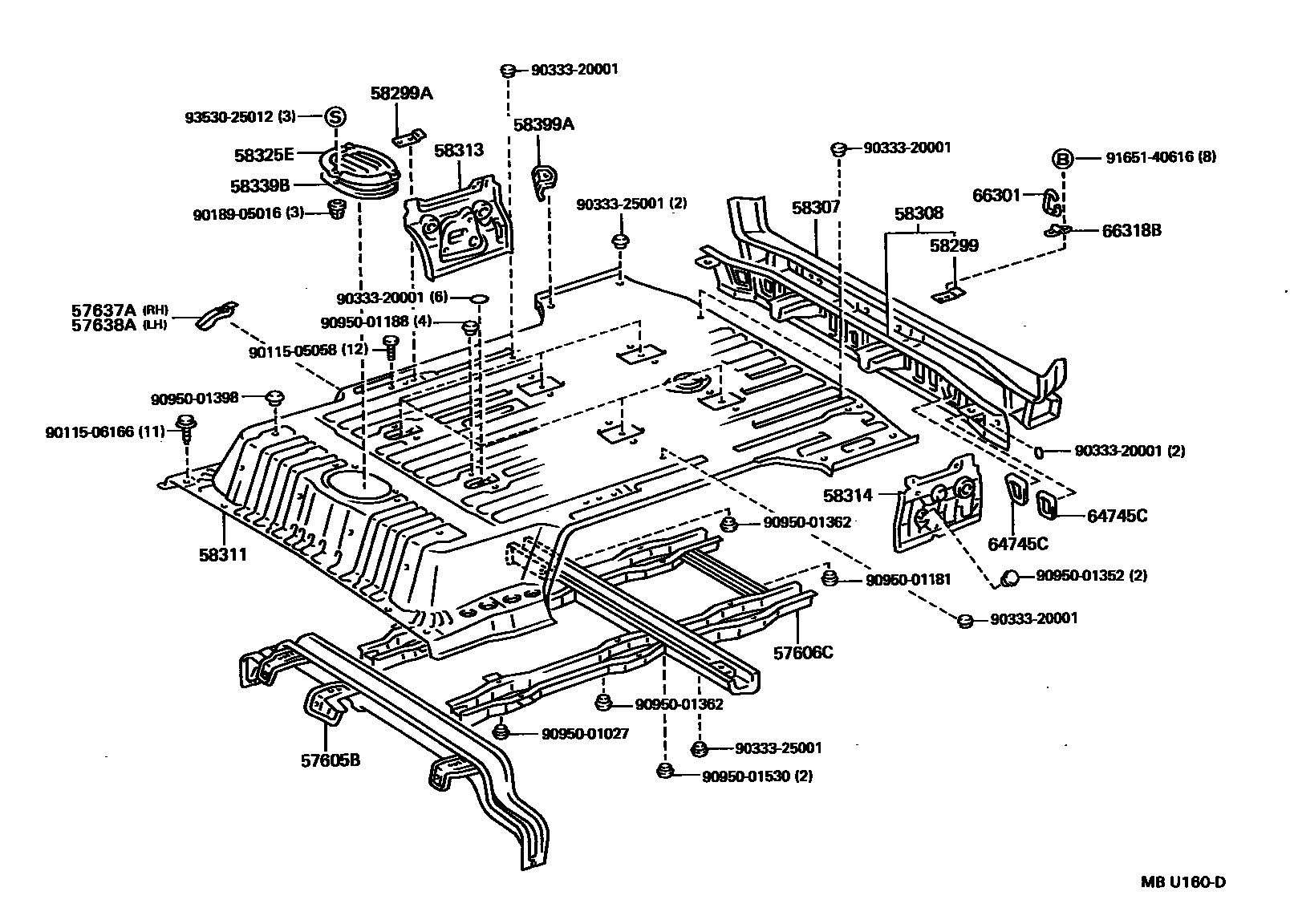

REAR FLOOR PANEL & REAR FLOOR MEMBER

57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1

main57605-60050iHZJ80..SOB..GX199108-199208

*EX-USSR & W(MOON ROOF)

main57605-60050iHZJ80..STD199108-199208

*EX-USSR

main57605-60050iFJ80,HDJ80,HZJ80199001-199208

main57605-60051iFZJ80,HDJ80,HZJ80199208-199801

main57605-60060iFJ80,HDJ80,HZJ80..GX,STD199001-199208

W/O REAR SEAT

57606CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2

main57606-60060iFJ80,HDJ80,HZJ80199001-199208

sub57606-60061

main57606-60061iHZJ80;FZJ80,HDJ80..GX,VX199208-199801

sub57606-60041

57637AREINFORCEMENT, REAR FLOOR SIDE, RH

main57637-60010iFZJ80,HDJ80,HZJ80199308-199801

57638AREINFORCEMENT, REAR FLOOR SIDE, LH

main57638-60010iFZJ80,HDJ80,HZJ80199308-199801

58299RETAINER, FLOOR ROPE HOOK

main58299-60010iFJ80,FZJ80,HDJ80,HZJ80199001-199801

58299ARETAINER, FLOOR ROPE HOOK

main58299-60010iFJ80,FZJ80,HDJ80,HZJ80199001-199801

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-60010iFJ80,FZJ80,HDJ80,HZJ80..LUB199001-199501

sub58307-60011

main58307-60011iFZJ80,HDJ80..LUB199501-199801

main58307-60020iFJ80,FZJ80,HDJ80,HZJ80..SOB199001-199501

sub58307-60021

main58307-60021iFZJ80,HDJ80,HZJ80..SOB199501-199801

58308PANEL SUB-ASSY, BODY LOWER BACK, INNER

main58308-60020iFJ80,HDJ80,HZJ80..LUB199001-199208

sub58308-60021

main58308-60020iFZJ80,HDJ80..VX199208-199407

W(REAR SEAT(FIXED,3RD TRANSVER SEAT))

sub58308-60021

main58308-60021iFZJ80,HDJ80,HZJ80..LUB199208-199801

main58308-60080iFZJ80,HZJ80..SOB..GX199208-199401

*EX-USSR & W(REAR SEAT(FIXED,3RD TRANSVERS SEAT))

sub58308-60081

main58308-60080iFZJ80,HZJ80..SOB..GX199208-199401

W(REAR SEAT(FIXED,3RD TRANSVER SEAT))

sub58308-60081

main58308-60080iFJ80,HDJ80,HZJ80..SOB199001-199208

sub58308-60081

main58308-60081iFZJ80,HDJ80,HZJ80..SOB199208-199801

main58308-60081iHZJ80..SOB199208-199401

*EX-USSR & W(REAR SEAT(FIXED,3RD PARALLEL SEAT)

58311PAN, REAR FLOOR

main58311-60250iHZJ80..SOB199208-199501

*EX-USSR SPEC

main58311-60250iFZJ80,HDJ80,HZJ80199001-199801

main58311-60250iHZJ80..STD199108-199208

*EX-USSR

main58311-60260iHZJ80;FZJ80,HDJ80..GX,VX199001-199801

W(REAR TRANSVERSE SEAT)

58313PANEL, REAR FLOOR SIDE, RH

main58313-60030iHZJ80..SOB..GX199108-199208

*EX-USSR

sub58313-60040

sub90950-01352

main58313-60030iFJ80,HDJ80,HZJ80199001-199208

sub58313-60040

sub90950-01352

main58313-60040iFZJ80,HDJ80,HZJ80199208-199801

main58313-60040iFJ80,HDJ80,HZJ80..GX,VX199001-199208

W(*MR)

58314PANEL, REAR FLOOR SIDE, LH

main58303-60010iFJ80,HDJ80,HZJ80199001-199208

sub58303-60020

sub90950-01352

main58303-60010iHZJ80..SOB..GX199108-199208

*EX-USSR

sub58303-60020

sub90950-01352

main58303-60020iFJ80,HDJ80,HZJ80..GX,VX199001-199208

W(*MR)

main58303-60020iFZJ80,HDJ80,HZJ80199208-199801

58325ECOVER, REAR FLOOR SERVICE HOLE

main58325-60010iFJ80,FZJ80,HDJ80,HZJ80199001-199801

main58325-60010iFZJ80,HDJ80,HZJ80199208-199801

MAIN TANK

58339BPACKING, REAR FLOOR SERVICE HOLE

main58339-60010iFJ80,FZJ80,HDJ80,HZJ80199001-199801

main58339-60010iFZJ80,HDJ80,HZJ80199208-199801

MAIN TANK

58399ARETAINER, NO.3 SEAT BELT ANCHOR TO FLOOR

main58399-60010iFJ80,FZJ80,HDJ80,HZJ80..GX,VX199001-199801

64745CCOVER, LOWER BACK SERVICE HOLE, RH

main64745-60010iFJ80,FZJ80,HDJ80,HZJ80199001-199801

66301HOOK SUB-ASSY, ROPE

main66301-90A00iFZJ80,HDJ80,HZJ80199001-199801

66318BBAND, ROPE HOOK

main66318-90A00iFZJ80,HDJ80,HZJ80199001-199801

9011505058

main90115-05058

9011506166

main90115-06166

9018905016

main90189-05016

9033320001

main90333-20001

9033325001

main90333-25001

9095001027

main90950-01027

9095001181

main90950-01181

9095001188

main90950-01188

9095001352

main90950-01352

9095001362

main90950-01362

9095001398

main90950-01398

9095001530

main90950-01530

9165140616

main91651-40616

9353025012

main93530-25012

31 parts on this diagram · 1 diagram in section
