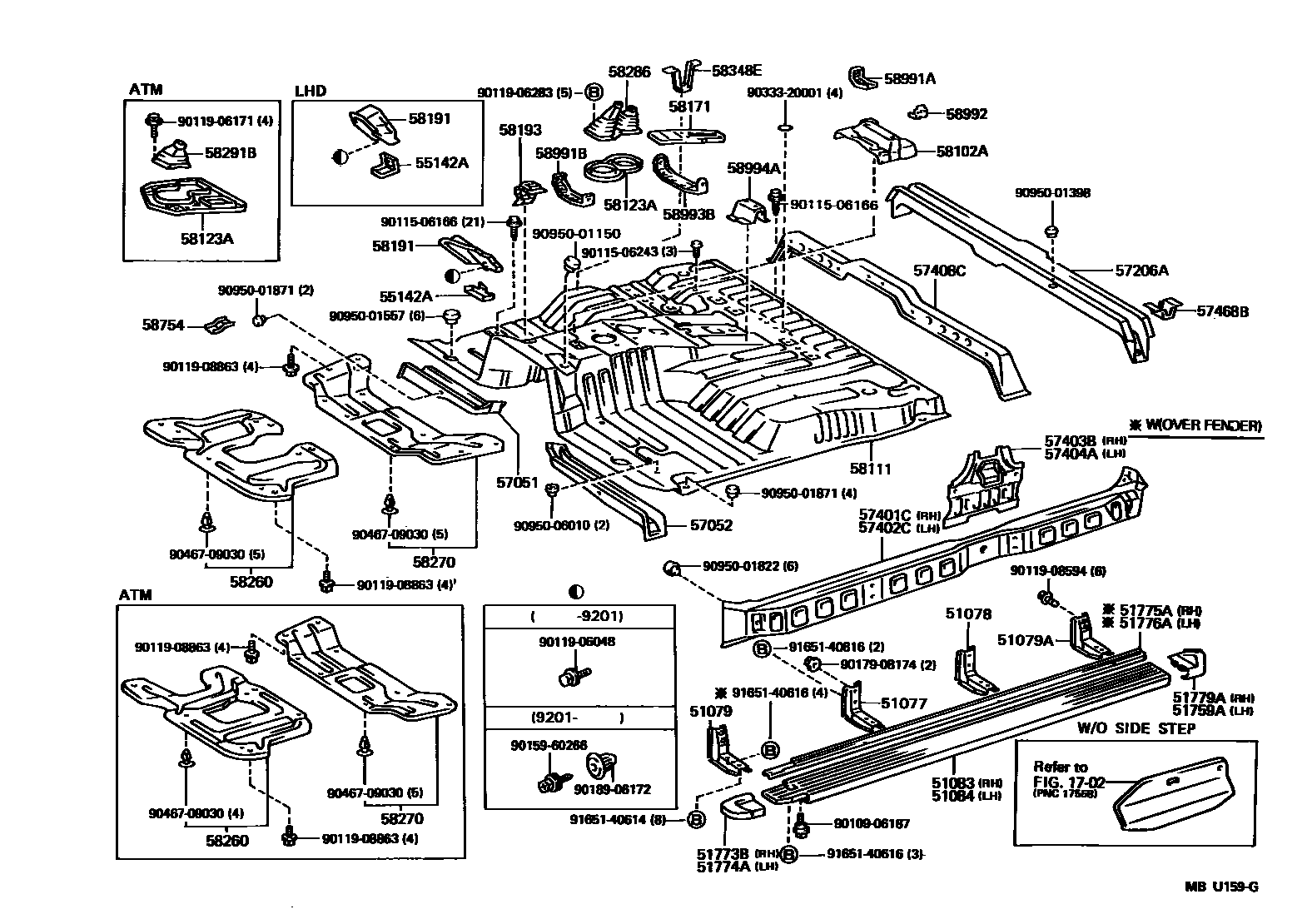

FRONT FLOOR PANEL & FRONT FLOOR MEMBER

0001 1 0002 1

1702

51077BRACKET SUB-ASSY, SIDE STEP, NO.2

main51077-60010iFJ80,HDJ80,HZJ80199001-199208

sub51077-60020

main51077-60020iHDJ80199208-199501

W(SIDE STEP)

sub51077-60040

main51077-60030iFZJ80199208-199501

W(*OF)

sub51077-60050

main51077-60030iFZJ80199208-199501

W(OVER FENDER & MUD GUARD & SIDE STEP)

sub51077-60050

main51077-60040iHZJ80..GX;FZJ80,HDJ80199501-199801

W(SIDE STEP)

main51077-60040iHZJ80..GX;FZJ80,HDJ80..STD199501-199801

main51077-60050iFZJ80,HDJ80..GX,VX199501-199801

W(*OF)

main51077-60050iFZJ80,HDJ80..GX,VX199501-199801

W(OVER FENDER & SIDE STEP & MUD GUARD)

51078BRACKET SUB-ASSY, SIDE STEP, NO.3

main51077-60010iFJ80,HDJ80,HZJ80199001-199208

sub51077-60020

main51077-60020iHDJ80199208-199501

W(SIDE STEP)

sub51077-60040

main51077-60030iFZJ80,HDJ80199208-199501

W(*OF)

sub51077-60050

main51077-60030iFZJ80199208-199501

W(OVER FENDER & MUD GUARD & SIDE STEP)

sub51077-60050

main51077-60040iFZJ80,HDJ80,HZJ80..MTM..SOB199501-199801

main51077-60040iFZJ80,HDJ80..GX,VX199501-199801

W(SIDE STEP)

main51077-60050iFZJ80,HDJ80..GX,VX199501-199801

W(*OF)

51079BRACKET SUB-ASSY, SIDE STEP

main51079-60010iHDJ80199208-199501

W(SIDE STEP)

sub51079-60030

main51079-60010iFJ80,HDJ80,HZJ80199001-199208

sub51079-60030

main51079-60010iHZJ80199208-199501

W/O(OVER FENDER)

sub51079-60030

main51079-60020iFZJ80,HDJ80199208-199501

W(OVER FENDER)

sub51079-60040

main51079-60030iFZJ80,HDJ80..GX,VX199501-199801

W(SIDE STEP)

main51079-60030iHZJ80..GX;FZJ80,HDJ80199501-199801

W/O(OVER FENDER)

main51079-60030iFZJ80,HDJ80,HZJ80..MTM..SOB199501-199801

main51079-60040iFZJ80,HDJ80..GX,VX199501-199801

W(OVER FENDER & MUD GUARD & SIDE STEP)

main51079-60040iFZJ80,HDJ80..GX,VX199501-199801

W(OVER FENDER)

51079ABRACKET SUB-ASSY, SIDE STEP, NO.3

main51078-60010iHDJ80,HZJ80199208-199501

W(SIDE STEP)

sub51078-60030

main51078-60020iHDJ80199208-199501

W(*OF)

sub51078-60040

main51078-60030iFZJ80,HDJ80..GX,VX199501-199801

W(SIDE STEP)

main51078-60030iHZJ80..GX;FZJ80,HDJ80..STD199501-199801

main51078-60040iFZJ80,HDJ80..GX,VX199501-199801

W(*OF)

main51079-60010iFJ80,HDJ80,HZJ80199001-199208

sub51079-60030

51083STEP SUB-ASSY, RH

main51083-60020iFJ80,FZJ80,HDJ80,HZJ80199001-199501

main51083-60030iHZJ80..GX;FZJ80,HDJ80199501-199801

sub51083-60020

51084STEP SUB-ASSY, LH

main51084-60020iFZJ80,HDJ80,HZJ80199001-199501

main51084-60030iFZJ80,HDJ80,HZJ80199501-199801

sub51084-60020

51759ACOVER, SIDE DOOR STEP PLATE, REAR LH

main51759-60010iHZJ80..STD199208-199801

W/O OVER FENDER

main51759-60010iFJ80,HDJ80,HZJ80199001-199801

main51759-60050iFZJ80,HDJ80..GX,VX199208-199801

W(OVER FENDER)

51773BCOVER, SIDE DOOR STEP PLATE, FRONT RH

main51773-60020iFJ80,HDJ80,HZJ80199001-199801

main51773-60020iHZJ80199208-199801

W/O OVER FENDER

main51773-60050iHDJ80199208-199801

W(OVER FENDER)

51774ACOVER, SIDE DOOR STEP PLATE, FRONT LH

main51774-60020iHZJ80..STD199208-199801

W/O OVER FENDER

main51774-60020iFJ80,HDJ80,HZJ80199001-199801

main51774-60050iFZJ80199208-199801

W(OVER FENDER)

51775ACOVER, REAR STEP, RH

main51775-60010iFZJ80,HDJ80..GX,VX199208-199801

51776APLATE, SIDE STEP, LH

main51776-60010iFZJ80,HDJ80..GX,VX199208-199801

51779ACOVER, SIDE DOOR STEP PLATE, REAR RH

main51779-60010iHDJ80199208-199801

W/O OVER FENDER

main51779-60010iFJ80,HDJ80,HZJ80199001-199801

main51779-60010iHDJ80;HZJ80..GX;FZJ80..RHD;FZJ80..MTM199208-199801

W(OVER FENDER)

main51779-60050iFZJ80,HDJ80..GX,VX199208-199801

main51779-60050iFZJ80199208-199801

W(OVER FENDER)

55142ABRACKET, FOOT REST MOUNTING, NO.2

main55142-60010iHDJ80..RHD199001-199201

sub55142-60030

sub90159-60266

sub90189-06172

main55142-60020iFJ80,HDJ80,HZJ80..LHD..(GX,VX)199001-199201

sub55142-60040

sub90159-60266

sub90189-06172

main55142-60030iFZJ80,HDJ80..RHD199201-199801

main55142-60040iFJ80,FZJ80,HDJ80,HZJ80..LHD..(GX,VX)199201-199801

57051MEMBER SUB-ASSY, FRONT FLOOR CROSS, RH

main57051-60020iFJ80,HDJ80,HZJ80199001-199208

sub57051-60021

main57051-60021iFZJ80,HDJ80,HZJ80199208-199801

57052MEMBER SUB-ASSY, FRONT FLOOR CROSS, LH

main57052-60020iFJ80,HDJ80,HZJ80199001-199208

sub57052-60021

main57052-60021iFZJ80,HDJ80,HZJ80199208-199801

57206AMEMBER SUB-ASSY, FRONT FLOOR CROSS, NO.2

main57206-60060iFJ80,HDJ80,HZJ80199001-199208

sub57206-60061

main57206-60061iFZJ80,HDJ80,HZJ80199208-199801

main57206-60080iHDJ80,HZJ80..MTM..(GX,STD)199001-199208

W(FRONT BENCH SEAT)

main57206-60081iHZJ80199501-199801

W(FRONT BENCH SEAT)

57401CMEMBER SUB-ASSY, FLOOR SIDE, INNER RH

main57401-60020iFJ80,HDJ80,HZJ80199001-199208

sub57401-60050

main57401-60022iFZJ80,HDJ80,HZJ80199501-199801

main57401-60050iFZJ80,HDJ80,HZJ80199208-199501

57402CMEMBER SUB-ASSY, FLOOR SIDE, INNER LH

main57402-60022iFZJ80,HDJ80,HZJ80199208-199801

main57402-60040iFJ80,HDJ80,HZJ80199001-199108

sub57402-60041

main57402-60041iFJ80,HDJ80,HZJ80199108-199208

57403BREINFORCE SUB-ASSY, FLOOR SIDE, INNER RH

main57403-60010iFZJ80,HDJ80,HZJ80199001-199801

57404AREINFORCE SUB-ASSY, FLOOR SIDE, INNER LH

main57404-60010iFJ80,FZJ80,HDJ80,HZJ80199001-199801

57408CMEMBER SUB-ASSY, FRONT FLOOR CROSS

main57408-60010iFJ80,HDJ80,HZJ80199001-199208

sub57408-60011

main57408-60011iFZJ80,HDJ80,HZJ80199208-199511

sub57408-60012

main57408-60012iFZJ80,HDJ80,HZJ80199511-199801

57468BBRACKET, FRONT SEAT, REAR

main57468-60010iFJ80,HDJ80,HZJ80199001-199208

sub57468-60011

main57468-60011iFZJ80,HDJ80,HZJ80199208-199501

main57468-60012iFZJ80,HDJ80,HZJ80199501-199801

58102AREINFORCEMENT SUB-ASSY, FRONT FLOOR

main58102-60040iFZJ80,HDJ80..RHD199501-199801

main58102-60050iFZJ80,HDJ80..LHD199501-199801

58111PAN, FRONT FLOOR

main58111-60230iHDJ80..RHD..MTM199001-199208

sub58111-60232

main58111-60231iHDJ80..RHD..MTM199208-199407

sub58111-60232

main58111-60240iHDJ80..RHD..MTM199001-199208

W(FR & RR HEATER)

sub58111-60242

main58111-60241iHDJ80..RHD..MTM199208-199407

W(FR & RR HEATER)

sub58111-60242

main58111-60242iHDJ80..RHD199501-199801

main58111-60250iHDJ80..RHD..ATM199001-199208

main58111-60251iHDJ80..RHD..ATM199208-199407

sub58111-60252

main58111-60260iHDJ80..RHD..ATM199001-199208

W(FR & RR HEATER)

sub58111-60262

main58111-60261iHDJ80..RHD..ATM199208-199407

W(FR & RR HEATER)

sub58111-60262

main58111-60262iFZJ80..RHD199501-199801

main58111-60270iHDJ80,HZJ80..LHD..MTM199001-199208

main58111-60271iHDJ80,HZJ80..LHD..MTM199208-199501

sub58111-60272

main58111-60280iHDJ80,HZJ80..LHD..MTM199001-199208

W(FR & RR HEATER)

main58111-60281iHDJ80,HZJ80..LHD..MTM199208-199501

W(FR & RR HEATER)

sub58111-60282

main58111-60282iFZJ80,HDJ80,HZJ80..LHD..MTM199501-199801

main58111-60290iFJ80,HDJ80,HZJ80..LHD..ATM199001-199208

main58111-60291iHDJ80..LHD..ATM199208-199501

sub58111-60292

main58111-60300iFJ80..GX;HDJ80..LHD..ATM199001-199208

W(FR & RR HEATER)

main58111-60301iHDJ80..LHD..ATM199208-199501

W(FR & RR HEATER)

sub58111-60302

main58111-60302iFZJ80..LHD..ATM199501-199801

58123ASUPPORT, SHIFT & SELECT LEVER

main58123-60010iFZJ80,HDJ80,HZJ80..MTM199001-199801

main58123-60020iFJ80,FZJ80,HDJ80,HZJ80..ATM199001-199801

58171REINFORCEMENT, PARKING BRAKE BASE

main58171-60010iFZJ80,HDJ80,HZJ80199001-199801

58191FOOTREST, FRONT FLOOR

main58191-60020iFZJ80,HDJ80..RHD199001-199801

main58192-60020iFZJ80,HDJ80,HZJ80..LHD..(GX,VX)199001-199801

58193BRACKET, INSTRUMENT PANEL BRACE MOUNTING

main58193-60010iFZJ80,HDJ80..GX199001-199801

58260COVER ASSY, TRANSMISSION, FRONT

main58260-60070iFZJ80,HDJ80,HZJ80..MTM199001-199801

main58260-60080iFZJ80..LHD..ATM199501-199801

SWITZERLAND SPEC

main58260-60080iFJ80,HZJ80..ATM199001-199801

58270COVER ASSY, TRANSMISSION, REAR

main58270-60080iFZJ80,HDJ80,HZJ80..MTM199001-199801

main58270-60090iFJ80,HZJ80..ATM199001-199208

58286BOOT, SHIFT & SELECT LEVER, NO.1

main58280-60030iHDJ80..RHD..MTM199001-199109

sub58280-60031

main58280-60031iHDJ80..RHD..MTM199109-199801

main58280-60040iHDJ80,HZJ80..LHD..MTM199001-199105

sub58280-60041

main58280-60041iFZJ80,HDJ80,HZJ80..LHD..MTM199105-199801

58291BBOOT, TRANSFER SHIFT LEVER

main58290-60010iFJ80,FZJ80,HDJ80,HZJ80..ATM199001-199801

58348EBRACKET, REAR FLOOR HEAT INSULATOR, NO.3

main58348-60010iFZJ80199501-199801

58754PLATE, ENGINE SERVICE COVER CATCH

main58754-60010iFZJ80,HDJ80,HZJ80..MTM..(GX,STD)199001-199801

58991ABRACKET, CONSOLE BOX MOUNTING, UPPER RH

main58991-60030iFZJ80,HDJ80..GX,VX199501-199801

58991BBRACKET, CONSOLE BOX MOUNTING, FRONT

main58991-60010iFZJ80,HDJ80,HZJ80..GX,VX199001-199501

58992BRACKET, CONSOLE BOX MOUNTING, UPPER LH

main58992-60020iFZJ80,HDJ80,HZJ80199501-199801

58993BBRACKET, CONSOLE BOX MOUNTING, REAR

main58993-60010iHDJ80..MTM..VX199001-199208

sub58993-60011

main58993-60011iFZJ80,HDJ80..STD199208-199801

58994ABRACKET, CONSOLE BOX MOUNTING, NO.4

main58994-60010iFZJ80,HDJ80..RHD199001-199801

main58997-60010iFJ80,FZJ80,HDJ80,HZJ80..LHD199001-199801

9010906187

main90109-06187

9011506166

main90115-06166

9011506243

main90115-06243

9011906048

main90119-06048

9011906171

main90119-06171

9011906283

main90119-06283

9011908594

main90119-08594

9011908863

main90119-08863

9015960266

main90159-60266

9017908174

main90179-08174

9018906172

main90189-06172

9033320001

main90333-20001

9046709030

main90467-09030

9095001150

main90950-01150

9095001398

main90950-01398

9095001557

main90950-01557

9095001822

main90950-01822

9095001871

main90950-01871

9095006010

main90950-06010

9165140614

main91651-40614

9165140616

main91651-40616

9165140816

main91651-40816

62 parts on this diagram · 2 diagrams in section
