FRONT FENDER APRON & DASH PANEL

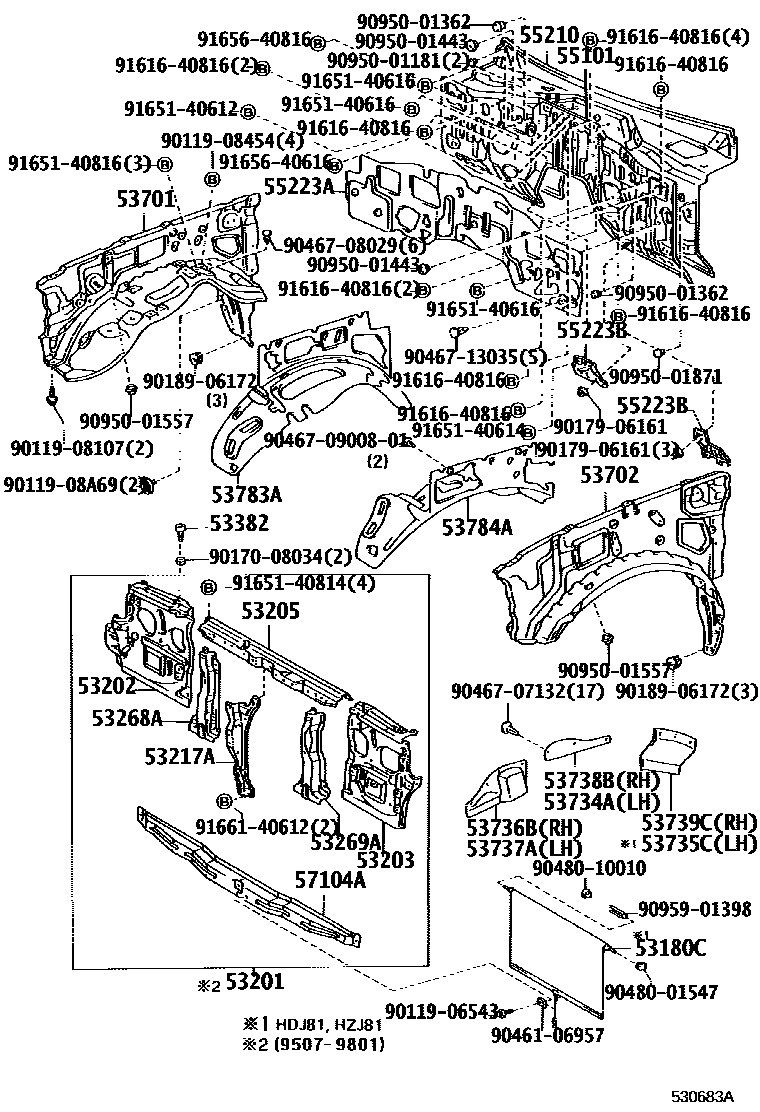

Parts diagram
53180CSHUTTER ASSY, RADIATOR
main53180-60010i199503-199801
W(SINGLE AUTO AIR CONDITIONER)
main53180-60010i199001-199208
COLD SPEC & W(SINGLE AUTO AIR CONDITIONER)
main53180-60010i199001-199801
COLD SPEC & W(SINGLE FITTING LATER)
main53180-60010i199001-199208
COLD SPEC & W(AUTO AIR CONDITIONER)
main53180-60010i199208-199801
COLD SPEC OR W(*AIC)
main53180-60020i199001-199801
COLD SPEC
main53180-60020i199501-199801
53201SUPPORT SUB-ASSY, RADIATOR
main53210-60071i199507-199801
53202SUPPORT SUB-ASSY, RADIATOR, RH
main53202-60020i199001-199201
sub53202-60100
main53202-60100i199201-199501
sub53202-60101
main53202-60101i199501-199507
sub53202-60102
main53202-60102i199507-199801
53203SUPPORT SUB-ASSY, RADIATOR, LH
main53203-60020i199001-199501
sub53203-60021
main53203-60021i199501-199507
sub53203-60022
main53203-60022i199507-199801
53205SUPPORT SUB-ASSY, RADIATOR, UPPER
main53216-60020i199001-199501
sub53216-60021
main53216-60021i199501-199801
53217ABRACE, HOOD LOCK SUPPORT
main53217-60020i199001-199501
main53217-60070i199501-199801
53268AREINFORCEMENT, RADIATOR MOUNTING, RH
main53268-60010i199003-199801
main53268-60020i199001-199003
sub53268-60010
53269AREINFORCEMENT, RADIATOR MOUNTING, LH
main53269-60010i199003-199801
main53269-60020i199001-199003
sub53269-60010
53382BUMPER, HOOD, FRONT
main53382-60010i199001-199111
sub53382-60011
main53382-60011i199111-199801
53701APRON SUB-ASSY, FRONT FENDER, RH
main53710-60020i199001-199201
sub53710-60110
main53710-60040i199001-199201
W(OVER FENDER & MUD GUARD)
sub53710-60110
main53710-60070i199001-199201
sub53710-60160
main53710-60080i199001-199201
W(OVER FENDER & MUD GUARD)
sub53710-60160
main53710-60110i199201-199208
main53710-60160i199201-199208
sub53710-60162
main53710-60162i199208-199501
sub53710-60163
main53710-60163i199501-199603
main53710-60164i199603-199801
sub53710-60163
53702APRON SUB-ASSY, FRONT FENDER, LH
main53720-60020i199001-199201
sub53720-60100
main53720-60040i199001-199201
W(OVER FENDER & MUD GUARD)
sub53720-60100
main53720-60070i199001-199201
sub53720-60150
main53720-60080i199001-199201
W(OVER FENDER & MUD GUARD)
sub53720-60150
main53720-60100i199201-199208
main53720-60150i199201-199208
sub53720-60151
main53720-60151i199208-199501
sub53720-60152
main53720-60152i199501-199603
main53720-60153i199603-199801
sub53720-60152
53734ASEAL, FRONT FENDER APRON TO FRAME, NO.2 LH
main53738-60010i199001-199604
main53738-60011i199604-199801
53735CSEAL, FRONT FENDER APRON TO FRAME, NO.3 LH
main53735-60010i199001-199801
53736BSEAL, FRONT FENDER APRON TO FRAME, NO.1 RH
main53736-60010i199001-199801
53737ASEAL, FRONT FENDER APRON TO FRAME, NO.1 LH
main53737-60010i199001-199801
53738BSEAL, FRONT FENDER APRON TO FRAME, NO.2 RH
main53738-60010i199001-199604
main53738-60011i199604-199801
53739CSEAL, FRONT FENDER APRON TO FRAME, REAR
main53739-60010i199001-199208
53783AINSULATOR, APRON FRONT FENDER, RH
main53783-60010i199001-199208
sub53783-60011
main53783-60011i199208-199501
sub53783-60012
main53783-60012i199501-199801
main53783-60020i199001-199208
SWITZERLAND SPEC
sub53783-60011
53784AINSULATOR, APRON FRONT FENDER, LH
main53784-60010i199001-199208
sub53784-60011
main53784-60011i199208-199801
main53784-60020i199001-199208
SWITZERLAND SPEC
sub53784-60011
55101PANEL SUB-ASSY, DASH
main55101-60612i199501-199801
main55101-60860i199001-199011
SWITZERLAND SPEC
sub55101-60861
main55101-60861i199108-199208
*FRG & W(MECHANICAL WINCH)
main55101-60861i199011-199108
SWITZERLAND SPEC
main55101-60862i199208-199501
main55101-60863i199501-199801
main55101-6A020i199001-199011
SWITZERLAND SPEC & W(WINCH)
sub55101-6A021
main55101-6A021i199108-199208
W(WINCH)
main55101-6A021i199011-199108
SWITZERLAND SPEC & W(WINCH)
main55101-6A022i199208-199501
W(WINCH)
main55101-6A023i199501-199801
W(MECHANICAL WINCH)
main55101-6A170i199001-199208
*FRG & W(MECHANICAL WINCH)
sub55101-6A171
sub91656-40616
main55101-6A171i199208-199501
main55101-6A172i199501-199801
sub55101-6A232
sub90950-01882
main55101-6A230i199001-199208
W(WINCH)
sub55101-6A231
sub91656-40616
main55101-6A231i199208-199501
W(WINCH)
main55101-6A232i199501-199801
W(MECHANICAL WINCH)
main55101-6A250i199001-199208
(*FRG OR CANARY ISLAND SPEC) & W(MECHANICAL WINCH
sub55101-6A251
sub91656-40616
main55101-6A250i199001-199208
*FRG & W(MECHANICAL WINCH)
sub55101-6A251
sub91656-40616
main55101-6A250i199001-199208
sub55101-6A251
sub91656-40616
main55101-6A251i199208-199501
main55101-6A252i199501-199801
sub55101-6A362
sub90950-01882
main55101-6A360i199001-199208
W(WINCH)
sub55101-6A361
sub91656-40616
main55101-6A360i199010-199208
W(*AIC & P.T.O. WINCH)
sub55101-6A361
sub91656-40616
main55101-6A361i199208-199501
W(WINCH)
main55101-6A362i199501-199801
W(MECHANICAL WINCH)
main55101-6A380i199001-199011
*FRG & W(MECHANICAL WINCH)
sub55101-6A381
main55101-6A381i199011-199208
*FRG & W(MECHANICAL WINCH)
sub55101-6A382
sub91656-40616
main55101-6A382i199208-199501
main55101-6A430i199001-199011
W(WINCH)
sub55101-6A431
main55101-6A431i199011-199208
W(WINCH)
sub55101-6A432
sub91656-40616
main55101-6A432i199208-199501
W(WINCH)
main55101-6A440i199001-199208
*FRG & W(MECHANICAL WINCH)
sub55101-6A441
sub91656-40616
main55101-6A441i199208-199501
main55101-6A460i199001-199208
W(WINCH)
sub55101-6A461
sub91656-40616
main55101-6A461i199208-199501
W(WINCH)
main55101-6B240i199001-199011
UNITED KINGDSM SPEC & W(MECHANICAL WINCH)
sub55101-6B241
main55101-6B241i199011-199208
UNITED KINGDSM SPEC & W(MECHANICAL WINCH)
sub55101-6B242
sub91656-40616
main55101-6B242i199208-199407
main55101-6B250i199001-199011
W(WINCH)
sub55101-6B251
main55101-6B251i199011-199208
W(WINCH)
sub55101-6B252
sub91656-40616
main55101-6B252i199208-199407
W(WINCH)
main55101-6B260i199001-199208
UNITED KINGDSM SPEC & W(MECHANICAL WINCH)
sub55101-6B261
sub91656-40616
main55101-6B261i199208-199407
main55101-6B270i199001-199208
W(WINCH)
sub55101-6B271
sub91656-40616
main55101-6B271i199208-199407
W(WINCH)
main55101-6B290i199001-199011
*FRG & W(MECHANICAL WINCH)
sub55101-6B291
main55101-6B291i199011-199108
*FRG & W(MECHANICAL WINCH)
sub55101-60861
main55101-6B310i199001-199011
W(WINCH)
sub55101-6B311
main55101-6B311i199011-199108
W(WINCH)
sub55101-6A021
main55101-6B570i199011-199208
sub55101-6B571
sub91656-40616
main55101-6B571i199208-199501
main55101-6B600i199011-199208
W(WINCH)
sub55101-6B601
sub91656-40616
main55101-6B601i199208-199501
W(WINCH)
main55101-6B652i199501-199608
main55101-6B832i199501-199801
W(MECHANICAL WINCH)
sub55101-6A232
sub91611-B0816
main55101-6B842i199501-199801
W(MECHANICAL WINCH)
sub55101-6A362
sub91611-B0816
main55101-6B862i199501-199801
sub55101-6A232
sub90950-01882
sub91611-B0816
main55101-6B872i199501-199801
sub55101-6A362
sub90950-01882
sub91611-B0816
main55101-6C730i199501-199503
main55101-6C740i199501-199503
main55101-6C750i199501-199801
main55101-6C760i199501-199801
W(MECHANICAL WINCH)
main55101-6C790i199608-199801
sub55101-6D040
sub90950-01882
sub91611-B0816
55210INSULATOR ASSY, DASH PANEL
main55210-60010i199001-199206
sub55210-60011
main55210-60011i199206-199407
sub55210-60012
main55210-60012i199501-199801
main55210-60020i199001-199206
sub55210-60021
main55210-60021i199206-199409
sub55210-60022
main55210-60022i199501-199801
55223AINSULATOR, DASH PANEL, OUTER
main55223-60010i199001-199201
sub55223-60100
main55223-60020i199001-199201
SWITZERLAND SPEC
sub55223-60110
main55223-60100i199201-199208
sub55223-60101
main55223-60101i199208-199407
sub55223-60102
main55223-60102i199501-199801
main55223-60110i199201-199208
SWITZERLAND SPEC
sub55223-60111
main55223-60111i199208-199501
sub55223-60112
main55223-60112i199501-199801
55223BINSULATOR, DASH PANEL HEAT, NO.1
main55225-60010i199001-199208
main55225-60020i199001-199801
57104AMEMBER SUB-ASSY, FRONT CROSS
main57104-60020i199001-199501
sub57104-60021
main57104-60021i199501-199508
sub57104-60022
main57104-60022i199508-199801
9011906543
main90119-06543
9011908107
main90119-08107
9011908454
main90119-08454
9011908A69
main90119-08A69
9017008034
main90170-08034
9017906161
main90179-06161
9018906172
main90189-06172
9046106957
main90461-06957
9046707132
main90467-07132
9046708029
main90467-08029
904670900801
main90467-0900801
9046713035
main90467-13035
9048001547
main90480-01547
9048010010
main90480-10010
9095001181
main90950-01181
9095001362
main90950-01362
9095001443
main90950-01443
9095001557
main90950-01557
9095001871
main90950-01871
9095901398
main90959-01398
9161640816
main91616-40816
9165140612
main91651-40612
9165140614
main91651-40614
9165140616
main91651-40616
9165140814
main91651-40814
9165140816
main91651-40816
9165640616
main91656-40616
9165640816
main91656-40816
9166140612
main91661-40612

53 parts on this diagram · 1 diagram in section
