HOOD & FRONT FENDER

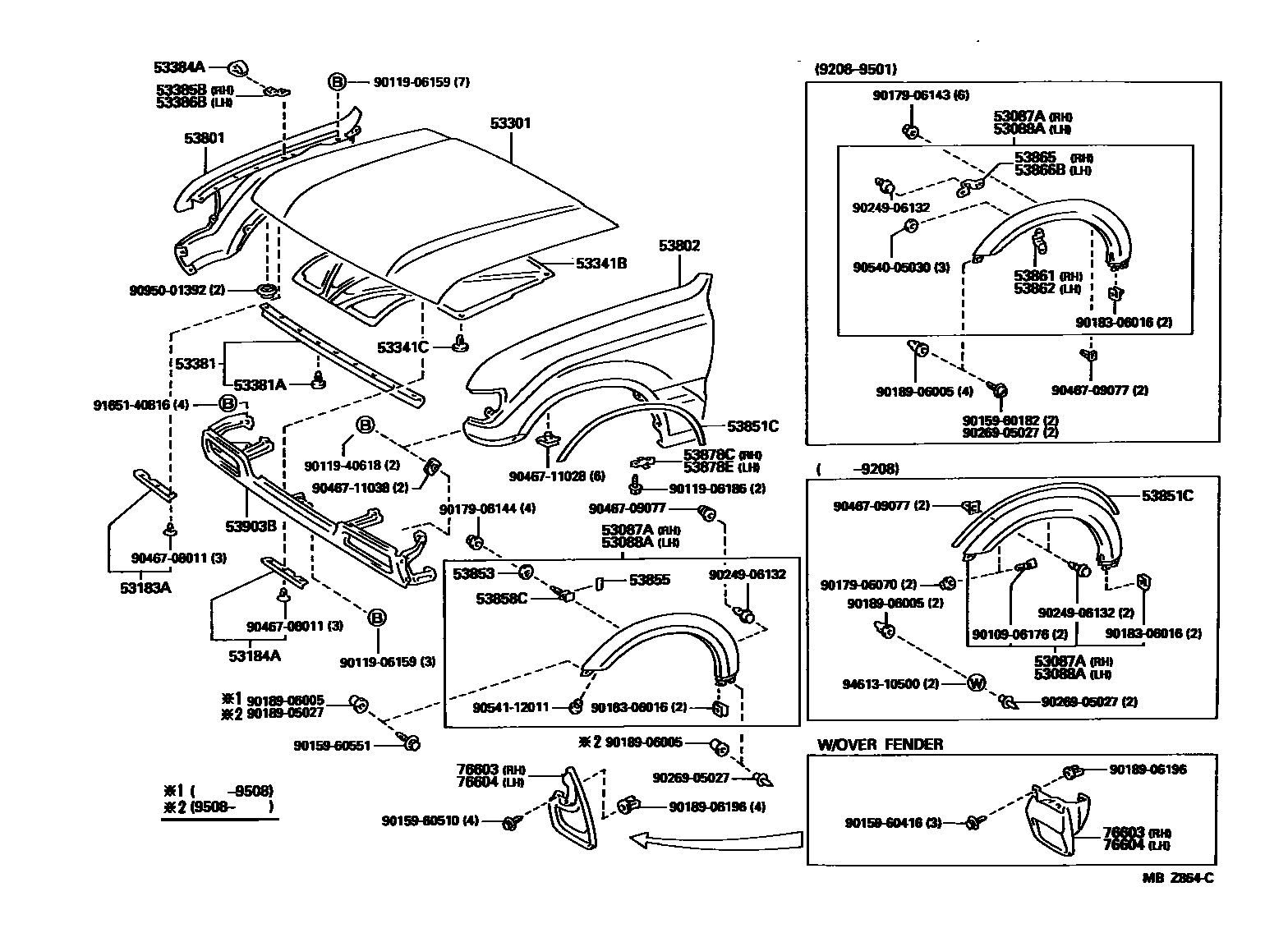

Parts diagram
53087AEXTENSION SUB-ASSY, FRONT WHEEL OPENING, RH
main53087-60901i199001-199208
main53087-60904i199208-199501
main53087-60906i199608-199801
W(OVER FENDER & MUD GUARD)
main53087-60906i199501-199608
53088AEXTENSION SUB-ASSY, FRONT WHEEL OPENING, LH
main53088-60901i199001-199208
main53088-60904i199208-199501
main53088-60906i199608-199801
W(OVER FENDER & MUD GUARD)
main53088-60906i199501-199608
53183ASEAL, HEADLAMP COVER, RH
main53183-60031i199108-199110
sub53183-60050
main53183-60050i199110-199801
53184ASEAL, HEADLAMP COVER, LH
main53184-60031i199108-199110
sub53184-60050
main53184-60050i199110-199801
53301HOOD SUB-ASSY
main53301-60070i199001-199110
sub53301-60250
main53301-60250i199108-199801
53341BINSULATOR, HOOD
main53341-60020i199001-199201
sub53341-60110
main53341-60110i199201-199801
53341CCLIP(FOR HOOD INSULATOR)
main90467-09014i199001-199801
53381SEAL, HOOD TO RADIATOR SUPPORT
main53381-60010i199001-199801
53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)
main90467-08011i199001-199801
53384ABUMPER, FENDER TO HOOD
main53384-60010i199001-199801
53385BBRACKET, FENDER TO HOOD BUMPER, RH
main53385-20020i199001-199801
53386BBRACKET, FENDER TO HOOD BUMPER, LH
main53386-20020i199001-199801
53801FENDER SUB-ASSY, FRONT RH
main53801-60060i199001-199208
W(OVER FENDER & MUD GUARD)
main53801-60061i199208-199407
W(OVER FENDER & MUD GUARD)
main53801-60062i199501-199508
W(*OF & MUD GUARD)
sub53801-60063
main53801-60063i199508-199801
W(*OF & MUD GUARD)
main53801-60120i199001-199206
sub53801-60121
main53801-60121i199206-199508
sub53801-60122
main53801-60122i199508-199801
main53801-60170i199001-199206
sub53801-60171
main53801-60171i199206-199508
sub53801-60172
main53801-60172i199508-199801
main53801-60190i199001-199208
W(OVER FENDER & MUD GUARD & ANTENNA)
main53801-60190i199001-199208
W(OVER FENDER & MUD GUARD)
main53801-60190i199001-199201
W(*SPM) OR W(*OF)
main53801-60190i199201-199208
W(ANTENNA & *SPM & *OF)
main53801-60190i199201-199208
W(OVER FENDER & MUD GUARD & *SPM & POWER ANTENNA);W(*SPM & OVER FENDER & MUD GUARD)
main53801-60191i199208-199501
W(OVER FENDER & MUD GUARD)
main53801-60192i199501-199508
W(OVER FENDER & MUD GUARD)
sub53801-60193
main53801-60192i199501-199508
W(*OF & MUD GUARD)
sub53801-60193
main53801-60193i199508-199801
W(OVER FENDER & MUD GUARD)
main53801-60193i199508-199801
W(*OF & MUD GUARD)
main53801-60290i199001-199206
W(*SPM)
sub53801-60291
main53801-60291i199206-199508
W(*SPM)
sub53801-60292
main53801-60291i199206-199501
sub53801-60292
main53801-60292i199508-199801
W(*SPM)
main53801-60700i199001-199206
W(*MW)
sub53801-60701
main53801-60701i199206-199407
W(*MW)
main53801-60720i199001-199208
W(OVER FENDER & *MW)
main53801-60721i199208-199407
W(OVER FENDER & *MW)
main53801-60740i199001-199206
W(*MW)
sub53801-60741
main53801-60741i199206-199501
W(*MW)
main53801-60750i199001-199206
W(*MW)
sub53801-60751
main53801-60750i199001-199206
W(*MW & *SPM)
sub53801-60751
main53801-60751i199206-199501
W(*MW)
main53801-60751i199206-199501
W(*MW & *SPM)
main53801-60760i199001-199201
W(*OF & *MW)
main53801-60760i199001-199208
W(OVER FENDER & *MW)
main53801-60761i199208-199501
W(*OF & *MW)
main53801-60761i199208-199501
W(OVER FENDER & *MW)
main53801-60761i199208-199501
W(*MW)
53802FENDER SUB-ASSY, FRONT LH
main53802-60070i199001-199208
W(OVER FENDER & MUD GUARD)
main53802-60071i199208-199407
W(OVER FENDER & MUD GUARD)
main53802-60072i199501-199508
W(OVER FENDER & MUD GUARD)
sub53802-60073
main53802-60073i199508-199801
W(OVER FENDER & MUD GUARD)
main53802-60120i199001-199206
sub53802-60121
main53802-60121i199206-199508
sub53802-60122
main53802-60122i199508-199801
main53802-60170i199201-199208
W(*SPM & OVER FENDER & MUD GUARD)
main53802-60170i199001-199208
W(*SPM & *OF & MUD GUARD)
main53802-60170i199001-199208
W(OVER FENDER & MUD GUARD)
main53802-60171i199208-199501
W(OVER FENDER & MUD GUARD)
main53802-60171i199208-199501
W(*SPM & *OF & MUD GUARD)
main53802-60172i199501-199508
W(*SPM & *OF & MUD GUARD)
sub53802-60173
main53802-60172i199501-199508
W(OVER FENDER & MUD GUARD)
sub53802-60173
main53802-60173i199508-199801
W(OVER FENDER & MUD GUARD)
main53802-60173i199508-199801
W(*SPM & *OF & MUD GUARD)
main53802-60220i199001-199206
W(*SPM)
sub53802-60221
main53802-60221i199206-199508
W(*SPM)
sub53802-60222
main53802-60221i199206-199501
sub53802-60222
main53802-60222i199508-199801
W(*SPM)
main53802-60230i199001-199206
sub53802-60231
main53802-60231i199206-199508
sub53802-60232
main53802-60232i199508-199801
main53802-60570i199001-199206
W(WINCH)
sub53802-60571
main53802-60571i199206-199501
W(WINCH)
main53802-60580i199001-199206
W(*MW & *SPM)
sub53802-60581
main53802-60580i199001-199206
W(WINCH)
sub53802-60581
main53802-60581i199206-199501
W(WINCH)
main53802-60581i199206-199501
W(*MW & *SPM)
main53802-60590i199001-199201
W(*OF & *MW)
main53802-60590i199001-199208
W(OVER FENDER & *MW)
main53802-60591i199208-199501
W(*OF & *MW)
main53802-60591i199208-199501
W(WINCH)
main53802-60610i199001-199206
W(WINCH)
sub53802-60611
main53802-60611i199206-199407
W(WINCH)
main53802-60620i199001-199208
W(OVER FENDER & *MW)
main53802-60621i199208-199407
W(*OF & *MW)
53851CPAD, FRONT WHEEL OPENING EXTENSION, NO.1
main53851-60020-01i199001-199208
BLACK,183 ,26P
main53851-60020-01i199001-199208
BLACK,181 ,183 ,26P ,8H6
main53851-60020-02i199001-199208
MAROON,20R ,27P ,3H4
main53851-60020-02i199001-199208
MAROON,20R ,27P ,3H4 ,3H7
main53851-60020-05i199001-199208
BEIGE,4K1
main53851-60020-05i199001-199208
BEIGE,4E9 ,4K1 ,4L6
main53851-60020-08i199001-199208
WHITE,045
main53851-60021i199208-199501
sub53851-60070
main53851-60060-A0i199208-199501
WHITE,045
sub53851-60080
main53851-60060-C0i199208-199305
BLACK,183 ,26P ,6M1
sub53851-60080
main53851-60060-C0i199305-199501
BLACK,183 ,26P ,26W ,6M1
sub53851-60080
main53851-60060-D0i199208-199305
MAROON,20R ,3H4
sub53851-60080
main53851-60060-D0i199305-199501
MAROON,3H4
sub53851-60080
main53851-60060-E0i199208-199501
BEIGE,4K1
sub53851-60080
main53851-60070i199501-199506
sub53851-60090
sub53852-60030
main53851-60080-A0i199501-199506
WHITE,045
sub53851-60100
sub53852-60040
main53851-60080-C0i199501-199506
BLACK,1A6 ,2AB ,2AC ,6M1 ,8K0
sub53851-60100
sub53852-60040
main53851-60080-D0i199501-199506
RED,3H4
sub53851-60100
sub53852-60040
main53851-60090i199506-199801
RH
main53851-60100-A0i199506-199608
WHITE,045,RH
sub53852-60040
main53851-60100-C0i199608-199801
BLACK,202 ,6M1 ,8K0,RH
sub53852-60040
main53851-60100-C0i199506-199608
BLACK,1A6 ,2AB ,2AC ,6M1 ,8K0,RH
sub53852-60040
main53851-60100-D0i199506-199801
MAROON,3H4,RH
sub53852-60040
main53851-60140-A0i199608-199801
WHITE,045,RH
sub53852-60060
sub53851-60140
main53851-60140-B0i199608-199801
GRAY ME,1A6 ,2AB ,2AC,RH
sub53852-60060
sub53851-60140
main53852-60030i199506-199801
LH
main53852-60040-A0i199506-199608
WHITE,045,LH
main53852-60040-C0i199506-199608
BLACK,1A6 ,2AB ,2AC ,6M1 ,8K0,LH
main53852-60040-C0i199608-199801
BLACK,202 ,6M1 ,8K0,LH
main53852-60040-D0i199506-199801
MAROON,3H4,LH
main53852-60060-A0i199608-199801
WHITE,045,LH
sub53852-60060
main53852-60060-B0i199608-199801
GRAY ME,1A6 ,2AB ,2AC,LH
sub53852-60060
53853PAD, FRONT WHEEL OPENING EXTENSION, NO.3
main53853-60020i199506-199801
main90540-05030i199501-199506
sub90540-07009
53855PAD, FRONT WHEEL OPENING EXTENSION, NO.3
main53855-60010i199508-199801
53858CBOLT, WHEEL OPENING
main53858-60020i199501-199506
sub53858-60050
main53858-60050i199506-199801
53861BRACKET, FRONT WHEEL OPENING, NO.1
main53861-60020i199208-199501
53862BRACKET, FRONT WHEEL OPENING, NO.2
main53862-60010i199208-199501
53865BRACKET, FRONT WHEEL OPENING, NO.3
main53865-60010i199208-199501
53866BBRACKET, FRONT WHEEL OPENING, NO.4
main53866-60020i199208-199501
53878CSPACER, FRONT FENDER
main53878-60010i199001-199801
53878ESPACER, FRONT FENDER
main53878-60010i199001-199801
53903BPANEL SUB-ASSY, FRONT END
main53903-60010i199001-199501
main53903-60030i199501-199801
main53903-60050i199001-199501
W(WINCH)
76603MUDGUARD SUB-ASSY, FRONT FENDER, RH
main76603-60010i199001-199208
W(OVER FENDER & MUD GUARD & SIDE STEP)
main76603-60011i199208-199801
W(OVER FENDER & MUD GUARD & SIDE STEP)
main76603-60020i199001-199208
W(OVER FENDER & MUD GUARD)
main76603-60021i199208-199801
W(OVER FENDER & MUD GUARD)
main76603-60030i199001-199801
76604MUDGUARD SUB-ASSY, FRONT FENDER, LH
main76604-60010i199001-199208
W(OVER FENDER & MUD GUARD & SIDE STEP)
main76604-60011i199208-199801
W(OVER FENDER & MUD GUARD & SIDE STEP)
main76604-60020i199001-199208
W(OVER FENDER & MUD GUARD)
main76604-60021i199208-199801
W(OVER FENDER & MUD GUARD)
main76604-60030i199001-199801
9010906176
main90109-06176
9011906159
main90119-06159
9011906186
main90119-06186
9011940618
main90119-40618
9015960182
main90159-60182
9015960416
main90159-60416
9015960510
main90159-60510
9015960551
main90159-60551
9017906070
main90179-06070
9017906143
main90179-06143
9017906144
main90179-06144
9018306016
main90183-06016
9018905027
main90189-05027
9018906005
main90189-06005
9018906196
main90189-06196
9024906132
main90249-06132
9026905027
main90269-05027
9046708011
main90467-08011
9046709077
main90467-09077
9046711028
main90467-11028
9046711038
main90467-11038
9054005030
main90540-05030
9054112011
main90541-12011
9095001392
main90950-01392
9165140816
main91651-40816
9461310500
main94613-10500

53 parts on this diagram · 1 diagram in section
