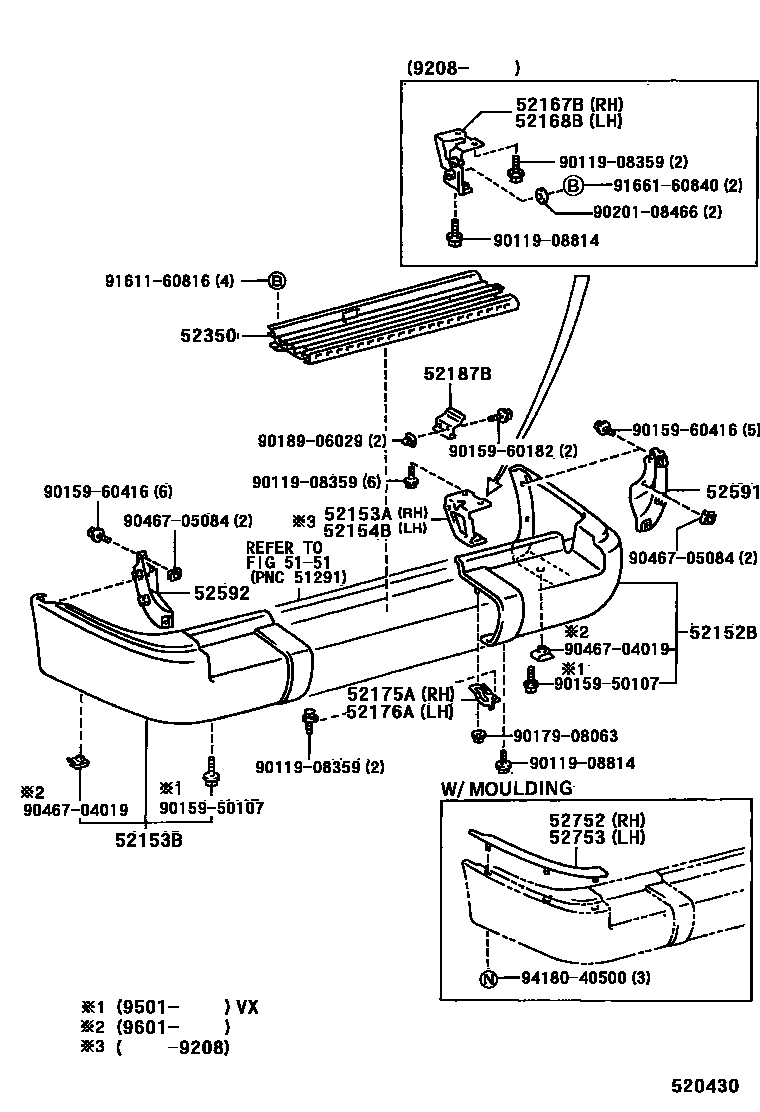

REAR BUMPER & BUMPER STAY

5151

52152BEXTENSION, REAR BUMPER, RH

main52106-60090iHZJ80..STD199001-199801

main52106-60100iFJ80,FZJ80,HDJ80,HZJ80..GX199001-199501

main52106-60160iFJ80,FZJ80,HDJ80..VX199001-199501

main52106-60210iFZJ80,HDJ80..VX199501-199801

52153ASTAY, REAR BUMPER SIDE, RH

main52153-60140iFJ80,HDJ80,HZJ80199001-199208

52153BEXTENSION, REAR BUMPER, LH

main52107-60060iHZJ80..STD199001-199801

main52107-60070iFJ80,FZJ80,HDJ80,HZJ80..GX199001-199501

main52107-60130iFJ80,FZJ80,HDJ80..VX199001-199501

main52107-60180iFZJ80,HDJ80..VX199501-199801

52154BSTAY, REAR BUMPER SIDE, LH

main52154-60020iFJ80,HDJ80,HZJ80199001-199208

52167BBRACKET, REAR BUMPER EXTENSION MOUNTING, RH

main52167-60020iFZJ80,HDJ80,HZJ80199208-199801

52168BBRACKET, REAR BUMPER EXTENSION MOUNTING, LH

main52168-60020iFZJ80,HDJ80,HZJ80199208-199801

52175ABRACKET, REAR BUMPER ARM MOUNTING, RH

main52175-60010iFJ80,FZJ80,HDJ80,HZJ80199001-199511

sub52175-60040

main52175-60040iFZJ80,HDJ80,HZJ80199511-199801

52176ABRACKET, REAR BUMPER ARM MOUNTING, LH

main52176-60010iFJ80,HDJ80,HZJ80..GX,VX199001-199511

sub52176-60030

main52176-60030iFZJ80,HDJ80,HZJ80199511-199801

52187BGUIDE, REAR BUMPER LOCATION

main52187-60010iFJ80,FZJ80,HDJ80,HZJ80199001-199211

52350STEP ASSY, REAR BUMPER

main52351-60020iFJ80,FZJ80,HDJ80,HZJ80..LUB199001-199511

sub52351-60021

main52351-60021iFZJ80,HDJ80..LUB199511-199801

main52351-60040iFJ80,FZJ80,HDJ80,HZJ80..SOB199001-199511

sub52351-60041

main52351-60041iFZJ80,HDJ80,HZJ80..SOB199511-199801

52591SEAL, REAR BUMPER SIDE, RH

main52591-60010iFJ80,FZJ80,HDJ80,HZJ80199001-199801

52592SEAL, REAR BUMPER SIDE, LH

main52592-60010iFJ80,FZJ80,HDJ80,HZJ80199001-199801

52752MOULDING, REAR BUMPER SIDE, RH

main52752-60010iFJ80,FZJ80,HDJ80,HZJ80..GX,VX199001-199501

52753MOULDING, REAR BUMPER SIDE, LH

main52753-60010iFJ80,FZJ80,HDJ80,HZJ80..GX,VX199001-199501

9011908359

main90119-08359

9011908814

main90119-08814

9015950107

main90159-50107

9015960182

main90159-60182

9015960416

main90159-60416

9017908063

main90179-08063

9018906029

main90189-06029

9020108466

main90201-08466

9046704019

main90467-04019

9046705084

main90467-05084

9161160816

main91611-60816

9166160840

main91661-60840

9418040500

main94180-40500

28 parts on this diagram · 1 diagram in section
