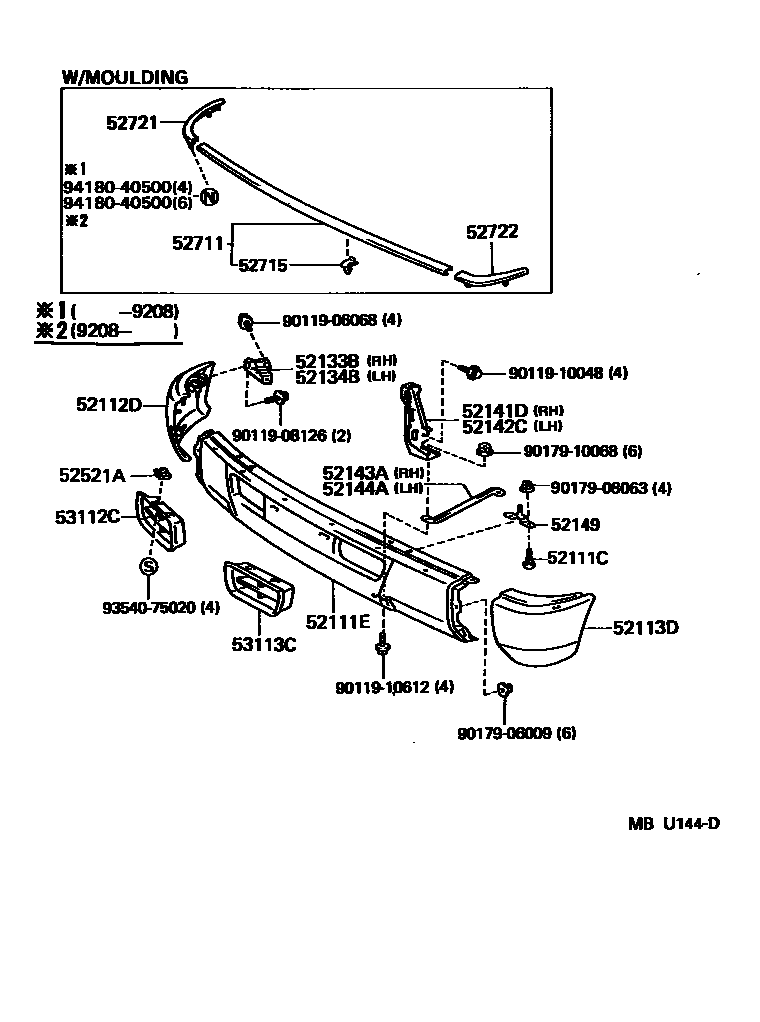

FRONT BUMPER & BUMPER STAY

0001 1 0002 1 0003 1 0004 1W(WINCH)

52111CBOLT, ROUND HEAD SQUARE NECK(FOR FRONT BUMPER)

main90112-08073iFJ80,FZJ80,HDJ80,HZJ80¥160199001-199801

52111EBAR, FRONT BUMPER

main52111-60210iHZJ80..STD¥36,000199001-199501

main52111-60220iFJ80,FZJ80,HDJ80,HZJ80..GX¥43,100199001-199501

main52111-60230iFJ80,FZJ80,HDJ80,HZJ80..GX¥43,100199001-199501

W(MECHANICAL WINCH)

main52111-60240iHZJ80..STD¥36,000199001-199501

W(MECHANICAL WINCH)

main52111-60370iFJ80,FZJ80,HDJ80..VX¥36,000199001-199501

main52111-60380iFJ80,FZJ80,HDJ80..VX¥36,000199001-199501

W(MECHANICAL WINCH)

main52111-60510iFZJ80,HDJ80,HZJ80..GX,STD¥36,200199501-199801

main52111-60530iFZJ80,HDJ80..GX,STD¥36,100199501-199801

W(MECHANICAL WINCH)

main52111-60540iFZJ80,HDJ80..VX¥36,100199501-199801

main52111-60560iFZJ80,HDJ80..LHD..VX¥36,100199501-199801

W(MECHANICAL WINCH)

52112DEXTENSION, FRONT BUMPER, RH

main52102-60020iHZJ80..STD¥9,100199001-199501

sub52102-60030¥9,100

main52102-60030iFJ80,HDJ80,HZJ80..GX¥9,100199001-199501

main52102-60040iFJ80,HDJ80,HZJ80..GX¥9,100199001-199501

W(MECHANICAL WINCH)

main52102-60050iHZJ80..STD¥9,100199001-199501

W(MECHANICAL WINCH)

sub52102-60040¥9,100

main52102-60070iFJ80,HDJ80..VX¥15,200199001-199501

main52102-60080iFJ80,HDJ80..VX¥15,200199001-199501

W(MECHANICAL WINCH)

main52102-60100iFZJ80..GX¥10,700199208-199501

W(*OF)

main52102-60110iFZJ80..VX¥15,900199208-199501

W(*OF)

main52102-60120iHDJ80..GX¥10,700199208-199501

W(*OF & WINCH)

main52102-60120iHDJ80..GX¥10,700199208-199501

W(MECHANICAL WINCH)

main52102-60130iFZJ80..VX¥15,900199208-199306

W(*OF & WINCH)

sub52102-60160¥15,900

main52102-60130iHDJ80..VX¥15,900199208-199306

W(MECHANICAL WINCH)

sub52102-60160¥15,900

main52102-60160iFZJ80..VX¥15,900199306-199501

W(MECHANICAL WINCH)

main52102-60160iFZJ80..VX¥15,900199306-199501

W(*OF & WINCH)

main52102-60180iFZJ80,HDJ80,HZJ80..GX,STD¥7,200199501-199801

main52102-60190iFZJ80,HDJ80..VX¥12,100199501-199801

sub52102-60180¥7,200

main52102-60200iFZJ80,HDJ80..GX¥7,400199501-199801

W(*OF)

main52102-60210iFZJ80,HDJ80..VX¥12,100199501-199801

W(*OF)

52113DEXTENSION, FRONT BUMPER, LH

main52103-60020iHZJ80..STD¥9,100199001-199501

sub52103-60030¥9,100

main52103-60030iFJ80,HDJ80,HZJ80..GX¥9,100199001-199501

main52103-60040iFJ80,HDJ80,HZJ80..GX¥9,100199001-199501

W(MECHANICAL WINCH)

main52103-60050iHZJ80..STD¥9,100199001-199501

W(MECHANICAL WINCH)

sub52103-60040¥9,100

main52103-60070iFJ80,HDJ80..VX¥15,200199001-199501

main52103-60080iFJ80,HDJ80..VX¥15,200199001-199501

W(MECHANICAL WINCH)

main52103-60100iHDJ80..GX¥10,700199208-199501

W(*OF)

main52103-60110iFZJ80..VX¥15,900199208-199501

W(*OF)

main52103-60120iHDJ80..GX¥10,700199208-199501

W(*OF & WINCH)

main52103-60120iFZJ80..GX¥10,700199208-199501

W(MECHANICAL WINCH)

main52103-60130iFZJ80..VX¥15,900199208-199306

W(MECHANICAL WINCH)

sub52103-60160¥15,900

main52103-60130iHDJ80..VX¥15,900199208-199306

W(*OF & WINCH)

sub52103-60160¥15,900

main52103-60160iFZJ80..VX¥15,900199306-199501

W(MECHANICAL WINCH)

main52103-60160iFZJ80..VX¥15,900199306-199501

W(*OF & WINCH)

main52103-60180iFZJ80,HDJ80,HZJ80..GX,STD¥7,200199501-199801

main52103-60190iFZJ80,HDJ80..VX¥12,100199501-199801

sub52103-60180¥7,200

main52103-60200iFZJ80,HDJ80..GX¥7,400199501-199801

W(*OF)

main52103-60210iFZJ80,HDJ80..VX¥12,100199501-199801

W(*OF)

52133BBRACKET, FRONT BUMPER EXTENSION MOUNTING, RH

main52061-60010iFJ80,FZJ80,HDJ80,HZJ80¥1,250199001-199501

main52133-60031iFJ80,HDJ80,HZJ80¥1,320199204-199206

sub52061-60010¥1,250

52134BBRACKET, FRONT BUMPER EXTENSION MOUNTING, LH

main52062-60010iFJ80,HDJ80,HZJ80¥1,250199001-199501

main52134-60031iFJ80,HDJ80,HZJ80¥1,320199204-199206

sub52062-60010¥1,250

52141DSTAY, FRONT BUMPER, RH

main52141-60060iFJ80,FZJ80,HDJ80,HZJ80¥3,530199001-199501

main52141-60070iFZJ80,HDJ80,HZJ80¥3,500199501-199801

main52141-60080iFZJ80,HDJ80..LHD¥3,530199501-199801

W(MECHANICAL WINCH)

52142CSTAY, FRONT BUMPER, LH

main52142-60050iFJ80,FZJ80,HDJ80,HZJ80¥3,530199001-199501

main52142-60060iFZJ80,HDJ80,HZJ80¥3,500199501-199801

main52142-60070iFZJ80,HDJ80..LHD¥3,530199501-199801

W(MECHANICAL WINCH)

52143AARM, FRONT BUMPER, INNER RH

main52143-60020iFJ80,FZJ80,HDJ80,HZJ80¥2,740199001-199311

main52143-60040iFZJ80,HDJ80,HZJ80¥6,800199501-199801

52144AARM, FRONT BUMPER, INNER LH

main52143-60040iFZJ80,HDJ80,HZJ80¥6,800199501-199801

main52144-60020iFJ80,FZJ80,HDJ80,HZJ80¥2,740199001-199311

52149BRACKET, FRONT BUMPER, INNER

main52149-60020iFJ80,FZJ80,HDJ80,HZJ80¥660199001-199501

main52149-60030iFZJ80,HDJ80,HZJ80¥1,170199501-199801

52521ACLIP(FOR FRONT BUMPER RETAINER)

main90467-04018iFJ80,FZJ80,HDJ80,HZJ80¥120199001-199501

52711MOULDING, FRONT BUMPER

main52711-60010iFJ80,HDJ80,HZJ80..GX,VX¥6,500199001-199501

main52711-60020iHDJ80¥6,300199208-199501

W(*OF)

52715RETAINER, FRONT BUMPER MOULDING, NO.1

main52715-60010iFZJ80,HDJ80,HZJ80..GX,VX¥400199208-199501

52721MOULDING, FRONT BUMPER EXTENSION, RH

main52721-60010iFJ80,HDJ80,HZJ80..GX,VX¥4,680199001-199501

main52721-60020iFZJ80¥4,680199208-199501

W(*OF)

52722MOULDING, FRONT BUMPER EXTENSION, LH

main52722-60010iFJ80,HDJ80,HZJ80..GX,VX¥4,680199001-199501

main52722-60020iFZJ80¥4,680199208-199501

W(*OF)

53112CGRILLE, RADIATOR, LOWER RH

main53112-60020iFJ80,FZJ80,HDJ80,HZJ80¥3,510199001-199501

main53112-60030iFZJ80,HDJ80,HZJ80¥2,710199501-199801

53113CGRILLE, RADIATOR, LOWER LH

main53113-60010iFJ80,FZJ80,HDJ80,HZJ80¥3,510199001-199501

main53113-60020iFZJ80,HDJ80,HZJ80¥2,710199501-199801

9011906068

main90119-06068¥130

9011908126

main90119-08126¥200

9011910048

main90119-10048¥230

9011910612

main90119-10612¥200

9017906009

main90179-06009¥120

9017908063

main90179-08063¥160

9017910068

main90179-10068¥90

9354075020

main93540-75020¥120

9418040500

main94180-40500¥80

27 parts on this diagram · 4 diagrams in section
