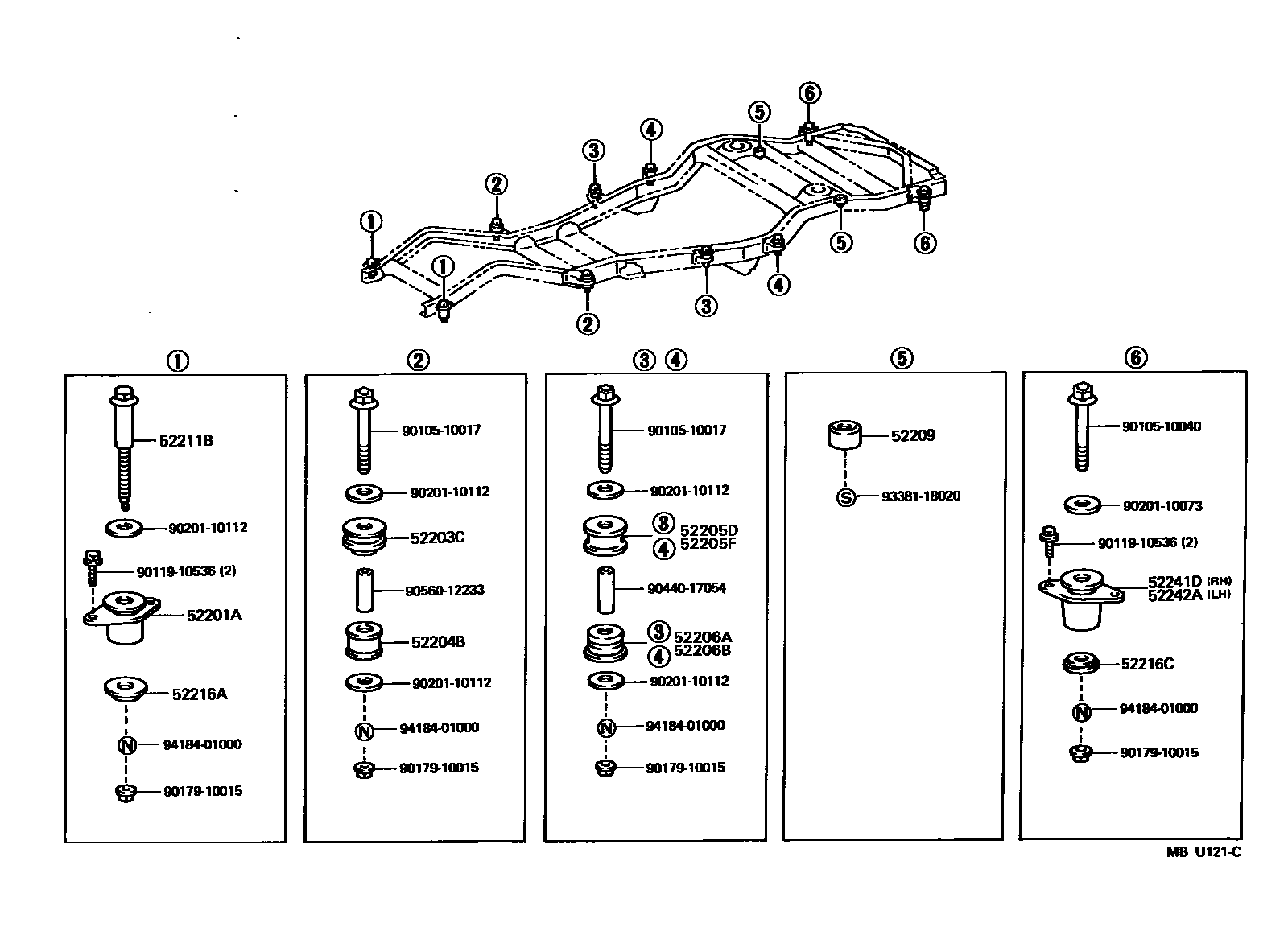

CAB MOUNTING & BODY MOUNTING

52201ACUSHION SUB-ASSY, CAB FRONT MOUNTING

main52201-60020iFJ80,HDJ80,HZJ80199001-199111

main52201-60021iFJ80,FZJ80,HDJ80,HZJ80199111-199801

52203CCUSHION SUB-ASSY, CAB MOUNTING, NO.2 UPPER

main52203-60041iFJ80,HDJ80,HZJ80199001-199111

main52203-60042iFJ80,FZJ80,HDJ80,HZJ80199111-199801

52204BCUSHION SUB-ASSY, CAB MOUNTING, NO.2 LOWER

main52204-60041iFJ80,HDJ80,HZJ80199001-199111

main52204-60042iFJ80,HDJ80,HZJ80199111-199201

main52204-60042iFJ80,FZJ80,HDJ80,HZJ80199201-199801

LH

main52204-60060iFJ80,HDJ80,HZJ80199201-199208

RH

sub52204-60061

main52204-60061iFZJ80,HDJ80,HZJ80199208-199801

RH

52205DCUSHION SUB-ASSY, CAB MOUNTING, NO.3 UPPER

main52205-60010iFJ80,FZJ80,HDJ80,HZJ80199001-199801

52205FCUSHION SUB-ASSY, CAB MOUNTING, NO.4 UPPER

main52205-60010iFJ80,FZJ80,HDJ80,HZJ80199001-199801

52206ACUSHION SUB-ASSY, CAB MOUNTING, NO.3 LOWER

main52206-60010iFJ80,FZJ80,HDJ80,HZJ80199001-199801

52206BCUSHION SUB-ASSY, CAB MOUNTING, NO.4 LOWER

main52206-60010iFJ80,FZJ80,HDJ80,HZJ80199001-199801

52209CUSHION SUB-ASSY, REAR END BODY MOUNTING, UPPER

main52209-60050iFJ80,FZJ80,HDJ80,HZJ80199001-199801

52211BBOLT(FOR BODY MOUNTING NO.1 CUSHION)

main90109-10139iFJ80,FZJ80,HDJ80,HZJ80199001-199801

52216ASTOPPER, CAB MOUNTING CUSHION

main52216-35010iFJ80,FZJ80,HDJ80,HZJ80199001-199801

52216CSTOPPER, CAB MOUNTING CUSHION

main52216-60020iFZJ80,HDJ80,HZJ80199704-199801

main90561-10014iFZJ80,HDJ80,HZJ80199001-199704

52241DCUSHION, CAB REAR MOUNTING, RH

main52241-60020iFJ80,FZJ80,HDJ80,HZJ80199001-199801

52242ACUSHION, CAB REAR MOUNTING, LH

main52242-60010iFJ80,FZJ80,HDJ80,HZJ80199001-199801

9010510017

main90105-10017

9010510040

main90105-10040

9011910536

main90119-10536

9017910015

main90179-10015

9020110073

main90201-10073

9020110112

main90201-10112

9044017054

main90440-17054

9056012233

main90560-12233

9338118020

main93381-18020

9418401000

main94184-01000

23 parts on this diagram · 1 diagram in section
