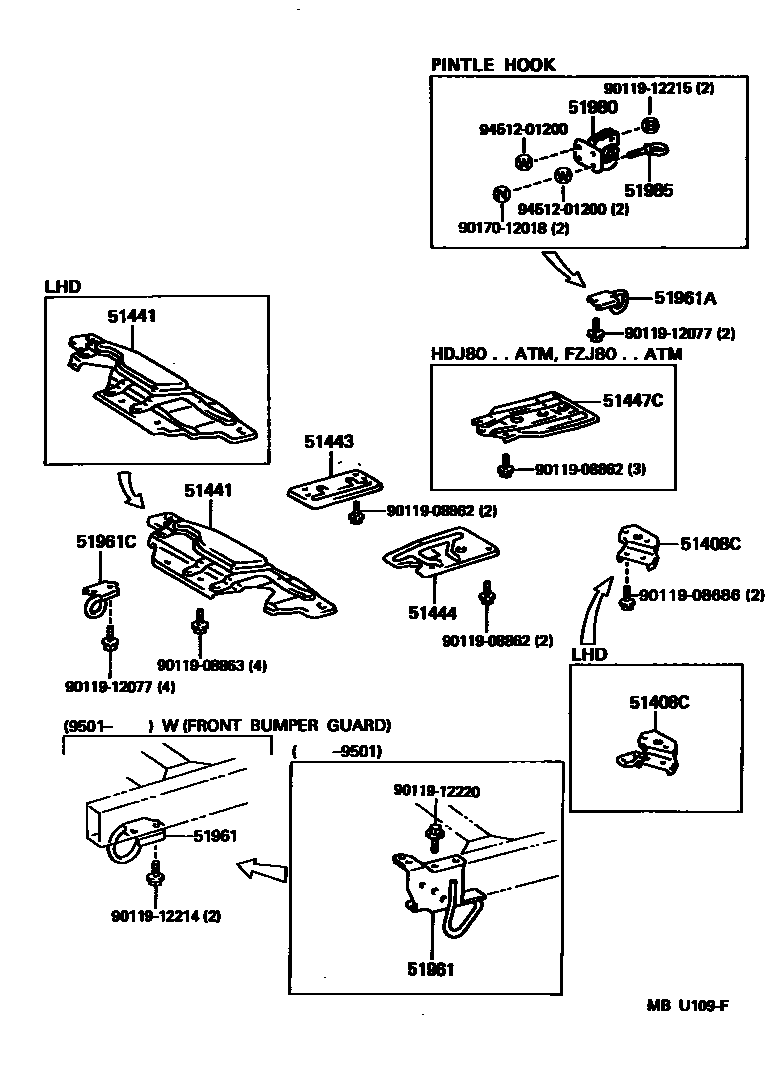

SUSPENSION CROSSMEMBER & UNDER COVER

51408CBRACKET SUB-ASSY, FUEL FILLER MOUNTING

main51408-60020iHDJ80,HZJ80..LHD199001-199801

main51418-60020iHDJ80..RHD199001-199801

51441COVER, ENGINE UNDER, NO.1

main51440-60040iHDJ80,HZJ80..LHD..MTM199001-199801

main51440-60050iHDJ80..RHD..MTM199001-199801

main51441-60140iHDJ80..LHD..ATM199001-199102

main51441-60150iHDJ80..RHD..ATM199001-199102

main51441-60190iFZJ80..LHD;HDJ80..LHD..ATM199208-199801

main51441-60200iFZJ80,HDJ80..RHD..ATM199208-199801

51443COVER, ENGINE UNDER, REAR RH

main51443-60130iFJ80,FZJ80,HDJ80,HZJ80199001-199501

51444COVER, ENGINE UNDER, REAR LH

main51444-60090iFJ80,HDJ80,HZJ80199001-199208

51447CPROTECTOR, TRANSFER CASE

main51447-60010iHDJ80..ATM199001-199801

51961HOOK, NO.1

main38307-60010iFZJ80,HDJ80,HZJ80199208-199501

RH

main38307-60020iFZJ80,HDJ80,HZJ80..LHD199501-199801

RH

main38308-60010iFZJ80,HDJ80,HZJ80199208-199501

LH

main38308-60020iFZJ80,HDJ80,HZJ80..LHD199501-199801

LH

51961AHOOK, NO.3

main51961-60100iFJ80,HDJ80,HZJ80199001-199007

sub51967-60010

main51967-60010iFJ80,FZJ80,HDJ80,HZJ80199007-199801

51961CHOOK, FRONT

main51961-60100iFJ80,HDJ80,HZJ80199001-199007

sub51967-60010

main51967-60010iFJ80,FZJ80,HDJ80,HZJ80199007-199801

51980HOOK ASSY, PINTLE

main51980-60010iFJ80,FZJ80,HDJ80,HZJ80199001-199510

sub51980-60011

main51980-60011iFZJ80,HDJ80,HZJ80199510-199801

sub51980-60012

sub90119-12263

sub90201-12019

51985HOOK, EYELET PINTLE

main51985-60011iFJ80,FZJ80,HDJ80,HZJ80199001-199801

9011908686

main90119-08686

9011908862

main90119-08862

9011908863

main90119-08863

9011912077

main90119-12077

9011912214

main90119-12214

9011912215

main90119-12215

9011912220

main90119-12220

9017012018

main90170-12018

9451201200

main94512-01200

19 parts on this diagram · 1 diagram in section
