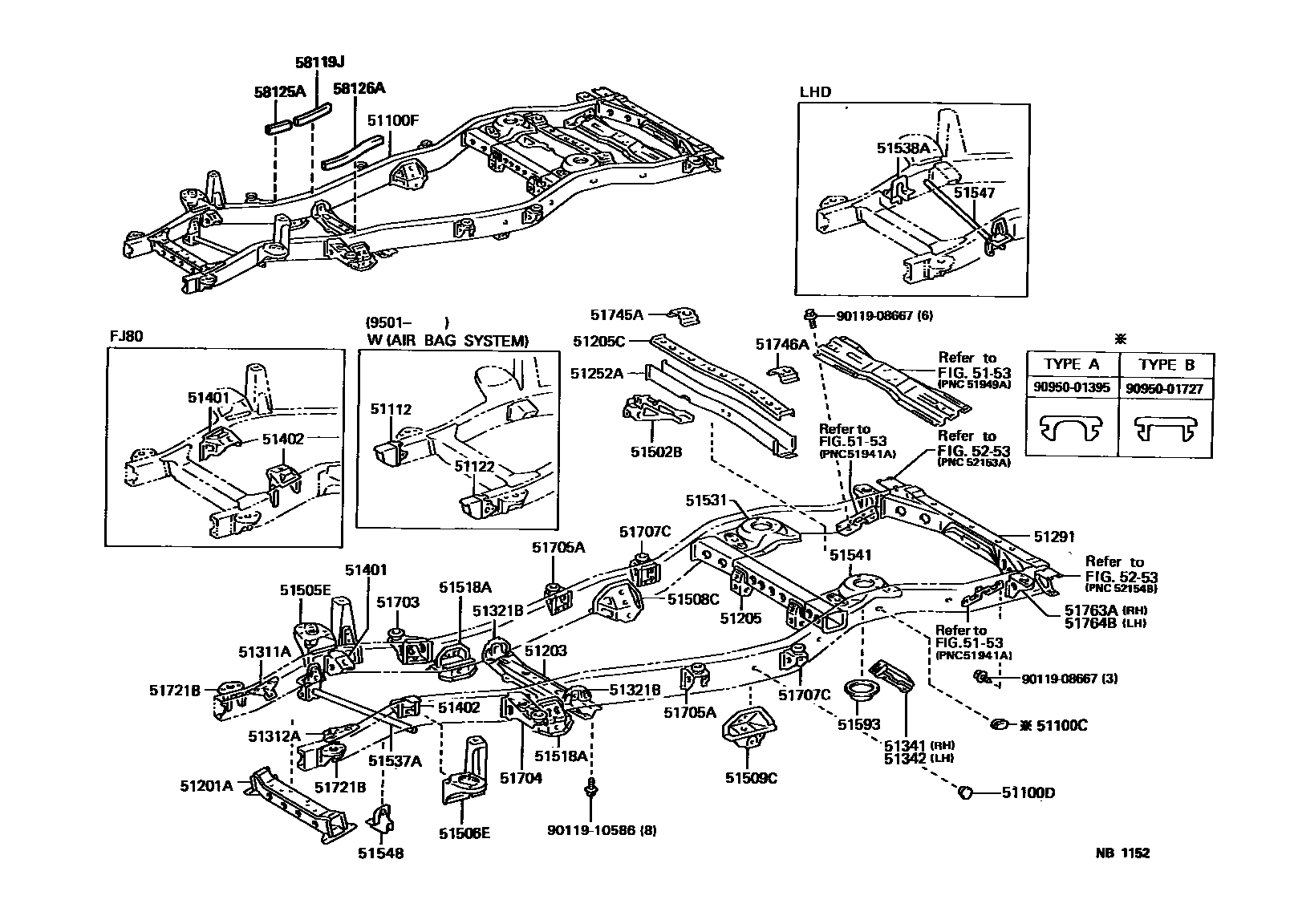

FRAME
51100CPLUG, HOLE(FOR FRAME)
TYPE A
TYPE B
51100DPLUG, HOLE(FOR FRAME)
51100FFRAME SUB-ASSY
sub51003-60104
sub51003-60224
sub51003-60144
sub51003-60224
sub51003-60254
51112EXTENSION, SIDE RAIL, RH
51122EXTENSION, SIDE RAIL, LH
51203CROSSMEMBER SUB-ASSY, FRAME, NO.2
51205CROSSMEMBER SUB-ASSY, FRAME, NO.4
51205CCROSSMEMBER SUB-ASSY, FRAME, NO.5
51321BGUSSET, CROSSMEMBER, NO.2
51341GUSSET, FRAME NO.4 CROSSMEMBER, RH
51342GUSSET, FRAME NO.4 CROSSMEMBER, LH
51401BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH
51402BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH
51502BBRACKET SUB-ASSY, LATERAL ROD SUPPORT
51505EBRACKET SUB-ASSY, FRONT SPRING SUPPORT, RH
51506EBRACKET SUB-ASSY, FRONT SPRING SUPPORT, LH
51508CBRACKET SUB-ASSY, LOWER CONTROL LINK, RH
51509CBRACKET SUB-ASSY, LOWER CONTROL LINK, LH
51518ABRACKET, LEADING ARM
5153
51531BRACKET, REAR SPRING SUPPORT, RH
51541BRACKET, REAR SPRING SUPPORT, LH
51547BRACKET, LATERAL ROD SUPPORT, FRONT LH
51593BRACKET, REAR SPRING BUMPER
51703BRACKET SUB-ASSY, CAB MOUNTING, NO.2, RH
51704BRACKET SUB-ASSY, CAB MOUNTING, NO.2 LH
51705ABRACKET SUB-ASSY, CAB MOUNTING, NO.3
51707CBRACKET SUB-ASSY, CAB MOUNTING, NO.4 RH
51721BBRACKET, CAB FRONT MOUNTING, NO.1
51763ABRACKET, BODY SUPPORT, NO.6 RH
51764BBRACKET, BODY SUPPORT, NO.6 LH
5253
58119JCUSHION, FRONT FLOOR
58125ASEAL, FRONT FLOOR TO FRAME, RH
58126ASEAL, FRONT FLOOR TO FRAME, LH
9011908667
main90119-08667
9011910586
main90119-10586
9095001395
main90950-01395
9095001727
main90950-01727
49 parts on this diagram · 1 diagram in section
