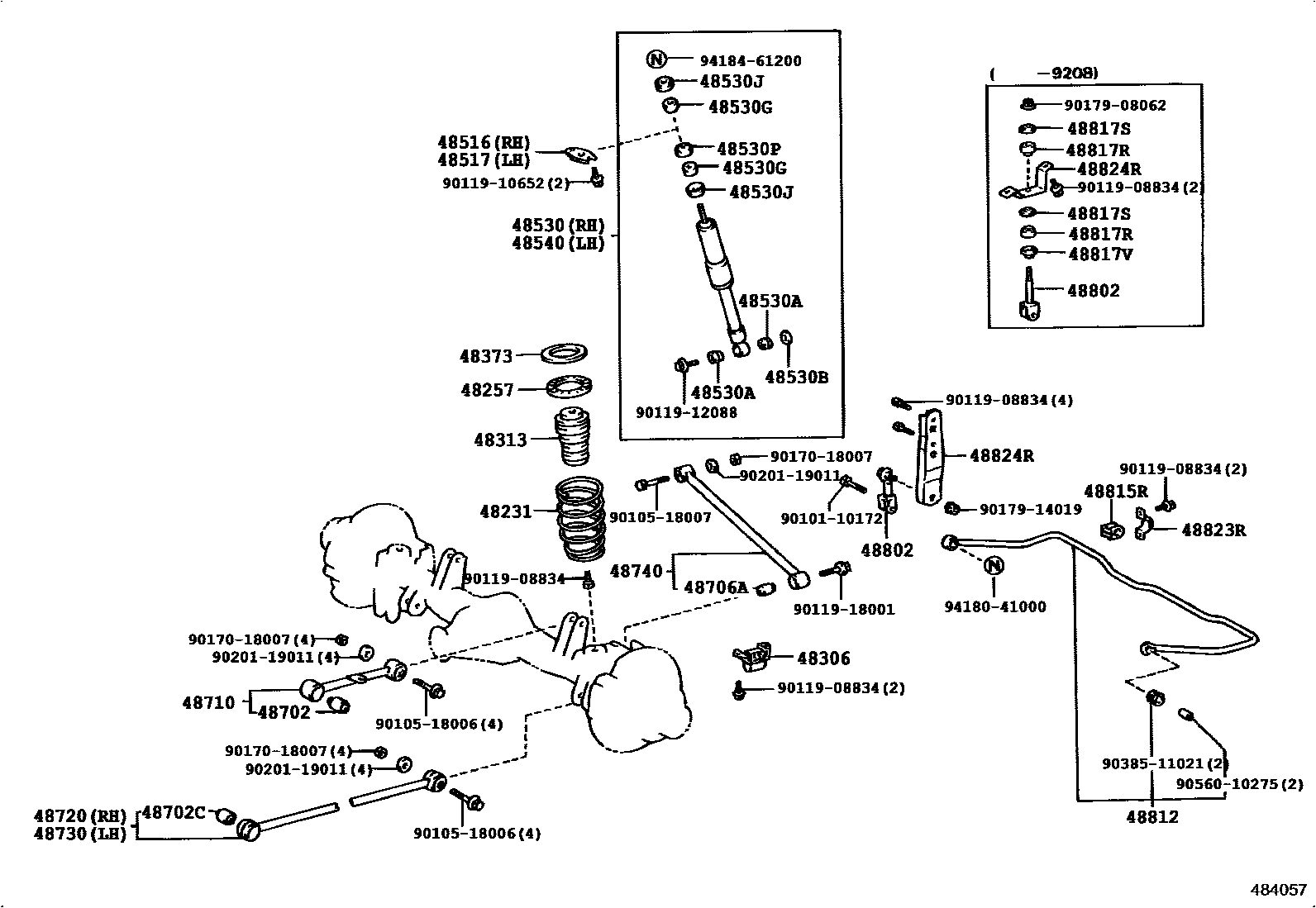

REAR SPRING & SHOCK ABSORBER

48231SPRING, COIL, REAR

main48231-60240iHZJ80..STD199001-199208

RH

main48231-60250iHDJ80..RHD199001-199208

RH

main48231-60250iHDJ80..RHD199001-199208

LH

main48231-60250iFJ80..LUB199001-199208

W(PLANTING OR ALUMINUM WHEEL)

main48231-60260iHZJ80..LUB;FJ80,HDJ80..GX199001-199208

W(3RD SEAT),RH

main48231-60260iFJ80,HDJ80..LHD..VX199001-199208

W(3RD SEAT)

main48231-60260iHZJ80..STD199103-199208

W(3RD SEAT),LH

main48231-60460iHZJ80..STD199103-199208

W(3RD SEAT),RH

main48231-60500iFJ80,HDJ80,HZJ80..LHD..(GX,VX)199001-199208

LH

sub48231-60270

main48231-60520iHZJ80..SOB..GX199001-199208

W(3RD SEAT),LH

main48231-60850iFZJ80,HDJ80..GX199605-199801

W(PAINTING WHEEL) OR W(ALUMINUM WHEEL),RH

main48231-60860iFZJ80..LHD..VX199311-199801

RH

main48231-60860iHDJ80..LHD..VX199605-199801

W(PAINTING WHEEL) OR W(ALUMINUM WHEEL),RH

main48231-60860iHDJ80..LHD..VX199605-199801

W(3RD SEAT),RH

main48231-60860iHZJ80..STD199208-199501

main48231-60870iHDJ80..LHD..VX199605-199801

W(PAINTING WHEEL) OR W(ALUMINUM WHEEL)

main48231-60870iHZJ80..STD199501-199502

LH

main48231-60870iFZJ80..GX199605-199801

H=448.5,W(PAINTING WHEEL & 3RD SEAT) OR W(ALUMINUM WHEEL & 3RD SEAT)

main48231-60870iFZJ80..GX199208-199801

W(3RD SEAT),RH

main48231-60870iFZJ80..GX199605-199801

W(PAINTING WHEEL) OR W(ALUMINUM WHEEL),LH

main48231-60870iFZJ80..GX199605-199801

W(PAINTING WHEEL & 3RD SEAT) OR W(ALUMINUM WHEEL & 3RD SEAT),RH

main48231-60870iFZJ80..GX199501-199801

RH

main48231-60880iFZJ80..LHD..VX199605-199801

W(PAINTING WHEEL) OR W(ALUMINUM WHEEL),LH

main48231-60880iHZJ80..STD199208-199801

LH

main48231-60880iHZJ80..STD199501-199801

W(3RD SEAT),LH

main48231-60880iHDJ80..GX199605-199801

W(PAINTING WHEEL & 3RD SEAT) OR W(ALUMINUM WHEEL & 3RD SEAT)

main48231-60880iHZJ80..GX;FZJ80,HDJ80..LHD..VX199208-199801

RH

main48231-60880iHZJ80..GX;FZJ80,HDJ80..LHD..VX199501-199801

W(3RD SEAT),RH

main48231-60880iHDJ80..RHD199208-199407

main48231-60890iHDJ80..LHD..VX199605-199801

W(PAINTING WHEEL) OR W(ALUMINUM WHEEL),LH

main48231-60890iHDJ80..LHD199311-199801

LH

main48231-60890iHDJ80..LHD199208-199801

W(3RD SEAT),LH

main48231-60890iHZJ80..SOB..GX;HDJ80..LHD..VX..TD4199208-199801

W(3RD SEAT),RH

main48231-60890iHDJ80..RHD199208-199407

W(3RD SEAT)

main48231-6A010iHZJ80..GX199208-199801

LH

main48231-6A010iFZJ80..GX199501-199801

W(3RD SEAT)

main48231-6A010iFZJ80,HDJ80..RHD199501-199801

W(3RD SEAT),LH

main48231-6A020iHDJ80,HZJ80..LHD..(GX,VX)..(DSL,TD2)199208-199801

W(3RD SEAT),LH

main48231-6A020iHDJ80..LHD..VX199501-199801

LH

48257INSULATOR, REAR COIL SPRING

main48257-60020iHZJ80..STD199001-199801

48306BUMPER SUB-ASSY, REAR SPRING

main48306-60090iFJ80,HDJ80,HZJ80199001-199801

48313SPRING, HOLLOW(FOR REAR SUSPENSION)

main48313-60010iFJ80,HDJ80,HZJ80199001-199801

48373SPACER, REAR SPRING

main48373-60010iHDJ80;HZJ80..GX;FZJ80..RHD;FZJ80..GX,STD199001-199801

48516BRACKET, REAR SHOCK ABSORBER, UPPER RH

main48516-60030iFJ80,HDJ80,HZJ80199001-199109

main48516-60031iFJ80,HDJ80,HZJ80199109-199801

48517BRACKET, REAR SHOCK ABSORBER, UPPER LH

main48517-60010iFJ80,HDJ80,HZJ80199001-199109

main48517-60011iFZJ80,HDJ80,HZJ80199109-199801

48530ABSORBER ASSY, SHOCK, REAR RH

main48531-69245iFJ80,HDJ80,HZJ80199001-199208

MARK 48531-60370

sub48531-69246

main48531-69415iFZJ80,HDJ80,HZJ80199208-199401

MARK 48531-60430

sub48531-69417

main48531-69416iFZJ80,HDJ80,HZJ80199401-199607

MARK 48531-60431

sub48531-69418

main48531-69418iFZJ80,HDJ80,HZJ80199607-199610

MARK 48531-60431

sub48531-69535

main48531-69535iFZJ80,HDJ80,HZJ80199610-199801

MARK 48531-60540

48530ABUSH(FOR REAR SHOCK ABSORBER)

main90385-19003iFZJ80,HDJ80,HZJ80199001-199801

48530BWASHER, REAR SHOCK ABSORBER CUSHION, NO.1

main90948-03011iFZJ80,HDJ80,HZJ80199001-199801

48530GCUSHION, REAR SHOCK ABSORBER, NO.1

main90948-01004iFJ80,HDJ80,HZJ80199001-199801

48530JRETAINER, CUSHION, NO.1(FOR REAR SHOCK ABSORBER)

main90948-02144iFJ80,HDJ80,HZJ80199001-199801

48530PRETAINER, CUSHION, NO.2(FOR REAR SHOCK ABSORBER)

main90948-02141iFJ80,HDJ80,HZJ80199001-199801

48540ABSORBER ASSY, SHOCK, REAR LH

main48531-69245iFJ80,HDJ80,HZJ80199001-199208

MARK 48531-60370

sub48531-69246

main48531-69415iFZJ80,HDJ80,HZJ80199208-199401

MARK 48531-60430

sub48531-69417

main48531-69416iFZJ80,HDJ80,HZJ80199401-199607

MARK 48531-60431

sub48531-69418

main48531-69418iFZJ80,HDJ80,HZJ80199607-199610

MARK 48531-60431

sub48531-69535

main48531-69535iFZJ80,HDJ80,HZJ80199610-199801

MARK 48531-60540

48702BUSH SUB-ASSY, UPPER CONTROL ARM

main48702-60030iFJ80,HDJ80,HZJ80199001-199309

sub48702-60031

main48702-60031iFZJ80,HDJ80,HZJ80199309-199801

48702CBUSH SUB-ASSY, LOWER CONTROL ARM

main48702-60040iFJ80,HDJ80,HZJ80199001-199801

48706ABUSH SUB-ASSY, REAR LATERAL CONTROL ROD

main48706-60040iFZJ80,HDJ80,HZJ80199001-199801

48710ARM ASSY, UPPER CONTROL

main48710-60020iFJ80,HDJ80,HZJ80199001-199309

sub48710-60021

main48710-60021iFZJ80,HDJ80,HZJ80199309-199801

main48710-60030iFZJ80,HDJ80,HZJ80..GX,VX199208-199309

W(*66)

sub48710-60031

main48710-60031iFZJ80,HDJ80,HZJ80..GX,VX199309-199501

W(*66)

48720ARM ASSY, LOWER CONTROL, RH

main48720-60010iFJ80,HDJ80,HZJ80199001-199501

sub48720-60011

main48720-60011iFZJ80,HDJ80,HZJ80199501-199801

main48720-60012iFZJ80,HDJ80,HZJ80199511-199709

48730ARM ASSY, LOWER CONTROL, LH

main48720-60010iFJ80,HDJ80,HZJ80199001-199501

sub48720-60011

main48720-60011iFZJ80,HDJ80,HZJ80199501-199801

main48720-60012iFZJ80,HDJ80,HZJ80199511-199709

48740ROD ASSY, REAR LATERAL CONTROL

main48740-60040iFJ80,HDJ80,HZJ80199001-199801

48802LINK SUB-ASSY, STABILIZER

main48802-60030iFZJ80,HDJ80,HZJ80199001-199801

main48802-60060iFZJ80,HDJ80,HZJ80199208-199608

48812BAR, STABILIZER, REAR

main48805-60020iFZJ80,HDJ80,HZJ80199001-199801

sub48805-60021

48815RBUSH, STABILIZER(FOR REAR)

main48815-26020iFZJ80,HDJ80,HZJ80199208-199801

main48815-30090iFJ80,HDJ80,HZJ80199001-199208

48817RCUSHION, STABILIZER(FOR REAR)

main48817-30010iFJ80,HDJ80,HZJ80199001-199801

48817SRETAINER, CUSHION, NO.1(FOR STABILIZER REAR BAR)

main90948-02126iFZJ80,HDJ80,HZJ80199001-199801

48817VRETAINER, CUSHION, NO.2(FOR STABILIZER REAR BAR)

main90948-02127iFJ80,HDJ80,HZJ80199001-199801

48823RCOVER, STABILIZER LINK(FOR REAR)

main48823-60030iFZJ80,HDJ80,HZJ80199208-199801

main48824-30050iFJ80,HDJ80,HZJ80199001-199208

48824RBRACKET, STABILIZER(FOR REAR)

main48825-60040iFJ80,HDJ80,HZJ80199001-199801

main48832-60030iFZJ80,HDJ80,HZJ80199208-199608

9010110172

main90101-10172

9010518006

main90105-18006

9010518007

main90105-18007

9011908834

main90119-08834

9011910652

main90119-10652

9011912088

main90119-12088

9011918001

main90119-18001

9017018007

main90170-18007

9017908062

main90179-08062

9017914019

main90179-14019

9020119011

main90201-19011

9038511021

main90385-11021

9056010275

main90560-10275

9418041000

main94180-41000

9418461200

main94184-61200

44 parts on this diagram · 1 diagram in section
