FRONT SPRING & SHOCK ABSORBER

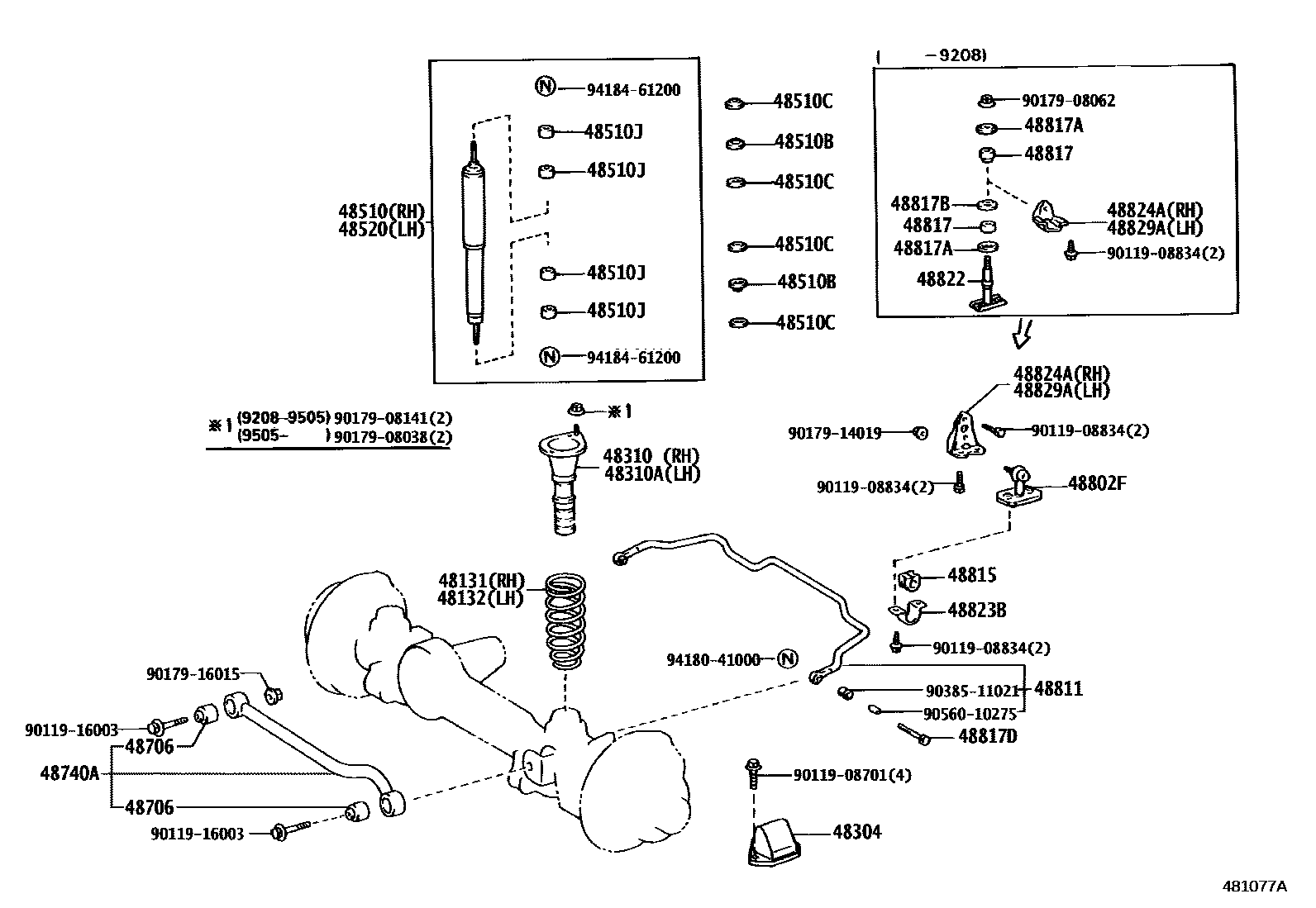

Parts diagram
48131SPRING, FRONT COIL, RH
main48131-60190i199001-199208
main48131-60230i199001-199208
main48131-60570i199001-199208
W(MECHANICAL WINCH)
main48131-60810i199001-199208
main48131-60840i199001-199208
W(MECHANICAL WINCH)
main48131-60890i199001-199208
W(MECHANICAL WINCH)
main48131-6A020i199001-199208
W(MECHANICAL WINCH)
main48131-6A450i199208-199501
sub48131-6A570
main48131-6A460i199208-199801
sub48131-6A570
main48131-6A470i199605-199801
W(PAINTING WHEEL) OR W(ALUMINUM WHEEL)
sub48131-6A480
main48131-6A470i199208-199501
W(MECHANICAL WINCH)
sub48131-6A480
main48131-6A470i199208-199801
sub48131-6A480
main48131-6A480i199208-199801
W(MECHANICAL WINCH)
main48131-6A480i199605-199801
W(PAINTING WHEEL) OR W(ALUMINUM WHEEL)
main48131-6A480i199208-199407
main48131-6A490i199307-199801
W(MECHANICAL WINCH)
sub48131-6A480
main48131-6A500i199208-199801
W(MECHANICAL WINCH)
sub48131-6A510
main48131-6A500i199605-199801
W(PAINTING WHEEL) OR W(ALUMINUM WHEEL)
sub48131-6A510
main48131-6A500i199605-199801
W(MECHANICAL WINCH & ALUMINUM WHEEL)
sub48131-6A510
main48131-6A500i199605-199801
W(MECHANICAL WINCH & PAINTING WHEEL)
sub48131-6A510
main48131-6A510i199208-199801
W(MECHANICAL WINCH)
main48131-6A740i199605-199801
W(MECHANICAL WINCH & ALUMINUM WHEEL)
sub48131-6A760
main48131-6A740i199605-199801
W(MECHANICAL WINCH & PAINTING WHEEL)
sub48131-6A760
main48131-6A760i199605-199801
W(MECHANICAL WINCH & ALUMINUM WHEEL)
main48131-6A760i199605-199801
W(MECHANICAL WINCH & PAINTING WHEEL)
main48131-6A760i199501-199801
W(MECHANICAL WINCH)
48132SPRING, FRONT COIL, LH
main48131-60570i199001-199208
main48131-60810i199001-199208
main48131-60830i199001-199208
main48131-60840i199001-199208
W(MECHANICAL WINCH)
main48131-60860i199001-199208
W(MECHANICAL WINCH)
main48131-6A020i199001-199208
W(MECHANICAL WINCH)
main48131-6A460i199208-199501
sub48131-6A570
main48131-6A470i199208-199801
sub48131-6A480
main48131-6A480i199208-199801
main48131-6A480i199208-199501
W(MECHANICAL WINCH)
main48131-6A480i199605-199801
W(PAINTING WHEEL) OR W(ALUMINUM WHEEL)
main48131-6A490i199501-199801
W(MECHANICAL WINCH)
sub48131-6A480
main48131-6A490i199605-199801
W(PAINTING WHEEL) OR W(ALUMINUM WHEEL)
sub48131-6A480
main48131-6A500i199311-199801
sub48131-6A510
main48131-6A500i199208-199801
W(MECHANICAL WINCH)
sub48131-6A510
main48131-6A510i199208-199801
W(MECHANICAL WINCH)
main48131-6A510i199605-199801
W(PAINTING WHEEL) OR W(ALUMINUM WHEEL)
main48131-6A510i199605-199801
W(MECHANICAL WINCH) OR W(PAINTING WHEEL) OR W(ALUMINUM WHEEL)
main48131-6A510i199605-199801
W(MECHANICAL WINCH & ALUMINUM WHEEL)
main48131-6A510i199605-199801
W(MECHANICAL WINCH & PAINTING WHEEL)
main48131-6A740i199605-199801
W(MECHANICAL WINCH & PAINTING WHEEL)
sub48131-6A760
main48131-6A740i199605-199801
W(MECHANICAL WINCH & ALUMINUM WHEEL)
sub48131-6A760
main48131-6A760i199501-199801
W(MECHANICAL WINCH)
48304BUMPER SUB-ASSY, FRONT SPRING, NO.1
main48304-60080i199208
RH
main48306-60062i199208
LH
48310SPRING ASSY, FRONT SUSPENSION HOLLOW, RH
main48310-60010i199001-199201
main48310-60030i199201-199801
48310ASPRING ASSY, FRONT SUSPENSION HOLLOW, LH
main48310-60010i199001-199201
main48310-60030i199201-199801
48510ABSORBER ASSY, SHOCK, FRONT RH
main48511-69185i199001-199208
MARK 48511-60180
sub48511-69186
main48511-69195i199001-199201
MARK 48511-60190,W(MECHANICAL WINCH)
sub48511-69245
main48511-69385i199208-199401
MARK 48511-60390
sub48511-69387
main48511-69386i199401-199607
MARK 48511-60391
sub48511-69388
main48511-69388i199607-199610
MARK 48511-60391
sub48511-69435
main48511-69435i199610-199801
MARK 48511-60480
48510BRETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER)
main90948-02141i199001-199801
48510CRETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER)
main90948-02144i199001-199801
48510JCUSHION, FRONT SHOCK ABSORBER, NO.1
main90948-01004i199001-199801
48520ABSORBER ASSY, SHOCK, FRONT LH
main48511-69185i199001-199208
MARK 48511-60180
sub48511-69186
main48511-69195i199001-199201
MARK 48511-60190,W(MECHANICAL WINCH)
sub48511-69245
main48511-69385i199208-199401
MARK 48511-60390
sub48511-69387
main48511-69386i199401-199607
MARK 48511-60391
sub48511-69388
main48511-69388i199607-199610
MARK 48511-60391
sub48511-69435
main48511-69435i199610-199801
MARK 48511-60480
48706BUSH SUB-ASSY, FRONT LATERAL CONTROL ROD
main48706-60030i199001-199801
48740AROD ASSY, FRONT LATERAL CONTROL
main48740-60050i199001-199801
main48740-60060i199001-199801
48802FLINK SUB-ASSY, FRONT STABILIZER
main48802-60050i199208-199801
sub48802-60120
48811BAR, STABILIZER, FRONT
main48804-60010i199001-199004
W(*FDL)
main48804-60020i199001-199004
W(*MW & *FDL)
main48804-60030i199001-199004
sub48804-60031
main48804-60031i199004-199208
main48804-60040i199001-199004
W(*MW)
main48804-60041i199004-199208
W(*MW)
main48804-60060i199208-199501
main48804-60061i199501-199801
48815BUSH, FRONT STABILIZER BAR, NO.1
main48815-30080i199001-199201
main48815-30100i199001-199201
W(MECHANICAL WINCH)
main48815-60040i199201-199208
W(MECHANICAL WINCH)
main48815-60050i199201-199208
main48815-60070i199208-199801
48817CUSHION, FRONT STABILIZER
main48817-30010i199001-199208
48817ARETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)
main90948-02126i199001-199208
48817BRETAINER, CUSHION, NO.2(FOR FRONT STABILIZER BAR)
main90948-02127i199001-199208
48817DBOLT(FOR FRONT STABILIZER)
main90101-10172i199001-199801
sub91112-61045
48822ROD, STABILIZER LINK
main48822-60040i199001-199201
main48822-60041i199201-199208
48823BCOVER, FRONT STABILIZER BRACKET
main48823-60030i199201-199801
main48824-30050i199001-199201
48824ABRACKET, FRONT STABILIZER, NO.1 RH
main48809-60010i199112-199208
main48824-60050i199001-199108
sub48824-60051
main48824-60051i199108-199112
sub48809-60010
main48824-60070i199208-199801
48829ABRACKET, FRONT STABILIZER, NO.1 LH
main48807-60010i199112-199208
main48829-60030i199001-199108
sub48829-60031
main48829-60031i199108-199112
sub48807-60010
main48829-60050i199208-199801
9011908701
main90119-08701
9011908834
main90119-08834
9011916003
main90119-16003
9017908038
main90179-08038
9017908062
main90179-08062
9017908141
main90179-08141
9017914019
main90179-14019
9017916015
main90179-16015
9038511021
main90385-11021
9056010275
main90560-10275
9418041000
main94180-41000
9418461200
main94184-61200

35 parts on this diagram · 1 diagram in section
